SURFACE MOUNT INSTALLATION GUIDE
PREMIUM HAND SANITIZING FIXTURE
ASSEMBLED IN THE USA
Original instructions (English language/U.S. version). All versions of this manual in languages other than
English are translated based on the original, capturing its substance without additions or alterations.
Patents applied for in the USA and abroad.
Model #: WMD-001-M02 | Rev. SIG-230106
Patent No. D970,919
®
| 2
FOR COUNTRIES NOT COVERED BY THE EUROPEAN UNION
This appliance is not intended for use by people (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless a person responsible for their safety has given them supervision or instruction
concerning the use of the appliance. Children should be supervised to ensure that
they do not play with the appliance.
FOR COUNTRIES COVERED BY THE EUROPEAN UNION
This appliance can be used by children age 8 and older and by people with reduced
physical, sensory or mental capabilities, or a lack of experience and knowledge, only
if someone supervises them or instructs them on the safe use of the appliance and
the user understands the hazards involved.
Children shall not play with this appliance, nor shall they clean or maintain the
appliance, without supervision.
To prevent accidents and machine damage, read these instructions before
installation or use.
For help, call +1 (512) 956-7687 or visit vaask.com.
| 3
INSTALLATION
This equipment is not designed for maritime use or for use in mobile installations such as
caravans or aircraft, except under certain conditions. Contact the Vaask Technical Service
Department at +1 (512) 956-7687 with specific requirements.
Inspect the dispenser for transport damage, and do not install or use a damaged unit.
Contact Customer Service at +1 (512) 956-7687 if you find damage.
ELECTRICAL SAFETY
Before installation, make sure the voltage and frequency listed on the data plate match
that of the electrical supply. This data must correspond in order to prevent injury and
machine damage. Consult a qualified electrician if you are unsure.
To guarantee the electrical safety of this appliance, it is imperative that continuity exists
between the appliance and an effective grounding system. If you have any doubt, get a
qualified electrician to check the electrical system of the facility. The manufacturer cannot
be held responsible for damages caused by the lack or inadequacy of an effective grounding
system.
| 4

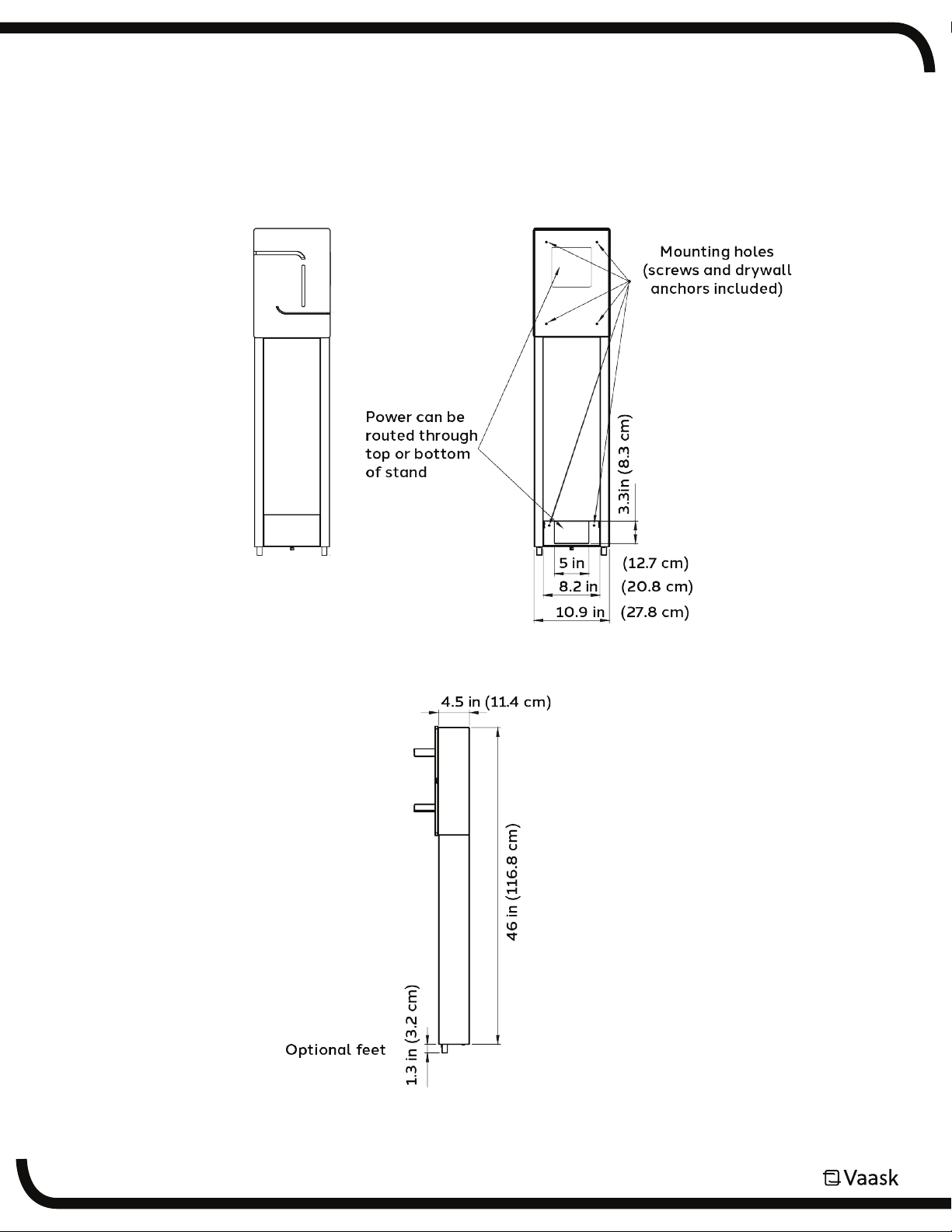

DIMENSIONAL DRAWINGS AND PARTS
| 5

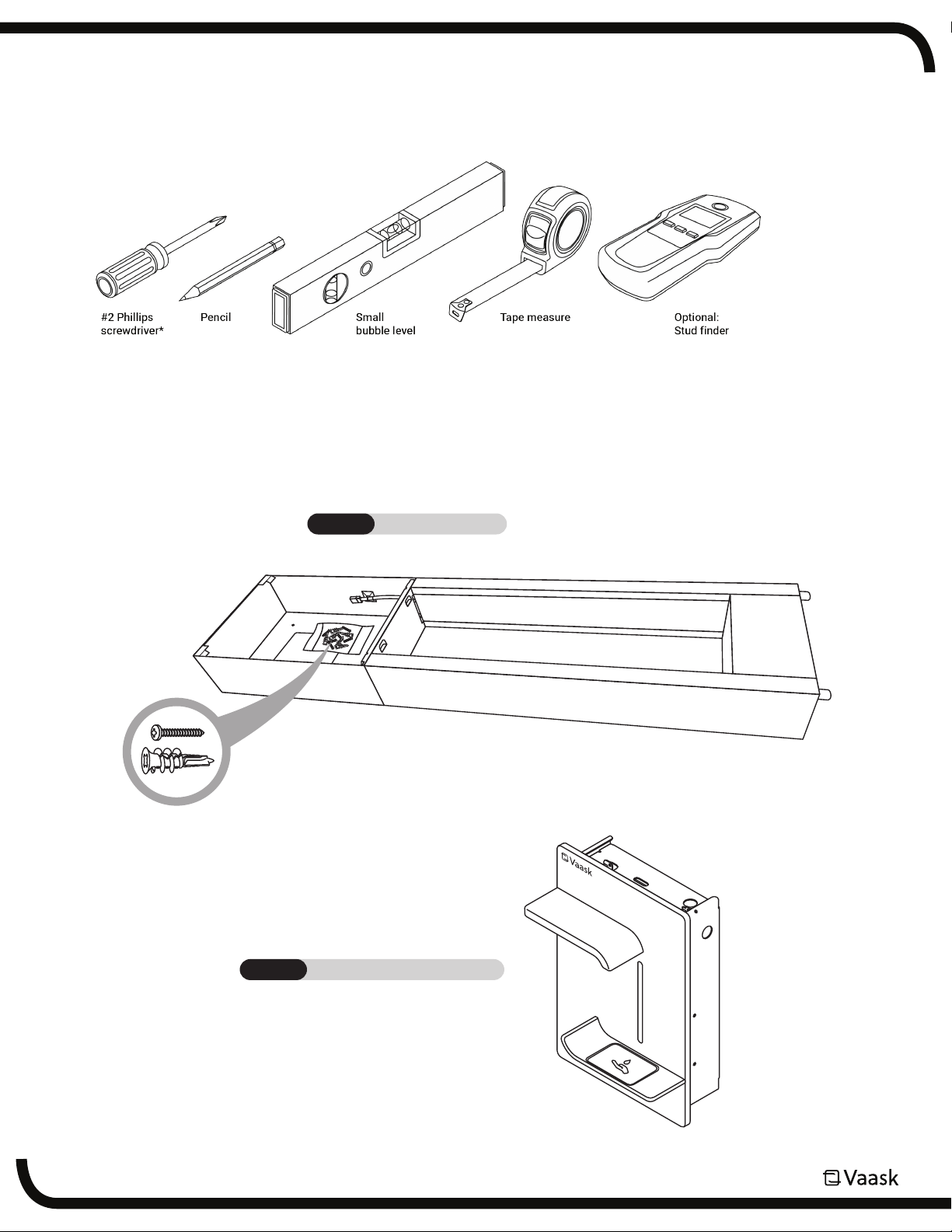

TOOLS NEEDED
WHAT’S INCLUDED IN THE BOX
Box 2 Hand Sanitizing Fixture
Box 1 Surface mount
Six (6) screws and six (6) drywall anchors, bagged*
* Non-drywall construction may require the installer to
use other fasteners. The adhesive or anchor system
you choose should hold at least 200 pounds.
| 6

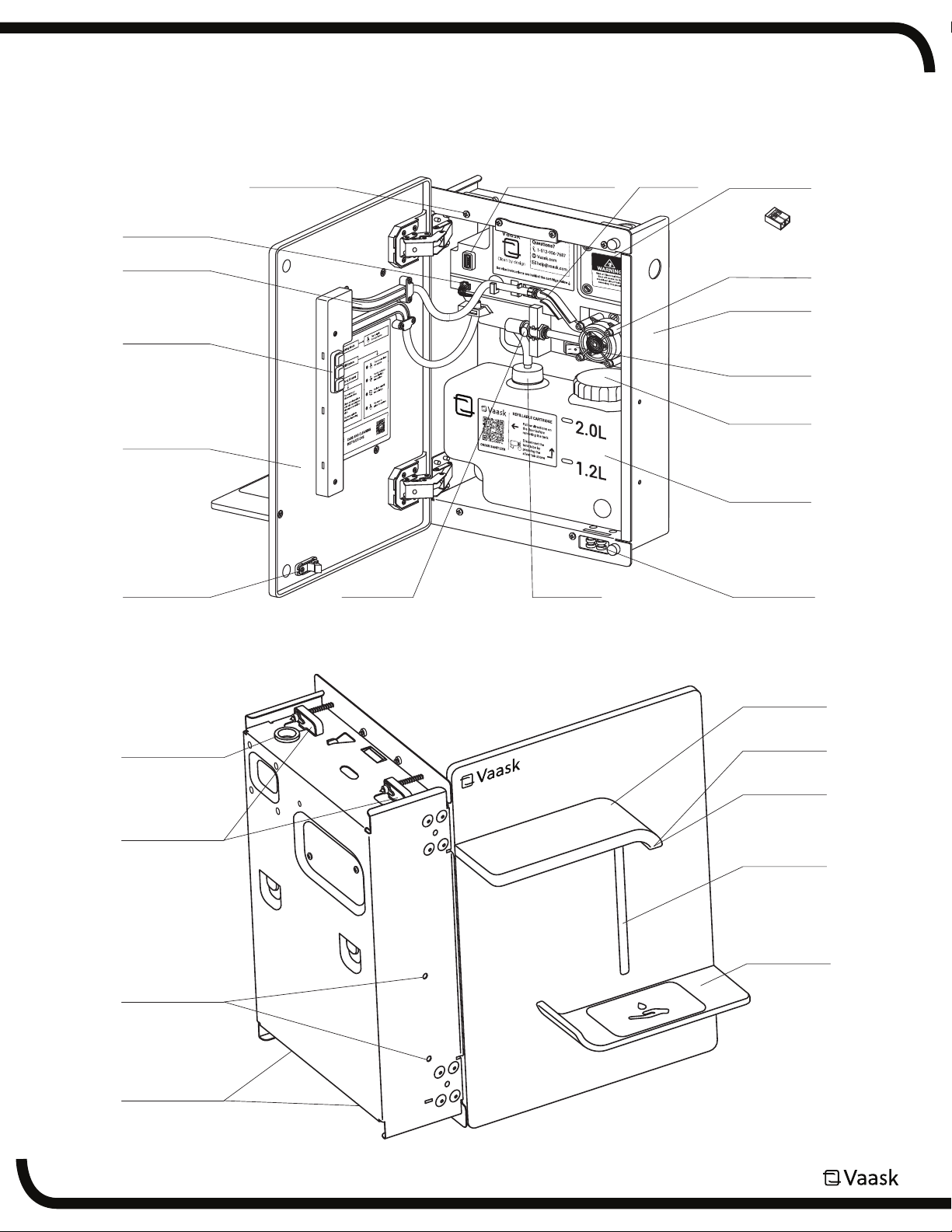

100 to 220V
single-phase AC
electrical conduit /
wire port
Faucet
Hand sensor
Dispense nozzle
LED display
Catch tray
Wall façade
retention clips
Wall façade
retention clips
Optional direct-to-stud
mounting holes
BOX 2 HAND SANITIZING FIXTURE
Junction box
Stored in box:
3 X
Pump
Enclosure
Pump tubeFirmware update portFaçade clip screw
Nozzle tube
Control buttons
Slam latch
Door
Door harness
Power switch
Refill cap
Refillable 2.0L
cartridge
Slam latchDip tube cap
Cartridge
release button
WAGO connector
| 7
BEFORE YOU BEGIN
If you choose to plug your Surface mount [option B in the diagram below] into an
outlet, then ensure that it will be located no more than 8 ft (2.4 m) from a 110V to
220V single-phase outlet with at least 0.25-amp capacity. Most standard outlets
meet these requirements.
*The Surface mount can be plugged into an outlet or hardwired by a certified electrician.
| 8

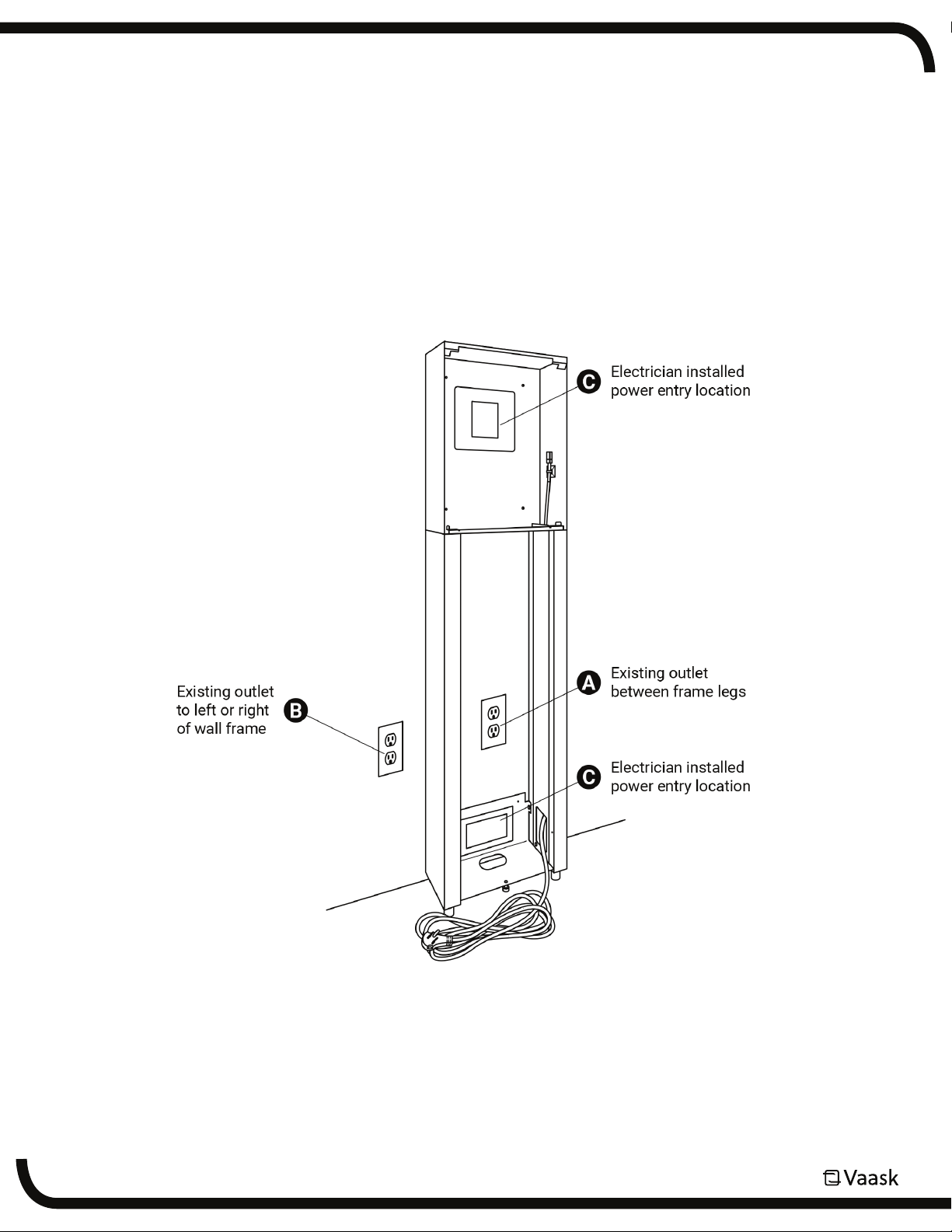

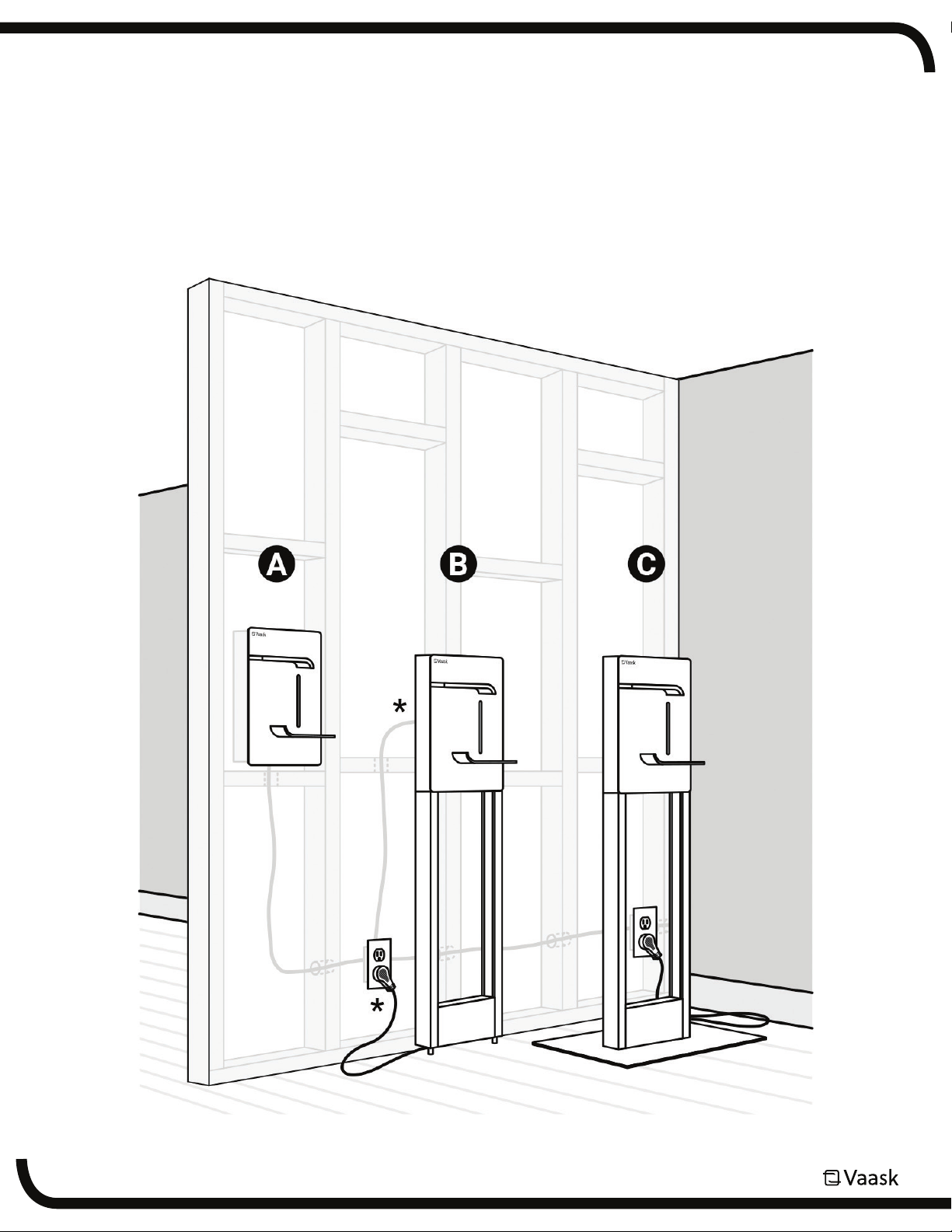

Options for power location include:
A. Existing outlet between frame legs
B. Existing outlet to left or right of wall frame
C. Hardwiring the hand sanitizing fixture. For this option, contact a certified
electrician, who can install the fixture in accordance with local building code
requirements.
| 9
INSTALLATION INSTRUCTIONS
PRE-INSTALLATION STEPS
1. Remove the Surface mount from box 1.

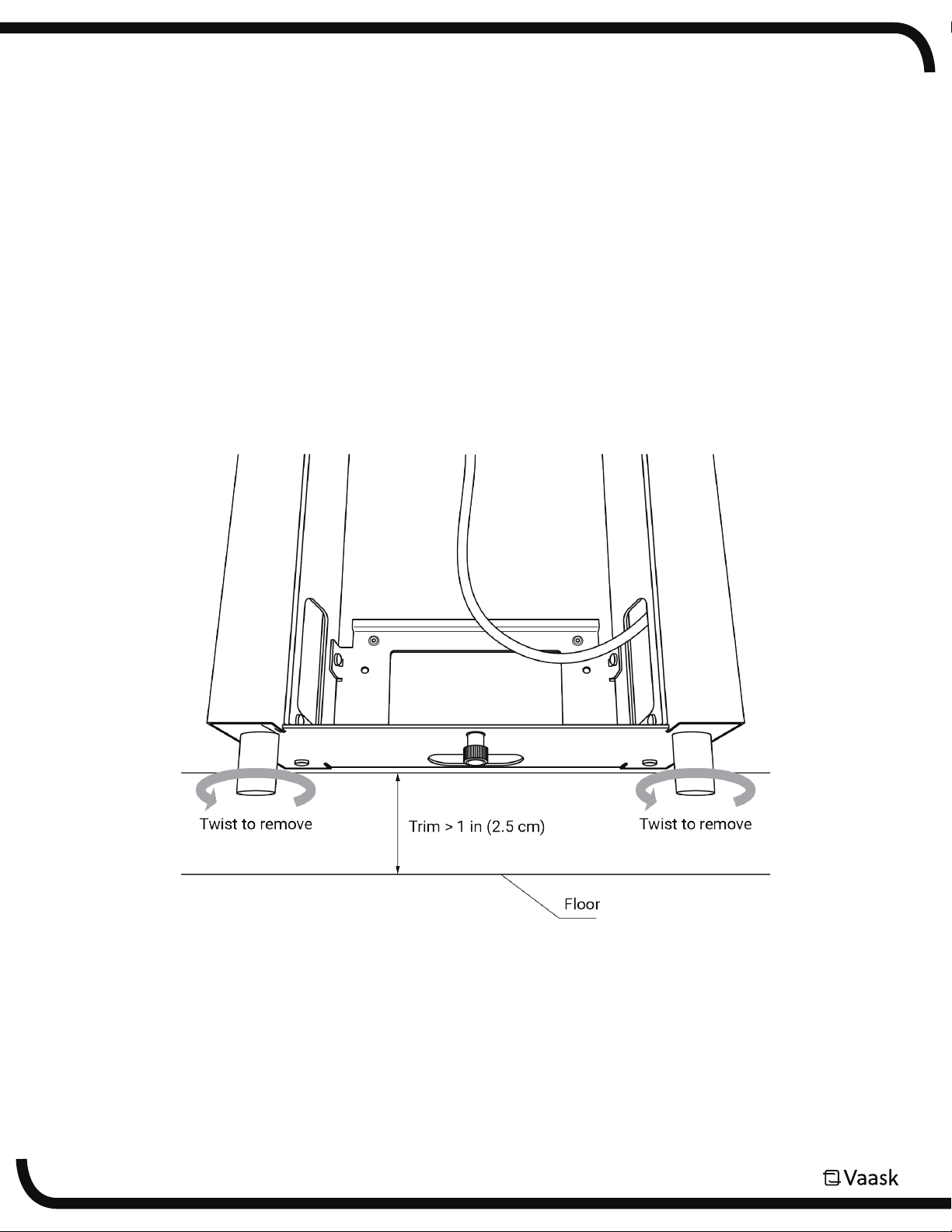

2. Adjust for the baseboard trim height.
• If the baseboard trim along the bottom of the wall is thicker than 0.15 in
(4 mm) and taller than 1 in (2.5 cm), then the Surface mount needs to be
installed higher on the wall to compensate. The base posts can be removed if
desired.
• Otherwise, the mount can be attached to the wall with the base posts resting
on the floor.
| 10
INSTALL SURFACE MOUNT TO WALL

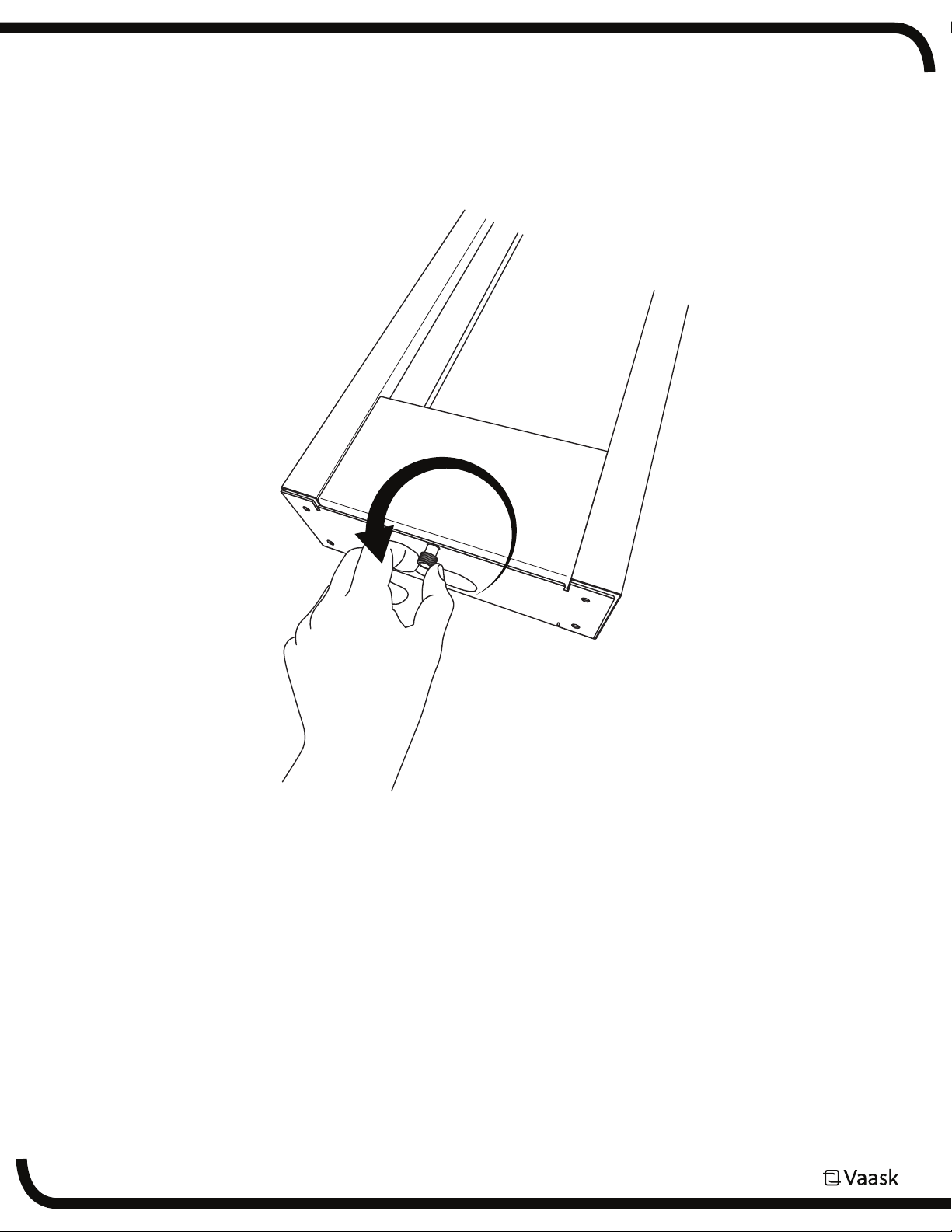

1. Remove the lower box cover from the Surface mount by unscrewing the captive
thumb screw.
2. Temporarily place the Surface mount in its desired location.
3. Rest the bottom edge of the mount on the baseboard if the baseboard is taller
than 1 in (2.5 cm). Otherwise, rest the base posts directly on the floor.
4. Use a bubble level to ensure that the mount is flush with the floor.
