SYMBOLS

Caution.

Read instruction manual. Failure to follow the warnings and

instructions may result in electric shock, re and/or serious injury.

Appliance in which protection against electric shock does not rely on

basic insulation only but in which additional safety precautions are

provided, such as double insulation or reinforced insulation, there

being no provision for protective earthing or reliance upon installation

conditions.

Do not dispose of electrical equipment in domestic waste.

Thank you for purchasing this Vacmaster®vacuum cleaner. This is a vacuum cleaner intended for

domestic use only and suitable for indoor use within a normal household environment for light, dry

dust and debris.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

SAFETY INFORMATION

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER.

When using the equipment, a few safety precautions must be

observed to avoid injuries and damage. Please read the complete

operating manual with due care. Keep this manual in a safe

place so that the information is always available. If you give

the equipment to any other person, give them these operating

instructions as well. We cannot accept any liability for damage or

accidents which arise due to a failure to follow these instructions

and the safety information.

• This machine is for dry and indoor use only.

• Never leave the appliance switched on unattended, if you leave

the work area, switch the appliance off or unplug it from the

power supply.

• Do not vacuum or use this vacuum cleaner near ammable

liquids, gases or explosive vapours like gasoline or other fuels,

lighter uids, cleaners, oil-based paints, natural gas, hydrogen,

or explosive dusts like coal dust, magnesium dust, grain dust or

gun power, or toxic materials. Sparks inside the motor can ignite

ammable vapours or dust. Do not vacuum toxic materials.

• This vacuum cleaner is not suitable for the vacuuming of

asbestos or asbestos dust.

• Do not vacuum anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

• Do not use the vacuum cleaner in a wet environment or to

vacuum wet materials.

• Do not use steam cleaners, pressure washers or immerse in

water to clean the vacuum cleaner.

• Ensure the hose and connections are always pointed away from

the operators face, hair, ears and eyes during operation and

never direct the nozzle towards persons or animals.

• Clear the working area of any items or possessions that you do

not wish to be vacuumed before operation.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors only.

• Do not unplug by pulling on the cord. To unplug, grasp the plug,

not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle, close a door on

cord, or pull cord around sharp edges or corners.

• Do not handle the plug or vacuum cleaner with wet hands.

• Do not use or store near hazardous materials.

• Do not use this vacuum cleaner with a torn lter or without the

lter installed.

• Do not allow to be used as a toy. Close attention is necessary

when used near children. Do not allow the appliance to be used

by children.

• Do not try to touch the brushroll while the vacuum cleaner is

switched on and the brushroll is spinning.

• Unplug from power supply when not in use or before carrying

out maintenance.

• The machine should be disconnected from its power source

during cleaning or maintenance and when replacing parts.

• Turn off vacuum cleaner before unplugging from power source.

• Do not cover the ventilation openings. Do not vacuum with any

ventilation openings blocked; keep free of dust, lint, hair or

anything that may reduce air ow.

• Keep hair, loose clothing, ngers, all parts of body away from

openings and moving parts.

• If the supply cord is damaged, it must be replaced by the

manufacturer, a qualied service agent or similarly qualied

persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• Besides the operating instructions and the binding accident

prevention regulations valid in the country of use, observe

recognized regulations for safety and proper use.

• Before starting work, the operating staff must be informed on

- use of the vacuum cleaner.

- risks associated with the material to be picked up.

- safe disposal of the picked up material.

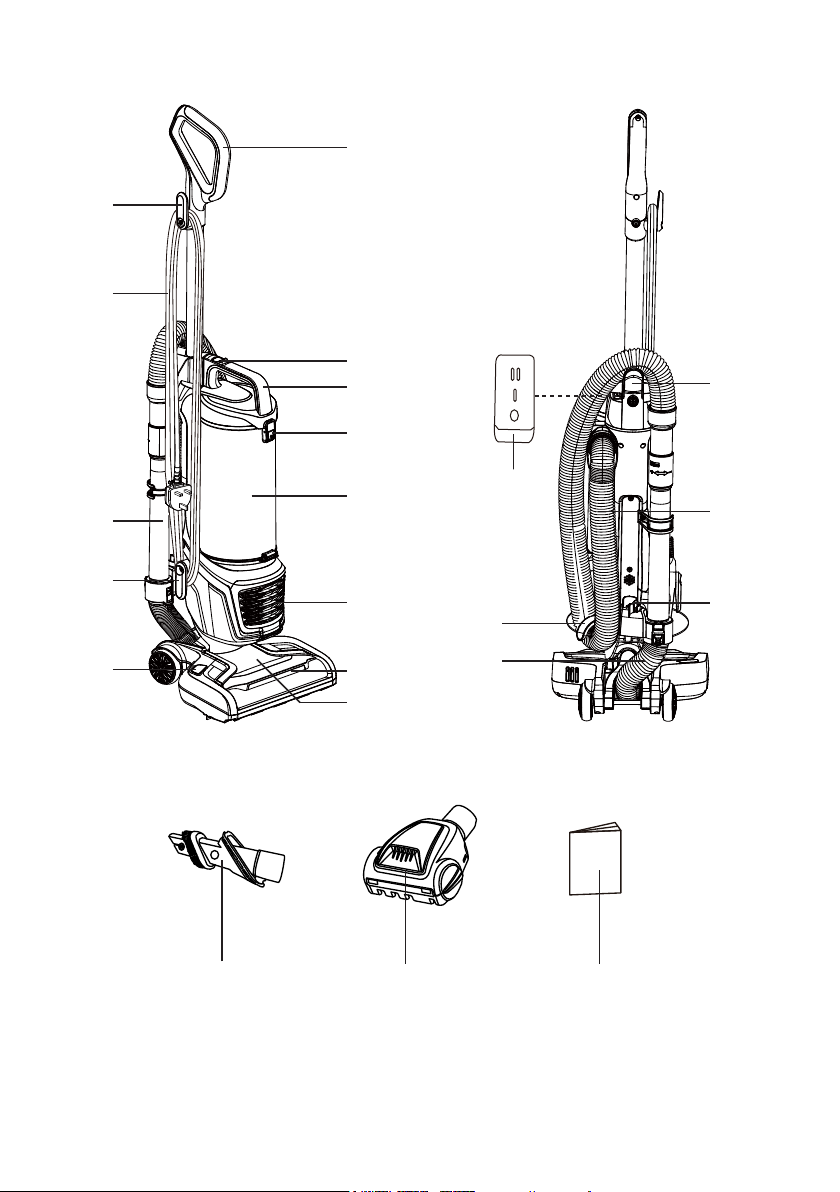

1 Handle 12 Power Cable

2 Dust Bin Release Button 13 Upper Cord Hook

3 Carry Handle 14 Upper Hose Storage

4 Dust Bin Lid Release Button 15 Flexible Suction Hose

5 Dust Bin 16 Accessory Storage

6 Exhaust Filter Cover 17 Connection Hose

7Task Lights 18 Lower Hose Storage

8 Motorised Floor Head 19 On/Off Switch

9 Brushroll Status Indicator 20 3-in-1 Combination Tool

10 Lower Cord Hook 21 Pet Mate (only for UC0413EUK)

11 Extension Wand 22 Instruction Manual

UNPACKING AND PRODUCT FEATURES

ASSEMBLY

A at headed screwdriver is required for part of the assembly process.

Remove all the contents from the packaging; make sure you have all contents as listed on page 7.

2. Remove the pre-installed screw bolt with a screwdriver or a coin. Insert the handle assembly

into the main body and secure with the screw bolt (Fig. 1).

3. Insert the larger end of the extension wand into the top of the connection hose through the

bracket until the wand is fully seated on the post (Fig. 2).

4. Insert the end of the exible hose into the main body by aligning the UNLOCKED marks (

Rotate the hose until the marks align with the LOCKED symbol (

). Run the exible hose over

the lower hose storage and the upper hose storage. Insert the suction hose end onto the top of

the extension wand (Fig. 3).

5. Insert the combination tool onto the accessory storage post located on the back of the main

body (Fig. 4).

6. Wrap the power cord around the upper and lower cord hooks (Fig. 5).

NOTE: Make sure to wrap the power cord around the upper cord hook rst, secure the power cord

into the guide (

7. Secure the plug to the power cord (Fig. 6).

WARNING: Wrapping the power cord too tightly with excessive stress on the cord may

cause damage. A damaged cord is an electrical shock hazard and could cause personal

injury or damage.

OPERATION

CAUTION: Moving parts!

To reduce the risk of personal injury, DO NOT touch the brushroll

when vacuum cleaner is turned on. Contacting the brushroll while it is rotating can cut, bruise or

cause other personal injuries. Always turn off before maintenance. Use caution when operating

near children or pets (Fig. 7).

1. Power Cord - Release & Use

1) Turn the upper cord hook to either side to release the power cord (Fig. 8).

2) Detach the power cord plug from the power cord.

3) Be sure the power cord is locked into the upper locking notch (

) as shown (Fig. 9).

4) Plug the power cord into a power outlet.

5) Move the On/Off switch to the desired cleaning operation. Refer to page 9.

6) Once you have completed vacuuming, move the On/Off switch to the Off ‘O’ position and

unplug the power cord plug from the outlet.

7) Return the upper cable hook into the upright storage position and wrap the cord loosely.

WARNING: If any abnormality/failure occurs, stop using the product immediately and

disconnect the power plug.

2. Operation Modes

UPRIGHT MODE

NOTE: Make sure the vacuum cleaner is correctly assembled and the dust bin is empty before

using. Do not operate vacuum cleaner without lters in place.

1) Release the handle by placing foot on the oor head nozzle and pull back (Fig. 10).

2) To turn the vacuum cleaner on, press the On/Off switch to the desired position (Fig. 11).

'O' Power Off

'I' Hard oor, small area rugs and delicate surfaces. NOTE: The brushroll will not spin in this

position.

'II' Carpets. NOTE: The brushroll will spin in this position.

CAUTION: Do not allow the vacuum cleaner to remain in one spot for any length of time

when the brushroll is turning. Damage to carpet may occur.

3) Once you have completed vacuuming, switch to the Off “O” position and unplug the power cord

from the power outlet.

NOTE: Do not allow the motorised oor head to be lifted away from the oor surface when

vacuuming.

The brushroll indicator status light:

Colour Status

Green The brushroll is spinning and working as intended.

Red There is a jam in the brushroll area. Turn off and unplug

the vacuum. Remove any blockages in the nozzle.

No Light The brushroll is not active.

ABOVE FLOOR MODE

1) Place the vacuum cleaner in the upright locked position.

2) Release the exible hose and/or extension wand (Fig. 12).

3) Choose the desired extension wand/attachments (Fig. 13).

CAUTION: When using attachments, be careful not to over stretch the suction hose to avoid

causing the vacuum cleaner to tip over.

3. Attachments

NOTE: All accessories are compatible with both the exible hose and extension wand. Included

accessories will vary by model.

1) 3-in-1 Combination Tool

Use crevice tool for cleaning in tight spaces (Fig. 14).

Use the dusting brush mode by sliding the adapter towards the end of the tool (Fig. 15). Ensure

the locking button (

) is engaged. Use the dusting brush for cleaning loose or delicate surfaces.

Press the locking button to remove the tool adaptor. Remove and ip the adapter to use the

upholstery brush (Fig. 16). Use in upholstery brush for cleaning fabric surfaces.

To return the combination tool to crevice tool mode, press the locking button and slide the adaptor

back down the tool.

2) Pet Mate (only for UC0413EUK)

Use Pet Mate to pick up pet hair and loose debris. Rotating brushroll powerfully, deep cleans

dander out of upholstery and other surfaces (Fig. 17).

WARNING: Never use the Pet Mate directly on pets.

CAUTION: Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll

when vacuum cleaner is on. Contacting the brushroll while it is rotating can cut, bruise or

cause other personal injuries.

3. Suction Control

The suction control is located on the exible hose. This allows you to adjust the suction

performance depending on the oor type.

Rotate to “+” to increase suction.

Rotate to “-” to reduce suction and increase maneuverability (Fig. 18).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vacmaster Aspirapolvere

Vacmaster

Vacmaster VFB511B 0201 Manuale utente

Vacmaster

Vacmaster VMVQ1218S Manuale utente

Vacmaster

Vacmaster Orson Lite VSE2101EU Manuale utente

Vacmaster

Vacmaster V12 Manuale utente

Vacmaster

Vacmaster VJE1412SW 0202 Manuale utente

Vacmaster

Vacmaster VJH1211PF 0201 Manuale utente

Vacmaster

Vacmaster VMVK1530SIWDC Manuale utente

Vacmaster

Vacmaster VOC809PF Manuale utente

Vacmaster

Vacmaster VWM510 Manuale utente

Vacmaster

Vacmaster VZA0708P Manuale utente

Vacmaster

Vacmaster PROFESSIONAL VJE1412SW 0201 Manuale utente

Vacmaster

Vacmaster EasyClean SCA0801 Manuale utente

Vacmaster

Vacmaster VF408 Manuale utente

Vacmaster

Vacmaster VWM510 Manuale utente

Vacmaster

Vacmaster VMVK1630SWC Manuale utente

Vacmaster

Vacmaster VQ1220PFC Manuale utente

Vacmaster

Vacmaster VHB305M 0101 Manuale utente

Vacmaster

Vacmaster VHB305M Manuale utente

Vacmaster

Vacmaster VF408 Manuale utente

Vacmaster

Vacmaster VQ607SFD Manuale utente

Vacmaster

Vacmaster VWMB508 0101 Manuale utente

Vacmaster

Vacmaster VMVDK1538SWC-06 Manuale utente

Vacmaster

Vacmaster VH105 Manuale utente

Vacmaster

Vacmaster VOC1210PF Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
