Thank you for purchasing this Vacmaster® wet and dry vacuum cleaner. Feel condent that with
Vacmaster®you are obtaining a high quality product engineered for optimal performance. This
vacuum cleaner is suitable for use with both liquids and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
SYMBOLS
Vacuum cleaners of dust category L according to IEC/EN 60335-2-69 for dry vacuuming
of materials with an exposition limit value > 1mg/m3that are hazardous to one's health.
The vacuum cleaner contains materials
that are hazardous to one's health. Have the emptying
and maintenance, incl. the disposal of dust-collection
container, carried out by specialists. Appropriate protective
equipment is required. Do not operate the vacuum cleaner
without the complete lter system. Otherwise there is danger to
your own health.
WARNING:
7
GB
SAFETY INFORMATION
When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete
operating manual with due care. Keep this manual in a safe
place so that the information is always available. If you give
the equipment to any other person, give them these operating
instructions as well. We cannot accept any liability for damage or
accidents which arise due to a failure to follow these instructions
and the safety information.
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER.
• Never leave the appliance switched on unattended, if you leave
the work area, switch the appliance off or unplug it from the
power supply.
• Do not vacuum or use this Wet and Dry Vacuum cleaner near
ammable liquids, gases or explosive vapours like gasoline
or other fuels, lighter uids, cleaners, oil-based paints, natural
gas, hydrogen, or explosive dusts like coal dust, magnesium
dust, grain dust or gun power. Sparks inside the motor can
ignite ammable vapours or dust.
• This vacuum cleaner is not suitable for the vacuuming of
asbestos or asbestos dust.
• Do not vacuum anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
• Ensure the hose and connections are always pointed away
from the users face, hair, ears and eyes during operation and
never direct the nozzle towards persons or animals.
• Clear the working area of any items or precessions that you do
not wish to be vacuumed before operation.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on the cord. To unplug, grasp the plug,
not the cord.
• Do not use with damaged cord, plug or other parts.
8
GB
• Do not pull or carry by cord, use cord as handle, close a door
on cord, or pull cord around sharp edges or corners.
• Do not handle the plug or vacuum cleaner with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do
not vacuum toxic materials.
• Frequently check that the oat valve positioned underneath the
motor is able to move freely.
• Do not use or store near hazardous materials.
• Do not use this vacuum cleaner with a torn lter or without the
lter installed.
• Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
• To reduce the risk of injury from accidental starting, unplug
power cord before changing or cleaning lter.
• Do not leave vacuum cleaner unattended when plugged in.
Unplug from power supply when not in use and before carrying
out maintenance.
• Turn off Wet and Dry Vacuum cleaner before unplugging.
• Do not cover the ventilation openings. Do not vacuum with any
ventilation openings blocked; keep free of dust, lint, hair or
anything that may reduce air ow.
• Keep hair, loose clothing, ngers, all parts of body away from
openings and moving parts.
• If the supply cord is damaged, it must be replaced by the
manufacturer, a qualied service agent or similarly qualied
persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• For additional protection: It is recommended that this vacuum
cleaner can be used in conjunction with residual current device
(RCD) with a rated residual current of 30mA or less.
• Always unplug the appliance after use and before cleaning or
changing the lters or accessories.
9
GB
When carrying out service or repair
operations, all contaminated items which cannot be
satisfactorily cleaned are to be disposed of; such items shall
be disposed of in impervious bags in accordance with any
current regulation for the disposal of such waste.
WARNING:
UNPACKING AND CHECKING CARTON
CONTENTS

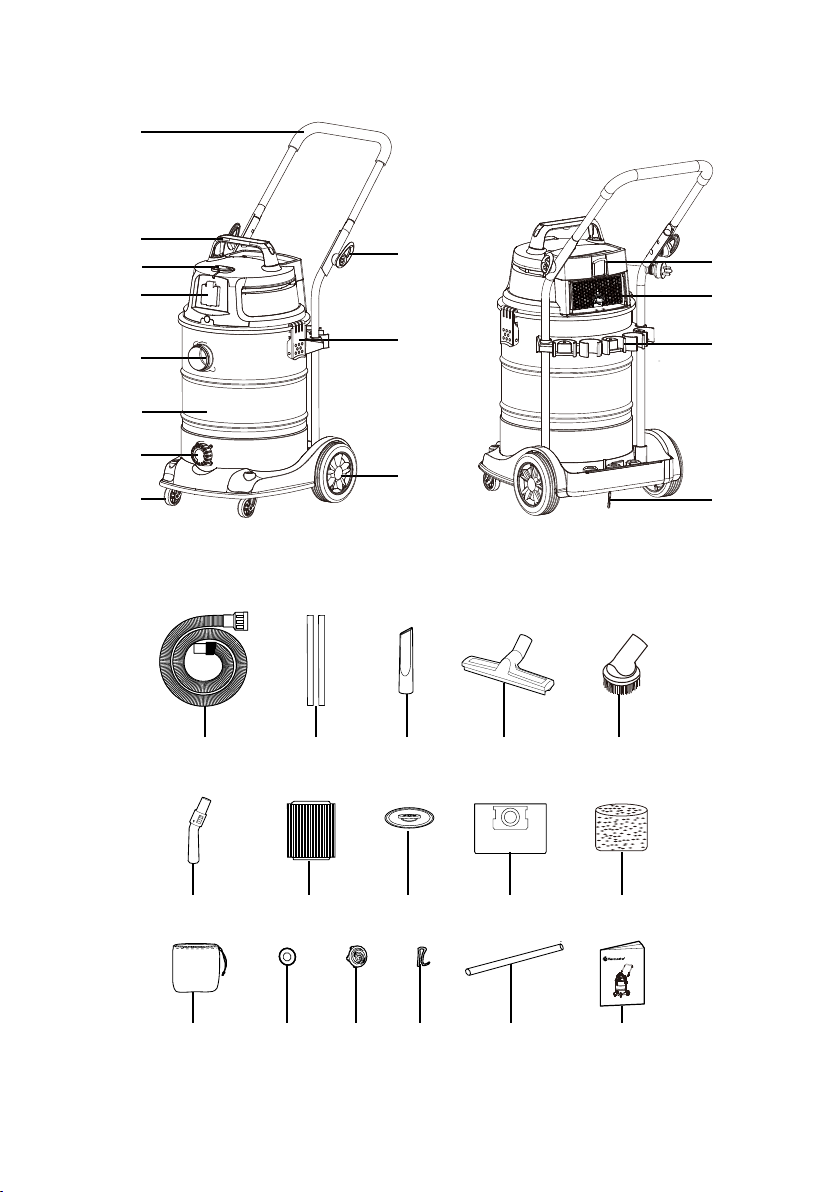

1 Push/Pull Handle 17 Extension Wand (x2)
2 Carry Handle 18 Crevice Tool
3 On/Off Switch 19 Floor Nozzle
4Power Take-off Socket 20 Round Dust Brush
5 Suction Port 21 Handle with Air Flow Regulation
6 Container 22 Cartridge Filter
7 Drainage Port 23 Filter Retainer
8 Front Caster 24 Dust Bag
9 Wing Knob 25 Foam Filter
10 Latch 26 Nylon Pre-lter
11 Rear Wheel 27 Washer (x4)
12 Hook / Power Cable Hook 28 Hub Cap (x2)
13 Exhaust Filter 29 Wheel Retaining Pin (x2)
14 Accessory Storage 30 Wheel Axle
15 Anti- static Chain 31 Instruction Manual
16 Hose
10
GB
OPERATION
1. Switching On/Off
Connect the mains plug to a suitable a power outlet.

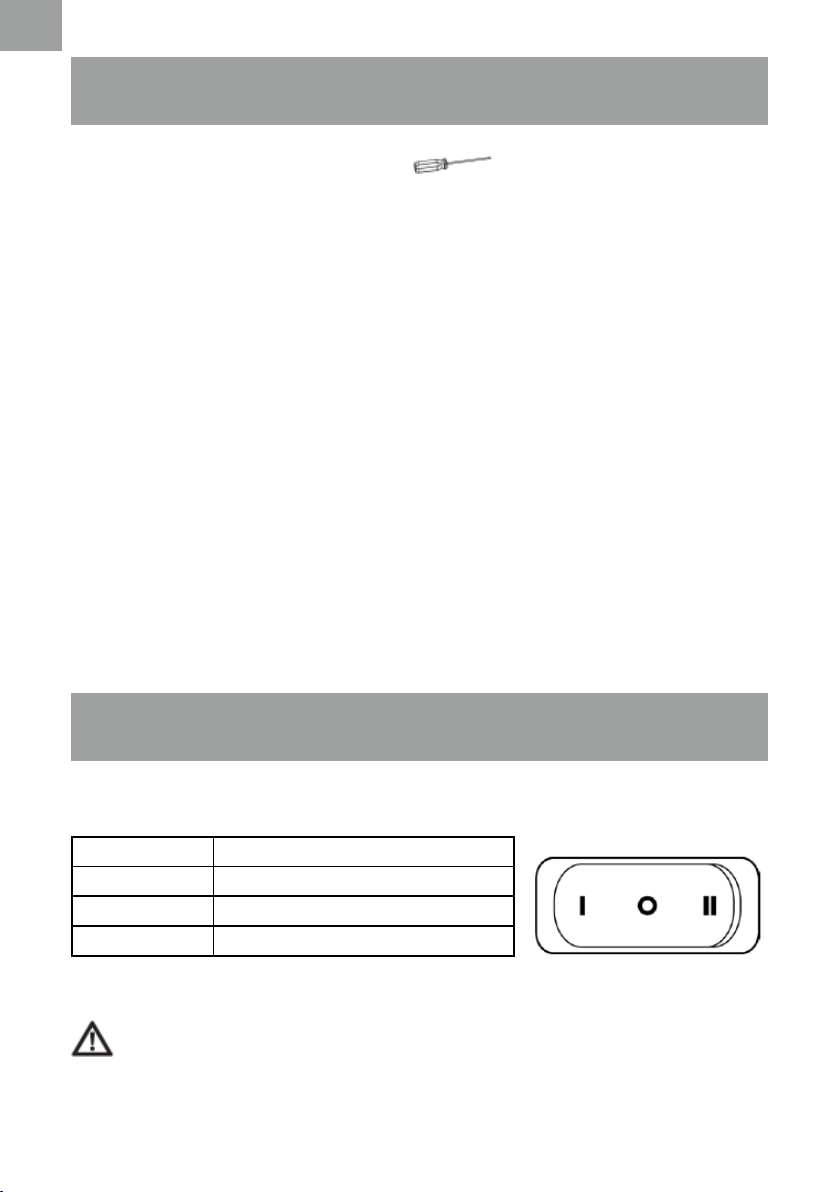

2. Power Tool Take-Off Operation (Fig. 6)
Position Status
I on
Ooff
II automatic synchronized start-up
WARNING: Always check the maximum wattage compatibility of the power tool take
off socket against the desired power tool before connecting to prevent overloading.
1) Connect the power cable of your power tool to the power take-off socket.
2) If applicable, connect the vacuum suction hose to the dust extractor connector on your tool with
the supplied adaptor.
4. Unfold the upper handle assembly into the upright position. The upper handle has two
adjustable height positions. Secure in place by tightening the wing knobs clock-wise (Fig. 3).
5. Your vacuum cleaner comes ready for dry vacuum cleaning with the cartridge lter. If the
cartridge lter and nylon pre-lter are not installed, refer to page 10.
6. Optionally, for improved dust ltration, fully t the dust bag ange onto the inlet stub (Fig. 4).
7. For wet vacuuming, replace the cartridge lter and pre-lter with the foam lter supplied. Do not
use a dust bag when wet vacuuming. If foam lter is not installed, refer to page 11.
8. Secure the power head back on the container, using the 2 side latches. Insert the locking end
of the hose into the suction port of the container and turn clockwise to lock into place (Fig. 5).
9. Choose the desired accessories and/or extension wands and push t onto the hose nozzle.
ASSEMBLY
NOTE: A Phillips screwdriver is required.
1. Remove all the contents from inside of the vacuum cleaner container.
2. Turn the container upside down and insert the feet with casters into the slots and apply
pressure until they click into place (Fig. 1).
3. Insert the wheel axle into the rear wheel housing on the base. Insert a washer onto the axle
followed by the rear wheel and another washer. Insert the wheel retaining pin into the hole on
the end of the axle to lock into place. Push t the hub cap onto the wheel. Repeat the same
steps on the other end of the axle (Fig. 2).
