Vacron Digital Video Recorder Manuale utente

4CH / 8CH H.264

Digital Video Recorder

USER MANUAL

2013 FEB V1.0



optional

TYPE2



WARNING

Do not expose the DVR under the sunlight, heat or

wet environment while installation. As it could

decrease the performance of DVR and damage the

machine.

Do not touch the power plug or case with wet hands

as this could result electric shock.

Do not forcedly bend or put heavy object on power

cable as this could result in injury to personal or

equipment.

Do not operate with damaged power cord or loose

electrical outlet as this could result in electric shock or

accident.

Please use individual power instead of share electrical

outlets with other electrical equipment as this could

result in damage or accident.

Do not attempt to service this DVR by yourself as it

may expose you to dangerous voltage or other

hazards. Please refer all service to the qualified

servicing distributor.

Do not open the covers or insert any object into DVR.

CAUTION

Do not place the machine on an uneven surface or it would

decrease the DVR efficiency or malfunction.

Avoid any shock or bumping of the DVR while recording.

Improper handling could damage the system.

CAUTION

Make sure the voltage selector switch is set

to appropriate setting before plug in!



iii

CONTENTS

1. Specification .............................................................................................1

2. Front Panel...............................................................................................2

3. Installation ................................................................................................3

4. DVR Installation........................................................................................3

5. System Operation.....................................................................................4

6. Display Setup ...........................................................................................6

7. Search ......................................................................................................7

8. Main Menu................................................................................................9

8.1 Camera Setup ..................................................................................9

8.2 Record Setup .................................................................................10

8.3 Motion Detection ............................................................................13

8.4 Network Setup (TYPE 2) ................................................................14

8.5 Log Search.....................................................................................16

8.6 Backup ...........................................................................................17

8.7 System ...........................................................................................18

8.7.1 Time Setting .........................................................................18

8.7.2 HDD Setup...........................................................................19

8.7.3 Display Setting .....................................................................20

8.7.4 System Information ..............................................................21

8.7.5 User Password.....................................................................21

8.7.6 System Language ................................................................22

8.7.7 Audio Setting........................................................................22

8.7.8 System Maintenance............................................................23

9. H264 Player Operation ...........................................................................24

10. Cell Phone Monitoring Operation (TYPE 2)............................................27

11. Web Operation (TYPE 2)........................................................................48

12. Default Setting ........................................................................................56



1. Specification

Video Format NTSC PAL

Video Input 4 CH Input / BNC

AudioInput 2CHInput/RCA

Video Output 1CH Output / BNC

Audio Output 1CH Output / RCA

XGA Output 800x600, 1024x768, 1280x1024, 1440x900

Display Mode Full Screen, 4CH Split Screen, Auto Switch, Picture in Picture

Display Resolution 720 x 480 720 x 576

Recording

Resolution

Highest 720 x 480 720 x 576

High 720 x 240 720 x 288

Normal 360 x 240 360 x 288

Recording Frame Max. 120 FPS Max. 100 FPS

Compression Algorithm H.264

Operating System Embedded Linux

Pentaplex Live / Record / Playback

Recording Mode Manual, Schedule, Event

Schedule Recording Full Recording, Motion, Manual Recording

Status Indicator Power Indicator, HDD Indicator

Event Mode Motion Trigger, Video Loss

Recording Duration: 10~60 sec.

Playback Mode

Normal Speed: x1

Fast Forward: x2 / x4 / x8 / x16 /x32multiple speed

Slow Forward: 1/2, 1/4, 1/8 multiple speed

Fast Rewind: x2 / x4 / x8 / x16 /x32

Frame by Frame Playback: Forward

Search Function: Time / Event

HDD Type SATA 3.5”HDD x 1 (No HDD Included)

Recommend use 1TB capacity for HDD or below

HDD Management Automatic Format System

Backup Device USB 2.0 Flash Memory Stick

Firmware Update Host USB

Multi-Language English / Chinese / Others

Control Mode Front Panel / Remote Control / USB Mouse

Network (TYPE 2)

Network Protocol TCP/IP / PPPoE / DHCP / SMTP / DDNS

Network Control IE Browser

Network Function Live Display / Playback / System Setup

Power Supply DC 12V / 2A (AC100V~240V 50/60HZ)

Unit Dimension 224mm (W)x 208mm (D) x 52 (H) mm

Weight Unit Weight 1.5kg

Operating Temperature 0℃~ 46℃



2. Front Panel

Power Indicator The LED lights on when power on.

HDD Indicator The LED lights on when the HDD is written.

Up To move up of the selection setting in the menu.

Channel 1 Under the live viewing mode, channel 1 display.

Channel select Single channel (1~4ch) and quad display in playback mode.

Left To move left of the selection setting in menu.

Channel 2 Under the live viewing mode, channel 2 display.

Fast Rewind Rewind speed: x2 / x4 / x8 /x16 /x32.

Down To move down of the selection setting in the menu.

Channel 3 Under the live viewing mode, channel 3 display.

Slow Forward Slow Forward speed: 1/2, 1/4, 1/8.

Right To move right of the selection setting in menu.

Channel 4 Under the live viewing mode, channel 4 display.

Fast Forward Forward speed: x2 / x4 / x8 / x16 /x32.

Enter Press the Enter button to confirm the setup or go into sub-menu.

MENU Under the live viewing mode, press MENU to enter the main menu.

Under the menu mode, press MENU to go to the upper menu.

Quad Under the live viewing mode, quad screen display.

Pause Under the playback mode, press the button to pause the playback.

Step Under the playback mode, press Step button to enter Play Frame by

Frame mode.

Manual Record Press this button to start recording in live mode.

STOP Under the playback mode, press the button to stop the operation or

go to upper menu.

Play Under the live viewing mode, press the Play button to enter the

playback mode.



3. Installation

1 VGA PC Monitor Output

2 Video In 4CH Video Input (BNC)

3 Video Out 1CH Video Output (BNC)

4 Audio Out 1CH Audio Output (RCA)

5 Audio In 2CH Audio Input

6 USB 2.0 Port USB Mouse / USB backup or firmware update.

7 DC12V Power Input

8 LAN RJ-45 Network Connection (for TYPE 2)

4. DVR Installation

Connect the camera video output to the DVR video input port with BNC

connectors.

The camera install coaxial cable is suggested cat 6 or above.

Power Installation

Please use the provided power cable and adaptor to connect the DVR

(AC100V~AC240V). Please refer to Installation for connecting position. The

DVR system will enter into live viewing mode when power is connected.

TYPE 2: Network



Please refer to Display Setup - Live Viewing Mode for more information.

DVR Network installation (for TYPE 2)

Please connect DVR to HUB or router by using RJ-45 network cable and

make sure the DVR network indicator LED is on.

(Please refer to Network Setup for further network setting information of

using static IP, PPPoE or DHCP.

5. System Operation

There are 3 kinds of DVR control method: front panel, remote control and USB

mouse.

USB Mouse Operation

1. Quick Menu: Right click the mouse button under the live viewing mode to

go for enter into Quick Menu.

2. Left click the mouse button under the main menu to go to the sub-select

menu.

3. Left click the mouse button under the select menu to go to the sub-menu.

Use the mouse to change the setting.

Remote Control Operation

Remote Control and front panel operation are the same; please refer to Front

Panel and the reference table of the button as below.



On live mode, click “Fast Forward” to switch on the GUI display.

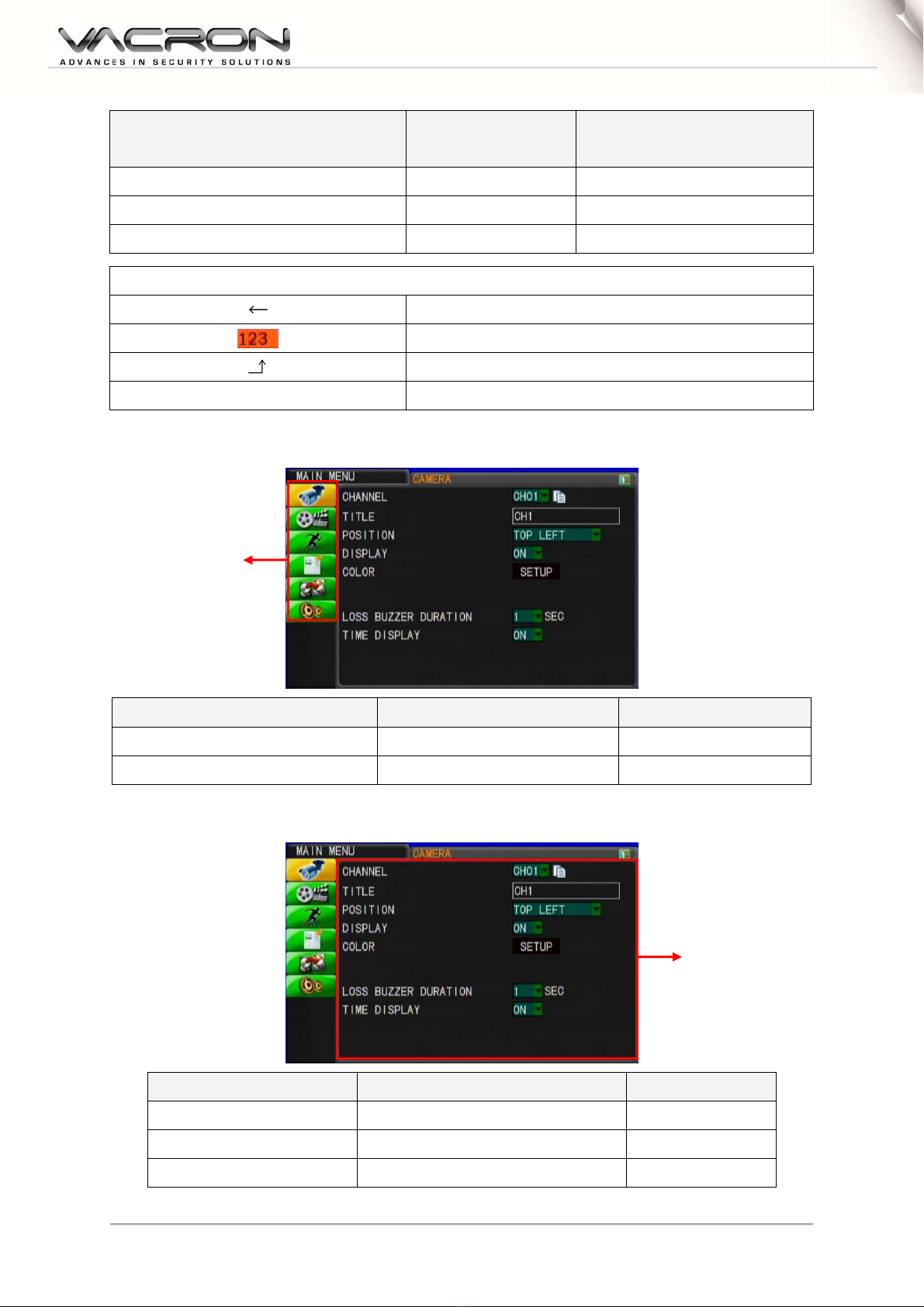

Virtual Keyboard Operation

The text input of the virtual keyboard is as below:

CH2 display

Record

Quad display

Navigator

Fast Forward

Stop/ Remote ID Setup

Step/Pause

CH1 display

CH3 display

CH4 display

Mute

Ente

Fast Rewind

Play



Menu Operation Front Panel & Remote

Control Operation Mouse Operation

Select character from virtual keyboard [Up/Down/Left/Right] [Move Cursor]

Keyin the select character [Enter] [Left Click]

Exit the virtual keyboard [MENU] [Left Click]out of selection area

Key Description of Virtual Keyboard

Delete the previous character

Switch to text input

Enter key. Save and exit the virtual keyboard

Other Keys Character Keyin

Main Menu Operation



Setup Operation Front Panel & Remote Control USB Mouse

Select [Up/Down/Left/Right] [Moving Cursor]

Enter Select Menu [Enter] [Left Click]

Setup Operation

Setup Operation Front Panel & Remote Control USB Mouse

Select [Up/Down/Left/Right] [Moving Cursor]

Confirm Select Setting [Enter] [Left Click]

Change the Select Setting [Left/Right] [Left Click]

Main menu

Setu



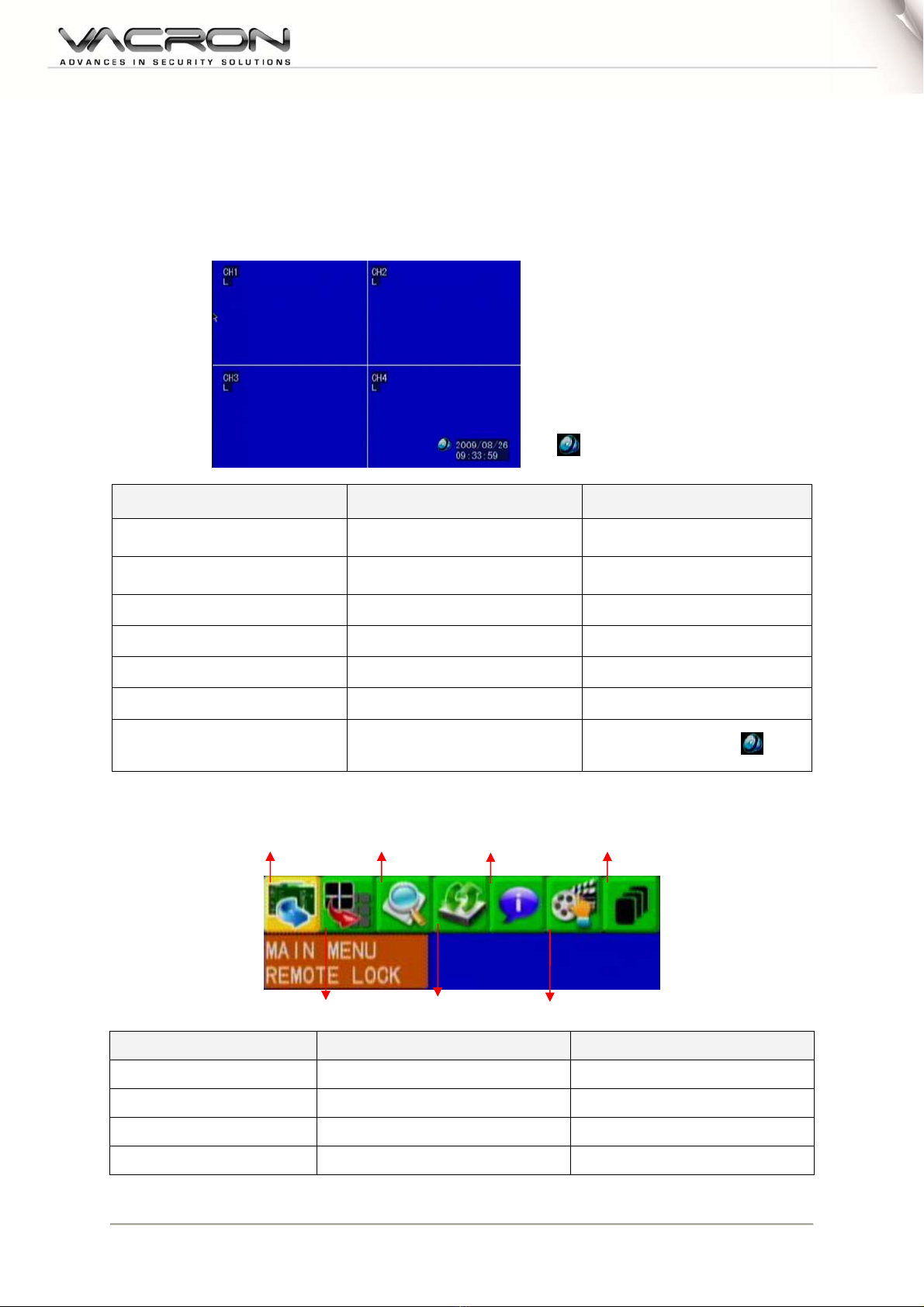

6. Display Setup

There are 2 kinds of screen display mode: Live, Auto Switching .

Live Viewing Mode

The DVR will go to the live viewing mode after boot up. There are 5 different

status icon:

Setup Operation Front Panel&Remote Control USB Mouse

Channel 1~4 Single Channel

Display [CH1~4] Select one of channel

[Double click left button]

4 Channel Split Display [4 CH Split] Under single channel

[Double click left button]

Quick Menu [MENU] [Right]

Playback Mode [Play] [Right] QuickMenu

Start/Stop the Manual Record [Record] [Right] QuickMenu

Start/Stop the Auto Switching - [Right] QuickMenu

Start/Stop Mute Remote Control

[Mute] [Left] Left Click

Quick Menu

Setup Operation Front Panel & Remote Control USB Mouse

Select Item [Left/Right] [Moving Cursor]

Enter the Select Item [Up/Down] [Moving Cursor]

Confirm the Select Item [Enter] [Left Click]

Exit [MENU] [Left Click] out of selection area

●: Record

M: Motion Triggered

L: Video Loss

: Sound on/off

Main Menu

Remote Lock Search

Manual RECPIP Back Up

Info Auto Switching



Playback Operation

Setup Operation Front Panel & Remote

Control USB Mouse

Fast Rewind [Fast Rewind]

Fast Forward [Fast Forward]

Step Forward [StepForward]

Step/Pause [Step/Pause]

Play 1x [Play]

Stop [Stop]

Digital Zoon None Drag by Left Click

Derived Image None [Left click]

1~4 Single Channel Display [1~4 Channel] Select Channel [Double left click]

4 split Display [4 split] Under single channel

[Double left click]

Auto Switching

1. Auto switch starts from order CH1~CH4, 4 split channel.

2. Press the button again to stop the function.

7. Search

In Live mode, use Play button in the front panel/remote controller or right clicking

the mouse to switch to the Search function.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vacron Registratore digitale

Vacron

Vacron VDH-DRN374 Series Manuale utente

Vacron

Vacron VVG-CBN29 Manuale utente

Vacron

Vacron Ultra-light Manuale utente

Vacron

Vacron VVH-MD40D Manuale utente

Vacron

Vacron VVH-MDE58G Manuale del proprietario

Vacron

Vacron VDH-CK Series Manuale utente

Vacron

Vacron VDH-CK800 Manuale utente

Vacron

Vacron VDH-DXN578A Manuale utente

Vacron

Vacron VDH-GK350A Manuale utente

Vacron

Vacron VVG-MDE08B. Manuale utente

Vacron

Vacron Mobile Video Recorder Manuale utente

Vacron

Vacron SA-650HD Manuale utente

Vacron

Vacron G series Manuale utente

Vacron

Vacron VVH-MDE31 Guida alla configurazione

Vacron

Vacron VVH-MDE304 Manuale utente

Vacron

Vacron VVH-MDE304 Manuale utente

Vacron

Vacron VDH-DXA Series Manuale utente

Vacron

Vacron Vehicle DVR System Manuale utente

Vacron

Vacron VVH-MDE58 Manuale utente

Vacron

Vacron VDH-DXC836 Manuale utente

Vacron

Vacron VVH-MDE31D Manuale utente

Vacron

Vacron VVH-MDE52 Manuale utente

Vacron

Vacron VDH-4200B Manuale utente

Vacron

Vacron VDH-DX Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
