VA1045/1245 DRAWER SLIDES MANUAL
Page 2
16
16
10
A
A
1 1
B
B
EF
1
C
D
C
Detach Button
0
10
20
30
40
010
mm
010 80 90
mm
NAME：VADANIA Drawer Slides VA1245/VA1045
MATERIAL: Cold-Rolled （Cold Rolled）Steel
INSTALLATION METHOD: Side Mount
MAXIMUM LOAD CAPACITY: 100lb / 45kg.
MINI DEPTH OF CABINET: Drawer Length + 0.12in / 3mm
SURFACE TREATMENT: Galvanized / Electrophoretic Black
SLIDE STYLE: 3 Folds Full Extension, Side Mount, Separable
PLATE THICKNESS: Outer Slider 0.04in(1.2mm) /
Middle Slider 0.04in(1.2mm) / Inner Slider 0.06in(1.5mm)
SIZE: 8-24in / 200-600mm
SCOPE OF APPLICATION: &LYLO)XUQLWXUH2ႈFH)XUQLWXUH
Cabinets/Wardrobes, etc

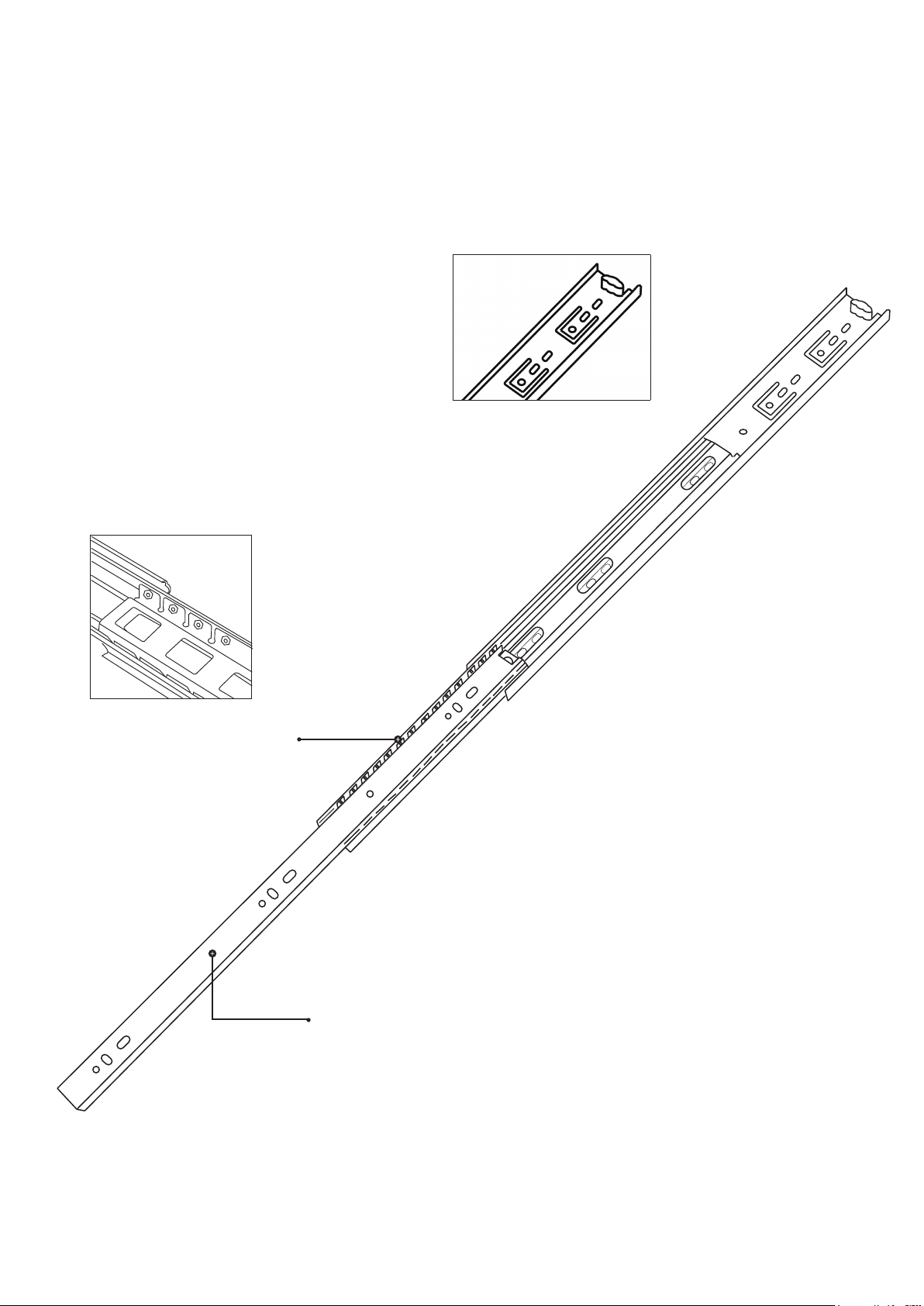

3-Fold Slides
Enable the slides to fully extend
Solid Ball Bearing
Provides slient and friction-free
motionwhen open drawer
Page 3
Product Features
Galvanizing Treatment
Prevent oxidation and rust,keep clean and durable.

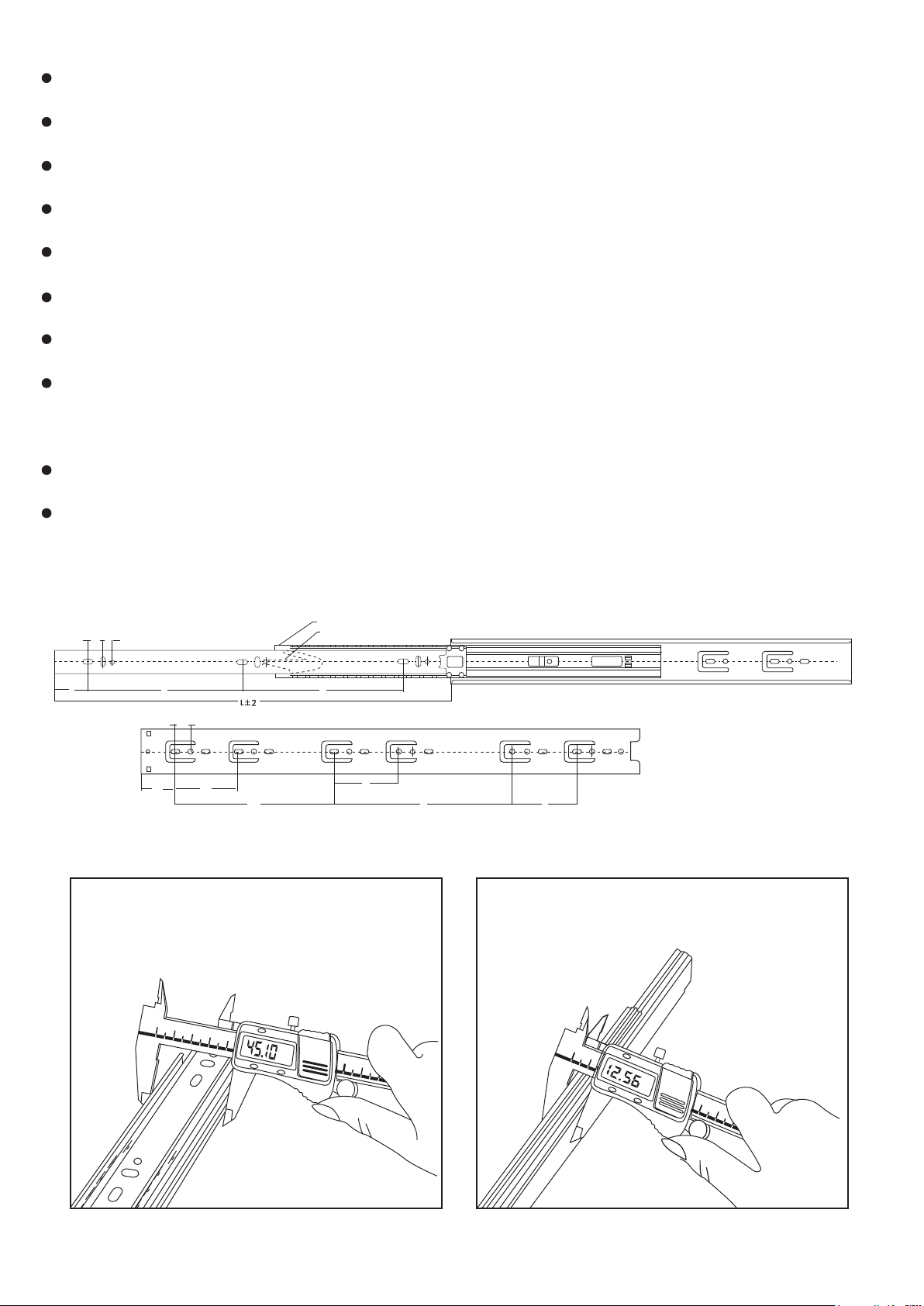

0.5±0.01” / 12.56±0.25mm
1.7” / 45.10mm Drawer floor
Space Between Drawer and Cabinet
Page 4

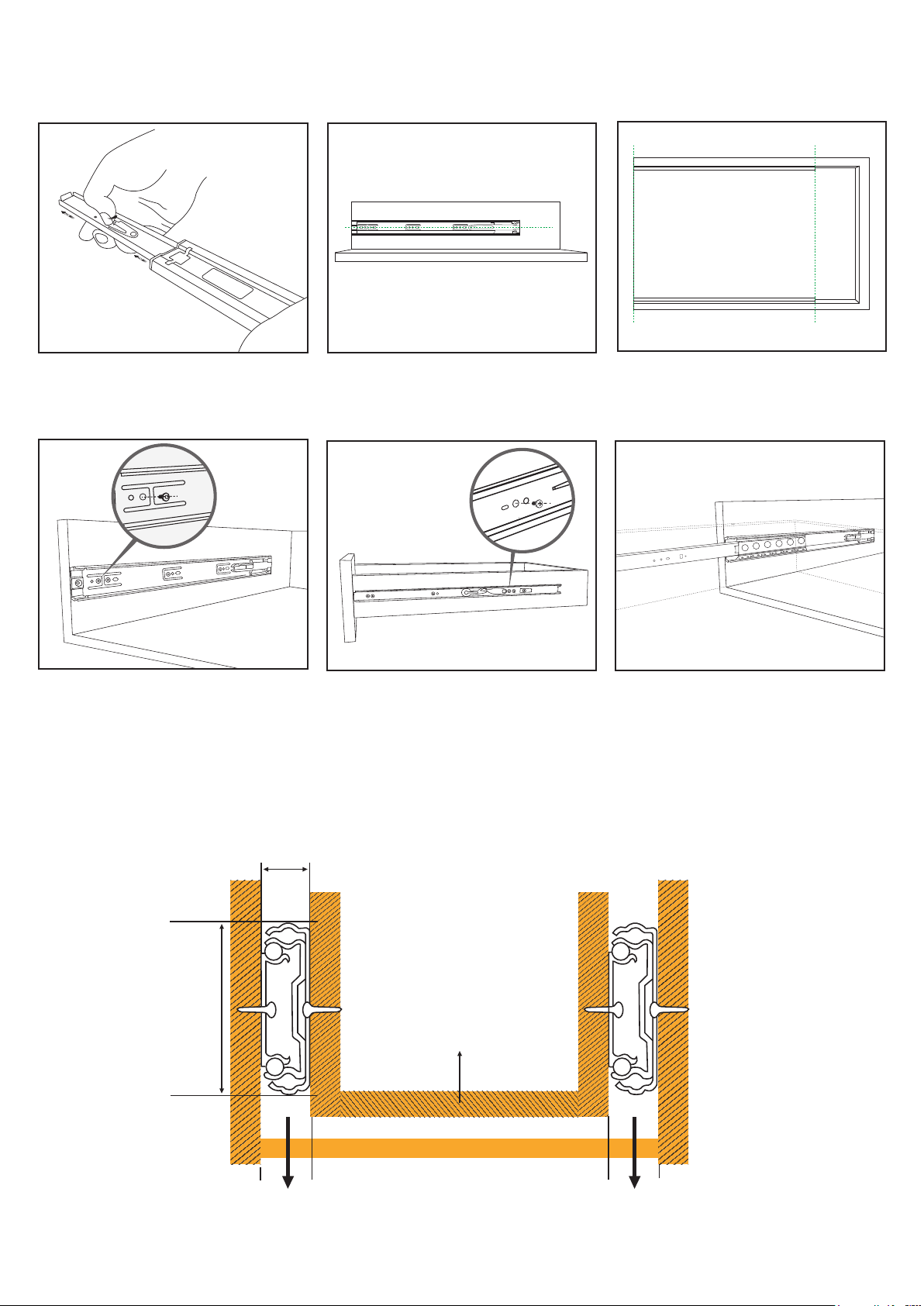

Step2
Installation Instruction
Make sure the slides are leveled during the
installation process
Step1 Separate drawer and base portion before
mounting with provided lever
Step3 Place the outer member ush with the front
edge of cabinet
Step5 Adjust and level the inner member. mount the
screws in the permanent mounting holes
Step4 Mount the screws in the permanent mounting
(Breathing) holes
Step6 Move the metal retainer to the front of cabinet
member and insert the drawer box carefully.
Installation Precautions
How to Chose Size
Measure the depth of the drawer ( for example, if the depth is 13in/330mm,
choose 12in/300mm drawer slides. Deviations of 0.7in/20mm-1in/30mm are suitable)
Item Size
8’’/200mm
10’’/250mm
12’’/300mm
14’’/350mm
16’’/400mm
18’’/450mm
20’’/500mm
22’’/550mm
24’’/600mm
Load bearing
30kg
36kg
39kg
42kg
45kg
45kg
42kg
39kg
36kg
Origina Length
8.2’’/204mm
10’’/254mm
12’’/304.8mm
14’’/355mm
16’’/406.4mm
18’’/457.2mm
20’/508mm
22’’/558.8mm
24’’/609.6mm
Extended Length [A+B]
15.8[8.0+7.8]”/402[204+198]mm
20[10+10]”/508[254+254]mm
24.1[12+12.1]”/611.8[304.8+307]mm
28[14+14]”/710[355+355]mm
32[16+16]”/813.4[406.4+407]mm
36[18+18]”/912.2[457.2+455]mm
40[20+20]”/1016[508+508]mm
44[22+22]”/1118.8[558.8+560]mm
48[24+24]”/1219.6[609.6+610]mm
Width Thickness
1.7”/45mm 0.5”/12.7mm
Dimension
(Refer to the below table)
Extended Length Pull Back
Thickness
Gap of Installation: 0.51
’’
/ 13mm
Original Length
1.7
’’
/ 45.10mm
0.5
’’
/ 12.7mm
Full Extend
Page 5
Size Table
A deviation of 0.2’’/5mm may apply to the actual extended length.
A
B
