VADDIO IntelliSHOT Manuale utente

Using the IntelliSHOT Auto-Tracking Camera

Customize this document to create a guide that's specific to your IntelliSHOT installation.

Front of the Camera

The camera is available in black or white.

Camera and zoom lens – Up to 30x zoom.

Integrated microphone – No external microphone needed in typical installations. Echo-canceling microphone

picks up the voices of participants up to 10 ft. (3 m) away.

Status lights – The illuminated trim detail on the camera's face indicates the camera's current state. The status

lights can be turned off in the administrative web interface.

Pivoting head – Manually tilt the head as needed.

Note

By default, the camera's status lights are active during normal operation; however, they can be

configured to remain off when the camera is powered up. The camera may be sending video even if the

lights are off.

Document 411-0053-40 Rev A, May 2021

About Manual Operation

When you need to control the camera in manual mode rather than using Autoframing, you can use

nThe RF remote

nThe web interface (accessible from your computer's browser or using a Vaddio Device Controller)

nA third-party control device

When you use the manual controls, Autoframing pauses. It's similar to cruise control in a car:Using a preset or

directional control is like tapping the brake pedal. The camera remains under manual control until you resume

Autoframing.

Operating the Camera from the Web Interface

The web interface is available on the Vaddio Device Controller touch panel (if your installation uses one) or from

a computer’s web browser.

The operator's Camera page provides most of the same controls as the remote:

nAudio and video mute

nCamera standby

nPan, tilt, and zoom

nCamera presets, if any have been stored

nCustom color/lighting settings, if any have been stored

If your installation does not include a Vaddio Device Controller or other control surface, contact the system

administrator to find out how to access the web interface.

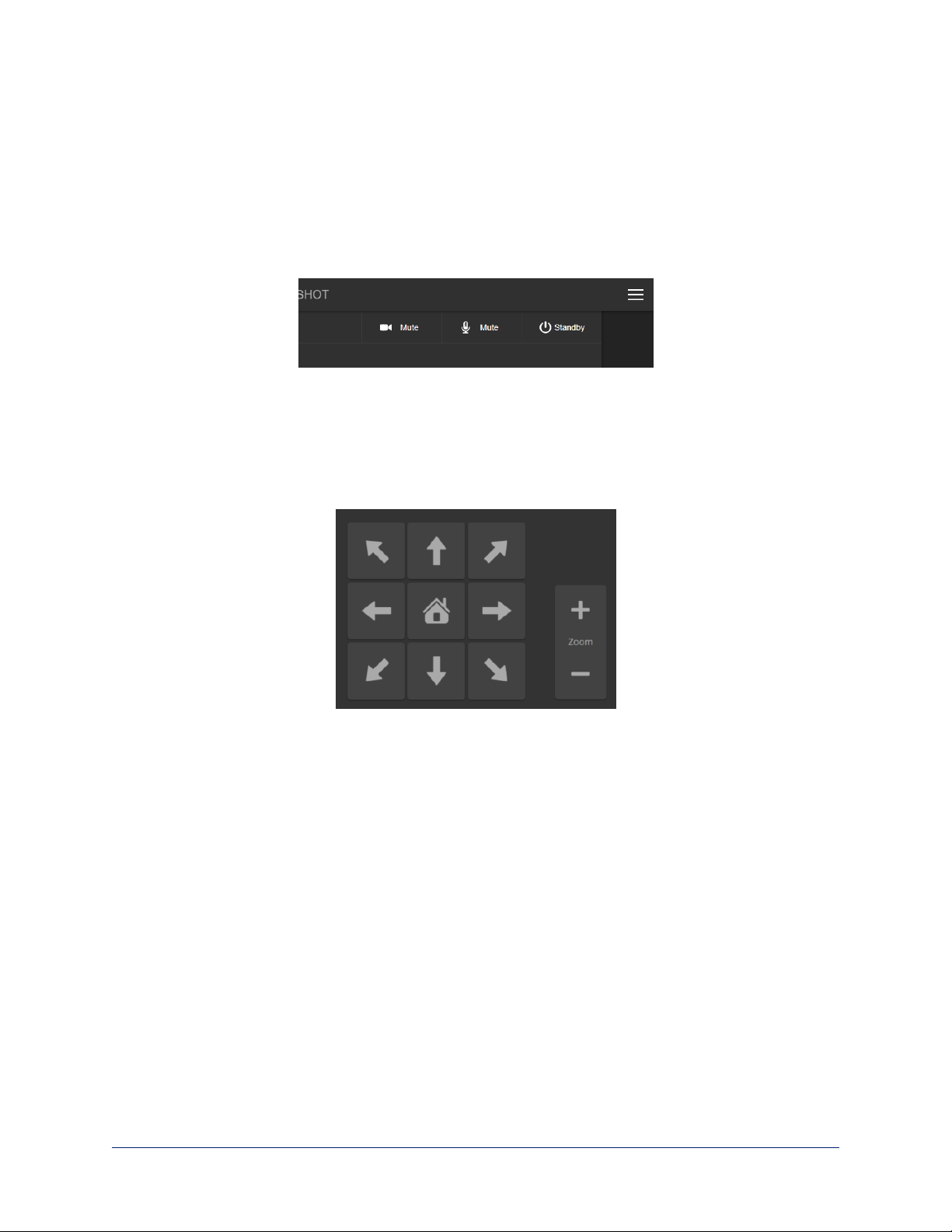

Muting Audio and Video

Use the audio mute button to stop sending audio. Use the video mute button to temporarily stop sending video

from the camera without placing it in standby.

Use the RF remote to control volume.

Managing the Camera Ready State

Use the Standby button to switch between low-power (standby) and ready states.

Moving the Camera

Use the arrow buttons for camera pan and tilt.The center button moves the camera to the home position.

Zooming In or Out

Use the Zoom + button to zoom in and the Zoom– button to zoom out.

Moving the Camera to a Preset Position

Use the Preset buttons (if available)to move the camera to any of its programmed positions. Presets are only

available if they have been set in the administrative interface or with the RF remote.

Operating the Camera with the RF Remote

The RF remote provides basic in-conference functionality – pan, tilt, zoom, presets, volume control, and muting.

You can also use it to get the camera's IP address. When you have the IP address, you can open the camera's

web interface.

Before you can use the remote, you will need to:

nInstall the batteries

nPair the remote with the camera

IntelliSHOT cameras are not compatible with IRremotes.

Installing the Batteries

The remote uses two AAA batteries.

1. Remove the cover from the back of the remote. You may need to press down on the inner edge while

sliding it off.

2. Install the batteries as shown in the diagram in the battery opening.

3. Slide and snap the cover back into place.

Pairing the Remote to the Camera

The camera does not recognize or respond to the remote until they are paired. Do this after the camera is

turned on and its status light is white.

1. Press and hold the IP button on the connector panel until the status light blinks cyan.

2. While the status light blinks cyan, press the pairing button on the remote. The camera's status light

changes to steady white when the pairing is complete. You may need to press the remote's pairing

button more than once.

3. If the status light changes from blinking cyan to blinking blue, this indicates a pairing error: The pairing

was not successful and pairing mode has timed out. Go back to step 1. If the problem persists, contact

Vaddio Technical Support.

RF Remote Quick Reference

Indicator and Power button – Set the camera to standby mode,

or return to full-power mode.

Function buttons – Reserved for future use.

Arrow buttons – Pan and tilt. Autoframing pauses if you use

these buttons.

Home button – Resumes Autoframing if it is paused.

Network button – Display the camera's IP address on the video

output.

Pairing button – Use when pairing the remote with the camera.

Mute button – Mute the microphone(s).

Reserved for future use.

Volume +/– button – Increase or decrease the volume from the

connected speaker.

Focus +/– buttons – Adjust the focal distance in or out, when

Manual focus mode is selected.

Zoom +/– button– Increase or decrease the zoom.

Auto and Man buttons – Select automatic or manual focus.

Preset buttons – Set, clear, or select preset shots. Autoframing

pauses if you use these buttons.

Other Things to Know About the Remote

Here are some common situations in which the remote can behave in ways you don't expect.

Environments with cameras in adjacent rooms – If the remote is currently paired to a camera and within range

of that camera, it will not pair with another camera.

The remote goes to standby mode after a brief period of inactivity – To return the remote to its normal

operating state, press a button.

Vaddio is a brand of Legrand AV Inc.· www.legrandav.com · Phone 800.572.2011 / +1.763.971.4400 · Fax

+1.763.971.4464 · Email [email protected]m·

Legrand AV Inc. grants permission to customers and end users to incorporate the content of this document into

their own branded guides for using the equipment described herein. For other uses, please contact Legrand AV

Inc. at [email protected].

Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification

purposes and are trademarks of their respective owners. All patents are protected under existing designations.

Other patents pending.
