Valcom VL-CONF-4 Manuale utente

ISSUE 0

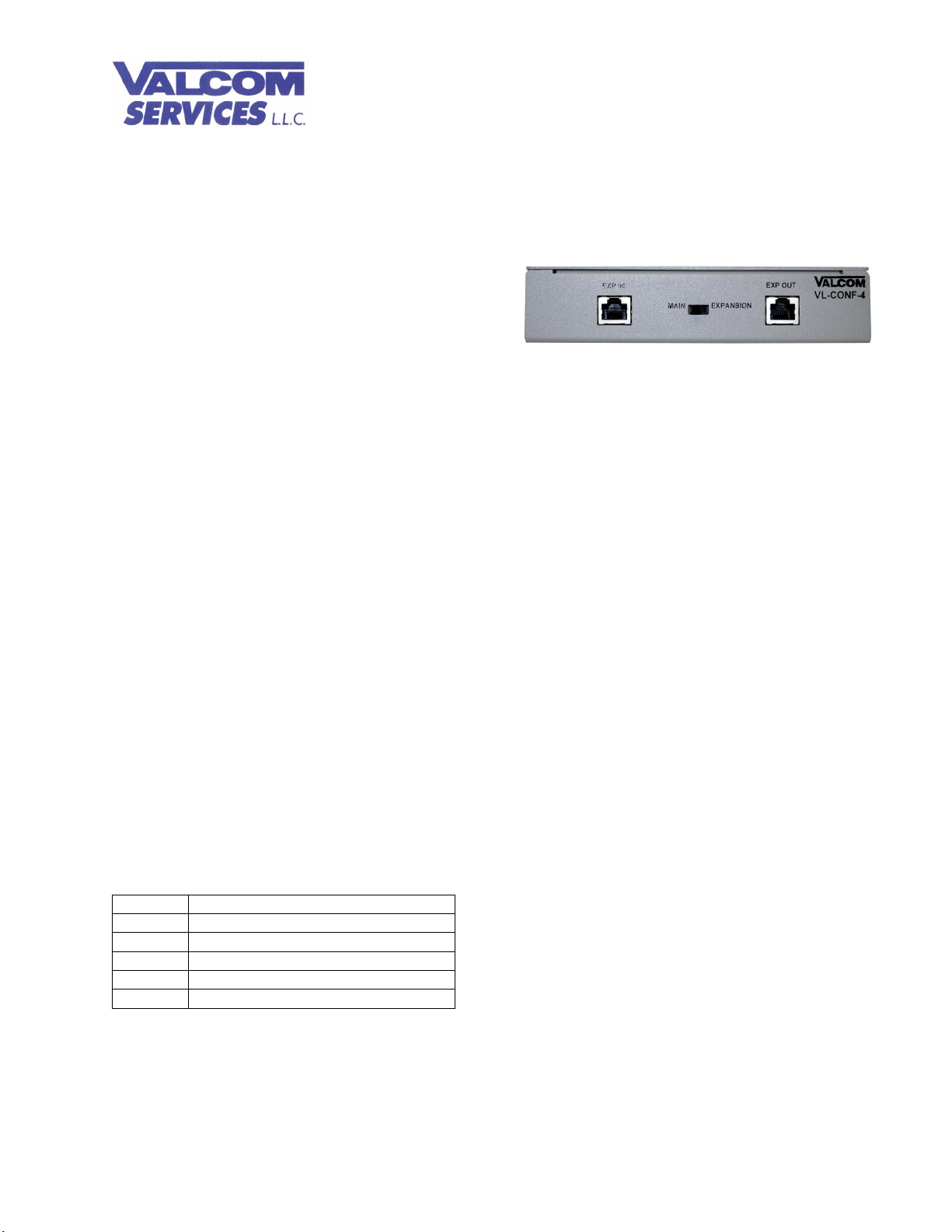

VL-CONF-4

FOUR PORT CONFERENCE BRIDGE

INTRODUCTION

When used with Valcom VoIP FXS and Quad

Enhanced Audio gateways, the VL-CONF-4 four

port conference bridge allows conferencing of up

to 4 POTS telephones. Two conference bridges

may be connected together allowing eight users in

conference. Applications include airport crash

systems, hospital trauma centers and

municipalities for first responders.

SPECIFICATIONS

Features

· 4 Audio Inputs

· RJ-45 jack for audio input connections

· Main or Expansion Slide Switch

· Operates on 24VDC

Dimensions/Weight

· 1.75” H x 6.75" W x 9.5" D

(4.45cm H x 17.15cm W x 24.13cm D)

· Weight: 1.75 lbs. (0.80 kg)

Nominal Power Requirements

Via back panel barrel connector:

Voltage: 24VDC

Current: 50mA

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty Item

1 VL-CONF-4

1 VSP Document

2 Mounting Brackets W/ Hardware

4 Rubber Pads

4 RJ-45 Patch Cables

INSTALLATION

Mounting

The VL-CONF-4 is designed for wall, table or rack

mounting.

Table: Provided with the VL-CONF-4 are four

rubber pads. Peel the pads from their carrier

backing and place at the four corners of the bottom

of the unit.

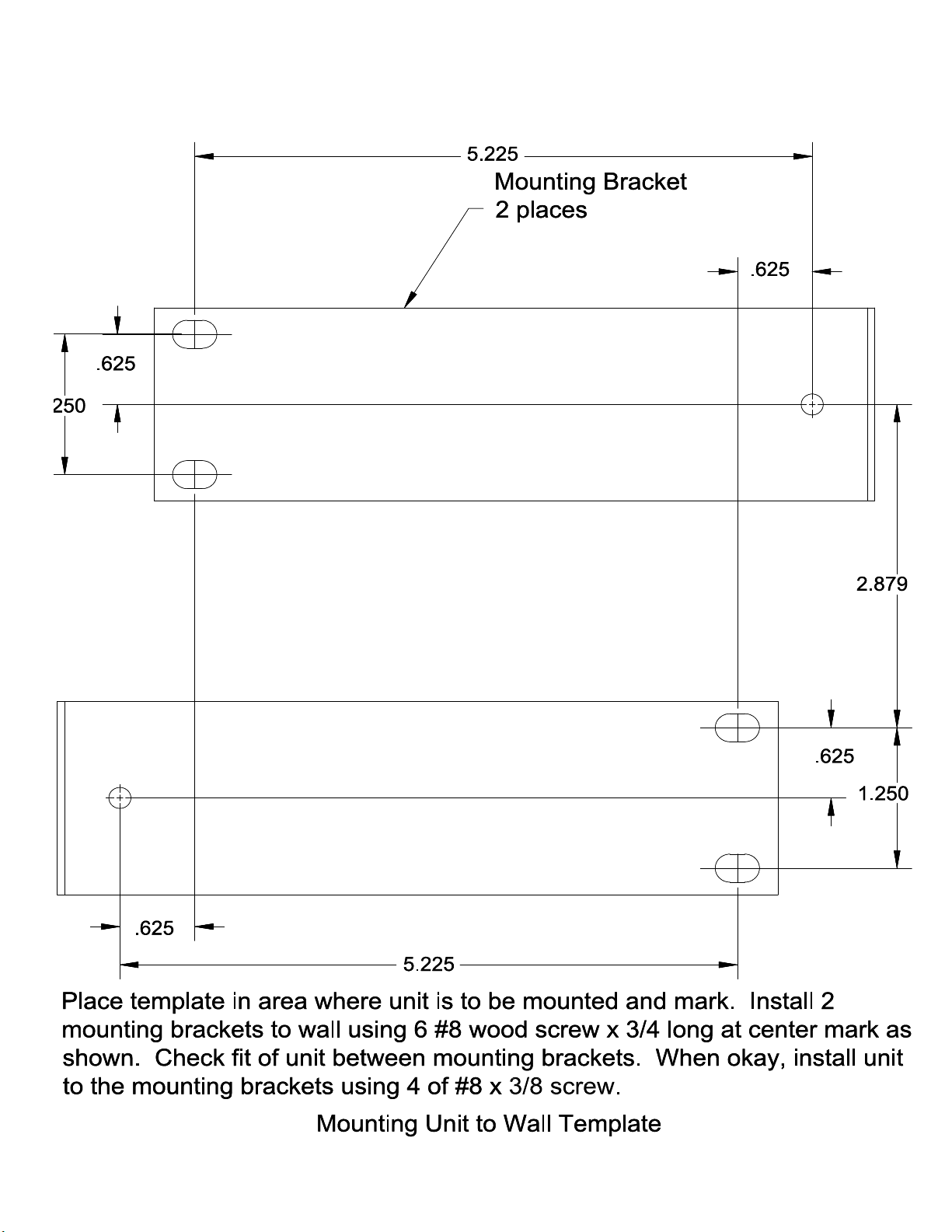

Wall: Using the template on last page of this

document, mark the location of the bracket screw

holes on the wall. Drill 5/64" pilot holes, 3/4" deep,

at each screw location and use the wood screws

provided to attach the brackets to the wall. For

surfaces other than wood, use hardware

appropriate for the surface (not included). With the

brackets securely attached to the wall, attach the

VL-CONF-4 to the brackets using the included

hardware. Figure 2 illustrates the bracket

assembly.

Rack: Following the assembly drawing, attach the

two mounting brackets to the VL-CONF-4 unit.

Using rack screws, mount the VL-CONF-4 in an

available 1U rack slot. See Figure 1.

Figure 1. Rack Mount

Figure 2. Wall Mount

Signal Connections

The VL-CONF-4 has seven connections:

· 1 RCA jack for connecting an expansion

VL-CONF-4

· 4 RJ-45 connectors for audio and relay

connections to the VIP-804

· 2 RJ-45 connectors for Expansion IN and

OUT

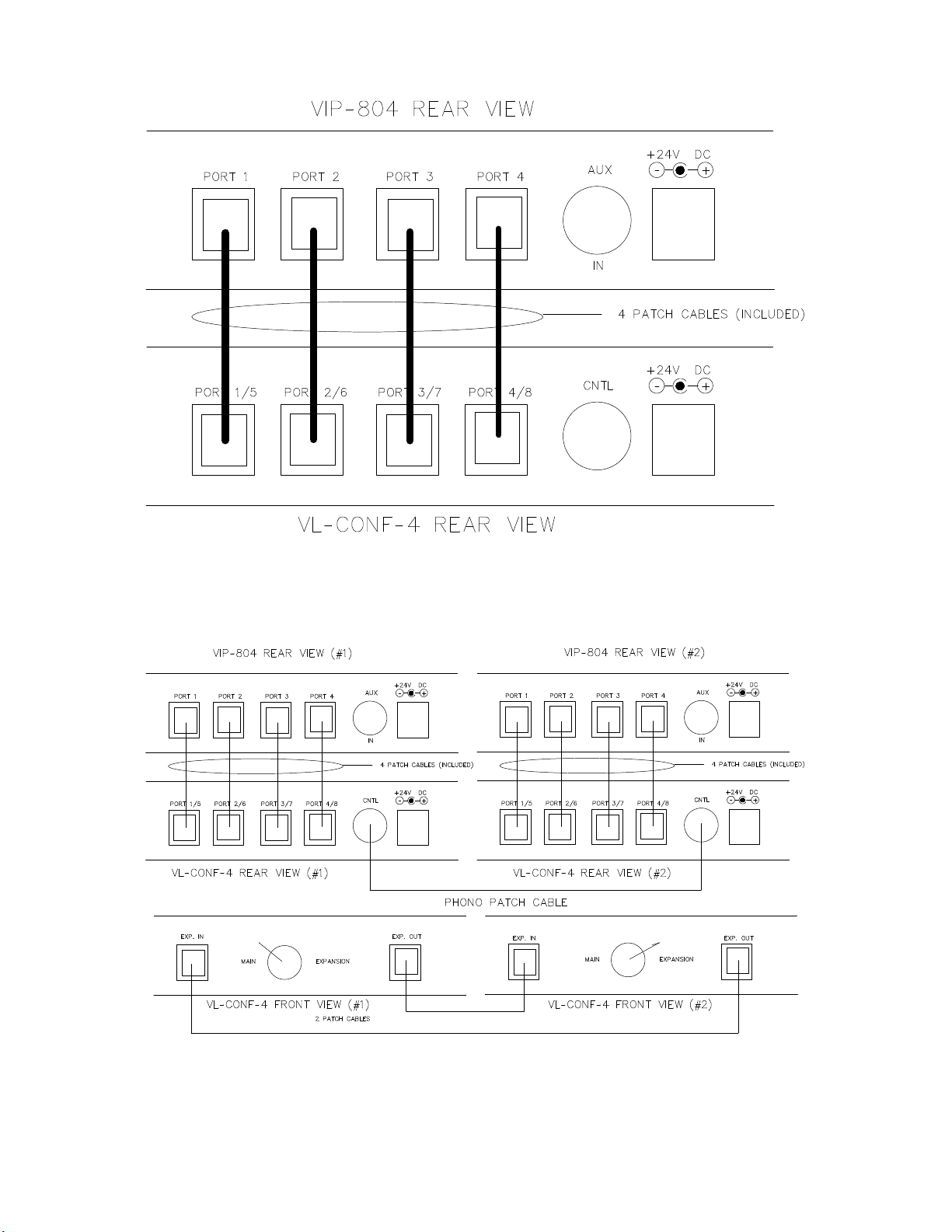

Attach the unit to the VIP-804 RJ 45 audio outputs

connectors via the back panel (4) RJ-45

connectors using the included patch cables Figure

Power Connections

The rear panel barrel connector is used for power;

the preferred power supply is a Valcom VIP-324D.

Make all required connections before applying

power to the unit via the barrel connector making

sure all connections are secure.

Expansion I/O: When expanding the system from

four circuits to eight the expansion jacks are used.

Set the toggle switch on one for the units to main.

On the second unit set the toggle switch to

expansion. Using a RJ45 patch cable connect

“Expansion Out” on the main unit to “Expansion In”

on the expansion unit. Using a second patch cable

connect “Expansion Out” on the expansion unit to

“Expansion In” on the main unit. Figure 4.

Control Input: When two conference bridges are

used connect an audio patch cable with male

phono connectors between the conference

bridges.

Rear View

Setup

Information specific to your application will need

to be programmed into the gateways and audio

ports using a computer. The PC used for

programming should be connected to the same

subnet as the Valcom gateways and audio ports.

Setup will be done using the IP Solutions Setup

Tool. Download the latest version of the free IP

Solutions Setup Tool from the Valcom web site at

www.valcom.com/vipsetuptool.

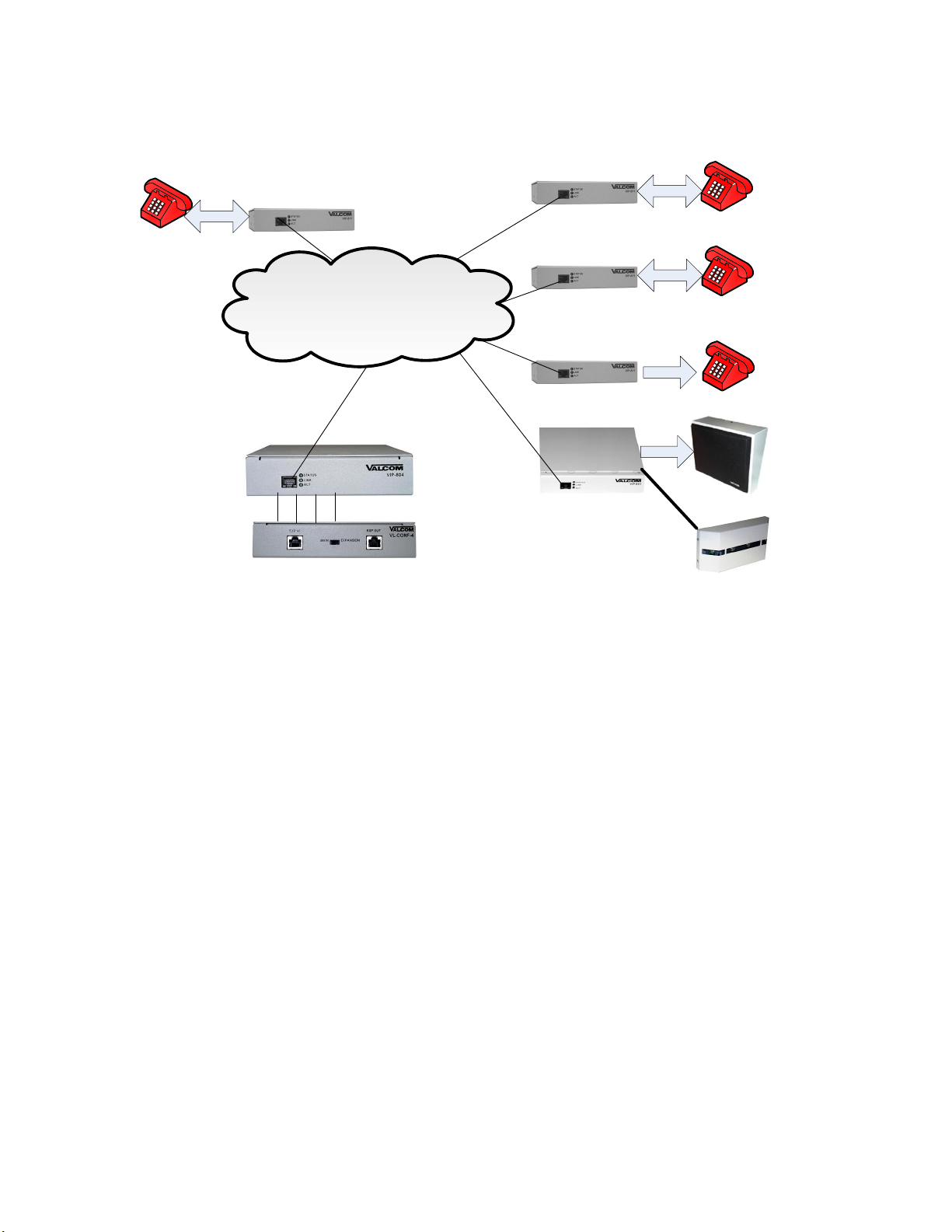

OPERATION

Port 1 of the conference bridge is the activation

port. The initial user lifts the handset on a

conference telephone. At that time the remaining

telephones on the bridge begin to ring. When the

telephones are answered the users are connected

together in a conference call. When a user hangs

up from the conference call they cannot rejoin the

call.

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. If a spare unit is available, substitute

a spare unit for the suspected defective unit.

Assistance in troubleshooting is available from the

factory. Call (540) 563-2000 and press 1 for

Technical Support or via email at

support@valcom.com.

When requesting assistance, you should include

all available information. General information and

troubleshooting procedures are available on the

Valcom website at www.valcom.com.

Valcom equipment is not field repairable. Valcom,

Inc. maintains service facilities in Roanoke, VA.

Should repairs be necessary, attach a tag to the

unit clearly stating your company name, address,

phone number, contact person and the nature of

the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056
