Valeton CP-200 Manuale utente

User Manual

For Firmware V1.0.4

※ In the interest of product improvement, the speciﬁcations and/or the content of products (including but not limited to appearances, packaging design, manual content, accessories, size, parameters and display

screen), are subject to change without prior notice. Please check with local supplier for exact oers. Speciﬁcations and features (including but not limited to appearances, colors and size) may vary by model owing to

environmental factors, and all images are illustrative.

Contents

Welcome·············································1

Attention············································1

Overview············································2

Panel Introduction·······························3

Getting Started···································4

Screen Introduction·····························5

Main Display Screen·································5

TUNER·························································5

LOOPER······················································6

DRUM··························································6

EXP Pedal·················································7

Patch Setting·······································7

Edit Menu·········································7

Editing a Module·······································7

Managing the Signal Chain······················8

Patch Settings···········································8

Save Menu··················································9

Global Settings··································9

Input/Output············································10

USB Audio·················································10

Footswitch················································11

EXPCalibrate··········································12

EXP2/Footswitch··································13

MIDI···························································13

Display······················································14

Auto CABMatch······································14

Global EQ···················································14

About·························································15

Factory Reset···········································15

Compatible software·························16

Application Scenarios·······················17

With full-range speaker devices············17

With guitar amps (INPUT jack)················17

With guitar amps (using FX Loop to pre-

position the GP-200)··································18

With guitar amps (using FX Loop to post-

position the GP-200)··································18

With guitar amps (using FX Loop to run

the 4 cable method)····································19

Audio Studio (for livestreaming)···········19

EFFECT LIST·····································20

PRE···························································20

WAH··························································23

DST···························································23

AMP··························································27

NR····························································36

CAB··························································37

EQ·····························································39

MOD·························································39

DLY··························································42

RVB··························································44

VOL··························································44

Drum Rhythm List··························45

MIDI Control Information List···········48

Troubleshooting····························50

Technical Speciﬁcations··················51

Welcome

ŸThank you for purchasing a VALETON product.

ŸWe know it might be tedious but please read this manual carefully to get the most out of your GP-200.

ŸPlease keep this manual for future reference.

Handling

ŸDo not get the unit wet. If liquid is spilled on the unit, shut it o immediately.

ŸDo not block any of the ventilation openings.

ŸKeep away from heat sources.

ŸDisconnect the unit during storms to prevent damage.

ŸOperation of this unit within signiﬁcant electromagnetic ﬁelds should be avoided.

Connecting the power and input/output jacks

ŸAlways turn OFF the power to the unit and all other equipment before connecting or disconnecting any cables. Also

make sure to disconnect all connection cables and the AC adapter before moving the unit.

Cleaning

ŸClean only with a dry cloth.

Alterations

ŸDo not open the unit.

ŸDo not attempt to service the unit yourself.

ŸOperation of this unit within signiﬁcant electromagnetic ﬁelds should be avoided.

AC Adapter Operation

ŸAlways use a DC9V center negative 1000mA AC adapter. Use of an adapter other than that speciﬁed could damage

the unit or cause malfunction and pose a safety hazard. Always connect the AC adapter to an AC outlet that supplies

the rated voltage required by the adapter.

ŸUnplug the unit during lightning storms or when unused for long periods of time.

Malfunction

ŸIf the unit should malfunction, disconnect the AC adapter and turn the power OFF immediately. Then, disconnect all

other connected cables.

ŸPrepare information including the model name, serial number, speciﬁc symptoms related to the malfunction, your

name, address and telephone number and contact the store where you bought the unit, or contact VALETON

support( )[email protected]t

Attention

Thank you for choosing a VALETON product!

Overview

Inspired by the craftsmanship in making GP-100, Valeton strives for a higher goal and presents GP-200, the new-gen

HD modeling multi-eects processor, declaring an unprecedented upgrade in order to bring you a better sonic

experience. With the aim of creating the ultimately heartfelt partner on stage, GP-200 comprehensively enhances

features that matter, including more footswitches and I/Os, larger display screen and more user-friendly buttons and

knobs, as well as 11 freely movable eect modules and more than 240 patches from world-renowned classic speakers,

IRs and stompboxes.

Apart from that, GP-200 oers 180-second looper and 100 high quality drum machines, with the additional function as

an audio interface compatible with multiple platforms (Windows/Mac/iOS/Android) to accompany the editor software

of Windows/Mac and ASIO, escorting immeasurable convenience to your songwriting, practice and recording.

Panel Introduction

1. LCD Display

4.3” color LCD shows GP-200’s patch numbers, patch

name, and other operation information.

2. PARA Knob (with enter button)

Turn to select menus and adjust parameters

3. MASTER Knob

Turn to control GP-200’s main output volume.

4.BACK Button

Press to return to the previous page, hold to return

to the main display secreen.

5. GLOBAL Button

Press to enter the Global Setting menu, where you

can edit the global parameters of the GP-200.

6. DRUM Button

Press to play the drum. Hold to enter the Drum

Machine Edit menu, where you can edit the drum

parameters (style, rhythm, volume).

7. SAVE Button

Whenever a patch is modified, the main display will

show a symbol to indicate that the parameter has

been changed. Use SAVE button to store, rename, or

copy the patch. Press SAVE button again to store the

changed parameter.

8. AMP Knobs

Control the AMP module in real time just like a real

amp. Press and hold for module on/off.

9. Module Buttons

Press to enter the Edit Settings menu of module.

10 10 10

4 5 6 7

8 8

8 8 8

10. Quick Access Knobs

Turn to adjust parameters on the lower part of the

screen. Each knob will vary in function according to

the parameter on the display.

11. 8 Footswitches

Use to change patches, turn on/off effects, set tap

tempo, etc.

12. Expression Pedal

Use to control the parameter of one or several

effects.

13 14 15 16 17 18 19

21 22 23 24

16 17 19 21

Getting Started

Panel Introduction

13. EXP/FS Jack

1/4” TRS input, for connecting an external expression

pedal/footswitch controller.

14. INPUT Jack

1/4” Mono input connection for guitar or other

instruments.

15. AUX IN Jack

1/8” TRS input for connecting an audio player and

playing along (or recording).

16. FX LOOP (SEND/RETURN) Jack

These 1/4” jacks can be used as FX loop for inserting

external stompboxes into your tone.

17. UNBALANCED OUTPUT (L For Mono Output)

Use 1/4” TS cables to connect to your guitar amp,

FRFR speaker(s), or other playback system.

When using a single amp or speaker, connect only

the L (MONO) jack.

18. GND/LIFT Switch

Turn the GND/LIFT switch to GND to cut o the

ground connection of the two XLR connectors

(Ground Lift) to avoid noise caused by the Ground

Loop. Turned to LIFT, the XLR line will be ground

normally.

19. BALANCED OUTPUT (L For Mono Output)

Use balanced XLR cables to connect to your studio

gear, mixer, PA, or FRFR speaker(s).

When using a single amp or speaker, connect only

the L (MONO) jack.

20. PHONES Jack

1/8” TRS output for connecting headphones.

21. MIDI Jacks

Connect an external MIDI device here.

22. USB Jack

By connecting USB 2.0 Type-C to Mac and Windows

computers, GP-200 also functions as a high quality

audio interface with DI, Re-amping and MIDI

functionality built right in.

23. POWER Switch

Turn the power on.

24. DC 9V Jack

Power Requirements: DC 9V, 1000mA.

1. Connect your Device. Plug your guitar into the GP-200’s INPUT jack, and run a cable from the UNBALANCED OUTPUT

L (MONO) to your amp.

Please remember:

ŸKeep your amp volume down.

ŸConnect your cable to the amp’s FX Loop Return if it has one. For connection methods, please check Page 17

"Application Scenarios".

2. Turn the GP-200 MASTER knob all the way down, then connect the power supply and turn on GP-200.

3. Tune your strings. Press and hold footswitch TAP (HOLD FOR TUNER) to bring up Tuner screen. Pluck each string and

tune it until the pitch reaches the middle of the screen and turns green. When all strings are tuned, follow the onscreen

instruction to exit the tuner.

EXP 1: EXP 2: PatchVOL

PatchVOLMixGain

BPM: 120

Getting Started

Main Display Screen is the home page displayed right after the power is turned on. You can directly see the key

information and settings of the current patch.

G. Patch number

. Patch name

. Patch volume monitor

. Patch BPM

. Patch volume

. EXP pedal state

. Patch state

. DRUM state

. Current footswitch setting

. Quick adjust paras

GP-200 includes 256 patches, with the ﬁrst 100 (01-A~25-D) containing default factory parameters. When performing a

factory reset, you can separately reset these 100 patches to the default values.

Tap footswitch A, B, C, D, choose a patch you like. Tap footswitch BANK- to move back through the banks, and tap

footswitch BANK+ to move forward through the banks. When you switch a BANK, the LED ring on footswitch A, B, C, D

will light up to indicate the patch if you want to select one.

Select a patch

Screen Introduction

Main Display Screen

TUNER

Hold the [TAP] footswitch to activate the tuner mode.

In tuner mode, the LED screen will display the tuning

interface. When you pluck a string, the note will appear in

the center. Left of center is ﬂat, and right of center is sharp.

As you tune your instrument towards the middle, the color

of the scale will change from red (out of tune) to yellow

(near pitch) to green (in tune).

Mode Back Pitch - Pitch +

Mode Mute

Pitch

TUNER

ŸTurn Quick Access Knob 1 or tap footswitch A to select the work mode of the tuner:

◦Thru: Your tune will be normal.

◦Bypass: Eect chain will be bypassed, and you will only hear the dry guitar input sound.

◦Mute: There will be no output.

ŸTurn Quick Access Knob 3 or tap footswitch C and D to change the standard A’s frequency ranged from 432Hz to

447Hz, with default set to 440Hz.

ŸTap other footswitches or click BACK to return back to the Main Display screen.

DRUM

LOOPER

In the Main Display screen, hold [Ctrl] footswitch to enter Looper.

*Note:

Sync requires the margin of error to be under 50ms, otherwise the sync would not function normally.

Screen Introduction

DRUM

Press DRUM

for drum play/stomp

Use PARA knob to

select a genre/stryle

Genre Style

BPM Volume Sync

Rock

Funk

Blues

Pop

Jazz

Electronic

World

Metro

Classic Rock 1

Classic Rock 2

Classic Rock 3

Classic Rock 4

Classic Rock 5

Classic Rock 6

Hard Rock 1

Hard Rock 2

LOOPER

Empty

BANK REV DRUM TAP

Undo Redo Exit

Rec VOL

Pre/Post Pre

Play VOL

Turning PARA knob on this page to switch current patch,

clicking PARA knob to access more options. When double

options are provided in the footswitch function display, the

left corresponds to tap and the right corresponds to hold.

Recording Playing Recording

recording-red playing-green overdubbing-blue

ŸRec VOL: Change the recording volume of the looper;

ŸPre/Post: Change the position of the looper in the eects chain, when setting to “Post”, the recording time will be

cut to half.

ŸPlay VOL: Change the volume of the looper when playing back;

ŸRecording Time: When “Undo/Redo” are not required, you can select up to 180s recording time.

ŸSync*: Synchronize the drumbeat to the timeline of the looper. When activating the looper and playing the drum,

the audio will adjust in a brief period of time to match with the drumbeat.

ŸAuto Rec: Turn on/o the auto-recording, when activating auto-recording, the GP-200 will not immediately start to

record until certain level of input signal is perceived..

Footswitches function dierently in the LOOPER interface than in the Home Screen, and their default functions are set below:

Footswitch

FS1

[-]

FS 2

[+]

FS 3

[CTRL]

FS 4

[TAP]

FS 5

[A]

FS 6

[B]

FS 7

[C]

FS 8

[D]

Function

Tap

Bank

1/2 Speed

DRUM

TapTempo

Undo

Record/Playback

Stop

Back

Hold

Reverse

Tuner

Redo

Clear

ŸTurn Quick Access Knob 1 to change the tempo of the

drum, ranged from 40-250 BPM.

ŸTurn Quick Access Knob 2 to change the volume of the

drum, ranged from 0-100;

ŸTurn Quick Access Knob 3 to synchronize the drum

tempo with the patch tempo.

ŸClick “Back” button to exit Drum menu.

After the drum is turned on, a symbol will

be displayed on the right side of the

main interface to show the drum

machine is active.

Press the “DRUM” button to turn on the drum, hold it to enter the DRUM menu.

Turn PARA to switch genres, click PARA to switch Genre

and Style.

GP-200 includes 100 drum patterns (check the Drum

Patterns list for details)

PatchSettings Patch VOL： 50 EXP 1: A

BPM： 120 EXP 2: ON

PatchSettings Patch VOL： 50 EXP 1: A

Current

Eect

ON/OFF

Mess4 LD 3

BPM： 120 EXP 2: ON

Press PARA

Screen Introduction

EXPPedal

You can use a built-in expression pedal oering two modes to

control various parameters in real time.

Press the pedal all the way forward to switch A/B mode.

Some GP-200 patches have been set up to use the built-in

expression pedal. These can be used without any further set up;

Refer to the expression pedal setting section to customize the

expression pedal settings.

When the built-in expression pedal is on, an icon will show up on the Main Display screen at the top left to indicate the

mode it is on:

Patch Setting

Edit Menu

In Quick Access display area, you can check the currently

loaded eect’s status.

Click PARA to enter Edit Menu.

Showing the current patch number and name

The complete signal chain simulation of the GP-200. You can

directly view all 11 modules’ sequence and on/o status based

on the color of the icons. Shaded dark indicates o and

exposed bright indicates on.

The default sequence of the signal chain is: PRE - WAH - DST -

AMP - NR - CAB - EQ - MOD - DLY - RVB - VOL. You can freely

move and adjust the eects sequence to create your own ideal

tones.

Note:

Please remember to save after editing your parameters.

A “*” sign will show up at the top screen to indicate that the parameters have been changed while not saved yet

when you’ve edited any parameter in a preset patch..

Editing a Module

Choose a module in the Edit Menu using PARA knob and click it to see all eects listed in this module.

For speciﬁc parameter settings, please check Page 20

"Eect List".

All eects in the module are listed on the right of the

screen, turn PARA knob and click to switch eects.

Click PARAknobto access more options.

EXP 1: EXP 2: PatchVOL

PatchVOLMixGain

BPM: 120

EXP 1:

Knob 1-3: To use the Quick Access Knobs for adjusting eect parameters of the selected patch.

EXP Settings: Settings of the selected patch’s expression pedal, including EXP 1A, EXP 1B and EXP 2. Every pedal

mode can simultaneously control up to 3 eect parameters with max/min value settings. EXP 2 means external

pedals, you can use them through Global Settings.

CTRL Settings: You can assign the on/o of one or multiple modules, and there are totally 4 CTRLs available. When

used with “Global Settings”, you’re able to control multiple modules’ on/o in one patch, making you feel like playing

with the stompbox matrix.

Move It

ON/OFF

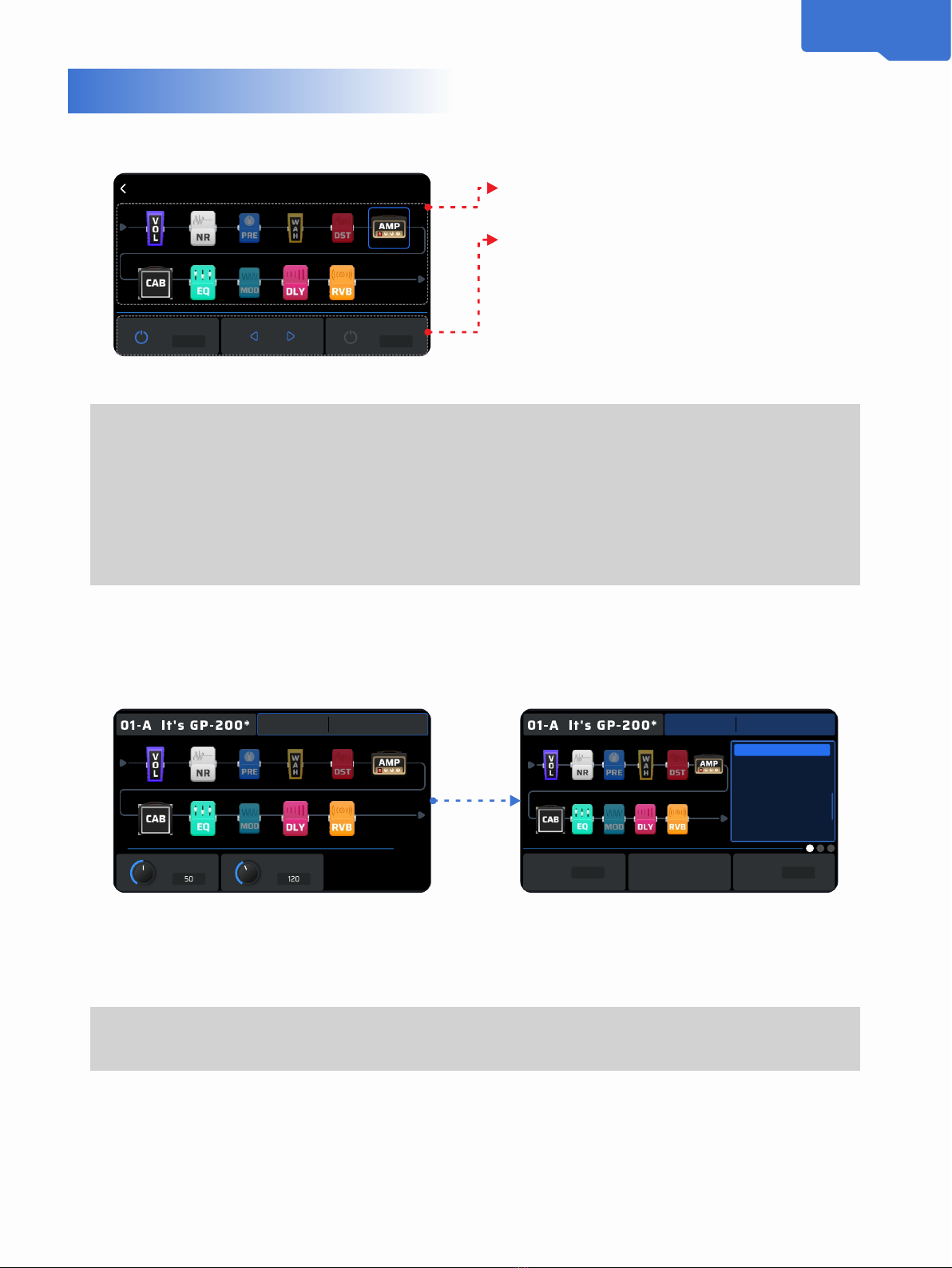

Manage Signal Chain

Mute

OFF

Managing the Signal Chain

Patch Setting

After choosing a module in the Edit Menu, you can hold PARA to enter the Manage Signal Chain menu:

ŸQuick Access Knob 1 controls the on/o of the

selected module;

ŸQuick Access Knob 2 controls moving the selected

module;

ŸQuick Access Knob 3 oers a Mute Mode (only

applicable in this menu) to avoid possible noise

when moving the eect module.

Press and hold PARA or click BACK to return to the Edit Menu.

Note:

ŸIn some extreme cases the signal processor may become overloaded and display a “System Overload” message.

Please try other eects combos instead.

ŸKeep in mind that turning the modules on/o and adjusting parameters will change the current patch. If you

switch patches or turn GP-200 o before saving your changes, the changes will be lost. Make sure to press the

SAVE button to save your settings.

ŸIn EDIT Menu, footswitches function the same as in the Main Display screen.

Patch Settings

When the icon selects patch settings, use Quick access knobs to adjust volume and tempo.

When entering the Patch Settings menu, the list presents Knob 1-3, EXP Settings, CTRL Settings and FX Loop.

Note:

EXP pedal-related parameters are regarded as module parameters, and no save reminder will be shown up.

In this menu, turn PARA knob to select the module you

want to move.

PatchSettings Patch VOL： 50 EXP 1: A

BPM： 120 EXP 2: ON

Press PARA

Patch VOL BPM

PatchSettings Patch VOL： 50 EXP 1: A

BPM： 120 EXP 2: ON

Knob 1-3

EXP Settings

CTRL Settings

FX Loop

Module1PRE Boost Para1Gain

Indice

Altri manuali Valeton Hardware per computer

Valeton

Valeton GP-100 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
