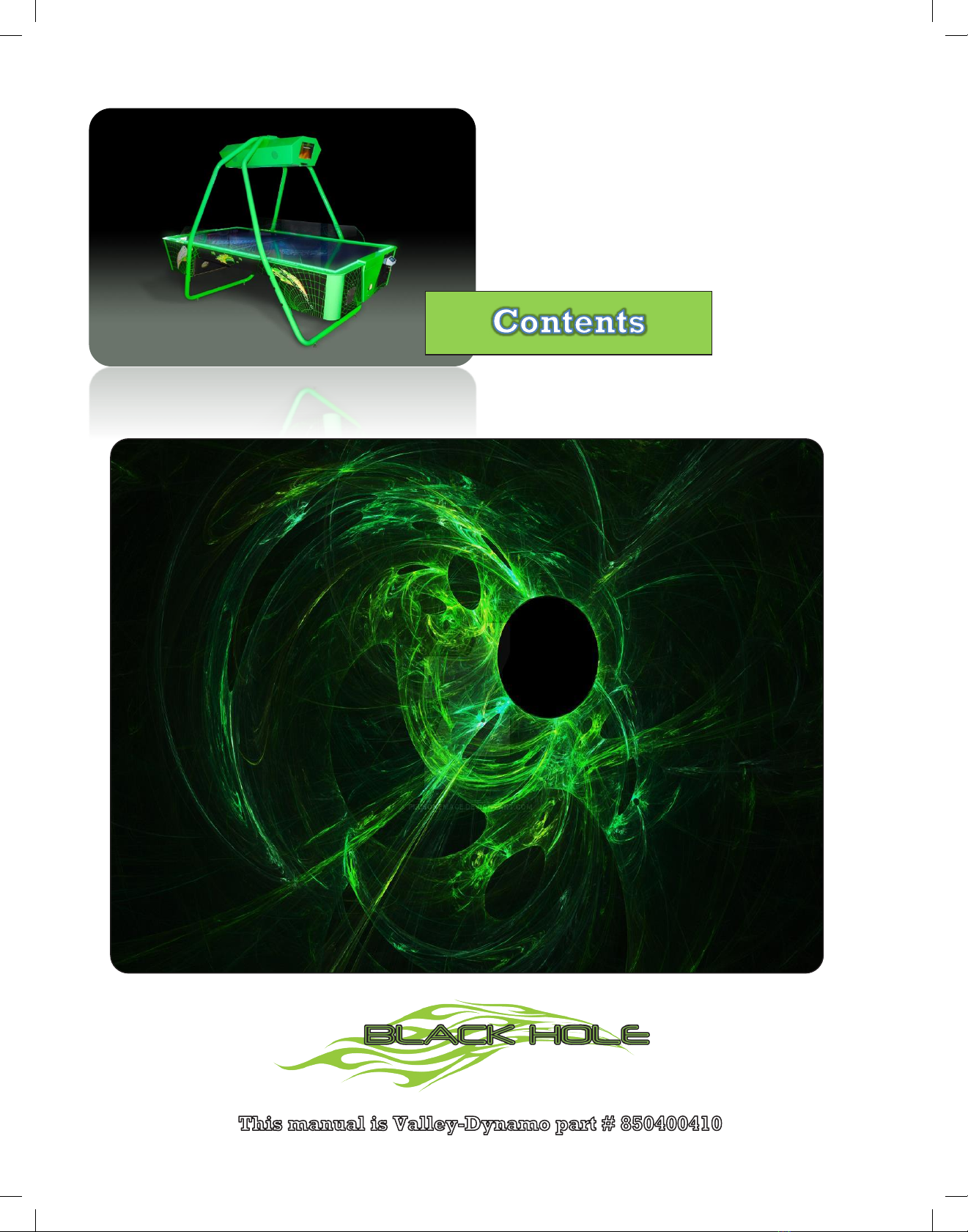

Valley-Dynamo Black Hole Manuale utente
1
2
3 –Warranty
6 –Declaration of Conformity
6 –Warnings and notices
7 –Assembly instructions
13 –Overhead instructions
17 –Side Shield Installation
18 –Black Hole Programming
20 –Electronics Layout
23 –Selected Parts Listing
24 - Rules of Play
26 –Routine Maintenance
28 –Closing Notes
3
Valley-Dynamo warrants its new products to be free from defects resulting
from faulty manufacture or faulty components under the following terms and
conditions:
WARRANTY LENGTH
One year on Dynamo® Hockey tables. 90 days on Replacement Parts
FOR WARRANTY SERVICE
Valley-Dynamo will, at its sole option, repair, upgrade or replace this
product in the event of any defect in materials or workmanship during the
warranty period. This shall be Valley-Dynamo's sole obligation, and the
customer's sole remedy, for any warranty claim.
Valley-Dynamo will request and you must provide the complete Model
Number & Serial Number of the unit located inside the Black Hole’s CPU
ACCESS Door, or other proof of purchase such as an invoice or receipt.
OPERATORS AND END USERS –While our Tech Support staff is available
to assist with diagnosis and troubleshooting of your problem, contact your
Distributor for Warranty Service on your equipment.
DEALERS AND DISTRIBUTORS –To obtain replacement and an RMA
number, contact Valley-Dynamo referencing the Model number and Serial
number of the unit and the nature of the problem. Valley-Dynamo will, at its
discretion, send replacement parts and/or issue an RMA for the return of
failed parts. To avoid billing issues, request an RMA when the failed part is
present or readily available. Credit will be issued only upon receipt and
inspection of the RMA. Valley-Dynamo may send replacement parts or issue
4
an account credit. NO REFUNDS. Valley-Dynamo reserves the right to cancel
outstanding RMAs 30 days after issue. Items returned with no RMA will not be
inspected or credited and may be refused or returned at Customer Expense.
REPLACEMENT PARTS COVERAGE –Valley-Dynamo warrants
replacement parts for 90 days from the date of purchase. To obtain a
replacement and an RMA number, contact Valley-Dynamo referencing the
nature of the problem and provide proof of purchase. Valley-Dynamo will, at
its discretion, send replacement parts and/or issue an RMA for the return of
failed parts. To avoid billing issues, request an RMA when the failed part is
present or readily available. Upon receipt and inspection of the RMA,
Valley-Dynamo may send replacement parts or issue an account credit. NO
REFUNDS. Valley-Dynamo reserves the right to cancel outstanding RMAs 30
days after issue. Items returned without an RMA will not be inspected or
credited and may be refused or returned at Customer Expense.
SCOPE OF COVERAGE
Note that our warranty is not an unconditional guarantee for the duration.
Dynamo products are made to our exacting standards and known for their
durability, but are not indestructible and may require periodic maintenance
in order to function properly. The following are not covered by the warranty.
1)Shipping or transport damage
2)Normal wear and tear
3)Damage or deterioration resulting from neglect, misuse, accident, liquid
spills, improper installation, abuse, pets, burns, power surge or mishandling
Hockey Playfields - The most frequent cause of warpage or laminate separation on a
playfield is a liquid spill. Liquid spills are not a covered warranty failure. If warranty failure
is suspected, for evaluation Valley-Dynamo will require return of the damaged playfield or
at minimum at least 12 square feet (4’ x 3’) of the damaged section. No credit will be issued
for a Playfield damaged by a liquid spill, or for incoming or outgoing freight for the
replacement or returned playfield.
4) Incidental or consequential damage (except at Valley-Dynamo’s
discretion).
5) Removal or installation charges.
6) Shipping charges except at Valley-Dynamo’s discretion.
7) Unauthorized modification of the product.
8) Use of this product with unapproved parts, conversion kits or accessories.
9) Damage from fire, flood, lightning or other acts of nature
5
EXCLUSION OF DAMAGES
Valley-Dynamo’s sole obligation and liability under this warranty is limited
to the repair or replacement of a defective product at our option. Valley-
Dynamo shall not, in any event, be liable for any incidental or consequential
damages resulting from interruption of service, loss of business or revenue,
or for liability in tort relating to this product or resulting from its use or
possession.
LIMITATIONS OF IMPLIED WARRANTIES
There are no other warranties, expressed or implied, including but not
limited to those of merchantability, revenue generation, or fitness for a
particular purpose. The duration of implied warranties is limited to the
period specified in the Warranty Length section above.
TO OBTAIN TECHNICAL SUPPORT
Please check the resources available at www.valleydynamoparts.com or
contact TECHHELP@valley-dynamo.com.
6
USE OF NON-DYNAMO PARTS OR CIRCUIT MODIFICATIONS MAY CAUSE SERIOUS
INJURY OR EQUIPMENT DAMAGE! USE ONLY GENUINE DYNAMO AUTHORIZED PARTS.
For safety and reliability, substitute parts and modifications are not recommended.
Substitute parts or modifications may void FCC type acceptance.
Use only authorized components and parts. Failure to do so will void warranty and may
result in incorrect and/or unsafe operation.
WARNING
Plug this game into a properly grounded outlet to prevent shock hazards and assure
proper game operation.
Do not use an adapter plug to defeat the power cord's grounding pin.
Do not cut off ground pin.
Information in this manual is subject to change without notice. Dynamo reserves the right
to make improvements in the equipment function, design or components as process in the
engineering or manufacturing methods may warrant.
FOR GENUINE DYNAMO PARTS AND SERVICE CONTACT YOUR AUTHORIZED
DYNAMO DISTRIBUTOR.
PARTS CAN ALSO BE ORDERED AT WWW.VALLEYDYNAMOPARTS.COM
7
Congratulations on purchasing a Dynamo Hockey table -
the finest professional grade hockey table on the market.
BE SAFE: it is strongly recommended that you have at least two people for the safe
setup of our hockey tables.
The keys to open the coin and service doors are found with the
instruction manual, taped to the playfield protective pad.
Lay the box flat on the floor, mindful of the section labeled "This Side Up." Cut the
banding straps and remove the top portion of the box completely. Lower the sides of the
box bottom by carefully cutting or tearing vertically at all of the corners. Remove all
staples from the box top and bottom, retain the box top as it will be used later.
Note that we will refer to the COIN DOOR END of the table as
the BLUE and HOME end.
The EXTERIOR SERVICE DOOR is located on the end opposite
the coin door, also referred to as the RED or VISITOR end.
Open this door and remove the parts kits.
Recommended tools:
Drill
Ratchet
12” extension
½” Socket
½” open-end wrench
Adjustable wrench
Band cutters
Wire Cutters
Phillips Screw Driver
Rubber Mallet
8
Parts Kits
1x CAMERA BRACKET WITH CAMERAS
Game Play Pack
2 860400210 mallets
2 860400090 pucks
2 980400200 sand paper disks
Wire Harnesses
1 730409010 main overhead tube harness
1 Overhead AC harness
1 Power Cord
Overhead Diffusers
2 800404905 Diffuser expanded metal
screens
2 800404910 Bracket Diffuser
Leg Hardware kit
4x 870000124 8-32 x 5/8 screws
4x 870046103 Washer # 10
12x 870007390 5/16 bolts
12x 800404935 spacers
12x 870050106 Washers
4x 20300110 5/16 nuts
4x 870401000 Leg Levelers
We posted a video on the
ValleyDynamoTV YouTube page
to demonstrate hard-to-describe
postions of the assembly
process. Search YouTube.com
for ValleyDynamoTV, or you can
scan the QR code at right to go
directly to the video.
For best results, have the
manual handy AND the video
9

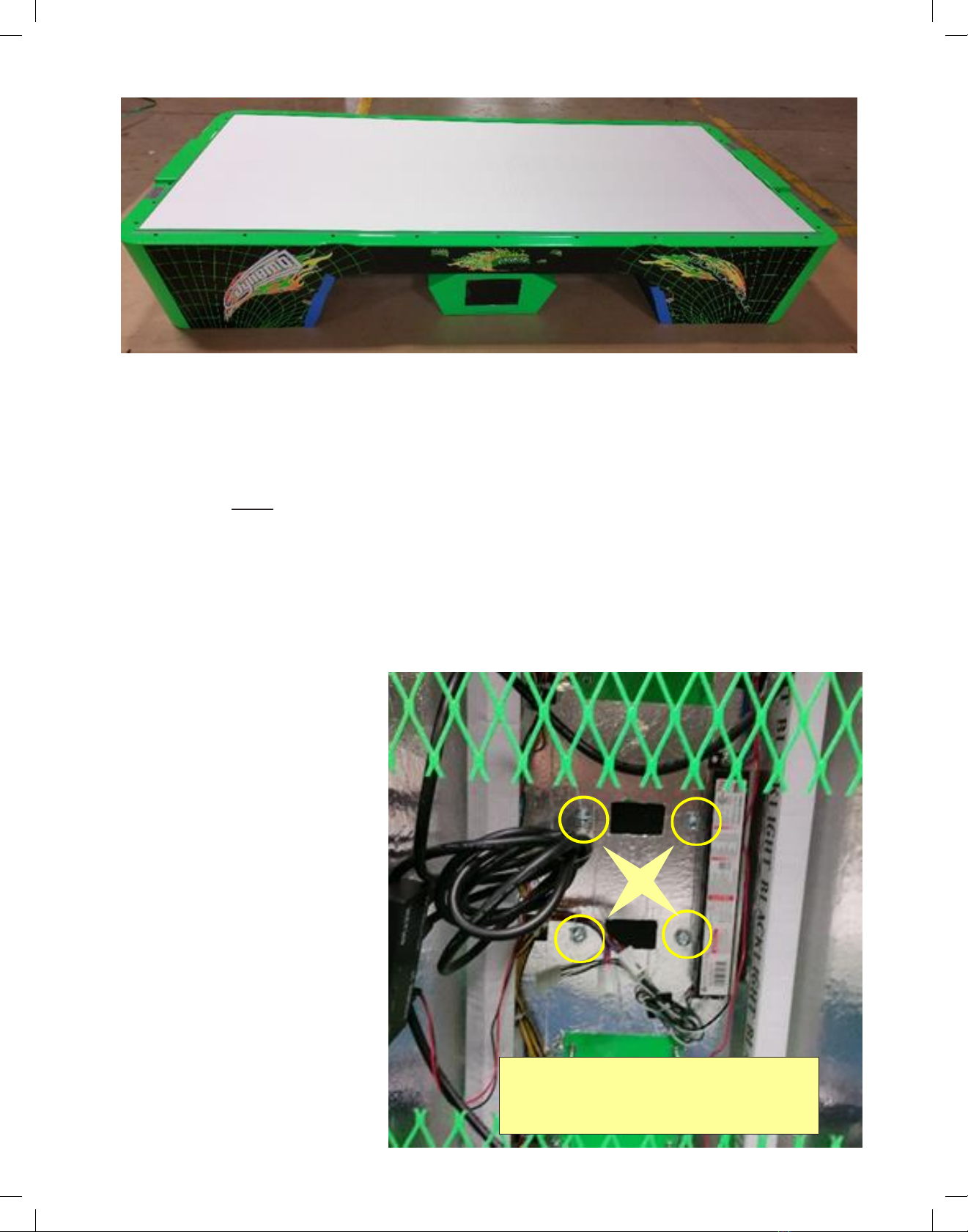

Note four attachment bolts at center,
light bulbs to either side in
protective cardboard.
Removal of the Overhead Display Unit.
The hockey table should now be carefully lifted onto its side (the end with the coin door
will be to your left, the end with the service door to your right). Have two people tilt the
table from the ends, do not lift from one side. The table could land on you and cause
injury if you lose your grip while lifting the table from its side.
With the table on its side, you can see the four 5/16” bolts securing the Overhead Display
Unit to the underside of the table. Use the ratchet, 12” extension and ½” socket, take care
not to damage the fluorescent light bulbs in the fixture, and remove the four bolts to free
the Overhead Display Unit. Carefully store the Overhead Display Unit for later use. The
attachment bolts will not be needed again.
Set the table back down, still
using the box bottom as a base.
