Valor Fires 842 Istruzioni per l’uso

5132650 / 01

Model 842

ELECTRIC HEATER

Fitted with a Nanofascia.

(GC No. EF-032-32)

Important: Please keep your guide in a safe place for future reference.

INSTALLER AND OWNER GUIDE

This guide is intended to help you

install and care for your Valor Fires

electric heater. Please read carefully

before installing and using your

heater. However, if further

information is required, our

Valor Fires Technical Helpline will

be pleased to help.

Telephone 0844 8711 565 (National

call rates apply in the United

Kingdom).

In the Republic of Ireland

Telephone 0044 844 8711 565.

the nation’s favourite for

PLUMBING & HEATING SUPPLIES

SECURE PAYMENTS

shop online with confidence

FREE SHIPPING

on all orders over £100 to mainland UK

FINANCE AVAILABLE

spread the cost with low interest rates

PRICE MATCH

always get the best deals available

Boilers

Radiators

Heating controls



Cylinders

Fires

Renewable energy

Bathroom suites

Kitchen sinks & taps

Showers

Wet rooms

Towel warmers

Bathroom furniture

& much more

HUGE REDUCTIONS

we have

ON THOUSANDS OF ITEMS

0844 800 3460

CALL US ON

visit our website

plumbnation.co.uk

(including photocopying), stored in any medium by electronic means (including in any

retrieval system or database) or transmitted, in any form or by any means, whether

electronic, mechanical, recording or otherwise, without the prior written permission of

the copyright owner.

Applications for the copyright owner's permission to reproduce any part of this

publication should be made, giving details of the proposed use, to the following

address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business

Park, Stanier Way, Derby, DE21 6BF.

Warning: Any person who does any unauthorised act in relation to a copyright work

may be liable to criminal prosecution and civil claims for damages.

Valor Fires, Erdington, Birmingham B24 9QP.

www.firesandstoves.co.uk

Because our policy is one of constant development and improvement, details may vary slightly from

those given in this publication

Page 2

INSTALLER AND OWNER GUIDE

Safety First.

Valor Fires heaters are CE Approved and designed to meet the appropriate British

Standards and Safety Marks.

Quality and Excellence.

All Valor Fires heaters are manufactured to the highest standards of quality and

excellence and are manufactured under a BS EN ISO 9001 quality system accepted

by the British Standards Institute.

CUSTOMER CARE

Thank you for choosing Valor Fires

All Valor Fires heaters are designed to meet the most stringent quality,

performance and safety requirements to provide our customers with many years of

trouble free service. This guide aims to improve your understanding and appreciation

of your new Valor Fires heater, by providing simple and informative instructions to

enable you to install it and to ensure that you benefit from the excellent performance

and features it has to offer.

If you require further assistance, the Valor Fires Technical Helpline will be

pleased to help.

Please telephone 0844 8711 565 (local rates apply in the United Kingdom). In the

Republic of Ireland please telephone 0044 844 8711 565.

Page 3

INSTALLER AND OWNER GUIDE

1. HANDLING AND UNPACKING

Before continuing any further with the installation of this heater please read the

following:

Important instructions.

A carry handle is fitted to the top of the heater. We recommend that this is used

when moving the heater.

The approximate lifting weights (kg) of the heater parts are listed below: -

Model Heat engine Fascia Spacer

Nano 8.0 2.68 1.0*

* Although the heater is supplied with a spacer frame, an optional spacer frame kit is

obtainable either from your heater supplier or direct from Valor Fires Sales. The kit is a

71mm spacer kit (Kit number 0584081). This spacer when added to the one supplied

with the heater enables the heater to be flat wall fixed.

One person should be sufficient to lift the heater. If for any reason this weight is

considered too heavy then obtain assistance.

When lifting always keep your back straight. Bend your legs and not your back.

Avoid twisting at the waist. It is better to reposition your feet.

Avoid upper body / top heavy bending. Always bend from the knees rather than

the waist. Do not lean forward or sideways whilst handling the heater.

Always grip with the palm of the hand. Do not use the tips of fingers for support.

Always keep the heater as close to the body as possible. This will minimise the

cantilever action.

Use gloves to provide additional grip.

Always use assistance if required.

2. SAFETY

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Page 4

INSTALLER AND OWNER GUIDE

Always

Always install the heater in accordance with this guide. If in doubt obtain

expert advice.

Always make sure the electrical socket is accessible and located adjacent to, but

not above or behind the heater.

Always disconnect the heater from the electrical supply before carrying out

cleaning, maintenance or replacing the lamp.

Always use a fireguard when young children and infirm persons can come into

contact with the heater.

Always use genuine Valor Fires spares.

Never

Never leave children unsupervised in a room where the heater is ON and

unguarded.

Never obstruct or cover the fan outlet or force items into heater openings.

Never install or use the heater anywhere where water is in use, i.e.

Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.

Never use aerosols or steam cleaners on or around the heater.

Never route the electric cable under carpet etc.

Never install the heater close to curtains or combustible materials.

Never use the heater to dry clothes etc.

Never sit or stand on the heater.

Important Electrical Safety

The heater must not be located in front of or under an electrical socket, the socket

must always be accessible in order to disconnect the heater from the electrical supply

for maintenance and cleaning.

Important! This heater must be earthed.

The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm²

3 core cable.

The wires in the cable are coloured in accordance with the following code:-

Live = Brown

Neutral = Blue

Earth = Green /Yellow

The electric supply must be safely routed from the heater to an electrical socket.

If the electric cable is damaged, to avoid a hazard it must be replaced by a Valor Fires

authorised service agent, or similarly qualified person. All external wiring between the

heater and the electrical supply shall comply with current IEE regulations. Extension

leads should not be used.

Page 5

INSTALLER AND OWNER GUIDE

3. OPTIONAL KITS

The following kits are obtainable either from your heater supplier or direct from Valor

Fires Sales.

Spacer frame kit 0584081

Elevated installation kit 0584091

Page 6

INSTALLER AND OWNER GUIDE

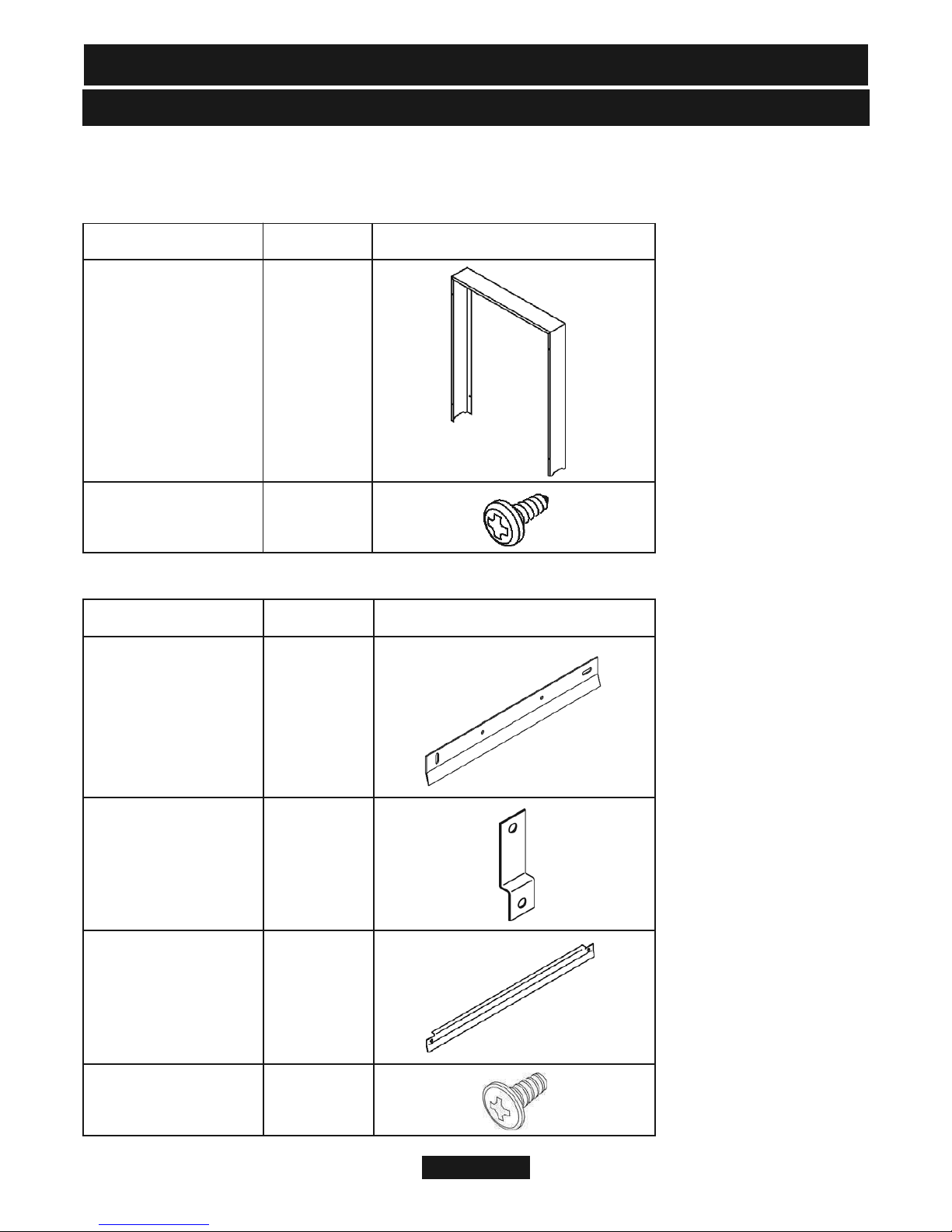

Contents Quantity (Illustrations are not to scale)

Spacer frame 1

No 8 x 3/8 Self-

tapping screws 4

Contents Quantity (Illustrations are not to scale)

Wall mounting

bracket 2

Lower securing

bracket 1

Innova fascia

baffle 1

No.8 x 5/16 Pan

head pozi screws 5

4. FITTING THE HEATER

Before continuing any further with the installion of the heater please fill in the

details on the last page of this guide.

Important: Before continuing with the installation of this heater please ensure

that you have completed the information on the last page of this guide.

Please read this section thoroughly before positioning the heater.

Do I need any tools?

Depending upon the chosen method of installation you may need the following tools: -

For Spacer frame or screw fixed installations you will need A Pozidrive / Phillips /

cross head screwdriver. This should have a number 2 size tip.

If wire fixing and drilling into brickwork you will need a power drill (preferably with

hammer action) and appropriate size drill bit for the wall plugs supplied.

Where and how can you fit the heater?

Q Can the heater be installed into a ‘hole in the wall’ (elevated opening)?

A The heater is suitable for ‘hole in the wall’ installations; these being installations

where the heater is recessed into a builders opening. This is not referring to the

heater being hung on the wall. It is important that the electrical socket is

accessible and located adjacent to, but not above or behind the heater.

The Nano fascia has been designed for traditional installations where the base of

the fascia sits on a hearth or similar surface. For this reason we recommend that a

plinth be fitted under the heater.

Q Do you want to fit the heater into a surround or fireplace opening without

the spacer frame?

A The minimum rebate / depth required is 145mm.

Q What opening size do you need in the surround or fireplace opening?

A This heater can be fitted into fireplaces or surrounds where the following

dimensions are available.

Width 395mm - 450 mm

Height 555mm - 590 mm

Depth At least 145mm

Q Do you want to fit the heater into a surround using the spacer frame

supplied with the heater?

A The minimum rebate required is 71mm.

Page 7

INSTALLER AND OWNER GUIDE

Q Do you want to fit the heater against a flat wall with the base of the heater on

a hearth or similar surface?

A You will need to purchase the optional spacer frame kit (kit number 0584081). This

spacer when added to the one supplied with the heater enables the heater to be

flat wall fixed. The depth of the combined spacer frames is 145mm.

Q Do you want to wall mount the heater against a flat wall?

A You will need to purchase the Optional spacer frame kit (kit number 0584081)

and an Elevated installation kit (kit number 0584091). The optional spacer when

added to the one supplied with the heater covers the full depth of the heater rear

(145mm).

General notes to read before fitting

your heater.

There should be at least 50mm clearance between

the top of the fascia and anything such as a shelf,

fireplace surround or mantel etc. This will allow the

fascia to be lifted off or removed during servicing.

To check the shelf clearance gently place the

fascia against the surface to which it is to be fixed

and measure the distance from the top of the

fascia.

If fitting the heater onto a reflective or shiny

surface such as a hearth we recommend that

this surface does not extend further than 300mm

from the fixing plane (wall). Reflective or shiny

surfaces that project further than 300mm may

reflect an image of the internal lamp.

Fitting the cable clamp.

If the mains cable is to be routed to the left hand

side of the heater there is a cable clamp supplied

with the heater to hold the cable in place. This

prevents the cable being trapped under the

heater during installation. Fit the cable clamp as

in figure 1.

Checking the lamp.

When handling the lamp avoid touching the glass

with bare fingers as this will reduce the life of the

lamp.

Before continuing with the installation of the

Page 8

INSTALLER AND OWNER GUIDE

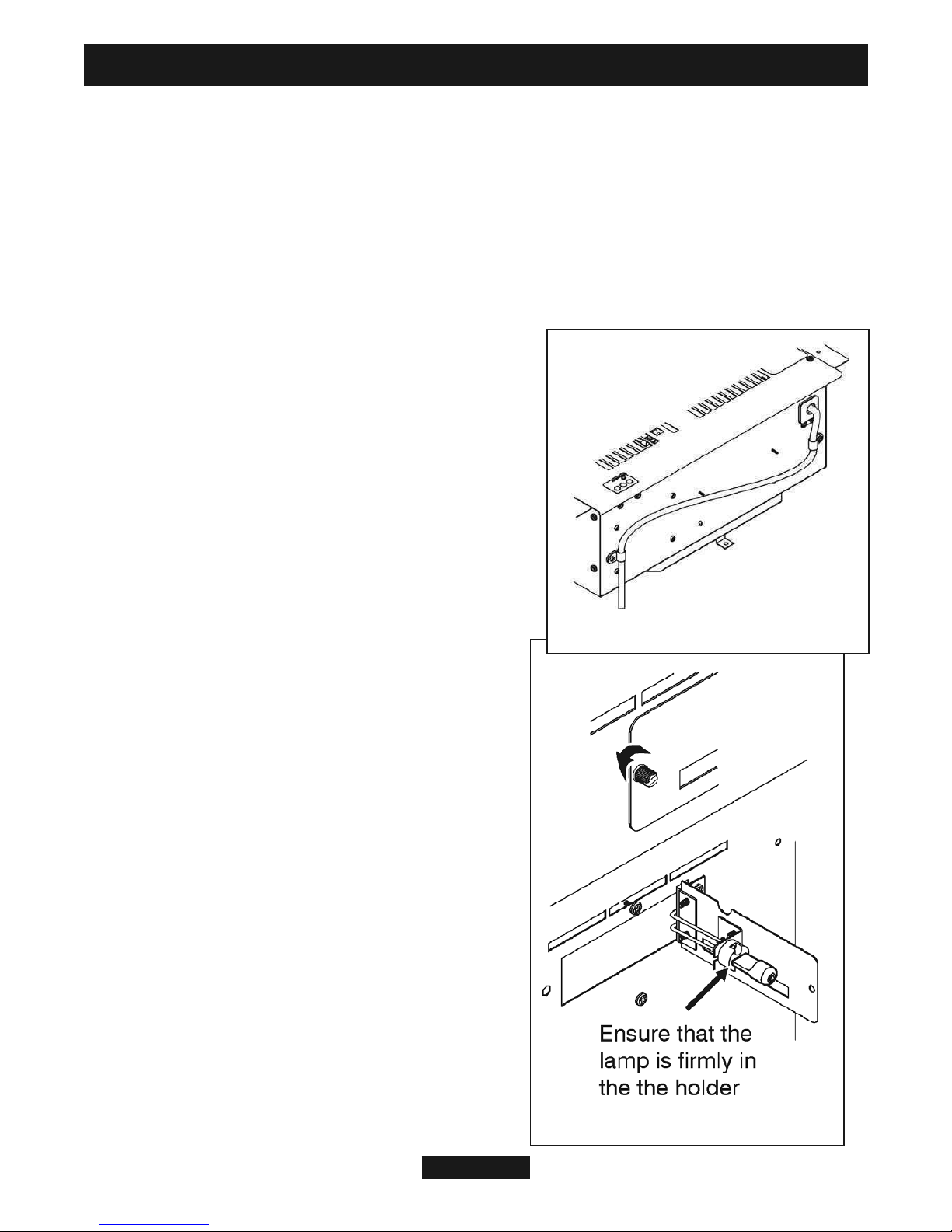

Figure 2. Checking the lamp

Figure 1. Fitting the cable clamp

heater it is important to check that the lamp

has not become loose in transit. The lamp is

located into a cradle on the rear of the access

panel. Open the access panel by unscrewing

the locking screw in an anticlockwise

direction. Ensure that the lamp is located

firmly in the lamp holder (See figure 2).

It is important that the lamp is horizontal and

not angled in any way (See figure 3). When

closing the access panel be careful not to trap

wiring between the access panel and heater

body. Screw the locking screw in a clockwise

direction to secure the access panel.

Page 9

INSTALLER AND OWNER GUIDE

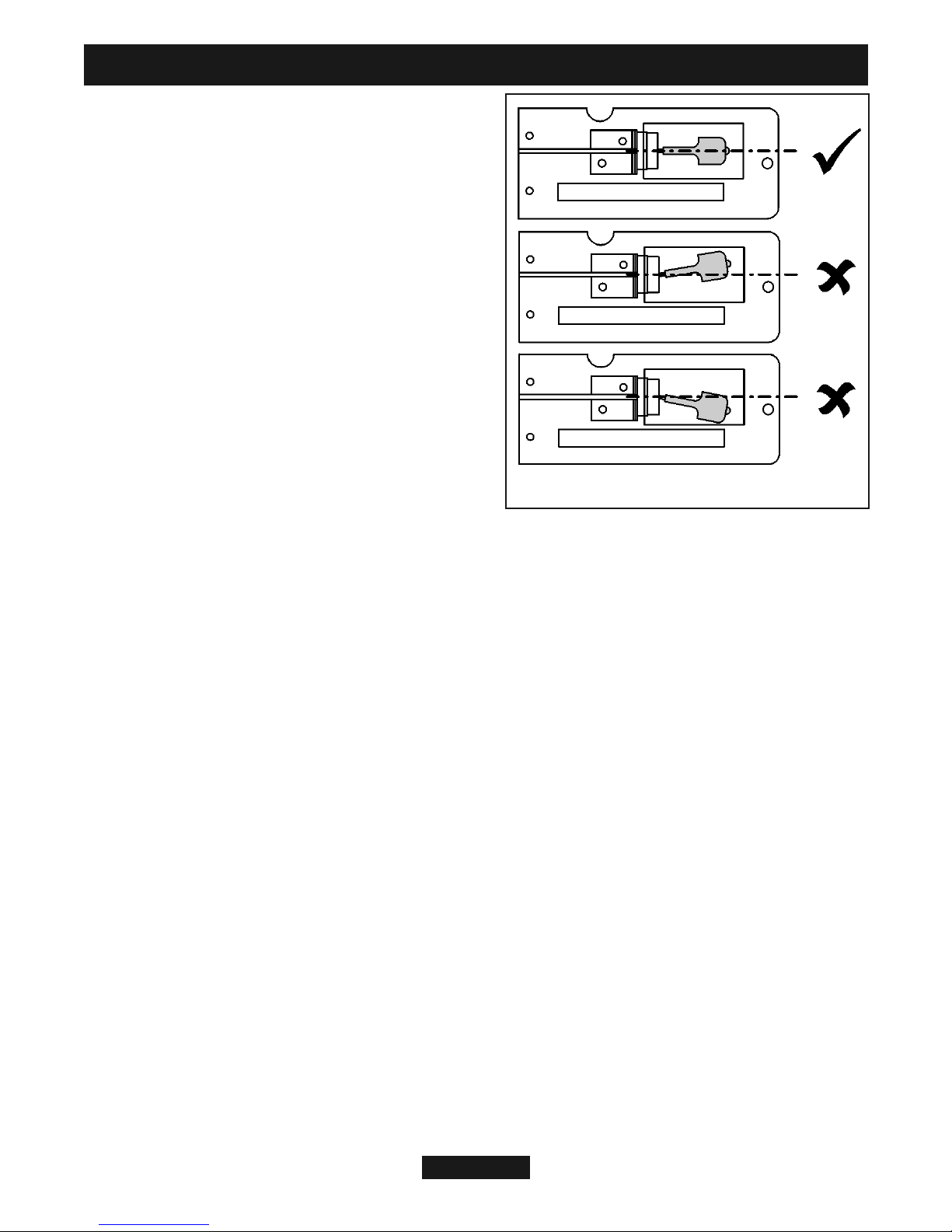

Figure 3. Lamp position

Indice

Altri manuali Valor Fires Riscaldatore elettrico

Valor Fires

Valor Fires 850 Istruzioni per l’uso

Valor Fires

Valor Fires 824 Blenheim Longlite Istruzioni per l’uso

Valor Fires

Valor Fires 820 Longlite Istruzioni per l’uso

Valor Fires

Valor Fires 834 Istruzioni per l’uso

Valor Fires

Valor Fires 843 Istruzioni per l’uso

Valor Fires

Valor Fires Dream 843 Istruzioni per l’uso

Valor Fires

Valor Fires 833 Istruzioni per l’uso

Valor Fires

Valor Fires 828 Istruzioni per l’uso

Valor Fires

Valor Fires 834 Istruzioni per l’uso

Valor Fires

Valor Fires 823 Istruzioni per l’uso

Valor Fires

Valor Fires 809 Istruzioni per l’uso

Valor Fires

Valor Fires 833 Istruzioni per l’uso

Valor Fires

Valor Fires 829 Istruzioni per l’uso

Valor Fires

Valor Fires 823 Istruzioni per l’uso

Valor Fires

Valor Fires 809 Istruzioni per l’uso

Valor Fires

Valor Fires 831 Istruzioni per l’uso

Valor Fires

Valor Fires 845 Istruzioni per l’uso

Valor Fires

Valor Fires 820 Longlite Istruzioni per l’uso

Manuali Riscaldatore elettrico popolari di altre marche

Heatscope

Heatscope PURE Guida rapida

Sunbeam

Sunbeam Calentador SFH457A Manuale utente

Dura Heat

Dura Heat DH2000C Manuale utente

Harvia

Harvia K10.5GS Manuale utente

Harvia

Harvia GL70 Manuale utente

Heylo

Heylo DE 2 XL Manuale utente

Heylo

Heylo DE 20 SH Manuale utente

Harvia

Harvia PP70SP Manuale utente

Tylo

Tylo SENSE SPORT Manuale utente

Dirna

Dirna ecodirna SUN Manuale di istruzioni

Creda

Creda Heating Solution Manuale utente

THERMEx

THERMEx Frame E Wi-Fi Series Manuale utente

SHUFT

SHUFT UniMAX-R 1400VE EC Manuale utente

HUUM

HUUM CLIFF Series Manuale utente

Harvia

Harvia HL70S Manuale utente

Dimplex

Dimplex DHEBHT Manuale utente

Radialight

Radialight SIRIO Manuale utente

Polaris

Polaris PRE E 0715 H Manuale utente
