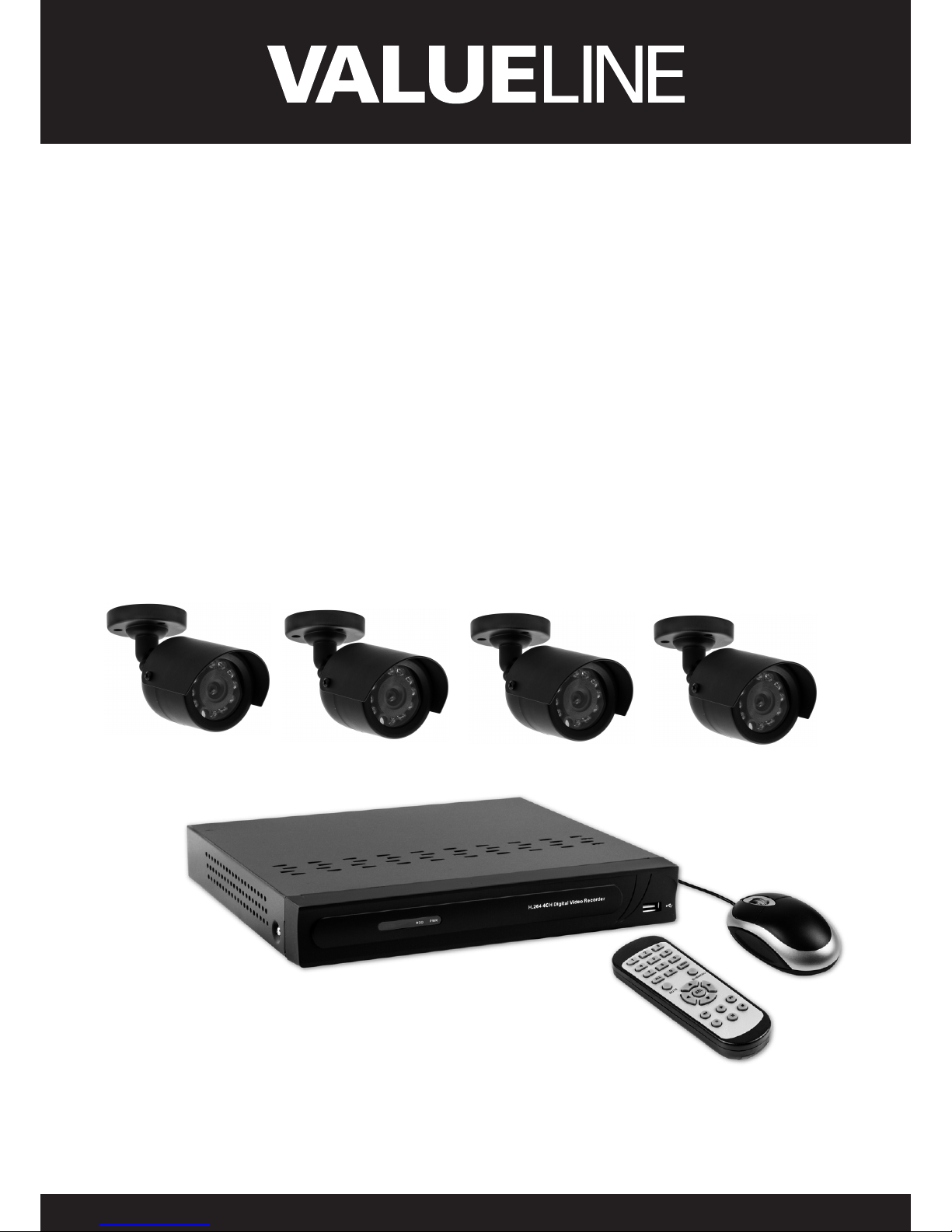

Valueline SVL-SETDVR30 Manuale utente

SVL-SETDVR30/40

SVL-DVR104

SVL-CAM110

MANUAL

ENGLISH

Contents

SAFETY INSTRUCTION............................................................................................................. 5

CHAPTER 1: FEATURES AND FUNCTIONS ............................................................................. 6

CHAPTER 2: OVERVIEW........................................................................................................... 7

2.1 4CH DVR Front Panel ..................................................................................................................................7

2.2 4CH DVR Rear Panel ...................................................................................................................................7

2.3 4CH Remote Controller..............................................................................................................................8

2.4 Mouse Operation .........................................................................................................................................9

CHAPTER 3: DVR CONNECTION............................................................................................ 10

3.1 HDD Installation ........................................................................................................................................ 10

3.2 Camera and Monitor Connection ....................................................................................................... 10

3.3 Power Supply connection...................................................................................................................... 10

CHAPTER 4: DVR BOOT UP.................................................................................................... 10

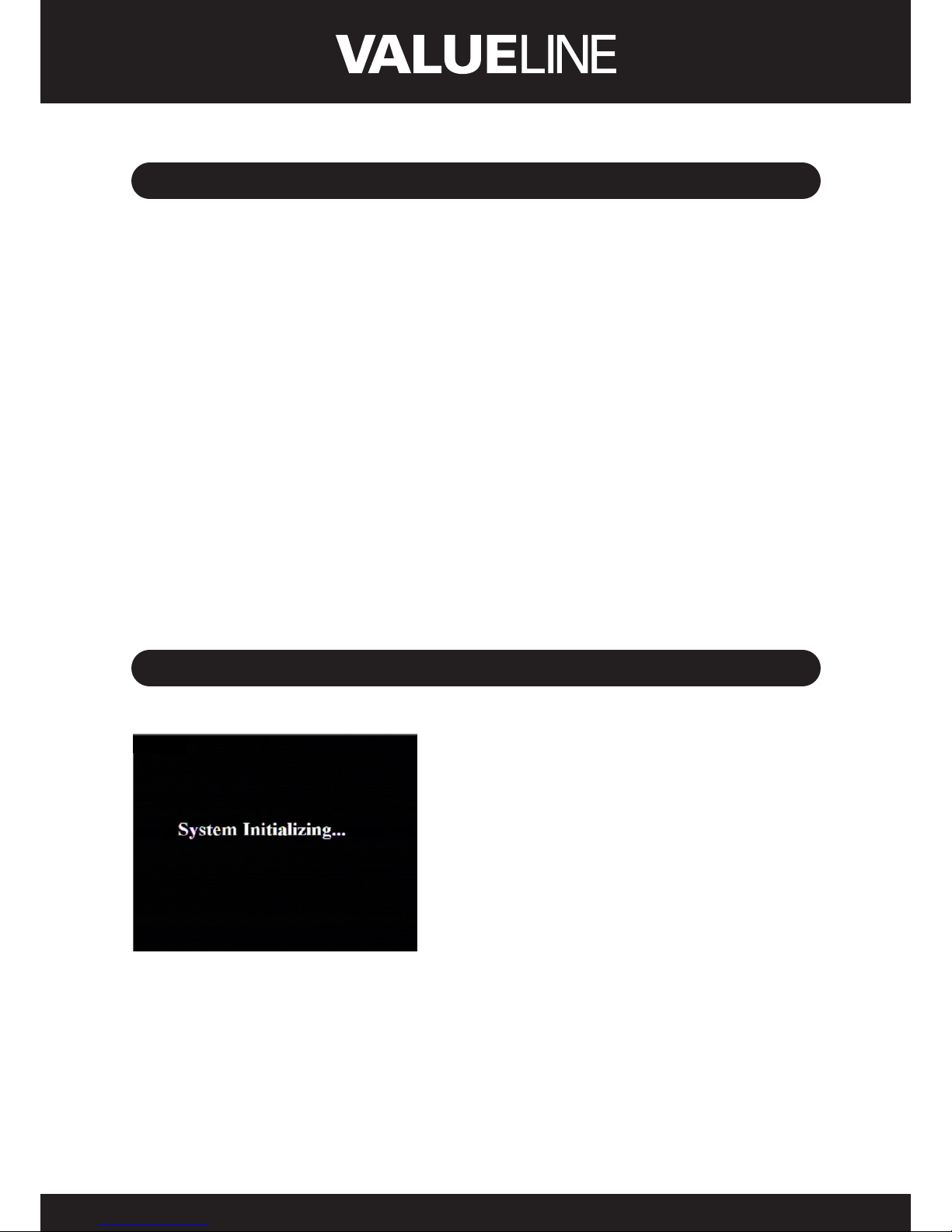

4.1 System Initialization................................................................................................................................. 10

4.2 Live Interface .............................................................................................................................................. 11

CHAPTER 5: DVR MENU......................................................................................................... 11

5.1 Main Menu Guide...................................................................................................................................... 12

5.2 Main Menu................................................................................................................................................... 13

5.2.1 Display ..............................................................................................................................................13

5.2.1.1 Live mode............................................................................................................................. 13

5.2.1.2 Output mode ...................................................................................................................... 14

5.2.1.3 Privacy Zone........................................................................................................................ 15

5.2.2 Record set .........................................................................................................................................16

5.2.2.1 Record parameters............................................................................................................ 16

5.2.2.2 Schedule............................................................................................................................... 16

5.2.2.3 Main Stream ........................................................................................................................ 17

5.2.3 Search................................................................................................................................................ 17

5.2.3.1 Record Search..................................................................................................................... 17

5.2.3.2 Channel Select.................................................................................................................... 18

5.2.3.3 Time Axis setup, le clip and zoom in/out............................................................... 19

5.2.3.4 Event Search ....................................................................................................................... 20

5.2.3.5 File Backup........................................................................................................................... 20

5.2.3.5.1 back-up le based on event ........................................................................ 21

5.2.3.5.2 back-up le based on time........................................................................... 21

5.2.3.5.3 Play backup le................................................................................................. 21

5.2.3.6 Log Search ........................................................................................................................... 23

5.2.4 Network ............................................................................................................................................ 23

5.2.4.1 Network set ......................................................................................................................... 23

5.2.4.2 Mobile Set ............................................................................................................................ 25

5.2.4.3 Router’s Port Forwarding ............................................................................................... 25

5.2.4.4 Sub stream........................................................................................................................... 26

ENGLISH

5.2.4.5 Email set................................................................................................................................ 26

5.2.4.6 DDNS Set .............................................................................................................................. 27

5.2.5 Alarm................................................................................................................................................. 27

5.2.5.1 Motion................................................................................................................................... 27

5.2.5.2 Alarm Set .............................................................................................................................. 28

5.2.6 Device................................................................................................................................................ 29

5.2.6.1 HDD Set................................................................................................................................. 29

5.2.6.2 PTZ Set................................................................................................................................... 30

5.2.6.3 Serial Set ............................................................................................................................... 30

5.2.7 System...............................................................................................................................................31

5.2.7.1 General.................................................................................................................................. 31

5.2.7.2 Users....................................................................................................................................... 31

5.2.7.3 Information.......................................................................................................................... 32

5.2.8 Advanced ......................................................................................................................................... 32

5.2.8.1 Maintain................................................................................................................................ 32

5.2.8.2 Event ...................................................................................................................................... 33

5.3 Menu Lock ................................................................................................................................................... 33

5.4 Split mode ................................................................................................................................................... 34

5.5 PTZ Control.................................................................................................................................................. 34

5.6 PIP Mode ...................................................................................................................................................... 35

5.7 Record Search............................................................................................................................................. 35

5.8 Mute............................................................................................................................................................... 35

5.9 Manual Record........................................................................................................................................... 35

5.10 Stop Record .............................................................................................................................................. 35

5.11 Start Sequence ........................................................................................................................................ 35

5.12 Start Cruise................................................................................................................................................ 35

CHAPTER 6: WEB APPLICATION MANAGER........................................................................ 36

6.1 ActiveX control download and installation..................................................................................... 36

6.2 Web Application Manager Log-in....................................................................................................... 37

6.3 Live interface .............................................................................................................................................. 38

6.3.1 Menu Bar ..........................................................................................................................................38

6.3.1.1 Live Display.......................................................................................................................... 38

6.3.1.2 PTZ Control.......................................................................................................................... 39

6.3.1.3 Video control....................................................................................................................... 39

6.3.2 Playback ........................................................................................................................................... 39

6.3.2.1 Record search ..................................................................................................................... 40

6.3.2.2 Playback control ................................................................................................................ 40

6.3.3 Conguration..................................................................................................................................42

6.3.3.1 Display Conguration...................................................................................................... 42

6.3.3.2 Record ................................................................................................................................... 43

6.3.3.3 Network Parameters......................................................................................................... 43

6.3.3.4 Alarm Set .............................................................................................................................. 45

6.3.3.5 Device.................................................................................................................................... 46

ENGLISH

6.3.3.6 System................................................................................................................................... 46

6.3.3.7 Advanced ............................................................................................................................. 47

6.3.4 Local setting .................................................................................................................................... 49

6.3.5 Logout...............................................................................................................................................49

CHAPTER 7: APPENDIX.......................................................................................................... 50

7.1 Operation Function Table...................................................................................................................... 50

7.2 Record Alarm setting............................................................................................................................... 52

7.3 Mail box server List................................................................................................................................... 52

7.4 Troubleshooting........................................................................................................................................ 53

7.5 Usage Maintenance ................................................................................................................................. 53

7.6 System Connection Diagram................................................................................................................ 54

CHAPTER 8: CAMERAS SVLCAM110................................................................................... 55

CHAPTER 9: MOBILE DEVICE SUPPORT............................................................................... 55

CHAPTER 10: GENERAL INFORMATION............................................................................... 56

ENGLISH

Safety Instruction

1. Read Instruction

All the safety and operating instruction should be read before the equipment is operated.

2. Power sources

This equipment should be operated only from the type of power source indicated on the

marking label. If you are not sure of the type of power, please consult your equipment dealer.

3. Objects and Liquid

Never push objects of any kind through openings of this equipment and/or spill liquid of

any kind on the equipment as they may touch dangerous voltage points or short out parts

that could result in a re or electric shock.

4. Water and/or Moisture

Do not use this equipment near water or in contact with water.

5. Heat sources

Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplier) that produce heat.

6. Dusty eld

Never use this equipment near dusty or intense magnetic eld.

7. Cleaning

Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol

cleaners. Use a damp soft cloth for cleaning.

8. Lightning

Unplug this equipment during lightning storm or when unused for long periods of time.

9. Accessories

Do not place this equipment on an unstable cart, stand or table. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury from tip-over.

10. Moving

Disconnect the power before moving the equipment. And the equipment should be

moved with care.

11. Attachment

Never add any attachments and/or equipment without the approval of the manufacturer

as such additions may result in the risk of re, electric shock and other personal injury.

12. Correct Batteries

Risk of explosion occurs if battery is replaced by an incorrect type. Therefore you must use

the same type of battery as the one being used in the product.

13. Ventilation.

Do not block any ventilation openings, installation of the equipment in the rack should

be such that the amount of airow required for safe operation of the equipment is not

compromised.

14. Overloading

Do not overload wall outlets and extension cords to avoid the risk of re or electric shock.

15. Reliable Earthlings (Grounding)

Reliable grounding of rack mounted equipment should be maintained. Particular attention

should be given to supply connections other than direct connections to the branch circuit.

ENGLISH

Chapter 1: Features and Functions

Function Brief and Description

Real time monitoring

Double video output; with monitor, VGA virtual output port or

HDMI Output; Support net-viewer and MP live surveillance and

also support zoom in/out, auto sequence and PIP display.

Record

H.264 video compression format; record quality/resolution/

frame rate adjustable, multiple record modes (Always,

Scheduled, Manual, Alarm, Motion detection and remote

record)

Record storage Support SATA large capacity HDD and save real-time record

image to HDD.

Playback Support DVR single CH and multiple CH Search/Playback of

recorded les.

Backup Support DVR backup via USB ash drive, removable drive,

Recorder and network.

Alarm Setting Supports HDD & video input alarm management and external

alarm signal inputs.

Network operation Supports remote surveillance by authority users to increase

system security.

Mouse Operation Supports Mouse operation for faster menu navigation.

PTZ Control Supports PTZ camera operations through RS-485.

Features:

• H. 264 video compression format; supports 960H resolution;

• G.711 audio compression format;

Windows Graphical interface; embedded real-time Linux2.6 operation system;

• Friendly Menu reminder;

• Multiple operation modes (Preview, record, playback, backup, network surveillance and

mobile phone monitoring);

• Supports Double Streaming network transmission;

• Supports remote live surveillance via smart mobile phone;

• Supports Zoom in/out and sequence function;

• The video package time is adjustable;

• Multiple alarm record modes;

• Rear USB2.0 ports for back-up, recorder, upgrade and mouse operation;

• With IR remote control operation;

• Multiple language OSD;

• Support auto-maintain.

ENGLISH

Chapter 2: Overview

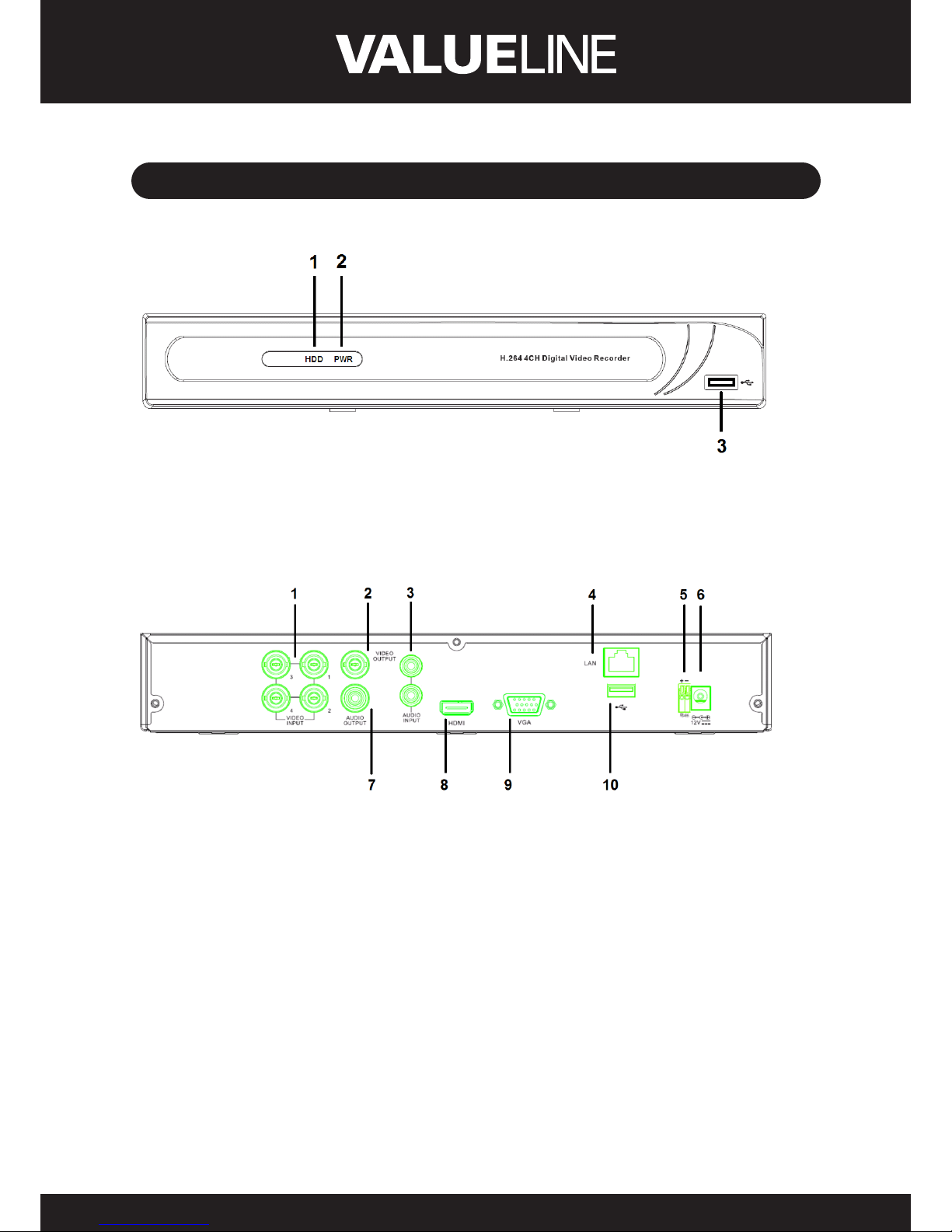

2.1 4CH DVR Front Panel

1. HDD indicator

2. PWR indicator

3. USB connector for mouse

2.2 4CH DVR Rear Panel

1. Video (camera) input

2. Video output (composite)

3. Audio input

4. Ethernet port (LAN)

5. RS485

6. DC 12V input

7. Audio output

8. Video output (HDMI)

9. Video output (VGA)

10. USB port (Flash drive, hard drive)

ENGLISH

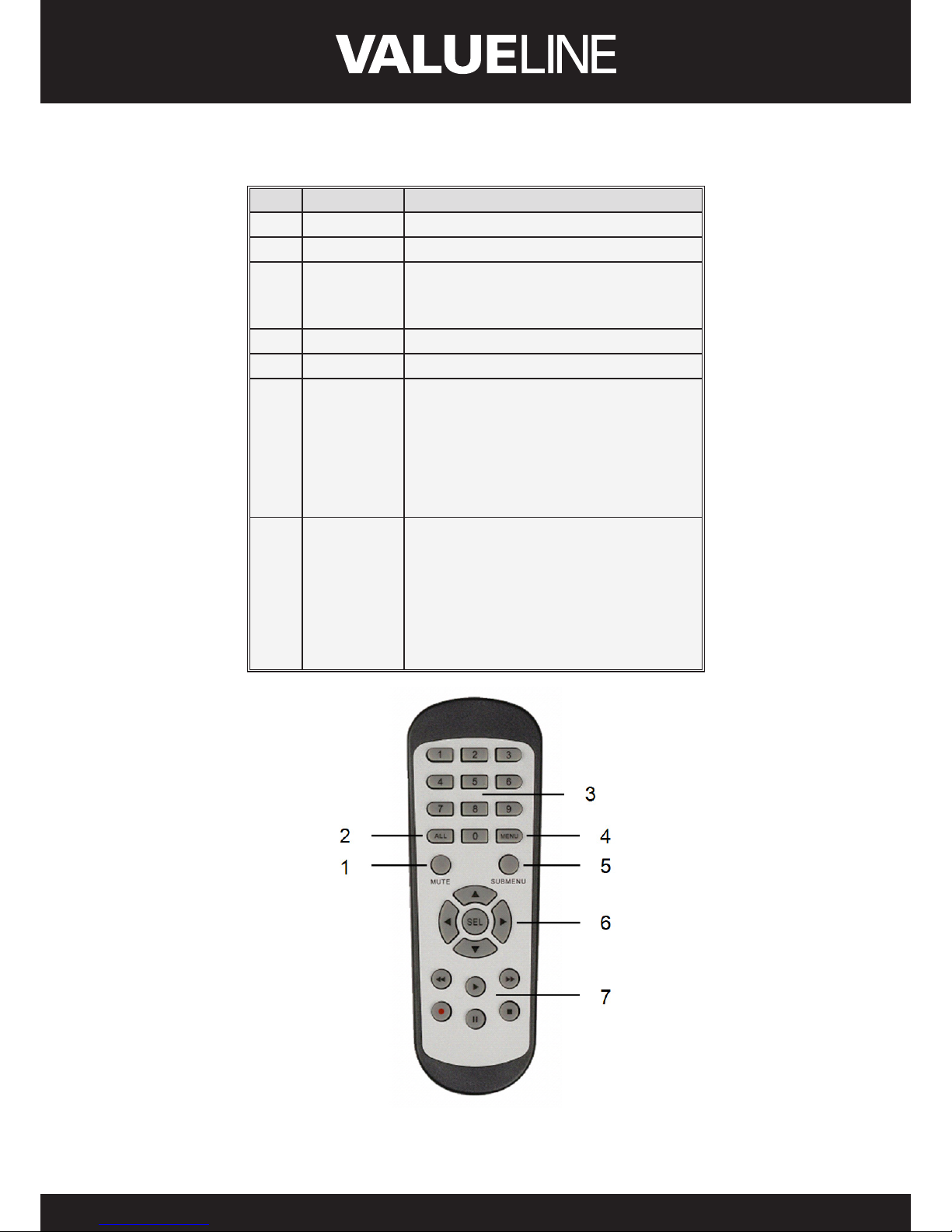

2.3 4CH Remote Controller

Item Key title Key function

1 Mute Mute on/o

2 ALL Multiple display mode

3 1-8

9, 0

Channel select 1-8

Clicking numeric “0” allows you switch

to output device

4 Menu Enter into Main menu/Exit

5 Submenu Enter into Submenu (toolbar)

6AV Up arrow key, Volume adjust

Down arrow key, Volume adjust

<>Left/Right key, Decrease/increase

parameter value of control bar

SEL Select key/Edit key, Conrm the

selected operation

7¯Rewind key

•Record key

>Enter into record search menu, Play key

=Pause/Sequence key

˘Forward key

*Stop manual record; stop playing

ENGLISH

2.4 Mouse Operation

Except using buttons of front panel or remote controller, you also can use mouse to perform

system operation.

TYPE Function

Click left key of

Mouse

In menu lock mode, enter into pop-up menu and click any sub

menu to pop up Log-in window; on menu unlock mode, enter

into pop-up menu, and then click left key to enter into any sub

menu directly.

After entering into main menu, clicking left key could enter into

any sub menu; On [Detailed le] menu mode, clicking left key

could playback one recording le.

Change the status of check box and motion detection area.

Clicking combo box to access pull-down menu; Click left key to

stop dwell time display when dwell time display is activated.

By clicking left key you can adjust Color control bar and volume

control bar.

Clicking combo box to access pull-down menu

By clicking left key you can select values in edit boxes or pull-

down menu and supports Chinese word input, special symbol,

numeric and character input, use instead of [Enter- ] or

[Backspace ]

Click right key of

Mouse

In live display mode, clicking right key will display pop-up menu

(shown as Picture 5-1).

In Main menu or sub menu mode, clicking right key will exit

current menu.

Double-click Left

key of Mouse

In live display or playback mode, double-clicking left key will

maximize the screen.

Moving Mouse Select menu item

Sliding Mouse

On motion mode, sliding mouse will select motion area; On [Color

set] menu mode, sliding mouse will adjust color control bar and

volume control bar.

ENGLISH

Chapter 3: DVR CONNECTION

3.1 HDD Installation

Caution: Please do not Install or take out hard drive when DVR is running!

HDD Installation:

(1) Cut power rstly, and then remove screws and open DVR upper cover carefully;

(2) Insert Power Cord and data cable into Pin of hard drive securely;

(3) Remove the screws on the HDD bracket; x the HDD to the bracket and then x the bracket

with HDD to DVR body;

(4) Put the upper cover back carefully, re-attach screws.

Note: If user requires higher performance HDD, strongly recommend you use special hard

driver for security and protection.

3.2 Camera and Monitor Connection

Connect camera cable to video input of DVR, and from video output of DVR to Monitor via

BNC connector (Refer to section2.2-Rear Panel); or

If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of

DVR respectively (refer to system guration on Chapter 8).

3.3 Power Supply connection

After power on please make sure the video I/O connection well, audio device with BNC cable.

Chapter 4: DVR Boot up

4.1 System Initialization

Picture 4-1

After connecting the Power cable of DVR to wall

outlet and pressing the Power button on the front

panel, you will enter into the system initializing

screen shown as Picture 4-1.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Valueline Sistema di sicurezza

Valueline

Valueline SVL-AHDSET04 Manuale utente

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
