Vanraam O-Pair Manuale utente

Van Raam BV

Aaltenseweg 56

7051 CM Varsseveld

The Netherlands 06.13

User manual

O-Pair²

User manual

O-Pair² 06.13

Contents

Contents........................................................................................................................

Contact details manufacturer.........................................................................................

Conformity.....................................................................................................................

Introduction....................................................................................................................

Delivery .........................................................................................................................

Intended usage..............................................................................................................

Safety measures ...........................................................................................................

Delivery inspection ........................................................................................................

Adjustment of the bicycle...............................................................................................

Accessories...................................................................................................................

Before the first use........................................................................................................

Technical details............................................................................................................

Maintenance and adjustments to be done by owner .....................................................

Repairs and maintenance to be done by dealer............................................................

Disposal.........................................................................................................................

Handover/sale to a new owner......................................................................................

Guarantee .....................................................................................................................

Frame number...............................................................................................................

Contact details manufacturer

Van Raam BV

Aaltenseweg 56

7051 CM Varsseveld

The Netherlands

Tel. : +31 (0)315 257370

E-mail : [email protected]

Internet : www.vanraam.nl

Conformity

Van Raam declares as manufacturer that the O-Pair² bicycle has been produced in

accordance with the 93/42/EEG guidelines.

User manual

O-Pair² 06.13

Introduction

This user manual gives important and necessary

information about the use of your bicycle. We ask you to go

through the manual thoroughly before using the bicycle.

Delivery

- bicycle with possible packaging

- user manuals (s)

- pump

- foot support

- possible charger (s), depending on options

Intended usage

The bicycle is designed for normal use on level and solid ground. The usual bicycle

caution should always be taken into consideration. At the same time all safety

instructions as described in this manual should be complied with explicitly. Also the

local traffic rules should always be complied with.

All other use, including damage or physical injuries due to this, are not the

manufacturer's responsibility.

READ

THOROUGHLY!

User manual

O-Pair² 06.13

Safety measures

Ensure the bicycle is in good condition each time before using it.

Check before each ride that the brakes are in order.

Check the lights and reflectors.

Regularly check whether all screw joints are tight.

Regularly check whether the wheels, the handlebars and the saddle are

secure.

Make sure there is sufficient air in the tyres.

Only use the bicycle on a solid and level surface.

Make sure that wide trousers or lose hanging clothing don’t get caught in the

chain, spokes or pedals.

Do not use a pressure washer or a steam cleaner for the cleaning of the

bicycle.

Use the parking brake if you or your passenger is getting on or off the bike.

Never drive without a passenger. This will cause instability of the bike and

will lead to dangerous situations.

User manual

O-Pair² 06.13

Load

The maximum load should not be exceeded. See information in the index of technical

details on page 22. By permitted load we mean the total load, including the load on

the luggage rack.

Make sure that the permitted load on the luggage rack is not exceeded.

Damaged or worn out parts

The replacement and repair of parts (frame, forks, illumination, brakes, drive

mechanism and the handle bars) should always be performed by a dealer. If not, the

guarantee ceases to be valid and you will be personally responsible in the event of

possible damage.

Specific safety parts should always be replaced by new parts!

Delivery inspection

Check the delivery immediately after receiving it.

In the event of damage or incomplete delivery we ask you to contact your dealer

immediately.

Adjustment of the bicycle

Before using the bicycle, adjust it to the measurements of the cyclist and the

passenger. This is of great importance, especially the saddle, the handlebars and the

seat.

If an optimal adjustment of the bicycle, as defined in the instructions, is not

possible, you can contact your dealer for a fitting solution.

The brakes are correctly adjusted as standard and can only be adjusted by the dealer

during periodic maintenance.

User manual

O-Pair² 06.13

MIN INSERT

Saddle height

When the cyclist is sitting on the bicycle and

can put a foot on the pedal in the lowest

position, the saddle height is correct. Adjust

the saddle height in such a way that the leg is

stretched but relaxed in that position.

To adjust the saddle:

1. Open the quick-clamp [A].

2. Slide the saddle to the correct height.

3. Close the quick-clamp.

Make sure clothing cannot get

caught in the clamp!

If the clamp closes too easily, the

clamping force is too low. In this case,

open the clamp and tighten the nut (B)

a bit more. If a lot of force is necessary

to close the clamp, the nut should be

loosened slightly.

Do not pull out the saddle pin further than the

marking. The tube will not go into the shank deep

enough and will risk coming off. This can lead to

serious injuries.

[B]

[A]

User manual

O-Pair² 06.13

MIN INSERT

Handle bar height

The height of the handle bars affects the

comfort of the ride. It determines the pressure

on the hands and the position of the back.

Determine your own most comfortable height

by using the bike.

To adjust the handle bars:

1. Slightly loosen the screw by using an Allen

key.

2. Slide the handle bars to the correct height

and tighten the screw very firmly again.

Do not pull out the handle bars further than the

mark. Otherwise the tube will not be deep enough in

the shaft and will risk coming off, which can lead to

serious injuries.

Position handle bars

You can tilt the handle bars. This influences

the distance from the handle bars to the upper

body. Determine your own most comfortable

position by using the bike.

To tilt the handle bars:

1. Slightly loosen the screw with an Allen key.

2. Put the handle bars in the desired position

and then tighten the screw very firmly again.

User manual

O-Pair² 06.13

Steering damper

The steering damper affects the stability

during steering. By adjusting the screw,

steering gets more rigid and stability will

increase. Determine your own most

comfortable setting for using the bike.

Backrest chair

Adjust the position of the backrest and the

side support of the passenger.

Start with the height of the backrest and

armrests. To adjust these:

1. Loosen the nut on the upper bracket slightly

by using a socket wrench. Loosen the two

screws of the lower bracket slightly with an

Allan key.

2. Adjust the backrest. The backrest is

adjusted correctly if the passenger can

easily rest with the lower arms on the arm

rests and the upper ones straight down.

Tighten the nut and screws again.

Next, adjust the backrest in the desired

position. To do this:

1. Loosen the nut of the upper bracket slightly

by using a socket wrench.

2. Turn the backrest, so that the passenger is

sitting comfortably. Tighten the nut again.

At last, adjust the side supports. To do this:

3. Loosen the four screws slightly on both

sides using a socket wrench.

4. Turn the side supports to the body, in such

a way that the passenger is sitting most

comfortably. Tighten the screws again.

User manual

O-Pair² 06.13

Chair foot support

Adjust the position of the passenger’s foot

support. To do so:

1. First determine if the foot support is in the

correct location. This is depending on the

length of the passenger’s leg. By loosening

the knob, the support can be taken out of the

bracket and attached again one hole further.

2. There is another alternative for adjustment if

it is not possible for these adjustments to find

the correct position. Both bracket plates can

be mounted one hole to the front or one hole

to the back. To do this:

Loosen the screws completely with an Allen

key and move the plates to the desired

position. Tighten the screws again.

3. To adjust the position of the foot support:

Slightly loosen the screw of the foot support

and put the foot support in the desired

position in such a way that the passenger is

sitting most comfortably. Tighten the screw

again.

4. There is another alternative for adjustment if

it is not possible for these adjustments to find

the correct position. The foot support can be

mounted one hole to the front or one hole to

the back. To do this:

Loosen the screws completely with a socket

wrench and move the foot support to the

desired position. Tighten the screws again.

User manual

O-Pair² 06.13

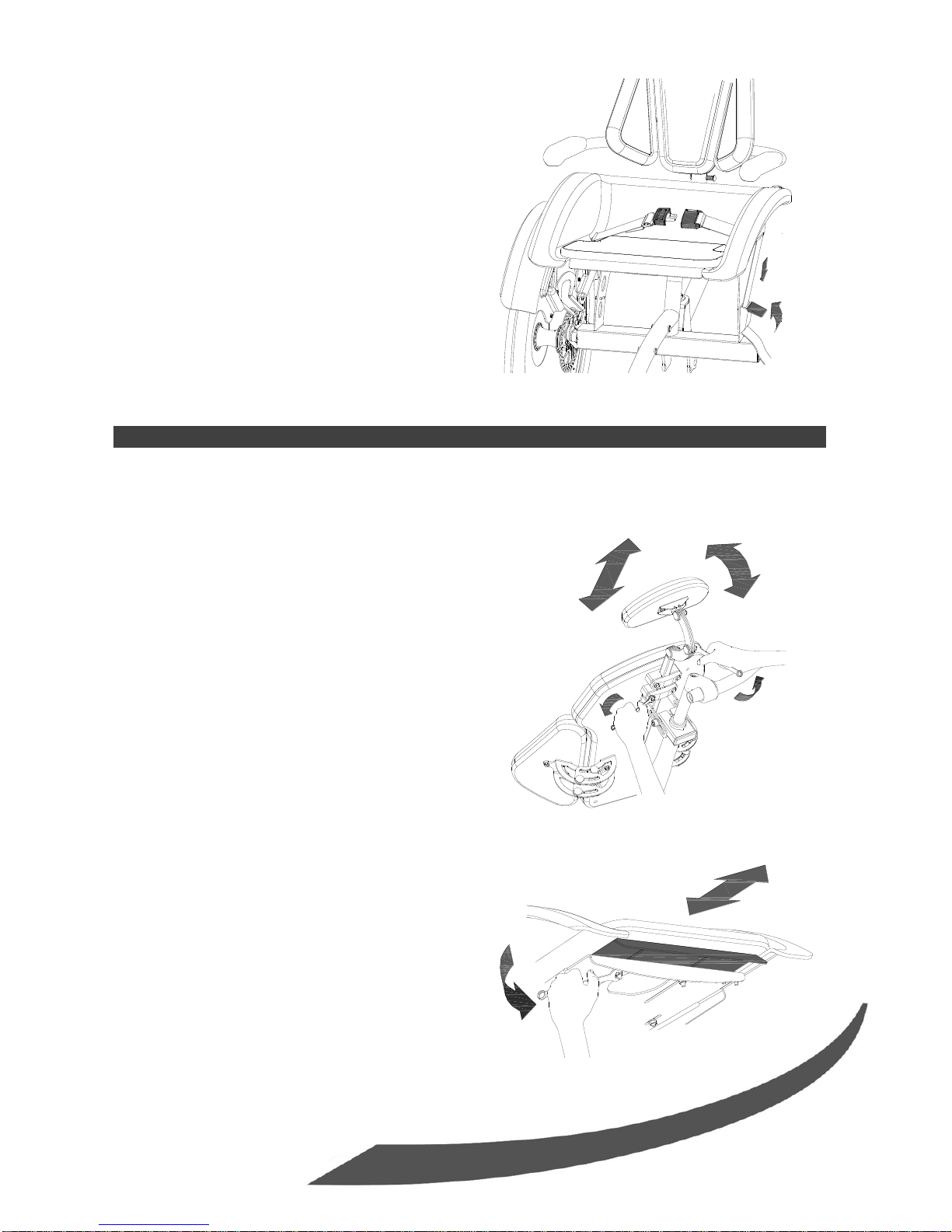

Waist belt chair

Wrap the belt around the body and buckle it.

Push the red button to unfasten the belt.

Set the belt for the passenger by:

1. Unfastening the belt.

2. Pull the belt until it fits around the body of

the passenger. Then buckle it.

Accessories

Depending on your order, you can use the accessories as described below.

Head rest

To set the head rest:

1. Slightly loosen the nuts of the head rest

with a socket wrench.

2. Position the head rest. Height, depth and

angle can be adjusted at the same time.

Then fasten the nuts again.

Adjust the seat depth

To adjust the seat depth of the chair to the

passenger:

1. Slightly loosen both nuts with a spanner.

2. Slide the seat so it fits the legs of the

passenger. Fasten the nuts again.
