Vaporesso LUXE II Manuale utente

User Manual

VAPORESSOLUXE II

English

Thank you for choosing Vaporesso product. Please read this

instruction carefully before use to ensure a perfect experience.

If there is any additional requirement about this product, please

consult the local agent or contact us through our website:

www.vaporesso.com

ENGLISH

EXPLODED VIEW

Power Button

Function Button Up

Time

Duration of

last puff

Voltage/

wattage

instant

value during

vaping.

Drip Tip

Glass Tube

Battery level

Setting value

Puff counter

Screen lock

indicator

Coil resistance

value

Current mode

NRG-S Tank

Air-inlet Ring

USB Port

Function Button Down

2.0‘’ TFT Color Screen

Function Button Mode

2English

USE INSTRUCTIONS

PACKING LIST

1. Install or Replace the Coil

- Make sure the tank is empty before installing or replacing the

coil;

- Unscrew out the base of the tank and the used coil on the

base. Install a new coil to the base and then reattach the base

in place.

- 1 x Vaporesso LUXE II MOD

- 1 x Vaporesso NRG-S Tank

- 1 x GT MESHED Coil 0.18Ω (Pre-installed)

- 1 x GT4 MESHED Coil 0.15Ω (In box)

- 1 x Extra Pyrex glass tube (2ml Verison not Included)

- 4 x O-ring

- 1 x USB Cable

- 1 x User Manual

- 1 x Warranty Card

SPECIFICATIONS

Vaporesso LUXE II MOD

Dimensions 47.8*29.5*89.9mm

Battery Capacity 2*18650 (Not Included)

Output Power 5-220W

Charging Current DC 5V/2.5A, Micro USB

Battery Display 2.0’’ TFT Color Screen

Resistance Range 0.03-5Ω

Vaporesso NRG-S Tank

Dimensions Ø30x55.9mm

Tank Capacity 8ml/2ml

Coil GT MESHED Coil 0.18Ω (50-85W)

GT4 MESHED Coil 0.15Ω (50-75W)

English

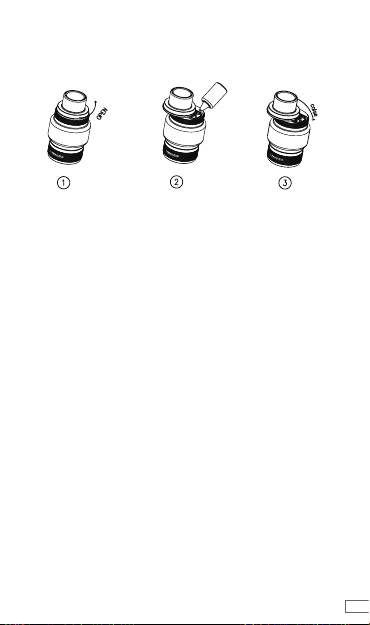

2. Fill E-liquid

Push the top cap according to the arrow direction and ﬁll

e-liquid through the hole, then lock the top cap in place after

ﬁlling is ﬁnished.

3. Adjust the Airow

Rotate the air-inlet dial to adjust the airow volume.

4. Start the Device

- Before use: install two 18650 batteries to the device, the

battery is not included in the kit.

- Power on/off: press the power button 5 times in 2s.

5. About Charging

After the Micro USB cable is connected to the battery,

the charging indicator and remaining charging time will be

displayed on the screen.

6. Lock/Unlock the Buons

Press the power button 3 times continuously to lock or unlock

the “+” button, “-” button and mode button. The power button

still works.

7. Choose a Mode

Press the mode button 3 times continuously or long press the

mode button to start mode setting.

*PUL: PULSE MODE (DEFAULT)

After the atomizer is installed, the device will enter the PULSE

MODE automatically.

PULSE MODE: It’s a mode to improve vaping experience

through constant voltage output, delivering optimal avor

production, nicotine satisfaction, and perfect temperature

cloud continuously.

*ECO: POWER ECO MODE

AWhen the battery level is below 40% and unable to support

the preset power, the device will automatically provide

an option to enter the POWER ECO mode for increasing

endurance.

4English

CAUTIONS

PROTECTIONS

1. Please turn off the device when it is not in use.

2. Do not leave the charging device unattended.

3. Do not drop, throw or abuse your device, which may cause

damage.

4. Please use a standard USB output charger with proper

charging current and voltage range.

5. Keep away from the water or any ammable gas, liquid.

6. Do not expose the device to direct sunlight, dust, moisture

or mechanical shock.

*DIY: DIY MODE

You can choose traditional VW (H, N, S), VV, VT, CCW, BP (bypass)

and SP (super player) modes in this section. When the coil

resistance is extremely low, the device will provide an option

to enter the SP (Super Player) mode automatically.

No. Protections Situations

1USB Input Protection The USB input voltage is higher

than the rated voltage.

2Low Battery Protection The battery level drops too low.

3No Load Protection The device detects no POD on

the battery.

4Low Resistance

Protection

The device detects an ultra-low

resistance.

5Overtime Protection Constantly vape for more than

10 seconds.

6Overheat Protection The device detects an

overheated PCBA.

7Short Circuit Protection The device detects a short

circuit.

*STC: SMART TEMPERATURE CONTROL MODE

When the temperature heating wire (SS/Ti/Ni) is detected, the

device will provide an option to enter the STC (Smart TC) mode

automatically.

English

7. Do not expose the device to extreme temperature.

(Recommended temperature range: -10~60℃ /14~140 ℉while

using and -10~45℃ /14~113 ℉ while storing).

8. EEE Recycling: The product should not be treated as

household waste, instead, it should be handed over to the

applicable collection point for the recycling of electrical and

electronic equipment.

9. Battery Recycling: The product battery should not be treated

as household waste, instead, it should be handed over to the

applicable used battery collection point for recycling.

10. Only have your device repaired by Vaporesso. Do not

attempt to repair it by yourself as damage or personal injury

may occur.

WARNINGS

This rellable electronic cigaree is intended for use with

compatible e-liquid, which may contain nicotine. Nicotine is an

addictive substance and it is not suitable or recommended to

use in following cases:

1. This device is not suitable for:

- Persons under the legal smoking age.

- Persons experiencing heart disease, stomach or duodenal

ulcers, liver or kidney problems, long-term throat disease or

difﬁcult breathing due to bronchitis, emphysema or asthma.

- Persons with an overactive thyroid gland or experiencing

phaeochromocytoma (a tumour of the adrenal gland that can

affect blood pressure).

- Persons taking certain medications like Theophylline,

Ropinirole or Clozapine and etc..

2. This device is not recommended for:

- Non-smokers

- Pregnant or breastfeeding women

3. You may experience the following results if you use nicotine

containing e-liquid with this product. If it happens, please

consult a healthcare professional and show them this leaet if

possible:

- Feeling faint - Nausea - Dizziness - Headache

- Coughing - Irritation of the mouth or throat

- Stomach discomfort - Hiccups

- Nasal congestion - Vomition

- Chest palpitations/pain or an irregular heart rate

This device should not be used by

persons under the legal smoking age.
