ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0435

Maximum Wattage: 60W Bulb

Work Temperature: - 22°F~104°F

1. Read all instructions carefully before installation and

operation.

2. If you are not familiar with state and local electrical codes

it is recommended that you consult with a qualified

electrician.

3. Before installation, shut off power at the main fuse or

circuit breaker box. Be aware that simply turning off the

wall switch is not sufficient to prevent an electrical shock.

4. This fixture requires a 120V AC, 60 Hz power source.

5. Do not attempt to take the lantern apart; there are no

serviceable parts inside.

6. To avoid sensor damage by lightning or electrical surge,

make sure the ground wire is securely connected.

7. For general safety and to avoid any possible damage to

the sensor, be sure the power is switched "off" before

replacing the bulb.

8. Compatible with most LED dimmable bulbs.

Hardware Package (included)：

Important to Know Features

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

Page 1 / 5

1. Energy saving fixture.

2. Use dim-to-full brightness where dim-illumination

is preferred, such as your front entrance. Use

off-to-full brightness where off/on illumination is

preferred, such as your backyard.

3. When in manual override mode, use wall switch

to keep the light ON till dawn.

Mounting Screw (B)

Wire Connector (C) Bolt Nut (D)

Cross Bar Unit (A)

Rubber Pad (E)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Headless Screw

Green Ground Screw

Cross Bar Unit (A)

Fixture Wire

Fixture Ground Wire

Rubber Pad (E)

Bolt Nut (D)

Socket

Backplate

Max.60W Type A Bulb

(not included)

220720

Turn on the power at fuse or circuit box.

Turn off the power at fuse or circuit box

Installation Steps

The Position of Control Panel

Page 2 / 5

1. Unscrew the two bolt nuts (D), remove the two rubber pads (E) and the cross bar unit (A) from the backplate.

2. Attach the cross bar unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the preinstalled

headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (usually green insulation or bare wire) to the cross bar unit (A) with the

green ground screw. Then, depending on local code, then connect it to the house ground wire with the

wire connector (C).

Carefully put all of the wires back into the outlet box.

4. Attach the backplate of the fixture to the cross bar unit (A) by inserting headless screws into set holes on the

backplate, then secure it with two rubber pads (E) and two bolt nuts (D).

Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall

surface to prevent water from seeping into the outlet box.

5. Install the bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed.

Adjustable

Knob

View Fig.A

Fig.2

Sensor

Lens

Fig.1 Fig.3

Fig.A

“TIME” Knob

“LOW LEVEL” Knob

“SENS” Knob

Small Slotted Screwdriver

(not included)

Slide Switch

TIME LOW LEVEL SENS

TEST

OFF AUTO

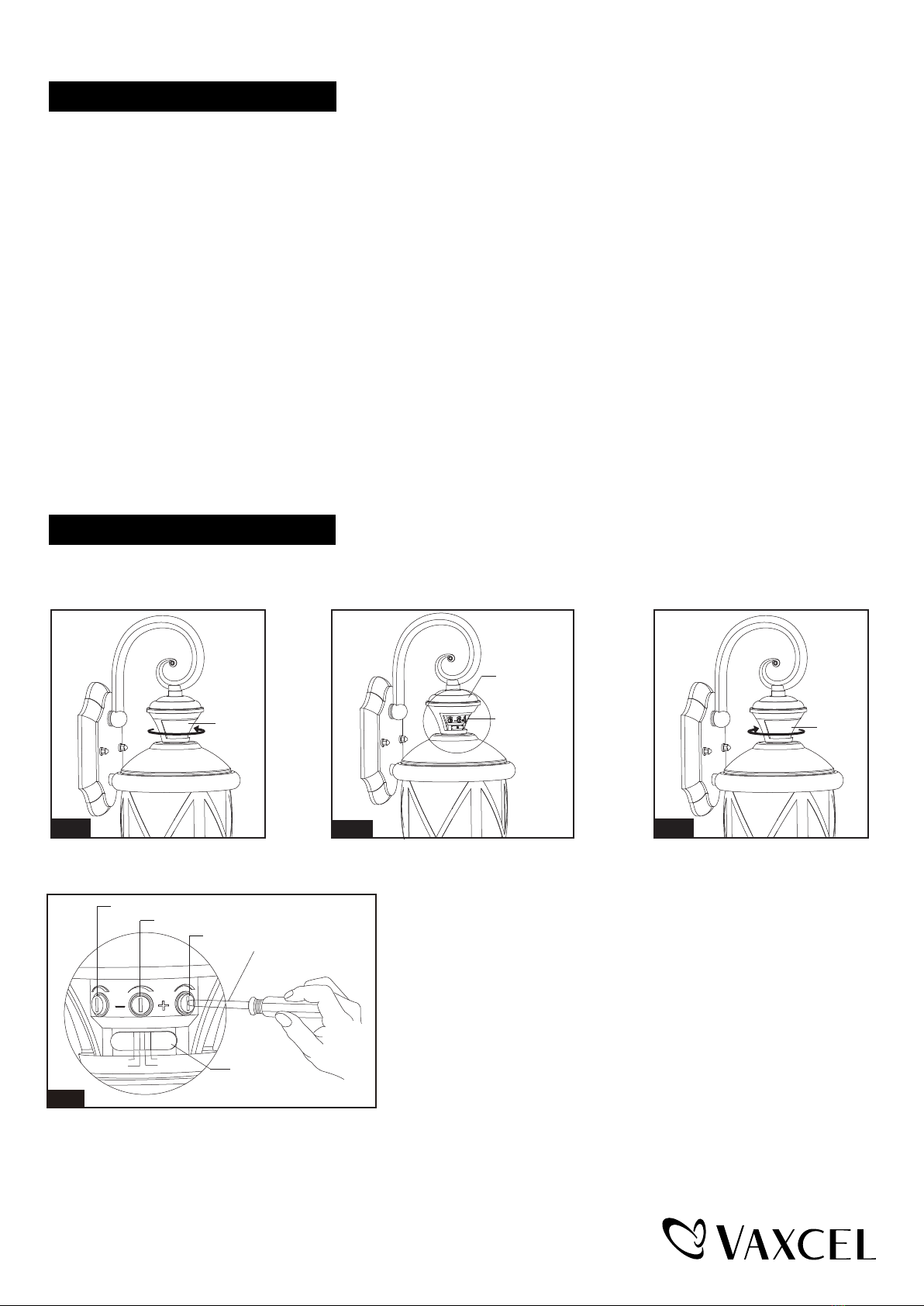

Step 1: Rotate the sensor lens from left side to right side

to show the adjustable knobs and slide switch.

(See Fig.1)

Step 2: Adjust time, low level brightness and sensitivity by

turning the knobs and choose the mode you want

by sliding the switch. (See Fig.2 and Fig A).

Step 3: Restore the sensor lens to original position by

rotating the lens from the right side to the left.

(See Fig.3)

220720

Sensor

Lens

Function and Operation

MODES OF OPERATION

Choose a mode by sliding the slide switch. The light will turn on immediately when power is applied. Wait for 30

seconds to allow the sensor to warm up.

Page 3 / 5

The light will turn on (full brightness) automatically at dusk and turn off automatically at dawn.

Off Mode

Auto Mode Manual

Override

Manual Override Operation Diagram

Turn wall switch OFF-ON

in 0.5~3 Seconds

Turn wall switch OFF-ON

in 0.5~3 Seconds

Fig. 4

1. TEST MODE (daytime and nighttime operation.)

• The light will turn to low-level brightness (0~50%).The light will turn to high-level brightness (full brightness) when

motion is detected, and stay on as long as the motion continues. The light will turn to the low-level brightness you

set after 5 seconds when motion is no longer detected.

2. OFF MODE (nighttime operation only)

• At dusk, the light stays off and will turn to high-level brightness (full brightness) when motion is detected, and stay on

as long as the motion continues. When the motion stops, the light will stay on for the predetermined time set

(5 ~ 180 seconds), then the light will turn off automatically.

3. AUTO MODE (nighttime operation only)

• At dusk, the light will turn to low-level brightness (0~50%). The light will turn to high-level brightness (full brightness)

when motion is detected, and stay on as long as the motion continues. When the motion stops, the light will remain

on for the predetermined time set (5~180 seconds), and then turn to the low-level brightness you set.

• The light will turn off automatically at dawn.

4. PC MODE (nighttime operation only)

•

5. Manual Override MODE (nighttime operation only)

• To shift to the manual override mode, set the switch to "OFF" or "AUTO"

mode. Turn the wall switch "OFF" and then turn it "ON" within 3

seconds. The light will stay on through all night. To restore to the

"OFF" or "AUTO" mode, turn the wall switch "OFF" and then turn it

"ON" within 3 seconds again. (See Fig.4)

• The light will last for one night only and turn off automatically at dawn.

Note: 1. The low level brightness can be adjusted from 0 to 50% by

rotating "LOW LEVEL" knob. (See Fig.5)

2. Always keep the wall switch in the “ON” position (including the daytime).

3. Please notice the warm up time is 30 seconds, any operations are invalid during this time.

Customization Options

Shut-off Delay Fig. 5

LOW LEVEL

(View from back of sensor lens)

TIME SENS

Mode

1. The Shut-off delay is the length of time that the light will stay in

high-level brightness after motion stops.

2. The Shut-off delay can be adjusted by using the "TIME" knob when

the slide switch is set in "OFF" or "AUTO" mode.

3. The range of shut-off delay is 5 seconds to 3 minutes.

4. Rotate the knob clockwise for increasing the shut-off delay.

5. Rotate the knob counterclockwise for decreasing the shut-off delay.

Sensitivity of Motion Sensor

1. The sensitivity can be adjusted from 5 to 40 feet by using the "SENS" knob. (See Fig.5).

2. Turn the knob clockwise for increased sensitivity.

3. Turn the knob counterclockwise for decreased sensitivity.

AUTO

OFF

TEST

220720

Troubleshooting

Page 4 / 5

NOTE:

1. The sensitivity of the motion sensor will increase as the

environmental temperature gets colder. For best performance,

gently clean the lens with a soft cloth every 1 or 2 months to

ensure maximum sensitivity.

2. When installed at a height of 6.5 feet, at 77 degrees Fahrenheit

the light will provide a maximum detection distance of 40 feet

and detection range of 180 degrees. (See Fig.6 Fig.7)

3. The sensor will be more sensitive to motion across its

detection path than motion directly towards it. (See Fig.8)

4. To reduce possible interferences, do not mount the fixture

near a heat source like an air conditioner, vent or furnace

exhaust, or in a direction facing any reflecting object or

other light source.

Where you install your lantern is important:

Be sure the light is mounted straight on the wall;

otherwise, the detection distance may be limited.

10`

40`

Fig.6 Fig. 7

180˚

Motion

Least sensitivity Most sensitivity

Sensor

Fig. 8

Motion

The fixture may be installed in

shaded area. Only need to relocate fixture.

No corrective action needed.

On cloudy or overcast days, the light

may stay on longer than anticipated.

Still on the manual override mode. Turn off the light, then turn it on after 5 seconds.

False triggering caused by a heat

source, such as a heater, dryer vent,

or heated swimming pool.

Eliminate heat source or relocate fixture.

The switch is not set in any mode. Slide it again to the mode you want.

Day

Night

If the light

stays on

Refer to following information to solve your problems.

Set the slide switch in the

TEST

mode for testing.

Night

If the light

isn’t on

SYMPTOM DAY/NIGHT POSSIBLE CAUSE SOLUTION

Day

Slide switch is not set in the test

mode.

Wall switch or circuit breaker is off. Turn on wall switch or circuit breaker.

Test the light bulb on normal working light fixture.

Tighten the light bulb.

Check wire connections.

Relocate fixture away from western facing wall.

Eliminate or turn off other light source, block other

light source from shining onto sensor, or relocate

fixture.

Light bulb may be burned out.

Light bulb is loose.

Incorrect or loose wire connections.

Too much sunlight is shining onto

sensor in the early evening.

Too much light is shining onto

sensor due to another light source,

such as a street lamp or other light

fixture.

220720

Spare Parts List:

Assembly Kit

5560MM (1 SET)

The following parts are available for re-order if damaged or missing.

Page 5 / 5

Mounting Screw (B) Wire Connector (C) Bolt Nut (D)Cross Bar Unit (A) Rubber Pad (E)

A: 16-3/8"

B: 6-1/2"

C: 7-3/4"

The bulb is non-dimmable or the

quality of light bulb is not good.

Use another normal incandescent lamp to confirm

if the light function is normal, otherwise change the

bulb.

The light

comes on for

no apparent

reason

If the light

is blinking Night

Night

Passing cars and reflective objects

interfere with the sensor.

Street or sidewalk traffic is triggering

motion sensor.

False triggering caused by a heat

source, such as a heater, dryer vent,

or heated swimming pool.

Relocate fixture.

Adjust the "SENS" knob to reduce the sensitivity.

Eliminate heat source or relocate fixture.

Glass Shade

9818CS

220720

Indice

Altri manuali Vaxcel Luce esterna

Vaxcel

Vaxcel T0080 Manuale di istruzioni

Vaxcel

Vaxcel Lambda T0627 Manuale di istruzioni

Vaxcel

Vaxcel T0571 Manuale di istruzioni

Vaxcel

Vaxcel T0350 Manuale di istruzioni

Vaxcel

Vaxcel T0594 Manuale di istruzioni

Vaxcel

Vaxcel T0620 Manuale di istruzioni

Vaxcel

Vaxcel T0246 Manuale di istruzioni

Vaxcel

Vaxcel T0468 Manuale di istruzioni

Vaxcel

Vaxcel T0692 Manuale di istruzioni

Vaxcel

Vaxcel T0321 Manuale di istruzioni

Vaxcel

Vaxcel T0085 Manuale di istruzioni

Vaxcel

Vaxcel T0616 Manuale di istruzioni

Vaxcel

Vaxcel Theta T0612 Manuale di istruzioni

Vaxcel

Vaxcel T0396 Manuale di istruzioni

Vaxcel

Vaxcel T0362 Manuale di istruzioni

Vaxcel

Vaxcel T0364 Manuale di istruzioni

Vaxcel

Vaxcel T0700 Manuale di istruzioni

Vaxcel

Vaxcel T0599 Manuale di istruzioni

Vaxcel

Vaxcel T0130 Manuale di istruzioni

Vaxcel

Vaxcel T0624 Manuale di istruzioni

Vaxcel

Vaxcel T0479 Manuale di istruzioni

Vaxcel

Vaxcel T0389 Manuale di istruzioni

Vaxcel

Vaxcel T0395 Manuale di istruzioni

Vaxcel

Vaxcel T0258 Manuale di istruzioni

Manuali Luce esterna popolari di altre marche

Sealey

Sealey LED37 Manuale utente

nordlux

nordlux VEJERS Guida utente

SImx

SImx ELITE LED LHTC637 Manuale utente

GEV

GEV CAROLINE 10833 Manuale utente

NEBO

NEBO NEB-LSP-0020 Manuale utente

WE-EF

WE-EF PFL540 LED Manuale utente

Lindby

Lindby 9949029 Manuale utente

HEPER

HEPER DOGO Side LW6048.585-US Istruzioni per l'installazione e il funzionamento

HEPER

HEPER LW8034.003-US Istruzioni per l'installazione e il funzionamento

Maretti

Maretti VIBE S 14.6080.04.A Manuale utente

BEGA

BEGA 84 253 Manuale

HEPER

HEPER MINIMO Istruzioni per l'installazione e il funzionamento

LIGMAN

LIGMAN BAMBOO 3 Manuale utente

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Manuale utente

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Manuale utente

urban ambiance

urban ambiance UQL1273 Manuale utente

TotalPond

TotalPond 52238 Manuale utente

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Manuale utente
