About this manual
This user manual is meant to support you during operation of the PROBA 5. This manual should be
used in combination with the VASP manual. This manual only describes the PROBA specific part of the
VASP software.
Always consult your supplier in case of maintenance or repairs!
Used notations
Manual change notes
Release Date Remarks
1.1 07-12-2018 First release
References
Reference to other documents
like drawings and descriptions
of components.
Important
Important information which is
assumed as being known with
this user manual.
Extra info
Background information.
PROBA 5 Doc.nr: 170366 Version: 1.1
Page 4of 32
Safety
⇒These rules of prevention of accidents must be kept near the machine.
⇒To prevent a lack of clarity in pictures it is prohibited to make copies of this document. Only
original colour-prints guarantee a clear result.
⇒Use the installation only as described in this manual. Other use van lead to dangerous
situations and/or damage to installation or products.
⇒Be sure to remove all tools from the machine after any maintenance.
Read this first!
Before the installation is going to be used, the instructions mentioned below have to be
considered. The guarantee of the installation expires if any damage, failure or shortcoming is a
result of negligence or non-observance of the points mentioned below.
Page 5of 32
PROBA 5 Doc.nr: 170366 Version: 1.1
Table of contents
1 Tab Overview 6
1.1 Modify overview 7
1.1.1 Product image 7
1.1.2 Show sensor 7
2 Tab Controller 8
2.1 Main control 8
2.1.1 (De)activate items 8
2.1.2 Cell operation 9
2.1.2.1 Operation mode - Hold 9
2.1.2.2 Operation mode - Ripe 10
2.1.2.3 Operation mode - Standby 11
2.1.2.4 Operation mode - Stop 11
2.1.2.5 Manual ventilation 11
2.1.2.6 Operation mode - ULO 12
2.1.3 Batch setting 13
2.1.4 Used presentations & symbols 14
2.1.4.1 Cell 14
2.1.4.2 Fan 14
2.1.4.3 Evaporator 14
2.1.4.4 Airbag 15
2.1.4.5 Door 15
2.1.4.6 Gas cylinder 15
2.1.4.7 Measurements 16
2.1.4.7.1 General measurements 16
2.1.4.7.2 Specific measurements 17
2.2 Subtab Programs 18
2.2.1 Selected series - Temperature 19
2.2.2 Selected series - Gas Concentration 19
2.2.3 Selected series - Gas Time 19
2.2.4 Selected series - Ventilation 20
2.2.5 Selected series - Humidity 20
2.2.6 Selected series - Pressure 20
2.2.7 Selected series - Pressure Reverse 20
2.2.8 Selected series - Fan speed 20
3.1 Simple control panel 21
3 Operation with the control panel 21
3.2 Operating the Proba using a touchscreen. 23
3.2.1 Configuring the IP addresses 23
3.2.2 The main screen 24
3.2.2.1 Registration 24
3.2.2.2 Components of the main screen 25
3.2.2.3 Reading the temperature sensors 25
3.2.2.4 Reading other sensors 26
3.2.2.5 Programme settings 26
3.2.2.6 Control panel - Parameter settings 28
3.2.2.7 Alarms 28
4 List of figures 30
PROBA 5 Doc.nr: 170366 Version: 1.1
Page 6of 32
1 Tab Overview
Depending on the license, you should first select a location and then the required overview is shown. If
the location option is not in your license, the overview tab will directly show.
In the tab ‘Overview’ all configured controllers are shown. There are maximal 100 controllers available
on one location. These controllers are divided on four pages.
Select a cell to show the concerning details in a new tab. In this way multiple cells can be selected
what will lead to multiple tabs (see next chapter).

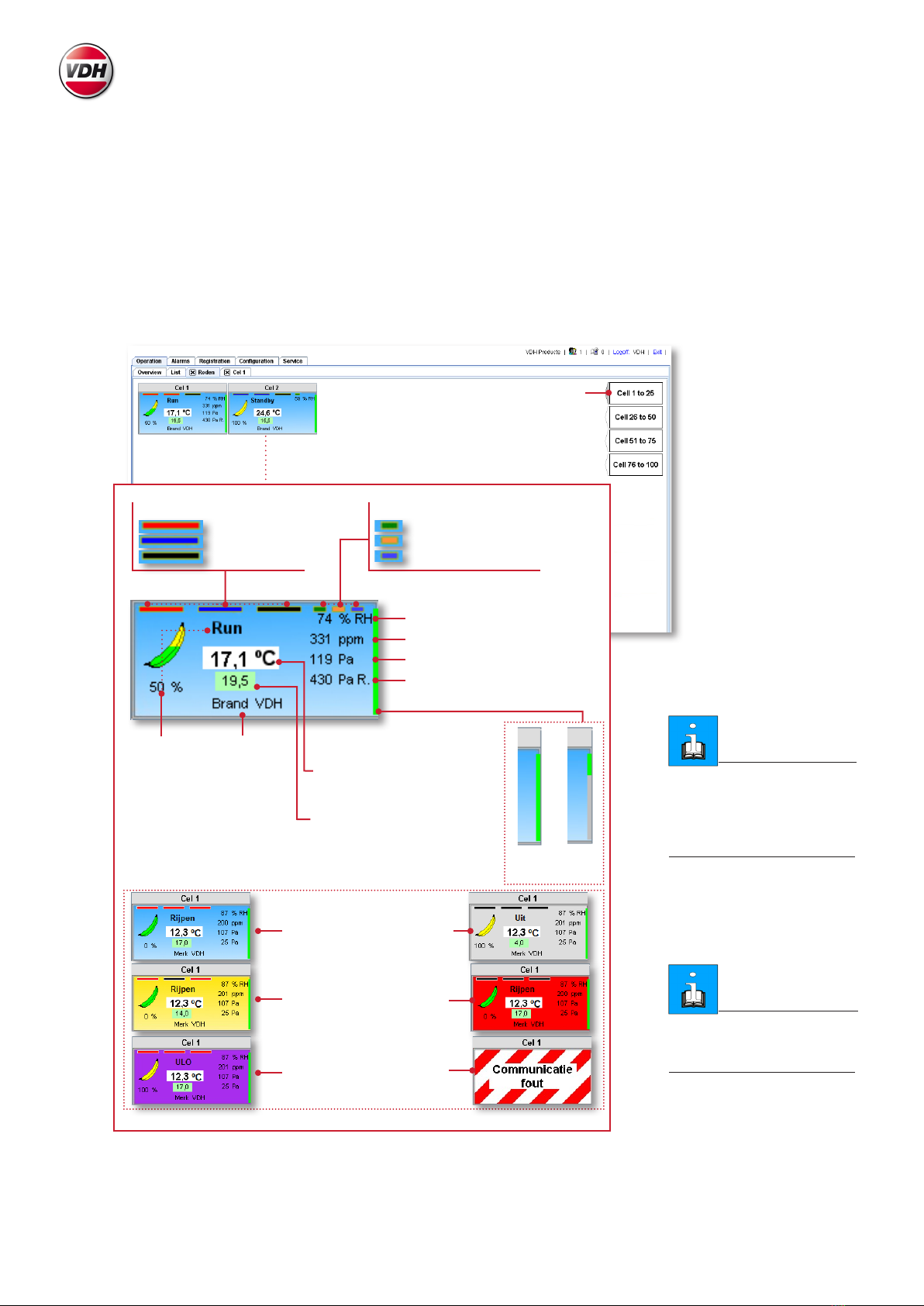

Fig. 1
Overview location
Tab list
Use tab ‘List’ to get an
overall view of all cells with
corresponding general
measurements.
Visibility of
current phase
Current phase is only presented
if it is active.
Back ground colour is also used for status:
Ripening
Gassing
ULO
Failure
Greyed out
= not active
No
communication
Humidity
Selection of a
group cells
Gas concentration
Pressure
Pressure reverse
Status Name of batch
Current average of controlled
temperature
Average setpoint control
temperature
Current status of cell section:
heating
cooling
off
Current phase of cell:
ventilation phase
gassing phase
humidifying phase
Door
closed
Door
open
Page 7of 32
PROBA 5 Doc.nr: 170366 Version: 1.1
The appearance of the room in the overview can be modified.
The product image can be changed or removed and a selection of the sensors can made.
To make these modifications, just right click on the room and left click on the required action.

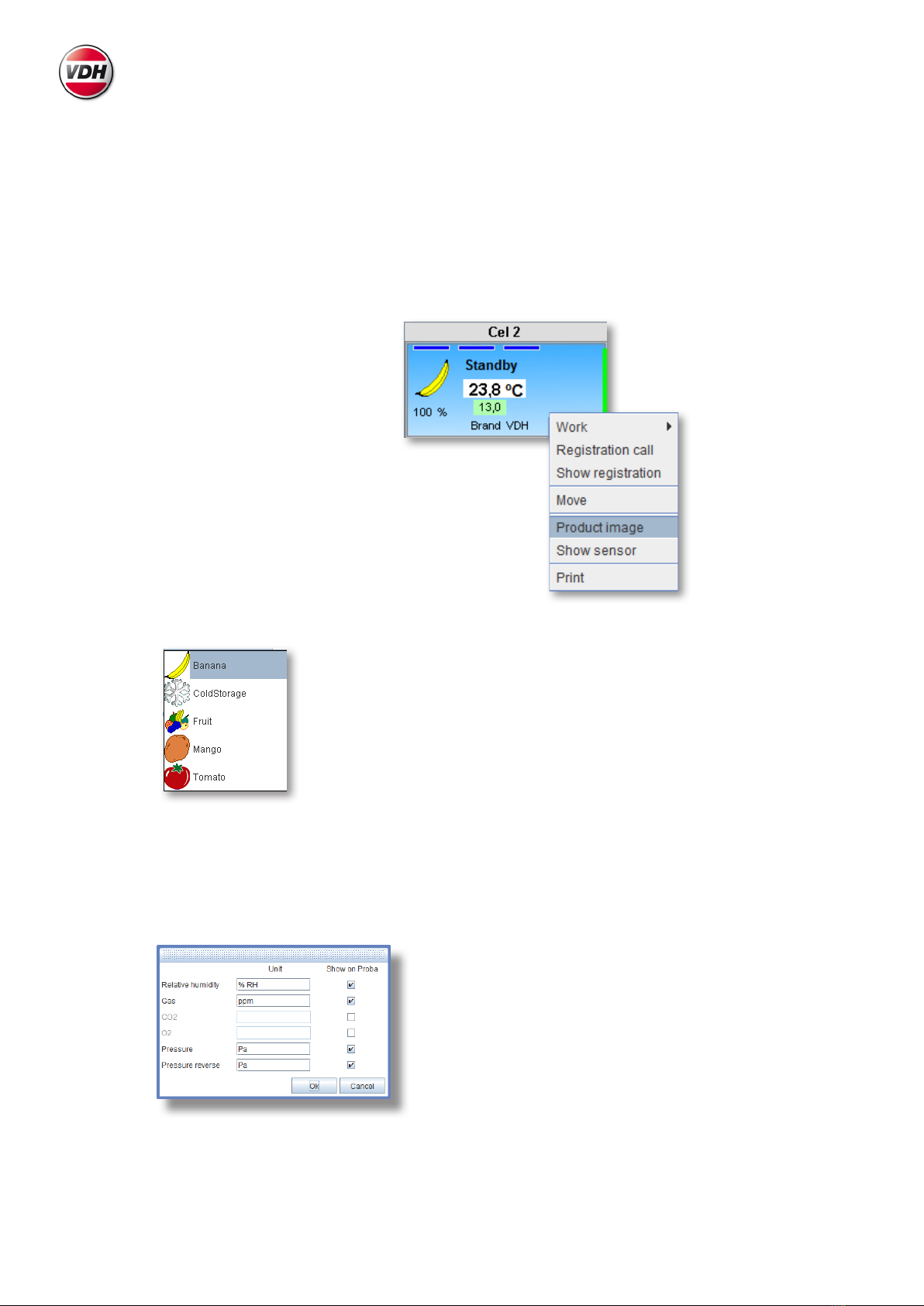

Fig. 2
Modify room appearance
1.1.1 Product image
Use this selection to choose the desired graphic presentation of the fruit. Consult your supplier in
case another picture is needed.
Fig. 3
Product selection
1.1.2 Show sensor
Use this selection to select the control sensors that are shown as text at right side of cell.
The unit which is entered, will also be used for the view at the bottom of the room view.
Fig. 4
Sensor selection
1.1 Modify overview
PROBA 5 Doc.nr: 170366 Version: 1.1
Page 8of 32
2 Tab Controller
Each cell is independently controlled by a controller. Via tab ‘Controller’ the right commands and
setpoints are send to each controller.
All ripening processes are based on pre-defined program templates. If necessary it is possible to
change the selected program temporarily. As a result, the standard program template is used again
each next time the ripening process is started.
2.1 Main control
The default view shows complete status of selected cell.

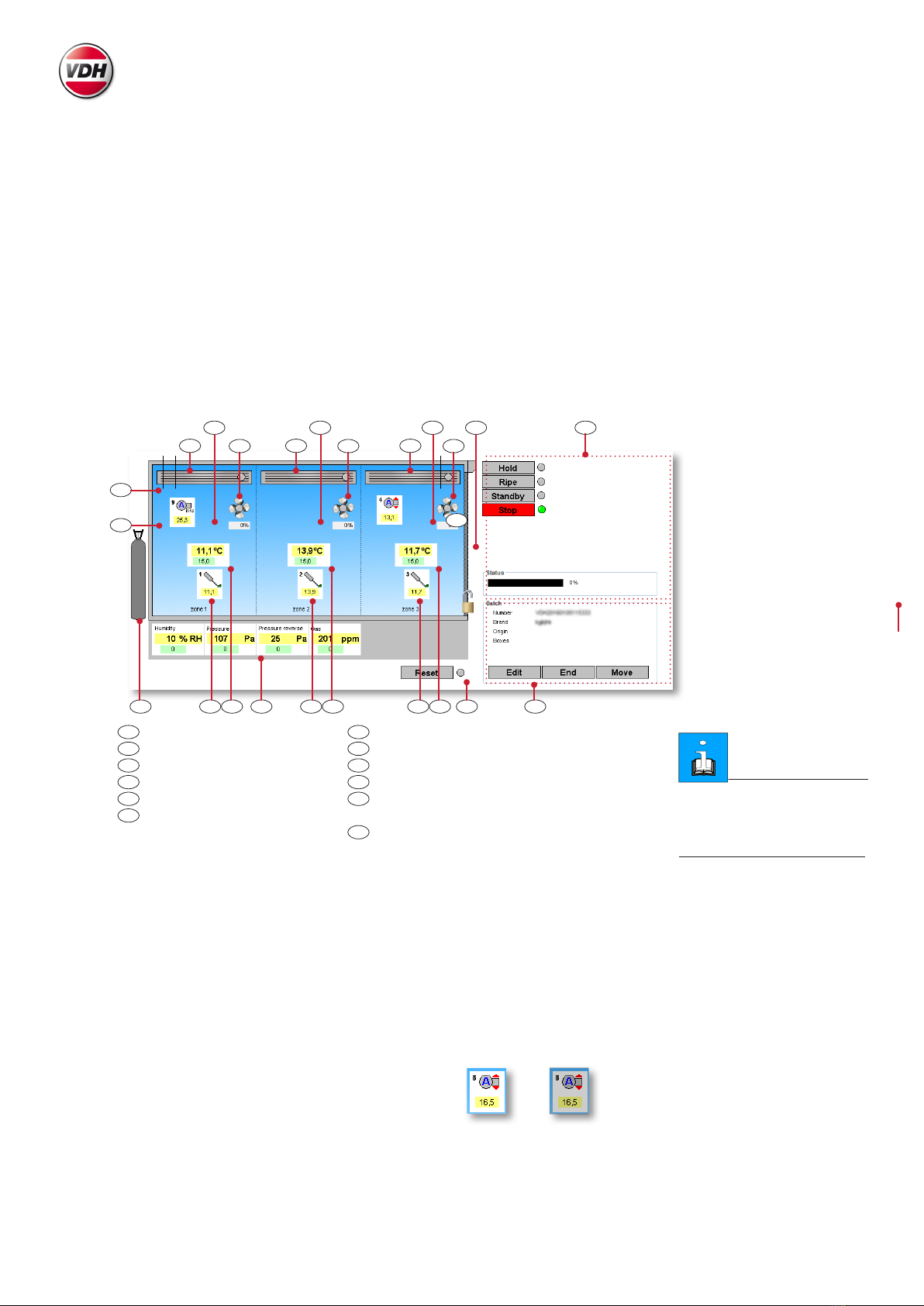

Fig. 5
Controller - main control
2.1.1 (De)activate items
It is possible to (de)activate sensors and zones individually in each cell. De-activated items are shown
as greyed out.
1. Select item with right mouse button.
2. Select or de-select ‘Activate’.
Fig. 6
(De)activated items
Modify
programs
See “§2.2 Subtab Programs”
on page 18 for modifying
program templates.
Cell, see page 14
Fan, see page 14
Evaporator, see page 14
Air bag, see page 15
Door, see page 15
Measurements, see page 16
General zone measurement, see page 16
General cell measurements, see page 16
Gas cylinder, see page 15
Cell operation control, see page 9
Reset controller alarm relays (Urgent & Not Urgent)
and acknowledge errors to controllers
Batch setting, see page 13
1
4
1
6
1
1
1
1
1
7
1
3
1
9
1
5
1
11
1
12
1
2
1
8
1
4
1
10
1
6
1
1
1
1
1
8
1
7
1
7
1
7 11 126
1
9
1
6
1
6
1
2
1
2
1
2
1
5
1
10
1
4
1
3
1
3
1
3
activated de-activated
Page 9of 32
PROBA 5 Doc.nr: 170366 Version: 1.1
2.1.2 Cell operation
Green led indicates if item is activated.
Start manual ventilation

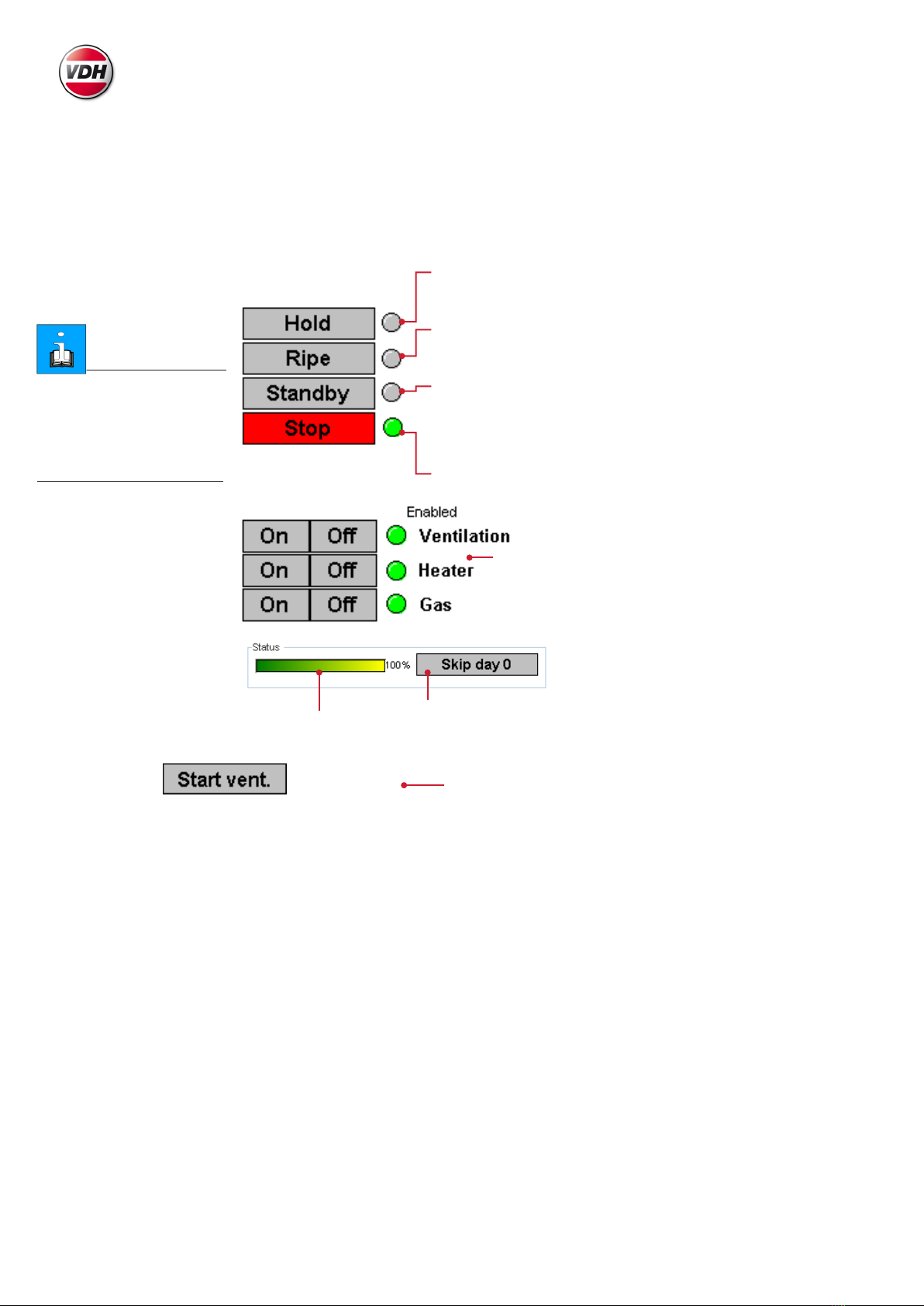

Fig. 7
Cell operation - overview
2.1.2.1 Operation mode - Hold
Select ‘Hold’ to maintain a constant ventilation regime with fixed relative humidity, fan speed and
temperature setting. However, it is possible to (de-)activate ventilator and heating manually.
Control
mode
Hold: see page 9
Ripe: see page 10
Standby: see page 11
Stop: see page 9
Start vent: see page 11
Manual operation possible if enabled.
This depends on the cell status.
Visual items depend on current cell status.
Hold status; Manual regime for ventilation and manual setting
for relative humidity, fan speed and temperature. Manual
operation for ventilator and heating are enabled.
Ripe status; Ripening is done according ripening program.
Manual operation for ventilator, heating and gassing are
enabled.
Standby status; Manual regime for gassing and ventilation
and manual setting for relative humidity, fan speed and
temperature.
Manual operation for ventilator, heating and gassing are
enabled.
Stop status; Ripening is stopped. Manual operation for
ventilator, heating and gassing are enabled.
Don’t wait until start moment, but start program direct.
Progress of ripening
PROBA 5 Doc.nr: 170366 Version: 1.1
Page 10 of 32
Ventilation pause time
Setpoint relative
humidity
Setpoint temperature
Ventilation activation time
Interrupt hold mode
Start hold mode

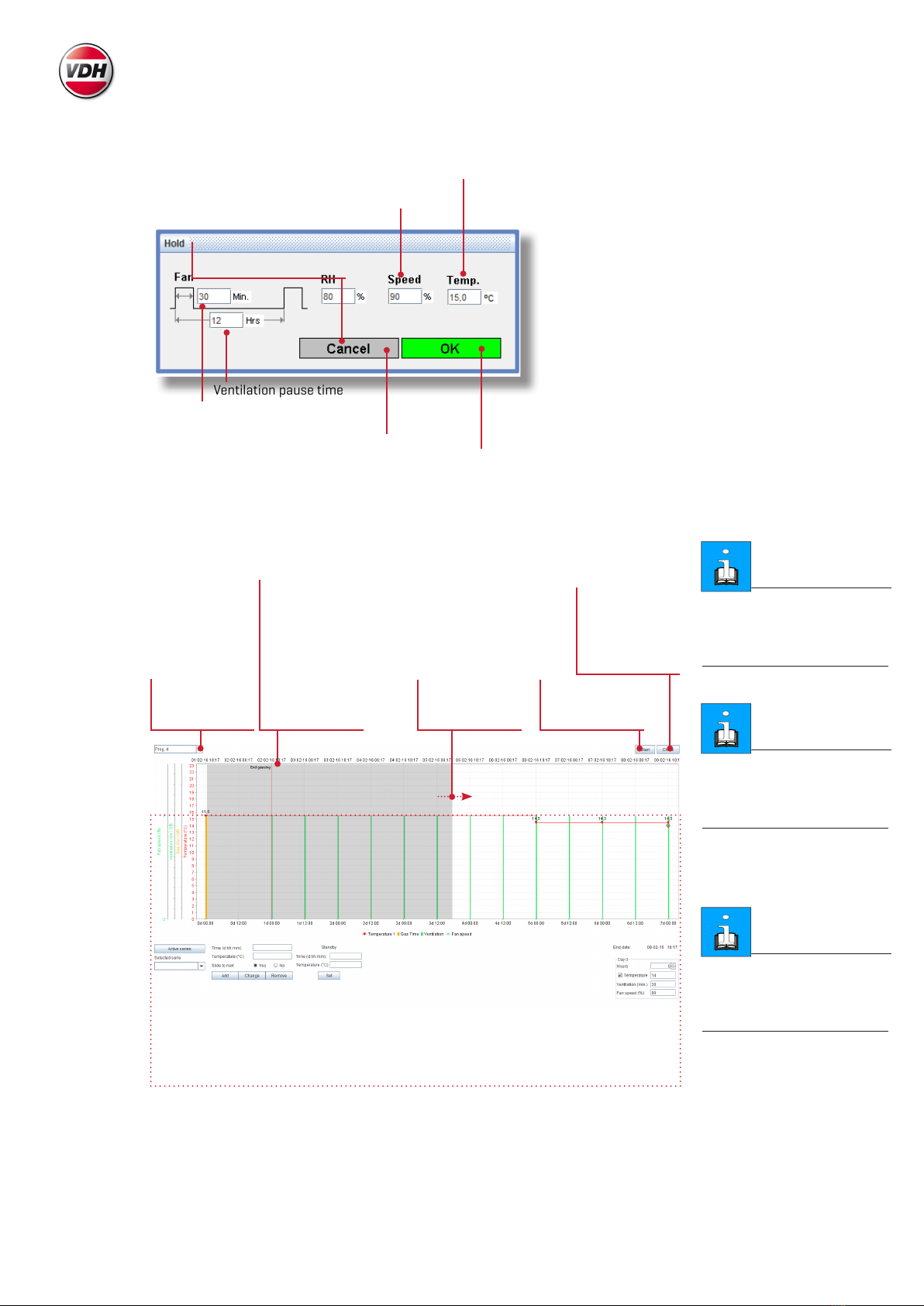

Fig. 8
Hold parameters
2.1.2.2 Operation mode - Ripe
Select ‘Ripe’ to start a completely automatic controlled ripening process.
A new window is displayed:
Fig. 9
Ripening graph
When the graph window is closed and ‘Ripe’ mode is still active it is possible to (de-)activate
ventilator, heating and gassing manually.
Enter batch
first
To activate any mode it is
necessary to enter batch
information first.
Update
display
Use left mouse button to update
the current progress of an
activated process.
Select available
program
template
It is possible to edit
current program
template temporarily
in the same way as
during configuration.
See Ҥ2.2 Subtab
Programs” on page
18 for details.
Progress of
activated
ripening process
Start
ripening process
Close window
Ripening
process remains
active in case it
is activated.
Configure
programs
In “§2.2 Subtab Programs” on
page 18 is explained how to
configure program templates.
Setpoint fan speed
