HOMEOWNER’S OPERATING INSTRUCTIONS

08817 rev. A

INSTALLER: LEAVE THIS GUIDE WITH HOMEOWNER.

HOMEOWNER: CARE INFORMATION ON PAGES 20 TO 22.

MODELS VJ10430SS & VJ10430WH

INTENDED FOR DOMESTIC COOKING ONLY

READ AND SAVE THESE INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

When using an electric appliance, basic precautions should always be followed including the following:

WARNING (MICROWAVE OVEN)

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY TO PERSONS OR EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY, OBSERVE THE FOLLOWING:

• Do not attempt to operate this microwave oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

• Do not place any object between the microwave oven front face and the door or allow soil or cleaner residue

to accumulate on sealing surfaces.

• Do not operate the microwave oven if it is damaged. It is particularly important that the microwave oven door

close properly and that there is no damage to the:

• Door (bent or dented)

• Hinges and latches (broken or loosened)

• Door seals and sealing surfaces

• This appliance must be grounded. Connect only to properly grounded outlets.

• Install or locate this appliance only in accordance with the installation instructions provided.

• Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or

vapors in this appliance. This type of oven is speciﬁcally designed to heat, cook, or dry food. It is not designed

for industrial or laboratory use.

• As with any appliance, close supervision is necessary when used by children.

• Keep the power cord away from heated surfaces (including the back of the oven).

• Remove lids from baby food before heating. After heating baby food, stir well to distribute the heat evenly.

Always test temperature by tasting before feeding the baby. The glass jar or surface of the food may appear to

be cooler than the interior, which can be so hot as to burn the infant's mouth.

• Liquids, such as water, milk, coffee, or tea are able to be overheated beyond the boiling point without appearing

to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always

present. This COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER

IS DISTURBED BY A SPOON OR OTHER UTENSILS, INSERTED INTO THE LIQUID.

a) Do not overheat liquids.

b) Stir the liquid both before and halfway through heating it.

c) Do not use straight-sided containers with narrow necks.

d) After heating, allow the container to stand in the microwave oven for a short time before removing the

container.

e) Use extreme care when inserting a spoon or other utensils into the container.

• Hot foods and steam can cause burns. Carefully remove container coverings, directing steam away from your

hands and face.

• Some products such as whole eggs and sealed containers (e.g.: closed jar) may explode if heated in this oven.

Remove seals and lids before use.

• Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been

damaged or dropped. When the power plug or power cord is damaged, contact your nearest service center.

• Do not cover or block any of the openings on this appliance.

• Do not immerse the power cord or plug in water and do not operate the appliance with wet hands.

• Do not let the power cord hang over edge of table or counter.

• Do not pull on the power cord to unplug the unit. Do it by grasping the power cord plug.

• Do not try to preheat the microwave oven or operate it while empty.

• Do not defrost frozen beverages in narrow-necked bottles. The containers can break.

• Dishes, containers and the inside of the appliance may become hot. Handle with care.

• If the appliance generates a strange noise, a burning smell or smoke, unplug the power cord immediately and

contact your nearest service center.

• When cleaning the unit, it is recommended to wear safety glasses and gloves.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF FIRE IN THE OVEN:

a) Do not overcook food. Watch appliance carefully if paper, plastic, or other combustible materials are placed

inside the oven to facilitate cooking.

b) Remove wire twist-ties from paper or plastic bags before placing bags in oven.

c) If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or

shut off the power at the fuse or circuit breaker panel. If the door is opened, the ﬁre may spread.

d) Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or

food in the oven when not in use.

CAUTION

• Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or ﬂoor can cause

paint damage and reduce the efﬁciency of the oven.

• When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive

soaps or detergents applied with a sponge or soft cloth. Unplug the power cord before cleaning.

• Do not store this appliance outdoors. Do not use near water - for example, near a kitchen sink, in a wet

basement, or near a swimming pool or similar locations.

• Do not cook without the turntable in place on the oven ﬂoor. Food will not cook properly without the tray in place.

• Do not store anything directly on top of the appliance when it is in operation.

• Do not tamper with or make any adjustments or repairs to the door.

• Never try to repair the oven on your own. This appliance should be serviced only by qualiﬁed service personnel.

Contact the nearest service center for examination, repair or adjustment.

WARNING (VENT FAN)

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer

at the address or telephone number listed in the warranty.

• Installation work and electrical wiring must be done by qualiﬁed personnel in accordance with all applicable

codes and standards, including ﬁre-rated construction codes and standards.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may

ignite. Heat oils slowly on low or medium settings.

b) Always turn vent fan ON when cooking at high heat or when ﬂambeing food (i.e.: Crêpes Suzette, Cherries

Jubilee, Peppercorn Beef Flambé).

c) Clean ventilating fan frequently - Grease should not be allowed to accumulate on fan or ﬁlter.

d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

e) The fan will operate automatically under certain conditions. Take care to prevent the starting and spreading of

accidental cooking ﬁres while the vent fan is in use.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE*:

1. SMOTHER FLAMES with a close-ﬁtting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL

TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE

DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN — You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it.

B. The ﬁre is small and contained in the area where it started.

C. The ﬁre department has been called.

D. You can ﬁght the ﬁre with your back to an exit.

*Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

• For indoor use only.

• Use care when cleaning the grease ﬁlter. Corrosive cleaning agents, such as oven cleaners, may damage the ﬁlter.

• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust,

etc. off appliance.

ABOUT THIS MANUAL/PRODUCT

The purpose of this guide is to show you how to operate your unit and do its maintenance. Please read completely

before using this appliance.

We welcome any suggestions you may have concerning this manual and/or the unit, and we would appreciate

hearing your comments on ways to better serve you. Please forward all correspondence to us at the address listed

in the warranty at the end of this manual.

This manual uses the following symbols to emphasize particular information:

NOTE: Indicates supplementary information needed to fully complete an instruction.

WARNING

Identiﬁes an instruction which, if not followed, might cause serious personal injuries

including possibility of death.

CAUTION

Denotes an instruction which, if not followed, may severely damage the unit and/or its

components.

TABLE OF CONTENTS

1. SETTING UP

YOUR MICROWAVE OVEN ...................... 5

1.1 Checking the Parts ....................................... 5

1.2 Setting up your Microwave Oven................... 5

1.3 Checking the Control Panel........................... 6

1.4 Setting the Time............................................ 8

1.5 Demonstration Mode .................................... 8

1.6 Child Lock .................................................... 8

2. USING YOUR MICROWAVE OVEN.......... 8

2.1 Using the Kitchen Timer Button .................... 8

2.2 Using the One Minute+ Button...................... 8

2.3 Using the More/Less Buttons........................ 8

2.4 Using the Vent Button ................................... 9

2.5 Using the Light Button .................................. 9

2.6 Using the Sound Button................................ 9

2.7 Using the Auto Cook Buttons........................ 9

2.8 Using the Auto Defrost Button....................... 12

2.9 Using the Auto Reheat Button....................... 13

2.10 Using the Soften/Melt Button......................14

2.11 Microwave Cooking Times

& Power Levels ........................................... 14

3. COOKWARE GUIDE ................................. 16

Microwave-Safe Utensils..................................... 16

4. COOKING GUIDE...................................... 17

Microwaves......................................................... 17

5. MICROWAVE OVEN CARE....................... 20

5.1 Cleaning the Exterior..................................... 20

5.2 Cleaning the Interior...................................... 20

5.3 Cleaning the Door and Door Seals ................ 20

5.4 Cleaning the Turntable and Roller Ring.......... 20

5.5 Cleaning the Grease Filter ............................. 20

5.6 Storing

& Repairing your Microwave Oven................. 21

5.7 Replacing the Cooktop Light......................... 21

5.8 Replacing the Oven light ............................... 22

5.9 Replacing the Charcoal Filter......................... 22

6. TROUBLESHOOTING............................... 23

Check these Points if your Microwave Oven........ 23

7. REPLACEMENT PARTS ........................... 23

8. SPECIFICATIONS ..................................... 24

9. WARRANTY............................................... 24

1. SETTING UP YOUR MICROWAVE OVEN

Ensure to follow these instructions closely so that your new microwave oven works properly.

1.1 CHECKING THE PARTS

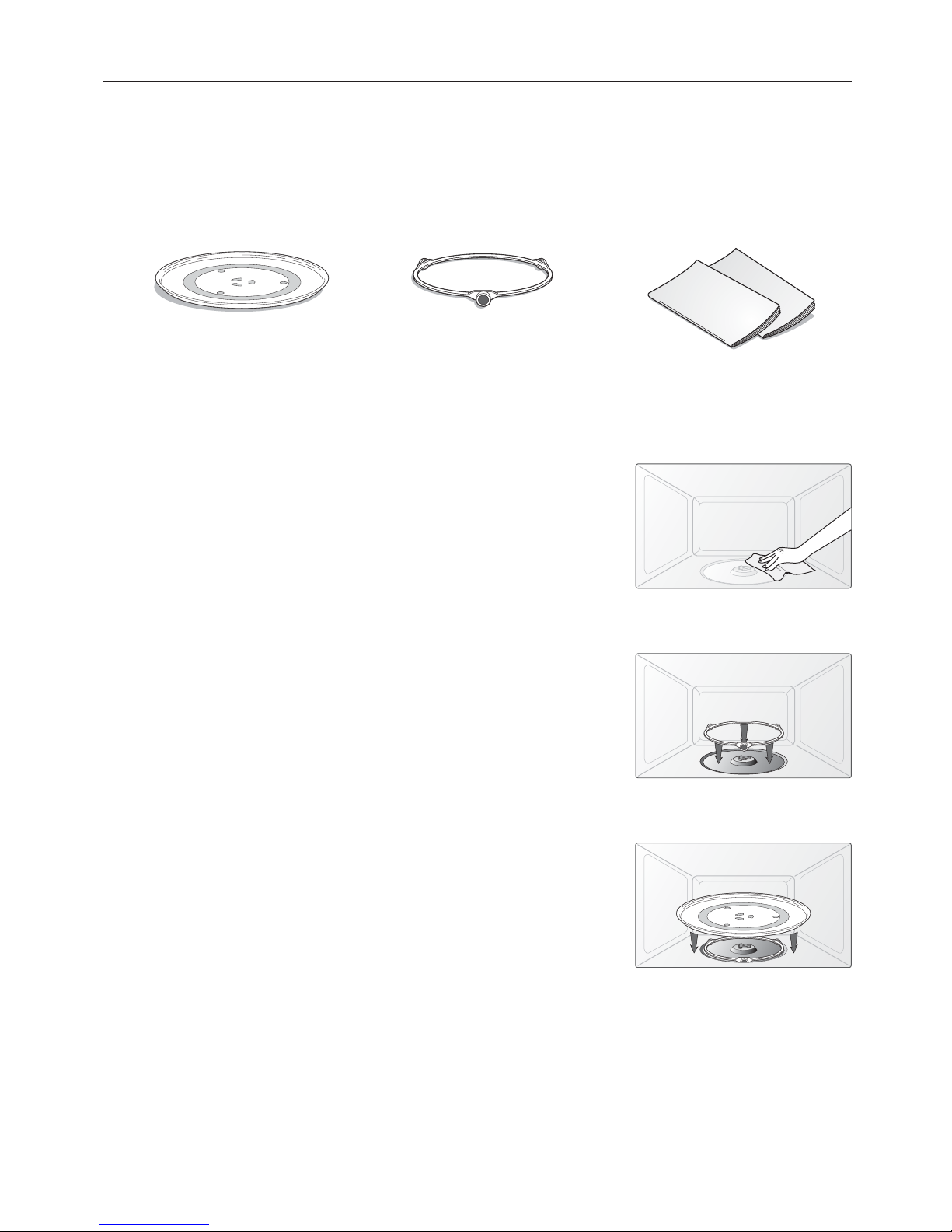

Ensure that the following items are included:

1.2 SETTING UP YOUR MICROWAVE OVEN

1. Open the door by pulling the handle on the right side of the door.

2. Wipe the inside of the oven with a damp cloth.

3. Install the pre-assembled ring into the indentation at the center of the

microwave oven.

4. Place the turntable securely in the center of the pre-assembled roller ring.

MA0001

MA0002

MA0007

MD0001

MO0001

MO0002

TURNTABLE ROLLER GUIDE RING

MANUALS

(USER &INSTALLATION)

1. SETTING UP YOUR MICROWAVE OVEN (CONT’D)

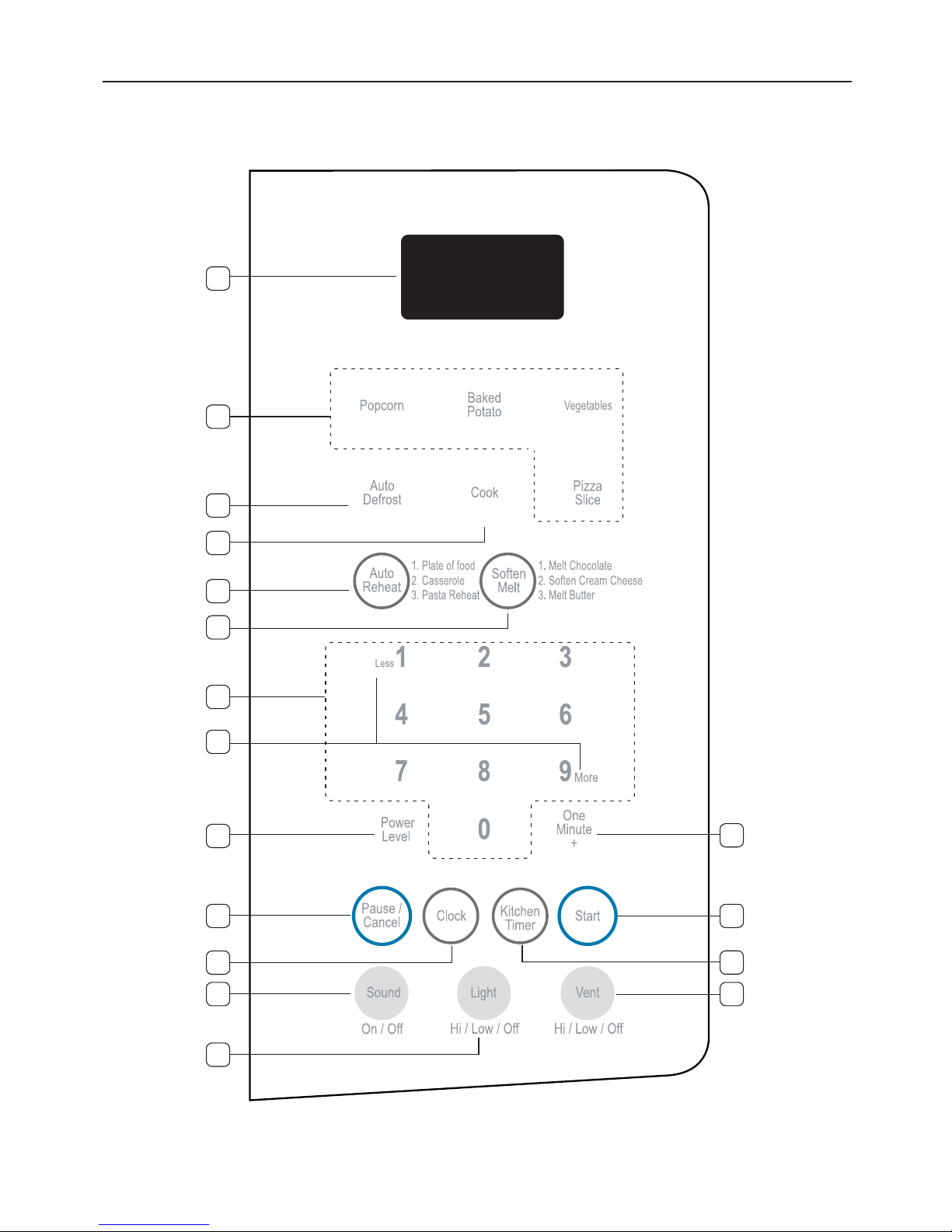

1.3 CHECKING THE CONTROL PANEL

MC0001A

DISPLAY Displays the time when the microwave is not being used, as well as your selected

cook times and cooking functions.

AUTO COOK The Auto Cook buttons consist of frequently used items allowing you to select

them quickly and conveniently without having to select manual settings.

AUTO DEFROST Press this button to defrost food according to its weight.

COOK Press this button to cook beverage, bacon, frozen dinner, frozen breakfast.

AUTO REHEAT Press this button to reheat dinner plates, casseroles, or pastas.

SOFTEN MELT Press this button to soften or melt speciﬁc foods (listed beside the button).

NUMBERS Press the number buttons to enter the cook time, power level, quantity or

weight.

MORE/LESS

The More/Less buttons allow you to adjust the pre-set cook times once you

have started cooking. They only work in the “Reheat”, “Auto Cooking”, “One

Minute+” and “Time Cook” modes.

POWER LEVEL Press this button to select a cooking power level.

PAUSE/CANCEL Press this button to stop the oven or to clear all entries.

CLOCK Press this button to set the time.

SOUND ON/OFF

Press the Sound On/Off button to activate or deactivate all sounds (beeps) of

the microwave oven. The display will show either On or Off, according to the

selected setting. Press the START button to return to the clock display.

LIGHT HI/LOW/OFF Press the Light Hi/Low/Off button once for bright light, twice for night light, or

three times to turn the light completely off.

VENT HI/LOW/OFF Press the Vent Hi/Low/Off button once for high fan, twice for low fan, or three

times to turn the fan off.

KITCHEN TIMER This microwave allows you to use your microwave oven as a timer. Use the

Kitchen Timer button for timing up to 99 minutes, 99 seconds.

START Press this button to start a selected function or cycle. If you open the door after

the oven begins to cook, close the door and press the START button again.

ONE MINUTE+This simpliﬁed control saves you time, letting you quickly start cooking at 100%

power without the need to press the START button.

Refer to “Using your microwave oven” on pages 8 to 15 for detailed information on the buttons described in the

table above.

1. SETTING UP YOUR MICROWAVE OVEN (CONT’D)

1.4 SETTING THE TIME

Your microwave oven is equipped with a built-in clock. Set the clock when ﬁrst installing your microwave oven

and after a power failure. The time is displayed whenever the microwave oven is not being used.

1. Press the Clock button.

2. Enter the time using the number buttons.

3. Press the START button.

1.5 DEMONSTRATION MODE

Your microwave also comes with a demonstration mode, allowing you to see how your microwave operates

without the oven actually being heated.

ACTIVATING/DEACTIVATING

If you want to activate or deactivate the demonstration mode, press the 0and 1buttons at the same time.

The oven beeps whenever the demonstration mode is activated or deactivated.

1.6 CHILD LOCK

The Child Lock function allows you to lock the microwave buttons so that the microwave oven cannot be

operated accidentally. The oven operation can be locked at any time.

ACTIVATING/DEACTIVATING

If you want to activate or deactivate the child lock function, press the Start button for 3 seconds.

The display will show an Lwhen the oven is locked.

2. USING YOUR MICROWAVE OVEN

Cooking has never been easier than with your new Venmar Jazz microwave oven.

The following section describes everything you need to know about using your microwave oven.

2.1 USING THE KITCHEN TIMER BUTTON

This microwave allows you to use your microwave oven as a timer. Use the Kitchen Timer for timing up to

99 minutes, 99 seconds.

1. Press the Kitchen Timer button.

2. Enter the time by using the number buttons.

3. Press the START button.

When the time is over, four beeps will sound and End is displayed.

2.2 USING THE ONE MINUTE+ BUTTON

This simpliﬁed control saves you time, letting you quickly start cooking at 100% power without the need to

press the START button.

1. Press the One Minute+ button for each minute you wish the food to be cooked for. For example, press it

twice to cook it for two minutes. The time is displayed and the oven starts automatically.

2. Add minutes to a cooking program already in progress by pressing the One Minute+ button for every

additional minute you wish to add.

2.3 USING THE MORE/LESS BUTTONS

The More (9)/Less (1) buttons allow you to adjust the pre-set cook times. They only work for the “Reheat”,

“Auto Cooking”, “One Minute+” and “Time Cook” modes. Use the More (9)/Less (1) buttons only after you

have already begun cooking using one of these modes.

1. Use the More (9) button to add time to an automatic cooking procedure.

2. Use the Less (1) button to decrease the time of an automatic cooking procedure.

NOTE: Each time you press the More (9) button while cooking manually, the current cooking time increases

by 10 seconds. Press the Less (1) button to decrease it by 10 seconds.

2. USING YOUR MICROWAVE OVEN (CONT’D)

2.4 USING THE VENT BUTTON

The vent removes steam and other vapors from the cooking surface. You can manually select the vent setting.

1. Press the Vent button once for a high fan speed.

2. Press the Vent button twice for a low fan speed.

3. Press the Vent button three times to turn the fan off.

NOTE: If the temperature becomes too hot around the microwave oven, the fan in the vent hood will

automatically turn on at the low setting to cool the oven. The fan will automatically turn off when the

oven has cooled down sufﬁciently. This is an automated process and cannot be turned off.

2.5 USING THE LIGHT BUTTON

The Light button allows you to select a light setting for the cooking surface.

1. Press the Light button once for the bright light setting.

2. Press the Light button twice for the night light.

3. Press the Light button three times to turn the light completely off.

2.6 USING THE SOUND BUTTON

1. Press the Sound button, the display shows On.

2. Press the Sound button, the display shows Off.

3. Press the Start button, the display returns to the time of day.

2.7 USING THE AUTO COOK BUTTONS

The Auto Cook buttons consist of frequently used items allowing you to select these quickly and conveniently.

Use the More (9)/Less (1) buttons to set your temperature preference. If the food is not thoroughly cooked or

reheated when using the auto cook feature, complete the cooking process by selecting an additional power

level and cook time.

NOTE: Do not continuously use the Auto Cook buttons. The oven must cool for 5 minutes between uses or

the food will overcook.

POPCORN

The popcorn auto cook button is a feature that allows you to easily make popcorn (90/110 g bags of

commercially packaged microwave popcorn). Use only one package at a time. If you are using a microwave

popcorn popper, follow the manufacturer’s instructions.

Example: 110 g bag popcorn.

1. Press the Popcorn button once.

2. The oven will start automatically.

3. When the cook time is over, four beeps will sound and End will be displayed.

(Refer to the “AUTO COOK TABLE” on page 11.)

BAKED POTATO

The potato auto cook button is perfect for cooking potatoes at preset times and power levels. You can cook

up to 4 potatoes.

Example: Cooking 2 potatoes.

NOTE: Pierce the potatoes with a fork several times before putting them in the microwave oven.

1. Press the Baked Potato button twice.

2. The oven will start automatically.

3. When the cook time is over, four beeps will sound and End will be displayed.

4. Let the potatoes stand for 5 minutes.

(Refer to the “AUTO COOK TABLE” on page 11.)

NOTE: The cook times are based on medium-sized potatoes.

WARNING

Do not leave the microwave oven unattended while popcorn is being cooked.

2. USING YOUR MICROWAVE OVEN (CONT’D)

2.7 USING THE AUTO COOK BUTTONS (CONT’D)

VEGETABLES

The vegetables auto cook button lets you cook vegetables with preset times and cook powers.

Vegetables provide two preset categories (fresh and frozen) with a choice of 1 to 4 servings for each category.

Example: To cook 2 servings of Frozen Vegetables.

1. Press Vegetables button twice.

2. Enter the serving size (1 to 4) using the number button.

3. Press Start button.

4. When the cook time is over, four beeps will sound and End will be displayed.

(Refer to the “AUTO COOK TABLE” on page 11.)

PIZZA SLICE

The pizza slice auto cook button lets you reheat up to three medium-sized slices of pizza.

Example: To reheat 1 slice of pizza.

1. Press Pizza Slice button once.

2. The oven will start automatically.

3. When the cook time is over, four beeps will sound and End will be displayed.

(Refer to the “AUTO COOK TABLE” on page 11.)

COOK

The cook button provides four preset categories for cooking.

Example: To cook 250 g of frozen dinner.

1. Press Cook pad three times.

2. Press number pads to enter quantity, serving size or package weight.

3. Press Start button.

4. When the cook time is over, four beeps will sound and End will be displayed.

CATEGORY TIMES TO PRESS DISPLAY

BEVERAGE Once Ac-1

BACON Twice Ac-2

FROZEN DINNER Three times Ac-3

FROZEN BREAKFAST Four times Ac-4

Altri manuali per Jazz VJ10430SS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Venmar Forno a microonde

Venmar

Venmar Jazz VJ10430SS Manuale utente

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Electrolux

Electrolux EMS2840 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente
