COMFORT CALL SYSTEM

ACC0433

Venstar Inc. 08/07

Compatible with thermostat models:

T1700, T1800, T1900, T2700, T2800 T2900

Consult VENSTAR for a complete list.

Optional compatible outdoor sensor required

OWNER’S

MANUAL

OWNER’S

MANUAL

Allows simple remote control of your

thermostat through the telephone

Cell phone compatible

Voice recognition or touch-tone entry

Announces indoor & outdoor

temperatures*

Announces thermostat status -

i.e. “heat is running”

Wireless technology - (easy to install)

Can control up to 4 thermostats

May control 1 auxiliary output

Comfort

Call

Base Station &

Wireless Module

Comfort

Call

Base Station &

Wireless Module

Overview

Location of Controls, Indicators

& Connections

Table of Contents

Installation & Setup

Resetting the Access Code

Operation

Link up to 4 Thermostats to

1 Base Station

Control of the Thermostat’s

Auxiliary Output

Menu of Touch Tone Keys

Warranty

Page 1

P/N ACC0433

Venstar Inc. 08/07

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FComfort Call

ACC0433

FCC ID MUHBASE1

FCC ID MUHMODULE1

User Cautions

Overview

Comfort Call allows you to call and ‘talk’ to your compatible thermostat. Monitoring

and controlling your thermostat is now simple and easy from any phone, from

anywhere.

Comfort Call employs the latest in voice recognition and synthesis technology. It can

tell you the indoor temperature of your home and the outdoor temperature, provided

there is a working outdoor sensor connected to the thermostat. Once on the phone

with your system, you may tell your thermostat to change to your preset Comfort

Settings or go into your preset ‘unoccupied’, Energy Savings Settings (page 15).

Comfort Call consists of two parts: A base station (page 6) that connects to the phone

line and a RF Wireless Module that plugs into your compatible thermostat (page 5).

Once Comfort Call answers, you will be prompted to enter a Security Access Code.

This code is preset to 1111. You may change this code to any four digit number, if

desired (page 13).

Some homes may have more than one thermostat. If there is more than one

thermostat, Comfort Call will have a menu option to access up to four different

thermostats (page 16).

As an added feature, some of our compatible thermostat models allow for the remote

control of an auxiliary output on the thermostat. This auxiliary output may be

accessed and controlled from Comfort Call as well (pages 17 and 18). An example of the

use of this auxiliary output: The output is connected to a Powerflash Interface PF284

to turn on or off the indoor lighting wirelessly.

Page 2

Overview cont.

Comfort Call requires an analog telephone line. If this system is installed at a primary

residence, then the ring selector on the base station should be set to pick up the line

after seven rings (page 10). With this setting, Comfort Call will not answer before an

occupant is likely to pick up the phone.

If an answering machine or fax machine is connected to Comfort Call, then the

answering/fax machine should be set to pick up before Comfort Call (the ring selector

is set to seven rings). In the case of a connected answering machine, after the tone to

leave a message is heard, the user enters the Comfort Call security code. Comfort

Call will release the answering machine from the line and control of the thermostat is

now possible.

In the case of a fax machine, after the ‘handshake’ tones are heard, there are

moments of silence; during this silent period the Comfort Call security code should be

entered. Comfort Call will release the fax machine from the line and control of the

thermostat will be possible.

Please note that some phone services provide a ‘voicemail’ answering service. These

services release the home phone line after a preset number of rings and transfer the

call to an internal voicemail system. Comfort Call is not compatible with this type of

voicemail system.

Comfort Call is a solution for people who do not have the same occupied patterns

every day for their homes. It is also a convenient way to call ahead to make

sure the primary or vacation home is comfortable upon arrival.

Page 3

energy

comfort

MODEL: ACC0433

YYWWXXXX

MADE IN CHINA

US:J3CTE02ABASE1

At the thermostat, select the mode (Auto,

Heat, Cool, or Off).

Adjust the setpoints to the desired setting.

Here, at the base station, press the

corresponding button for 5

seconds. The LED will flash for

5 minutes.

Within 5 minutes of pressing

the button on the base station,

press the link button on the receiver for 3 seconds. The

LED on the receiver will flash twice.

1 4 7

RINGS

The base station will now remember your settings. You

may change these settings at anytime by repeating the

above steps. Refer to Owner’s Manual for more details

Power and Link LED Indicator

Comfort Settings Link Button

Ring Selector Switch

Link Button

Link LED Indicator

Energy Savings Link Button

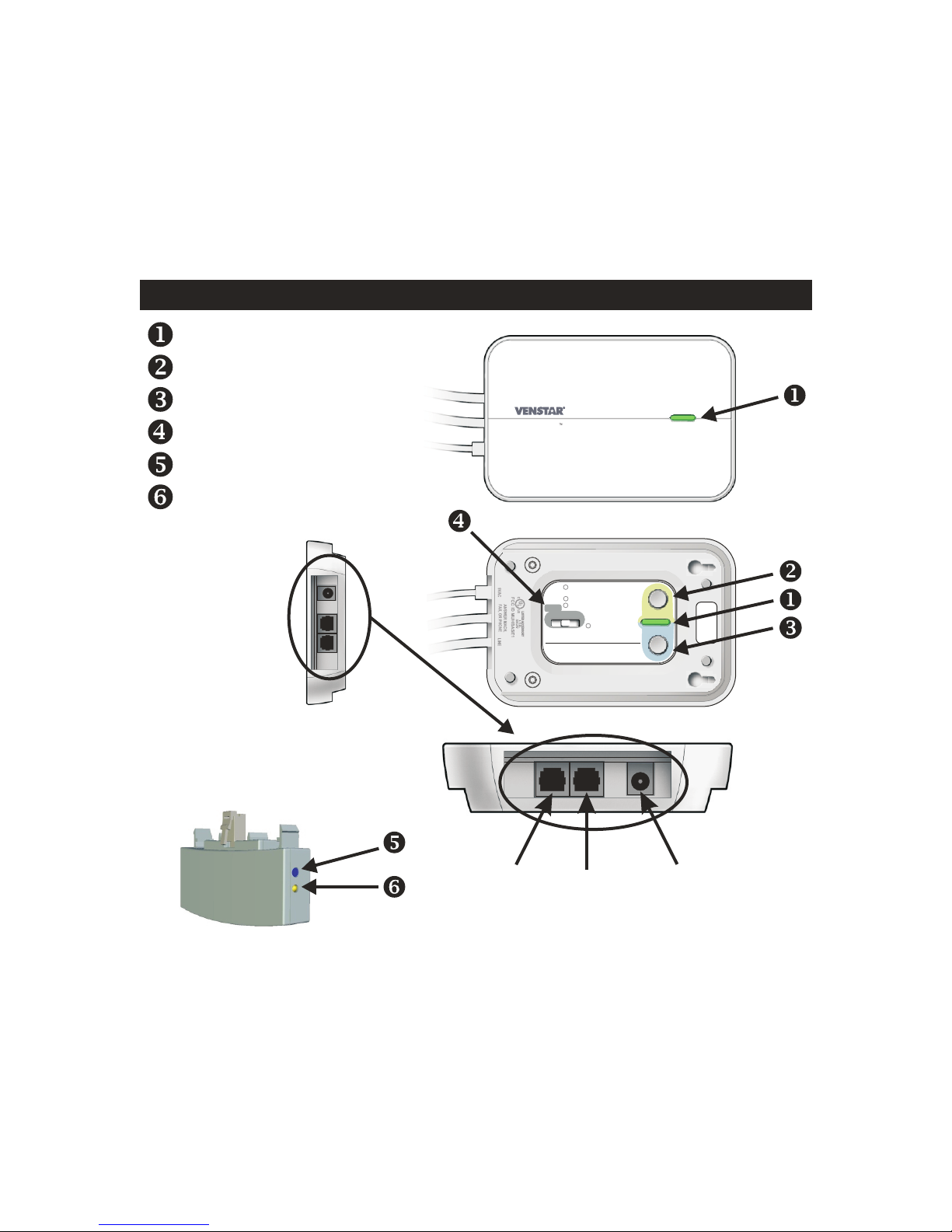

Location of Controls, Indicators & Connections

ANSWER MACH.,

FAX, OR PHONE

9vac Power

LINE

Page 4

COMFORT CALL

COMMERCIAL PROGRAMMABLE THERMOSTAT

HUMIDITY FAN PROGRAM HOLIDAY

MODE OVERRIDE

OUTDOOR

SET CLOCK

PLATINUM eries

AUTO

I2:00

HEAT

COOL

Connect the RF Wireless Module to the thermostat as shown below.

Installation & Setup

Accessory release button

Accessory jack located

on bottom of thermostat

RF Wireless Module

To remove the RF Wireless Module from the thermostat, press and hold the

accessory release button while removing the RF Wireless Module from the

thermostat’s accessory jack.

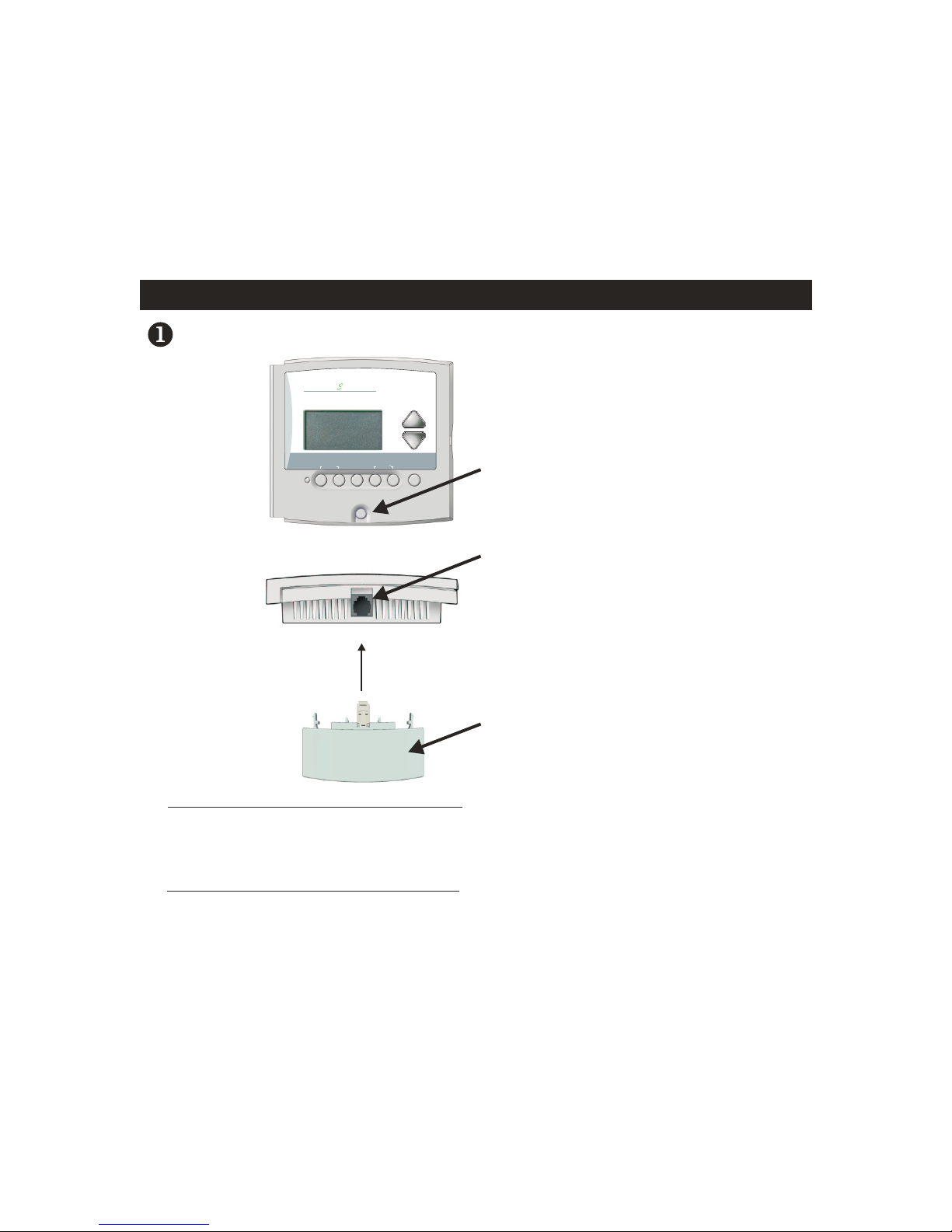

To connect the RF Wireless Module to the thermostat, insert the RF Wireless

Module plug into the accessory jack of the thermostat. The RF Wireless Module

has two tabs that fit into the ventilation slots of the thermostat for added stability.

Page 5

COMMERCIAL PROGRAMMABLE THERMOSTAT

HUMIDITY FAN PROGRAM HOLIDAY

MODE OVERRIDE

OUTDOOR

SET CLOCK

PLATINUM eries

AUTO

I2:00

HEAT

COOL

Installation & Setup cont.

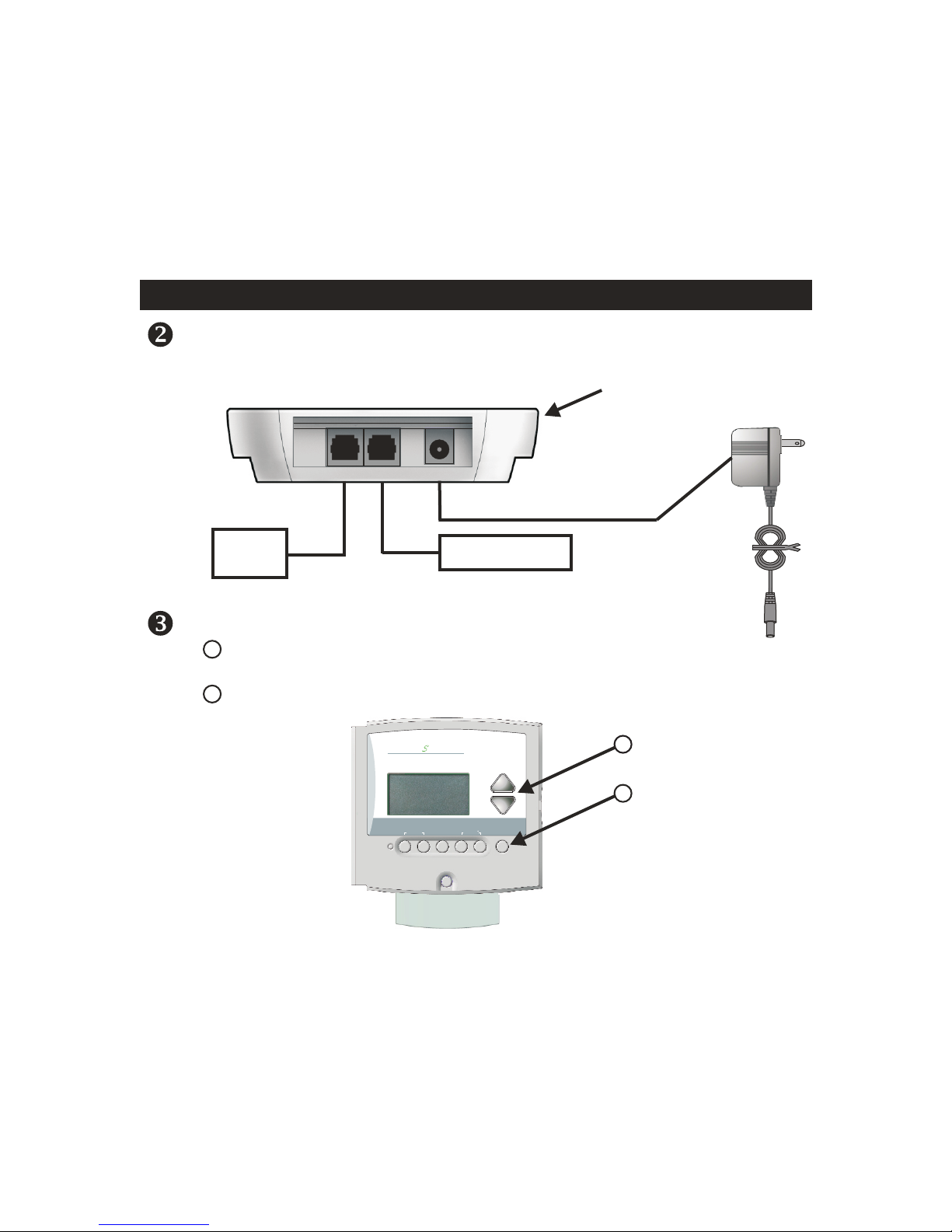

Connect the telephone line to the Base Station and power Comfort Call

with the provided power supply, as shown below. The power indicator

LED will glow green when power is connected. Base Station

To 110vac

House

Telephone

Line

Answering Machine,

Fax or Phone*

*A phone, answering or fax machine is not required

‘Link’ the thermostat to the Base Station for COMFORT SETTINGS.

At the thermostat, select the mode you would like your

Comfort Settings to operate in: Auto, Heat, or Cool.

Adjust the set points to the desired Comfort Settings.

Set the

temperature(s)

Select

the Mode

9vac

Output

Page 6

energy

comfort

MODEL: ACC0433

YYWWXXXX

MADE IN CHINA

US:J3CTE02ABASE1

At the thermostat, select the mode (Auto,

Heat, Cool, or Off).

Adjust the setpoints to the desired setting.

Here, at the base station, press the

corresponding button for 5

seconds. The LED will flash for

5 minutes.

Within 5 minutes of pressing

the button on the base station,

press the link button on the receiver for 3 seconds. The

LED on the receiver will flash twice.

1 4 7

RINGS

The base station will now remember your settings. You

may change these settings at anytime by repeating the

above steps. Refer to Owner’s Manual for more details

Side View

At the Base Station, press the Comfort Settings link button for five seconds.

The green power LED next to the button will turn red and flash for

up to five minutes.

Go to the thermostat, making sure that it is still set to your Comfort Settings.

Within five minutes of pressing the link button on the Base Station, press the

link button on the side of the RF Wireless Module for three seconds. The

LED on the RF Wireless Module will flash indicating the following:

2 flashes indicates that the link was successful

5 flashes indicates the communication was good, but the

thermostat was not in the appropriate mode; only

Auto, Heat and Cool are supported

10 flashes indicates a communication problem

After two flashes on the RF Wireless Module, the Base Station will remember

your Comfort Settings. You may change these settings at anytime by

repeating the above steps.

Link Button

LED

Page 7

COMMERCIAL PROGRAMMABLE THERMOSTAT

HUMIDITY FAN PROGRAM HOLIDAY

MODE OVERRIDE

OUTDOOR

SET CLOCK

PLATINUM eries

AUTO

I2:00

HEAT

COOL

Installation & Setup cont.

energy

comfort

MODEL: ACC0433

YYWWXXXX

MADE IN CHINA

US:J3CTE02ABASE1

At the thermostat, select the mode (Auto,

Heat, Cool, or Off).

Adjust the setpoints to the desired setting.

Here, at the base station, press the

corresponding button for 5

seconds. The LED will flash for

5 minutes.

Within 5 minutes of pressing

the button on the base station,

press the link button on the receiver for 3 seconds. The

LED on the receiver will flash twice.

1 4 7

RINGS

The base station will now remember your settings. You

may change these settings at anytime by repeating the

above steps. Refer to Owner’s Manual for more details

COMMERCIAL PROGRAMMABLE THERMOSTAT

HUMIDITY FAN PROGRAM HOLIDAY

MODE OVERRIDE

OUTDOOR

SET CLOCK

PLATINUM eries

AUTO

I2:00

HEAT

COOL

Energy Savings Settings are normally used for unoccupied

periods.

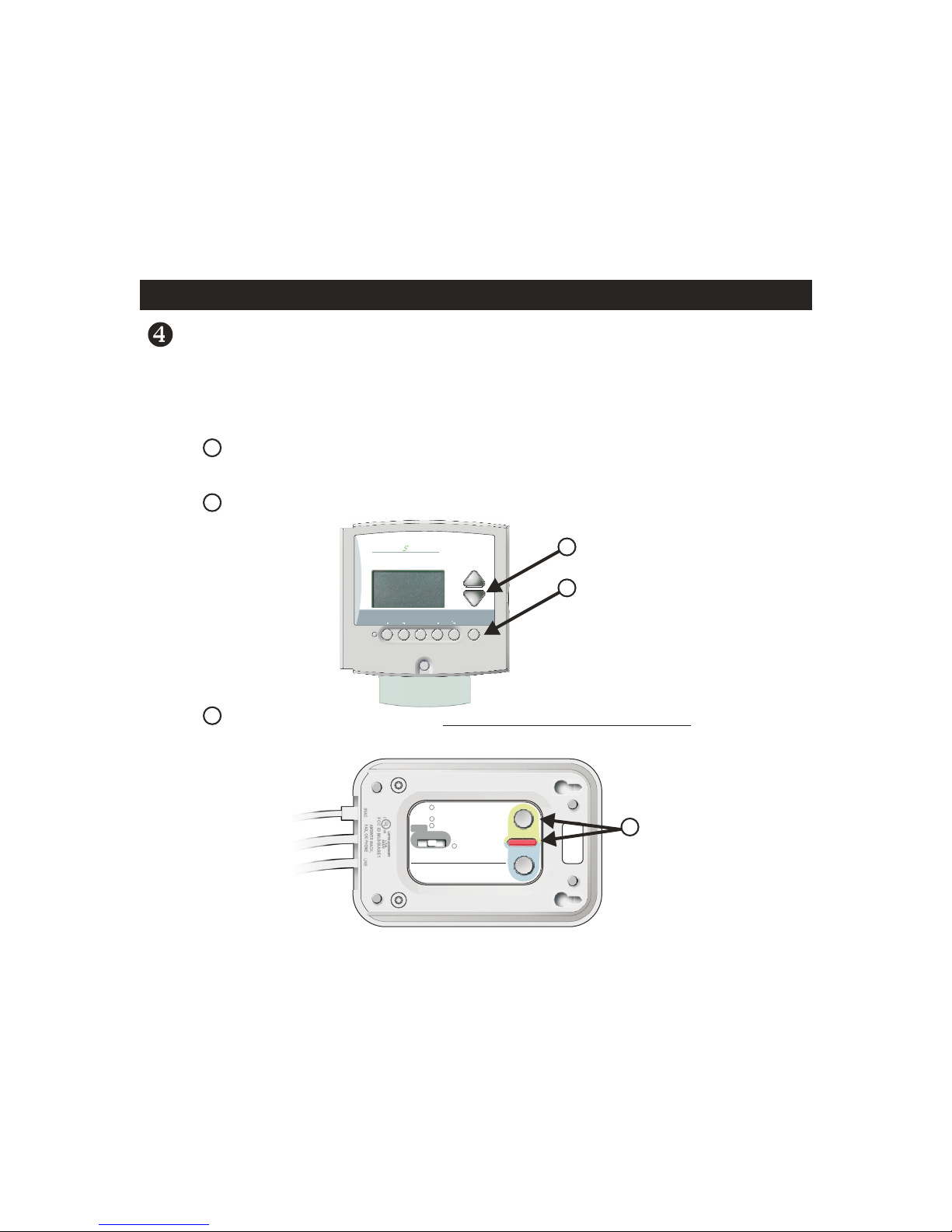

‘Link’ the thermostat to the Base Station for ENERGY SAVINGS

SETTINGS.

At the thermostat, select the mode you would like your Energy Savings

Settings to operate in: Auto, Heat, Cool or Off.

Adjust the set points to the desired Energy Savings Settings.

At the Base Station, press the Energy Savings Settings link button for five

seconds. The green power LED next to the button will turn red and flash for

up to five minutes.

Set the

temperature(s)

Select

the Mode

Page 8

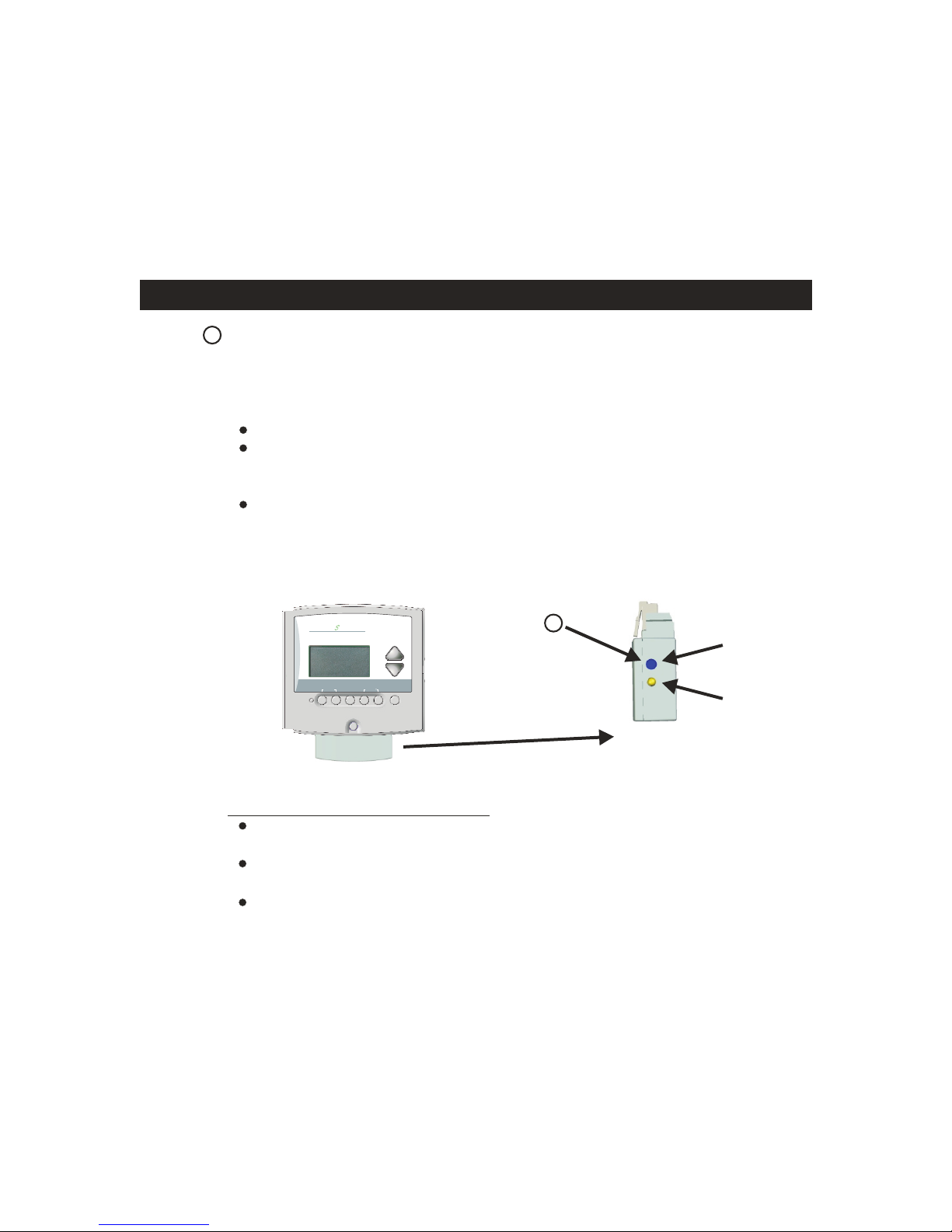

Installation & Setup cont.

Side View

Link Button

LED

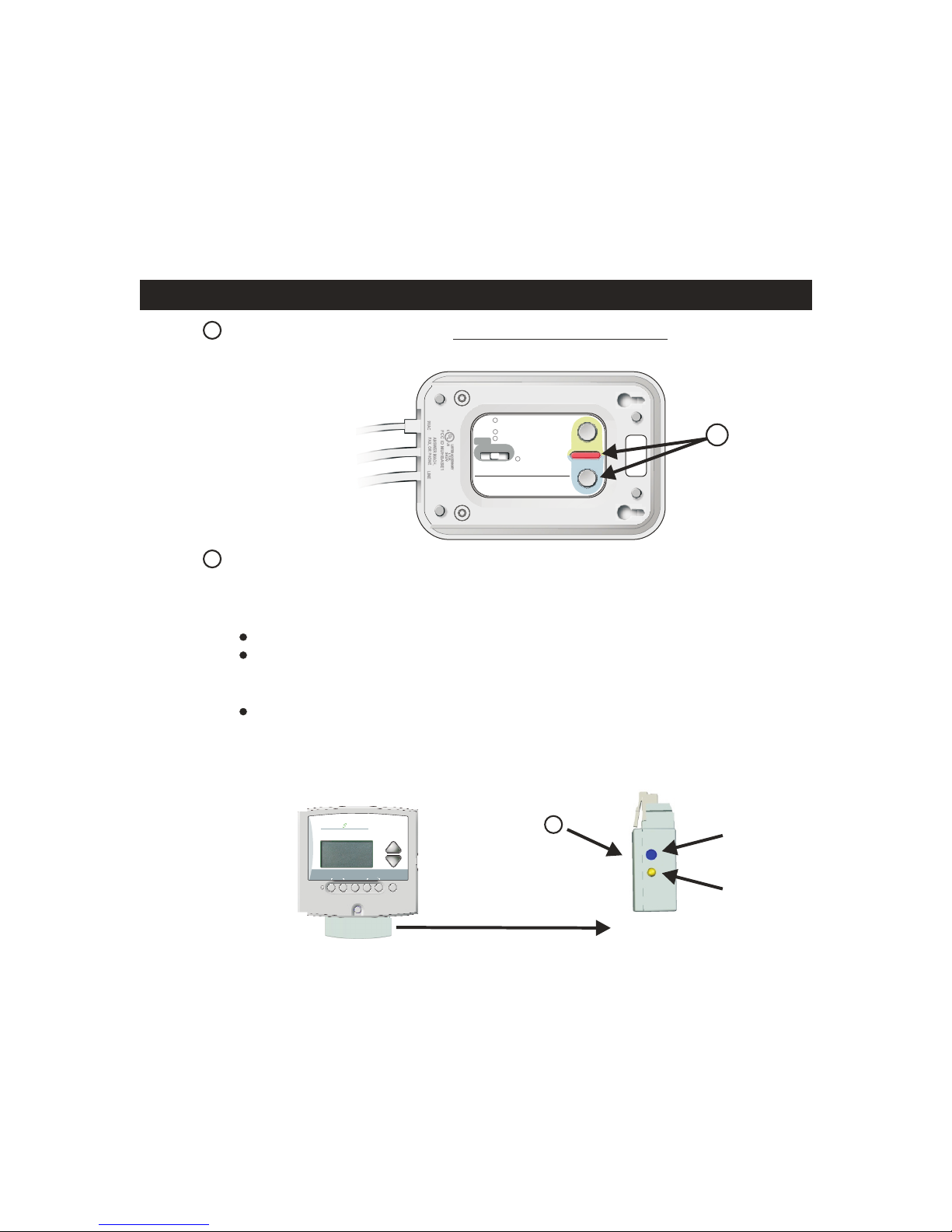

Go to the thermostat, making sure that it is still set to your Energy Savings

Settings. Within five minutes of pressing the link button on the Base Station,

press the link button on the side of the RF Wireless Module for three

seconds. The LED on the RF Wireless Module will flash indicating the

following:

2 flashes indicates that the link was successful

5 flashes indicates the communication was good, but the

thermostat was not in the appropriate mode; only

Auto, Heat, Cool and Off are supported

10 flashes indicates a communication problem

After two flashes on the RF Wireless Module, the Base Station will remember

your Energy Savings Settings. You may change these settings at anytime by

repeating the above steps.

Notes on the linking procedure

The linking procedure may be cancelled by pressing the Base Station’s link

button (Comfort or Energy) while its LED is flashing red

If Comfort Call is accessed by phone, when no thermostats are linked, it

will immediately prompt you to exit the system

To change the Comfort or Energy Savings settings, simply repeat the link

procedure; the new settings will replace the previous settings

Page 9

COMMERCIAL PROGRAMMABLE THERMOSTAT

HUMIDITY FAN PROGRAM HOLIDAY

MODE OVERRIDE

OUTDOOR

SET CLOCK

PLATINUM eries

AUTO

I2:00

HEAT

COOL

Installation & Setup cont.

Indice

Altri manuali Venstar Termostato

Venstar

Venstar TSTATEZ Manuale utente

Venstar

Venstar TSTATEZ Manuale utente

Venstar

Venstar ColorTouch T8800 Guida alla risoluzione dei problemi

Venstar

Venstar ColorTouch T5800 Istruzioni operative

Venstar

Venstar T5900 Manuale per l'uso e la cura

Venstar

Venstar T0130 Manuale utente

Venstar

Venstar T1700 Manuale utente

Venstar

Venstar T2800 Manuale utente

Venstar

Venstar T2000 Istruzioni originali

Venstar

Venstar T1700 Manuale utente

Venstar

Venstar ColorTouch T6900 Istruzioni operative

Venstar

Venstar ColorTouch T6900 Istruzioni operative

Venstar

Venstar T2900SCH Manuale utente

Venstar

Venstar P474-1100RF Manuale utente

Venstar

Venstar T4950-IAQ Istruzioni operative

Venstar

Venstar T1900 Manuale utente

Venstar

Venstar T5900 Istruzioni operative

Venstar

Venstar EXPLORER Manuale tecnico

Venstar

Venstar T1800 Manuale utente

Venstar

Venstar T2900 Manuale utente

Venstar

Venstar T2900SCH Manuale utente

Venstar

Venstar T0051FS Manuale utente

Venstar

Venstar T1000FS Manuale utente

Venstar

Venstar T1035 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente
