Venstar EXPLORER Mini T2100 Manuale utente
Mini
Quick start
and setup guide
with
Wi-Fi
and local
API

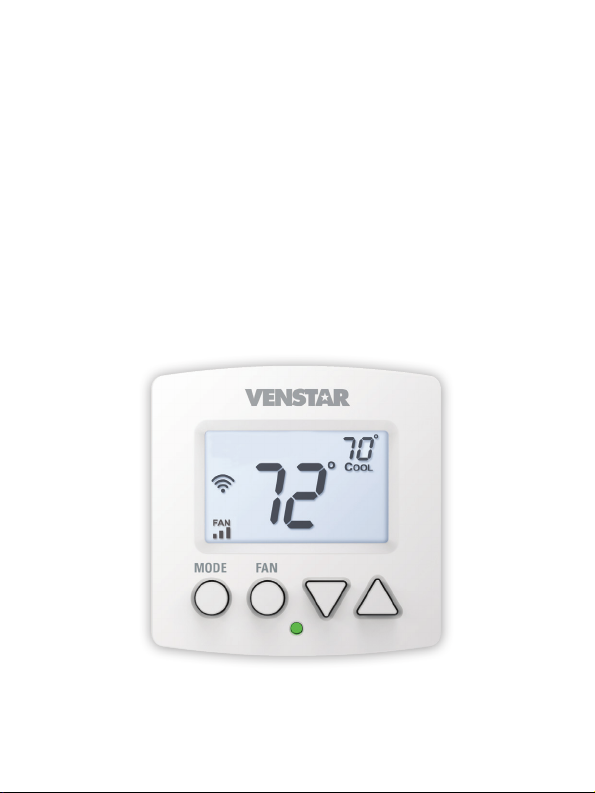

FAN COIL THERMOSTAT
models T2100 / T2150
1
Thank You
Congratulations and thank you for purchasing
your new Venstar Fan Coil thermostat. This
guide is intended to help you install and setup
the basic features of your thermostat. For a
full owner’s manual and installation guide, visit
Venstar.com.
2
Compatibility
Your Venstar EXPLORER Mini®fan coil thermostat is designed to
work with 24V fancoils, both 2 pipe or 4 pipe. For 2 pipe units with
automatic changeover between heating and cooling based on water
supply, you will need to obtain a H2O changeover switch, ACC-SENFC.
The thermostat controls 3 speed fans and can control to a remote
temperature sensor.

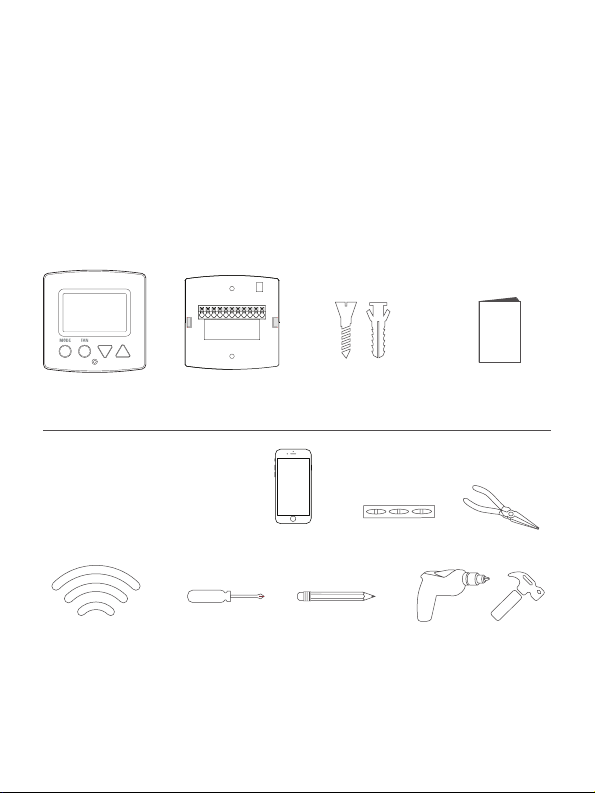

Contents
Necessary Tools
WiFi Network
& Password
Screw Driver Pencil Drill or Hammer
(3/16" or 7/ 32" drill bits)
Thermostat Thermostat
Base
Drywall Anchors
and Screws
This Quick Start
Manual
Shim Shim
Instructions
Level
Smart PhonePliers
3

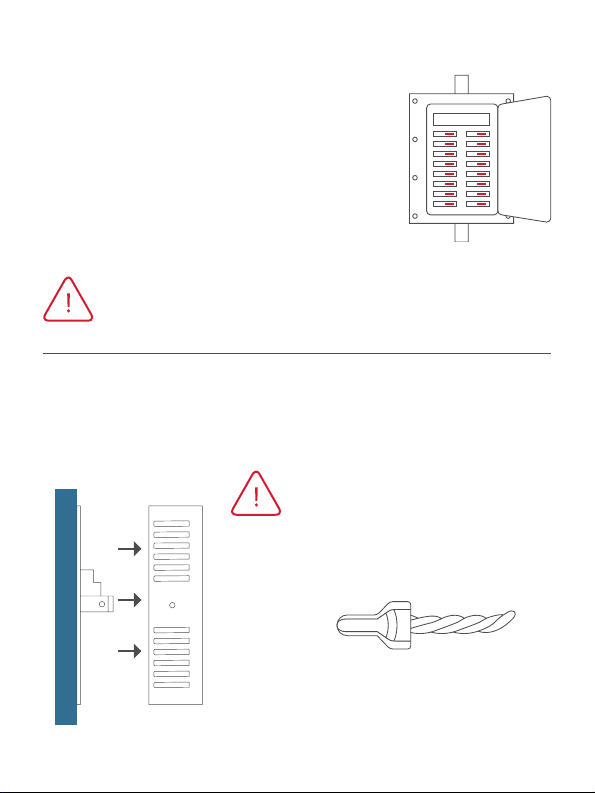

Step 1 - Power O Current System
1) All power must be disconnected before any
installation or service is attempted. More than
one power source may be supplied to a unit.
Power to remote mounted control devices
may not be supplied through the unit.
2) To confirm power is o, adjust the
temperature on your current thermostat.
WARNING: Failure to follow this
step can result in personal injury and/or
death from shock and electrocution.
Step 2 - Remove Faceplate
Remove the faceplate of current system. Most faceplates snap-o or
feature small screws that will need to be removed.
WARNING: If you see large thick
electrical wires, wire nuts, or if
your system is labeled 120V, 240V,
or 277V DO NOT PROCEED. THIS
THERMOSTAT IS NOT COMPATIBLE
WITH THESE SYSTEMS
WARNING: Failure to follow this step
can result in personal injury and/or
death from shock and electrocution.
Side View
Wall Thermostat
4
Step 3 - Label & Disconnect Wires
1) One by one, apply
a label designated
to each wire you
disconnect from
your current
thermostat.
TIP: Before
disconnecting
any wires, take
a photo of your
current wire
configuration
with your
mobile device.
Wire from the Install on the
old thermostat Function new thermostat Wire
terminal marked connector marked Color
G1, GL Low Fan Speed G
G2, GM Middle Fan Speed G2
G3, GH High Fan Speed G3
Y, Y1 chilled water valve Y1
(4 pipe) or hot/chilled
water valve (2 pipe)
W, W1 hot water valve (4 pipe) W1
or strip heat (2 pipe)
H/C, WATER 2 pipe water temp sensor H20
(open = hot,
closed = chilled)
SWITCH Dry contact for CK1
condensate overflow,
occupancy sensor,
door switch
REMOTE wired remote RS
10K thermistor
R, Rh, M, Vr, A power (24v) R
C common C
5
Step 4 - Remove Current Backplate
Unscrew the current backplate and
remove it from the wall. Be careful
not to let the wires fall into the wall.
Step 5 - Mount New Base
1) Gently separate the display from the base by pulling first
from one side, then the other until the two pieces unsnap.
A small screwdriver may be used, very carefully, to start
separating the two pieces.
TIP: If needed, wrap the wires
around a pencil or pen to keep
them from falling inside the wall.
2) Position the base against your
wall, and determine if wall
anchors from current thermostat
align with screw locations of
new base.
3) If base does not align with
existing anchor holes, mark new
screw locations with a pencil.
Drywall: Drill 3/16" hole for
the anchor
Plaster: Drill 7/32” hole for
the anchor
4) Pull wires through opening in
base and secure to the wall
using provided screws.
TIP: Use a level to ensure
thermostat is properly aligned
before marking screw locations.
6

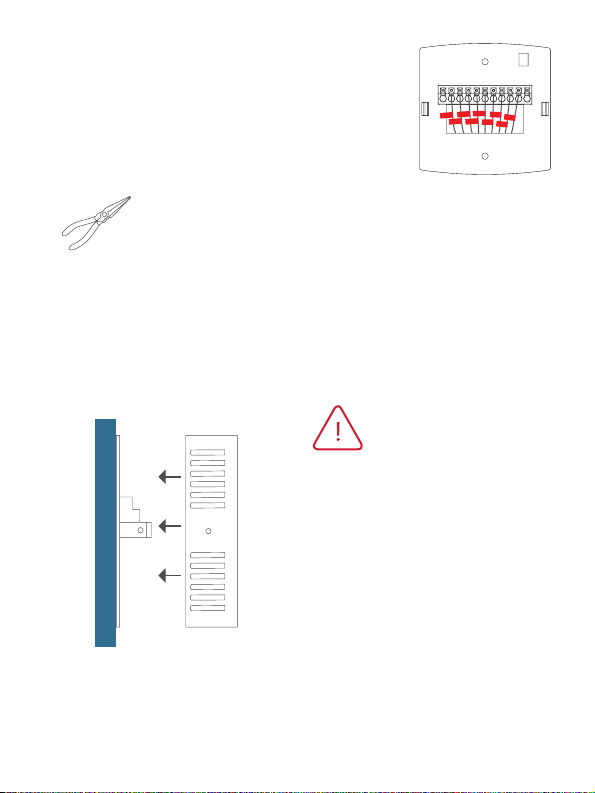

Step 6 - Connect Wires
1) Match your previous wire configuration
to the new base. One by one, connect
each wire by inserting the metal end into
the corresponding slot and tightening
the screw.
TIP: Use pliers to straighten wire before inserting into new base. Be sure
to cut any excess wire so that the insulation extends to the terminal
block. When the wire is installed properly to the terminal block, there
should be no copper exposed.
WiFi Network
& Password
Screw Driver Pencil
LevelPliers
Hammer or Drill
(3/16" or 7/ 32" drill bits)
Thermostat Thermostat
Base
Drywall Anchors
and Screws
This Quick Start
Manual
W3/AUX
W2
W1/O/B
Y2
Y1
SENSOR
Step 7 - Attach Thermostat
1) Align the pins on the thermostat circuit board with the corresponding
holes below the wiring connectors and push the top and the bottom
of the plastic housing enclosing the display until it clicks into place,
top and bottom.
Step 8 - Switch Power/Circuit Breakers Back On
Turn your fancoil back on.
Front of thermostat should
click into place easily. If you
encounter resistance do not
apply excess force – remove,
check that the pins are straight
and ensure there are no wires
in the way and retry.
Side View
Wall Thermostat
7
Step 9 - Set Up Wi-Fi Connection
Overview
At minimum, the first 3 tasks below must be completed to access your
thermostat remotely from a browser. The 4th step is optional (highly
recommended) and only is needed to access your thermostat(s) from
a mobile device.
These steps are:
1. Successful connection to a local Wi-Fi Access Point with internet
access.
2. Confirm receipt of a Skyport generated verification email (this only
occurs once during the Skyport account setup).
3. A 6-digit code obtained from the thermostat is successfully
entered into a Skyport account.
4. Successfully download and install the Venstar Skyport app on your
mobile device(s).
Your thermostat operates on the 2.4 Ghz, Wi-Fi b/g/n band.
TO ENTER MENUS BUTTON PRESS
Setup Steps............................MODE & FAN for 5 seconds
Time Schedule......................MODE & Up for 2 seconds
Emergency Heat...................Up & FAN for 2 seconds
Lockout Buttons..................MODE, Up & Down for 2 seconds
Calibration ..............................MODE & Down for 2 seconds, then MODE
Wireless Setup......................FAN for 5 Seconds
TABLE OF BUTTON PRESSES TO ENTER MENUS
8
1 2

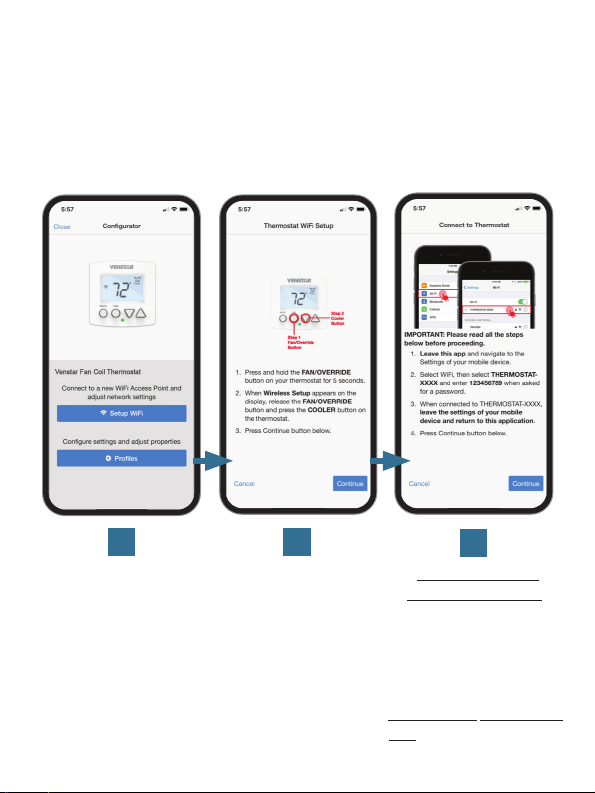

Quick Start - Connect to Wi-Fi
The Explorer thermostats are joined to a Wi-Fi network with the help
of the Venstar Configurator App. This app may be downloaded from
your mobile device’s app store. Once the thermostat is installed and
powered, the Configurator App will facilitate connection to the access
point in 6 steps as outlined below.
Select “Setup
Wi-Fi” on the
Configurator App.
Press and hold the FAN
button for 5 seconds.
When “Wireless Setup”
appears on the display,
release the FAN button.
Then press the COOLER
button on the thermostat
to configure Wi-Fi
settings. Select “continue”
on the Configurator App.
3
Go to the settings
of the mobile device.
Select Wi-Fi, then select
the Venstar thermostat
(THERMOSTAT-XXXX).
Enter the password:
123456789 when prompted.
Return to the Configurator
App and select “Continue”.
9
54 6

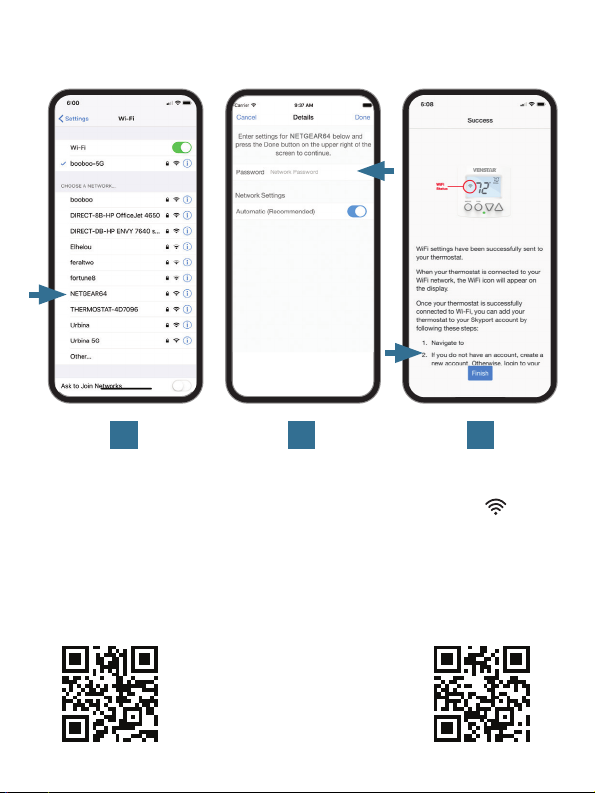

Enter the network
password and select
“Done”. Then press
“Continue” in the
lower right corner to
complete setup.
Select the access
point of your
building or home
to join.
When completed,
the full Wi-Fi
symbol will
appear on the
display.
Quick Start - Connect to Wi-Fi (continued)
T2100 T2150
Scan with mobile device
for additional information
