Verine NRDC**MN2 Istruzioni per il montaggio

Important ote

This manual is only suitable for Verine Quasar MK2 models that are to be installed in

GB / IE. If in the future the product is to be installed in any other country detailed as

appropriate for the gas type and supply pressure on the rating plate then the

manufacturer (BFM Europe Ltd.) must be contacted to obtain a set of instructions that

are translated into the language of the country of destination, and reflect the differing

legislative installation criteria for that country.

Quasar M 2

I SET RADIA T FUEL EFFECT GAS FIRE

Installation, Maintenance & User Instructions

Hand these instructions to the user

Model o’s RDC**M 2, RDC**S 2, RDC**T 2 & RDC**R 2 are

for use on atural Gas (G20) at a supply pressure of 20 mbar in G.B.

/ I.E.

Model o’s RDC**MP2 is for use on Propane Gas (G31) at a supply

pressure of 37 mbar in G.B. / I.E.

** denotes variant of trim / fascia where applicable

CO TE TS

Section 1 Information and Requirements PAGE

1.0 Appliance Information 3-4

1.1 Conditions of Installation 5

1.2 Flue and chimney suitability 5

1.3 Fireplace / surround suitability 6

1.4 Shelf position 6

1.5 Chimney inspection 6

1.6 Fire place opening / catchment space 7-8

1.7 Fitting to Metal Flue Boxes 9

1.8 Hearths 9

1.9 Spillage Monitoring System 9

Section 2 Installation of Fire

2.1 Unpacking the fire 10

2.2 Installing the fire box 10-19

2.3 Gas tightness and inlet pressure (MC models) 20

2.4 Gas tightness and inlet pressure (SC models) 20

2.5 Gas tightness and inlet pressure (RC models) 20

Section 3 Assembling Fuel Bed and Commissioning

3.1 Assembling the ceramics and fuel bed (coal models) 21-24

3.2 Assembling the ceramics and fuel-bed (pebble models) 24-27

3.3 Fixing the Infra-red Eye in position 28

3.4 Connecting the battery pack 29

3.5/3.6 Fitting the trim / fret (all models) 29

3.7 Lighting the appliance (Manual control models) 30

3.8 Lighting the appliance (Slide control models) 30-31

3.9 Lighting the appliance (Remote control models) 32

3.10 Lighting the appliance (Electronic fire control models) 33

3.11 Checking for clearance of combustion products 34

Section 4 Maintenance

4.1 Removal of the Burner Assembly (Manual control models) 35

4.2 Removal of the Piezo Igniter 35

4.3 Removal of the Control Tap 36

4.4 Removal of the Pilot Assembly 36

4.5 Removal of the Burner Assembly (Slide control models) 36-37

4.6 Removal of the Battery Ignitor 37

4.7 Repacing the Battery 38

4.8 Removing the Oxy-Pilot Assembly 38

4.9 Replacing the Control Cable 38-39

4.10 Removal of the Burner Assembly (Remote & EFC models) 40

4.11 Removal of the Valve (Remote & EFC models) 40

4.12 Removal of the EFC trim switch (EFC models only) 40-41

Section 5 User Instruction Section

5.1 Conditions of Installation & About Your New Fire 42-43

5.2 Operating the fire (MC Models) 45

5.3 Operating the fire (SC Models) 45

5.4 Operating the fire (RC Models) 46-47

5.5 Operating the fire (EFC Models) 47

5.6 Remote handset / EFC trim switch malfunction 48

5.7 Cleaning the Fire 49

5.8 Re-assembling the ceramics and fuel bed (coal models) 50-53

5.9 Re-assembling the ceramics and fuel bed (pebble models) 54-56

SECTIO 1

I FORMATIO A D REQUIREME TS

1.0 APPLIA CE I FORMATIO

Model NRDC**MN2 (MC) NRDC**MP2 (MC)

NRDC**SN2 (SC)

NRDC**RN2 (RC)

NRDC**TN2 (EFC)

Gas Type G20 G31

Main injectors (2 off) Size 260 Size 85

Pilot Type Copreci Copreci

21100 / 141 (MC) 21100 / 264 (MC)

21100 / 162 (SC & RC)

Max. Gross Heat Input : 6.9 kW 6.9kW

Min. Gross Heat Input : 4.2 kW 4.2kW

Cold Pressure : 20.0 +/- 1.0mbar 37.0 +/- 1.0mbar

Ignition : Push Button Piezo (MC models)

1.5V Battery Generator (SC models)

9V Battery (RC & EFC models)

Electrode Spark Gap 4.5mm nominal

Weight (without fender) Slide Control Models 13 kg

Manual Control Models 12 kg

Remote / EFC Models 13.5 kg

Fire box Dimensions (with trim’s fitted)

Width : (with standard trim, no spacer) 470mm

Height : (with standard trim, no spacer) 586mm

Depth : (overall-without fender) 170mm

Gas Connection 8mm Compression (Supplied with fire)

Efficiency Declaration

The efficiency of this appliance has been measured as specified in

BS 7977-1 : 2002 and the result is 48%. The gross calorific value of the fuel has

been used for this efficiency calculation. The test data from which it has been

calculated has been certified by BSI.

The efficiency value may be used in the U Government’s Standard Assessment

Procedure (SAP) for energy rating of dwellings.

I STALLATIO REQUIREME TS

1.1 CO DITIO S OF I STALLATIO

It is the law that all gas appliances are installed only by a GAS SAFE Registered

Installer, in accordance with these installation instructions and the Gas Safety

(Installation and Use) Regulations 1998 as amended. Failure to install appliances

correctly could lead to prosecution. It is in your own interest and that of safety to

comply with the law.

The installation must also be in accordance with all relevant parts of the Local and

National Building Regulations where appropriate, the Building Regulations

(Scotland Consolidation) issued by the Scottish Development Department, and all

applicable requirements of the following British Standard Code of Practice.

1. BS 5871 Part 3 Installation of Decorative Fuel Effect Gas Fires

2. BS 6891 Installation of Gas Pipework

3. BS 5440 Parts 1 & 2 Installation of Flues and Ventilation

4. BS 1251 Open fire place components

5. BS 715 / BS EN 1856-2 Metal flue pipes for gas appliances

6. BS EN 1858 Clay Flue Blocks and Terminals

7. IS 813 : 1996 Domestic Gas Installation (Republic of Ireland)

o purpose made additional ventilation is normally required for this

appliance, when installed in G.B. When Installing in I.E. please consult

document I.S. 813 : 1996 Domestic Gas Installation, which is issued by the

ational Standards Authority of Ireland. If installing in orthern Ireland,

please consult local building regulations. Any purpose made ventilation

must be checked periodically to ensure that it is free from obstruction.

1.2 FLUE A D CHIM EY SUITABILITY

This appliance is designed for use with conventional brick built or lined chimneys

and fabricated flues and metal flue boxes conforming to BS 715 / BS EN 1856-2

All flues must conform to the following minimum dimensions.

Minimum diameter of circular flues 125 mm (Without Flue

Restrictor Fitted)

Minimum effective height of all flue types 3 metres

When fitting to conventional chimneys or 175mm flues it may be desirable to

fit the flue restrictor baffle (supplied) to reduce the flue flow and increase the

efficiency of the fire. Safe clearance of products must always be checked by

carrying out a smoke match test as described.

1.3 FIREPLACE / SURROU D SUITABILITY

The fire must only be installed on a hearth it must not be installed directly onto

carpet or other combustible floor materials.

The fire is suitable for fitting to non-combustible fire place surrounds and

proprietary fire place surrounds with a temperature rating of at least 150oc.

If a heating appliance is fitted directly against a wall without the use of a fire

surround or fire place all combustible material must be removed from behind

the trim. Soft wall coverings such as blown vinyl, wall paper etc. could be

affected by the rising hot air and scorching and/or discoloration may result.

Due consideration should be made to this when installing or decorating.

1.4 SHELF POSITIO

The fire may be fitted below a combustible shelf providing there is a minimum

distance of 200mm above the top of the fire and the shelf does not project more

than 150mm. If the shelf overhangs more than 150mm the distance between the

fire and the shelf must be increased by 15mm for every 25mm of additional over-

hang over 150mm.

1.5 FLUE / CHIM EY I SPECTIO

Before commencing installation, a flue or chimney should be inspected to ensure

that all the following conditions are satisfied.

1. Check that the chimney / flue only serves one fire place and is clear of any

obstruction. Any dampers or register plates must be removed or locked in

the open position.

2. Brick/stone built chimneys or any chimney or flue which has been used for

an appliance burning fuel other than gas must be thoroughly swept. The

base of the chimney / flue must also be thoroughly cleared of debris etc.

3. Any under-floor air supply to the fire place must be completely sealed off.

4. Ensure that the inside of the chimney / flue is in good condition along it’s

length and check that there is no leakage of smoke through the structure

of the chimney during and after the smoke pellet test. With pre-cast flues

it is especially important to check the inside of the flue for extruded

cement / sealant protruding from the joints between the flue

blocks. If present, these should be removed by rodding the flue

before proceeding with the installation.

5. Using a smoke pellet, check that there is an up-draught in the

chimney / flue and that the smoke can be seen issuing from the

terminal / chimney pot outside.

There must be no leakage of smoke through the structure of

the chimney during or after the smoke pellet test and it is

important to check inside upstairs rooms adjacent to the chimney /

flue. Check the chimney pot / terminal and general condition of the

brickwork or masonry. If the chimney or flue is in poor condition or if

there is no up-draught do not proceed with the installation. If there is a

history of down-draught conditions with the chimney / flue, a tested and

certificated flue terminal or cowl suitable for the relevant flue type should

be considered.

6. A spillage test must always be carried out during commissioning of

the appliance.

1.6 FIRE PLACE OPE I G A D CHIM EY CATCHME T SPACE

The front opening of the fire place must be between 375 and 440 mm wide, and

between 550 and 570mm high. If the opening exceeds these dimensions then a

surround must be constructed from suitable non-combustible material to produce a

correct size opening. Any surround must be suitably sealed to the fire place to

prevent leakage. See below in fig.1

When installing into a brick built chimney, you must ensure that there is sufficient

depth to accomodate any debris which may fall from the chimney. This depth

must be sufficient to accomodate 12 litres of volumetric space.

Fire Opening

375mm Minimum

440mm Maximum

610mm

Minimum

490mm Minimum

Fig. 1

550mm Minimum

570mm Maximum

Minimum Flat

Sealing Area

Table A - Installation Dept Requirements for a Verine Quasar MK2 gas fire

being installed into a brick built c imney, requiring 12.0 litres of debris

collection volume (fig. 2)

When installing this product into a builders opening / brick-built chimney, the depth

required is a minimum of 170mm (150mm for EFC models). The 12.0 litres of

debris collection volume is achieved by the space available taper down the sides

of the firebox. This appliance is suitable for use in fireplaces fitted with an existing

chairbrick without the need for removal of the chairbrick, providing the minimum

depth of the fireplace exceeds 260mm. If the depth is less than 260mm then the

spacer (optional) must be used to give a minimum clearance from the rear of the

fire to the rear of the chairbrick of at least 90mm to allow sufficient space for the

collection of debris which may fall down the chimney. The fireplace must be

checked to ensure that no part of the chairbrick is within 50mm of the flue outlet of

the fire when installed.

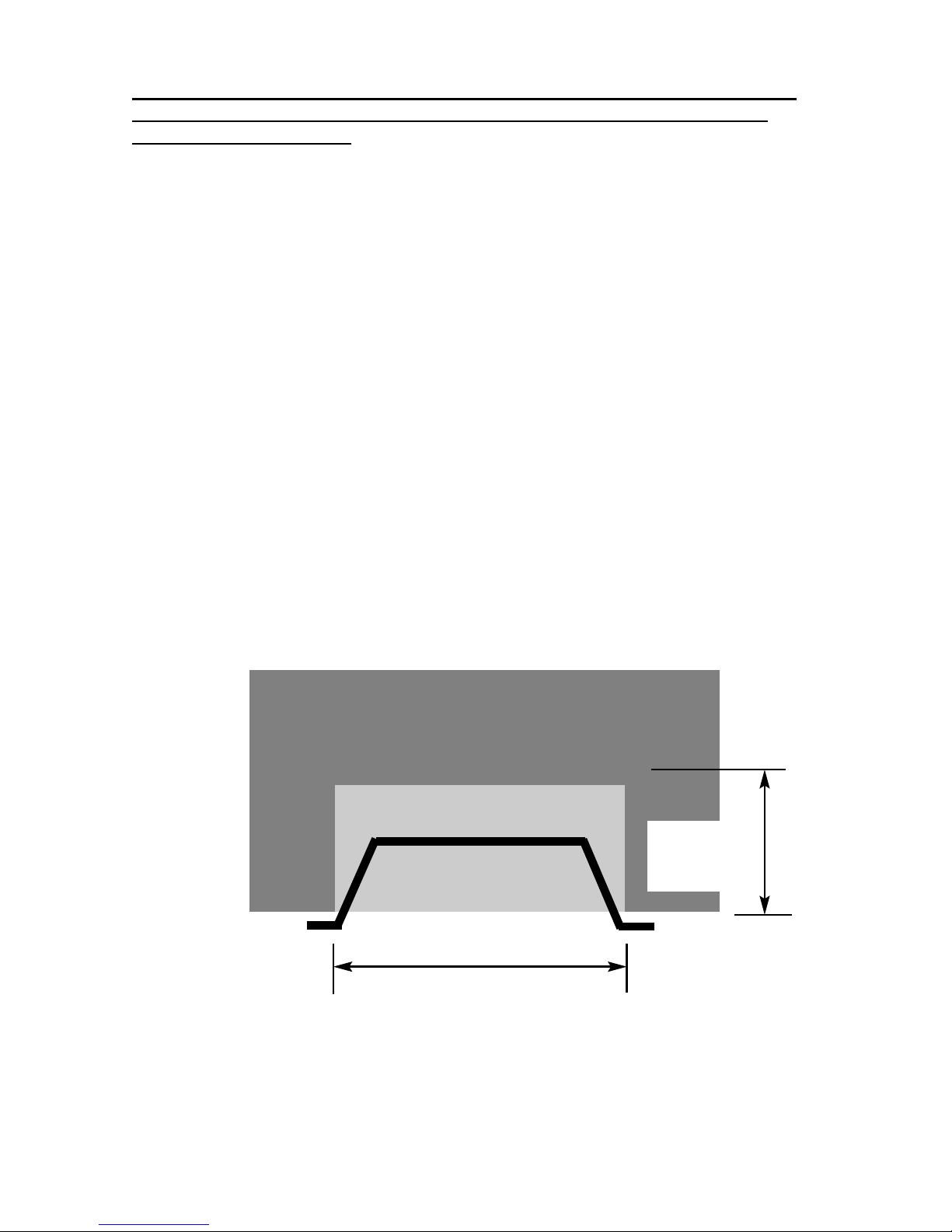

For example, if the appliance was to be fitted into a 400mm wide opening (without

a chairbrick), the depth required would be 170mm (150mm for EFC models). See

fig. 2 below for explanatory diagram.

Fig. 2

Opening Width ( e.g. 400mm)

Depth Required

(e.g. 170mm or

150mm for

EFC models)

1.7 FITTI G TO PRE-FABRICATED TWI WALL METAL FLUE BOXES

The appliance may be fitted to twin wall metal flue boxes conforming to the

constructional requirements of BS 715 / BS EN 1856-2, (for example the Selkirk

LFE 175 box). The box must have a minimum flue diameter of 175mm internal

and minimum internal dimensions of 170mm deep by 580mm high by 350mm

wide. There are no maximum dimensional requirements for the box. The top face

of the box must be insulated with a minimum thickness of 50mm of non-

combustible mineral wool insulation or similar material. The flue box must stand

on a non-combustible base of minimum thickness 12mm.

1.8 FITTI G TO PRE-CAST FLUE I STALLATIO S

When installing this appliance into pre-cast flues, always ensure that the

spigot restrictor baffle has been removed.

To install the fire box in to pre-cast flue starter blocks, there must be at least

170mm (150mm for EFC models) from the mounting face of the fire to the

rear of the pre-cast flue starter block to allow sufficient space for debris

collection. It is important to consider this depth when choosing a fire surround as

the thickness of the fire surround must be sufficient to give a total depth of at least

170mm (150mm EFC models) to the rear of the starter block, otherwise there

will be insufficient depth. If in doubt about the suitability of the fire contact BFM

Europe Ltd for advice before proceeding. This fire has been designed to fit

standard 100mm pre-cast starter blocks with 3 inch rebated surrounds.

It is important to ensure that the pre-cast flue is in good condition and is free from

extruded mortar or sealant from between the flue blocks.

This appliance has been tested for use in a pre-cast flue block complying

with BS E 1858. In accordance with BS E 1858, pre-cast flues built with

directly plastered faces (front or rear) are not correctly installed as to ensure

proper operation with any type of gas fire. In some instances of this flue

construction, temperature cracking of surface plaster may occur through no

fault of the appliance. An air gap or some form of insulation material should

be installed to prevent normal flue temperatures from damaging wall

surfaces.

1.9 HEARTHS

This appliance must only be installed on to a concrete or non-combustible hearth.

The hearth material must be a minimum thickness of 13mm with the top surface at

least 50mm above the floor. The hearth must be fitted symmetrically about the fire

opening and have a minimum width of 760mm and a minimum projection of

300mm forwards from the fire opening (320mm for EFC models). If the appliance

is fitted with a black 50mm spacer frame (not suitable for EFC models), then the

hearth projection must be increased to 350mm forwards of the fireplace opening.

1.10 SPILLAGE MO ITORI G SYSTEM

This appliance is fitted with an atmosphere sensing spillage monitoring system in

the form of an oxygen sensing pilot. This is designed to shut the fire off in the

event of a partial or complete blockage of the flue causing a build up of combus-

tion products in the room in which the fire is operated. The following are

important warnings relating to this spillage monitoring system :-

1) The spillage monitoring system must not be adjusted by the installer.

2) The spillage monitoring system must not be put out of operation.

3) When the spillage monitoring system is exchanged only a complete original

manufacturers part may be fitted. It is not possible to replace individual parts on

the pilot system on this appliance, only a complete pilot assembly (including the

thermocouple) may be fitted.

SECTIO 2

I STALLATIO OF FIRE

2.1 U PACKI G THE FIRE

Carefully lift the fire out of the carton. Remove the loose item packaging carefully

from the front of the appliance. Check the contents as listed :-

Packing Check List - All models

1 off Fire box / burner assembly

1 off Boxed ceramic base, front ceramic rail and 18 coals.

1 off Loose items bag

1 off Installation / user book

RC models only

1 off Remote control handset

6 off AA Batteries

1 off PP3 Battery

EFC models only

6 off AA Batteries

2.2 I STALLI G THE FIRE BOX

Establish which type of flue you are intending to install the fire in to :-

225 x 225mm (9 inch x 9 inch) brick built chimneys

175mm (7 inch) diameter lined brick or stone flue, insulated pre-fabricated

metal flue box to BS 715 / BS E 1856-2 or Pre-Cast Flue to B.S. E. . 1858

When installing into 125mm (5 inch) diameter lined brick or stone flue, or

insulated pre-fabricated metal flue box to BS 715 / BS E 1856-2 and pre-

cast flues the restrictor baffle must not be fitted.

A spillage test must always be carried out to check satisfactory

clearance of flue products, regardless of the type of flue the

appliance is being fitted to.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Verine Camino da interno

Verine

Verine Fontana Compact BF Manuale utente

Verine

Verine Quasar NRDC MN2 Series Istruzioni per il montaggio

Verine

Verine Frontier 4 HE Istruzioni per il montaggio

Verine

Verine Alpena Istruzioni per il montaggio

Verine

Verine Midas HE Istruzioni per il montaggio

Verine

Verine Meridian MK2 Istruzioni per il montaggio

Verine

Verine ATINA 500 Manuale

Verine

Verine Orbis HE Istruzioni per il montaggio

Verine

Verine Quasar MK2 Istruzioni per il montaggio

Verine

Verine Alpena NBFC**MN2 Istruzioni per il montaggio

Verine

Verine Alpena NBFC MN2 Series Istruzioni per il montaggio

Verine

Verine Orbis Plus Istruzioni per il montaggio

Verine

Verine VLF45NG Guida utente

Verine

Verine Cupello Guida utente

Verine

Verine Quasar Plus NKPC MN Series Istruzioni per il montaggio

Verine

Verine Orbis NVICC**RN Manuale utente

Verine

Verine Quasar Plus Istruzioni per il montaggio

Verine

Verine Quasar Plus NKPC RN2 Series Istruzioni per il montaggio

Verine

Verine Carmelo 1150 NHWV00RN NG Guida utente

Verine

Verine Quasar HE Istruzioni per il montaggio

Verine

Verine LPG series Guida utente

Verine

Verine Meridian MK2 Istruzioni per il montaggio

Verine

Verine NPFC/P00T/MN Guida utente

Verine

Verine Orbis Manuale utente

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo
