Overview

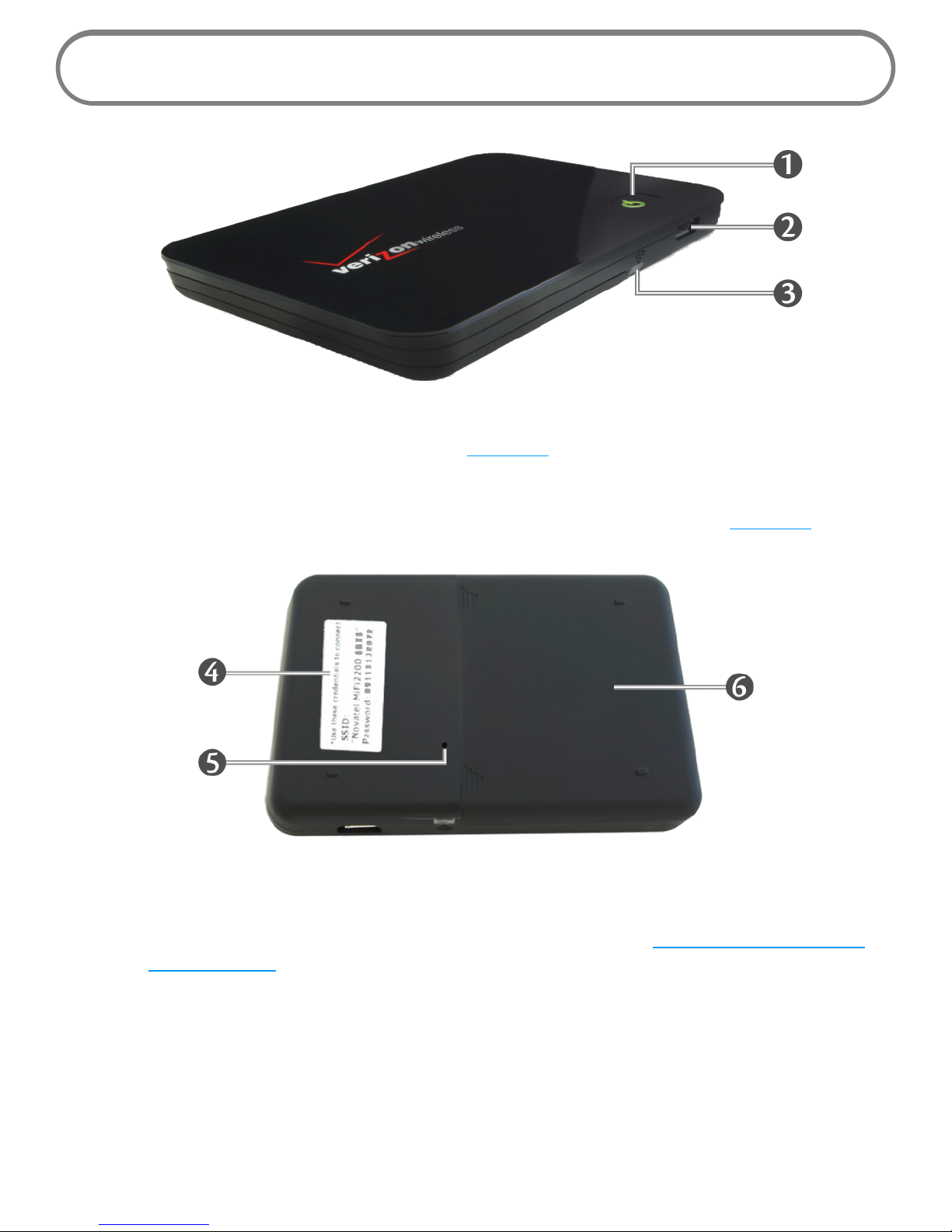

Components
Power Management
Caring for Your Device
Getting Started
1
6
Overview
Congratulations on your purchase of the Novatel Wireless MiFi 2200 Intelligent Mobile Hotspot for
Mobile Broadband and WiFi!
This device operates over high-speed Mobile Broadband and NationalAccess networks in the
800/1900 bands and WiFi, enabling you to connect at high speeds to the Internet, your corporate
Intranet, WiFi enabled devices, and access your email virtually anywhere!
MiFi2200 is an Intelligent Mobile Hotspot, empowering you with high-speed data access on the
Verizon Wireless Mobile Broadband wireless data network as well as WiFi connectivity.
Features
•Connect to High-Speed Wireless Data (Mobile Broadband and NationalAccess)
•Benefit from WiFi Connectivity
•Choose between Two Operating Modes: Mobile Broadband with USB Cable or WiFi
NOTE See “System Requirements” on page 7 for a complete list of supported operating systems.
•Manage Wireless Network Activity – VZAccess Manager® Software and MiFi Settings
•VZAccess Manager allows you to manage, monitor, and customize your wireless network
activity through an easy-to-use interface.
NOTE VZAccess Manager is required for activation and firmware/PRL updates.
•MiFi Settings is an easy-to-use web-based interface that allows you to manage, monitor,
and customize your WiFi and Mobile Broadband connection when the device is in WiFi
mode (e.g., when not connected with a USB cable).
•Advanced embedded antenna design
•VPN capability
•Auto connectivity options
•2-Way Short Messaging Service (SMS) (Mobile Broadband only)
•NDIS configuration
7
Package Contents
The Verizon Wireless MiFi2200 package includes:
•Verizon Wireless MiFi2200
•AC wall charger
•Lithium-ion battery
•Storage pouch
•microUSB cable
•Quick reference guide
•Software included on the device (no CD required)
System Requirements
To install the software and use MiFi2200 in USB Cable mode, your computer must meet the
following requirements.
•Supported operating systems (USB Cable mode only)
•Windows® 2000, XP (SP2 or higher), Vista, 7
NOTE Windows 2000 SP3 and SP4, Windows XP SP1 require specific OS patches.
For details go to www.vzam.net.
•Mac OS® X v10.4 or higher
•Internet browser software. For example: Microsoft Internet Explorer 6.0 or higher, Firefox,
Safari, Opera, Chrome
•VZAccess Manager included on the device (no CD required)
•USB port: Type A, v1.1 supported; v2.0 high speed recommended
•WiFi (802.11b or higher)
•Hard drive: 100 MB free hard disk space
•Memory (RAM): 128 MB
If your device is already activated and you want to use WiFi mode only, your computer needs WiFi,
Internet browser software only.
Your device must have Verizon Wireless data service to function properly. [See Activate Your Device
(page 24).]
8
Software
When you connect MiFi2200 to your computer for the rst time, the software automatically installs
itself on your computer. The software is included on the device (no CD required).
The device has two modes: Mobile Broadband (USB Cable) mode, and WiFi mode.
•Mobile Broadband (USB Cable) mode: Change the device settings with the VZAccess
Manager software on your computer.
•WiFi mode: Change the device settings with the web-based MiFi Settings.
9
Components
Power Button/Power Button LED: Powers on and o the device. The LED indicates power,
battery status, and roaming activity. [See LED States (page 10).]
microUSB Connector: The AC charger and USB cable connect here.
Service Status LED: Shows your mobile broadband connection status. [See LED States (page
10).]
Network Name and Password Label: The precongured name of your network (SSID) and
your network password (also called a network key) are printed on the back of your device.
Master Reset Button: Returns the device to factory settings. [See How do I reset MiFi back to
factory settings? (page 63).]
Battery Compartment: The battery is placed inside here.
Altri manuali per MIFI MiFi 2200
3
Indice
Altri manuali Verizon Wireless Router wireless
Verizon Wireless
Verizon Wireless Fivespot Manuale utente
Verizon Wireless
Verizon Wireless MIFI MiFi 2200 Manuale
Verizon Wireless
Verizon Wireless Ellipsis Jetpack Pantech MHS700L Manuale utente
Verizon Wireless
Verizon Wireless Jetpack Pantech MHS800L Manuale utente
Verizon Wireless
Verizon Wireless V640 Manuale utente
Verizon Wireless
Verizon Wireless MIFI-4G Manuale utente
Verizon Wireless
Verizon Wireless MIFI MiFi 2200 Manuale utente
Verizon Wireless
Verizon Wireless MIFI MiFi 2200 Scheda tecnica
