Vertiv Liebert GXT5 Istruzioni di installazione e manutenzione

Liebert®

GXT5™ UPS

Installer/User Guide

200 V to 240 V, 5,000 VA to 20,000 VA

Vertiv | Liebert® GXT5™ Installer/User Guide

Technical Support Site

If you encounter any installation or operational issues with your product, check the pertinent

section of this manual to see if the issue can be resolved by following outlined procedures.

Visit https://www.VertivCo.com/en-us/support/ for additional assistance.

The information contained in this document is subject to change

without notice and may not be suitable for all applications. While

every precaution has been taken to ensure the accuracy and

completeness of this document, Vertiv assumes no responsibility

and disclaims all liability for damages resulting from use of this

information or for any errors or omissions. Refer to other local

practices or building codes as applicable for the correct methods,

tools, and materials to be used in performing procedures not

specifically described in this document.

The products covered by this instruction manual are manufactured

and/or sold by Vertiv. This document is the property of Vertiv and

contains confidential and proprietary information owned by Vertiv.

Any copying, use or disclosure of it without the written permission

of Vertiv is strictly prohibited.

Names of companies and products are trademarks or registered

trademarks of the respective companies. Any questions regarding

usage of trademark names should be directed to the original

manufacturer.

TABLE OF CONTENTS

Important Safety Information 1

1 GXT5 Description 3

1.1 UPS Features and Available Models 3

1.2 Front Panels 4

1.3 Rear Panels 4

1.4 Removable Power-distribution Boxes 10

1.5 Internal Battery Packs 12

1.6 Major Internal Components and Operating Principle 13

1.6.1 Maintenance Bypass 14

1.7 UPS States and Operating Modes 14

1.7.1 Normal Mode 14

1.7.2 Bypass Mode 15

1.7.3 Battery Mode 16

1.7.4 ECO Mode 17

1.7.5 Maintenance Bypass Mode 18

2 Installation 21

2.1 Unpacking and Inspection 21

2.2 Pre-installation Preparation 21

2.2.1 Installation Clearances 21

2.3 Installing the UPS 22

2.3.1 Tower Installation 22

2.3.2 Rack Installation 22

2.4 Installing External Battery Cabinets 23

2.5 Installing a Power-distribution Box 24

2.6 Hardwired Input/Output Connections 25

2.6.1 Branch Circuit Breaker 26

2.6.2 Terminal-block Connections 27

2.6.3 Connecting to Terminal Blocks on 5-kVA and 6-kVA models 29

2.6.4 Connecting to Terminal Blocks on 8-kVA and 10-kVA models 29

2.6.5 Connecting to Terminal Blocks on 16-kVA and 20-kVA models 30

2.7 Communication Connections 32

2.7.1 Connecting IntelliSlot Communication 32

2.7.2 Connecting to the Dry-contact Port 32

2.7.3 Connecting a Remote Emergency Power-off (REPO) Switch 33

2.7.4 Connecting a USB Cable 34

2.7.5 Connecting CLI Communication Cables 35

2.7.6 Connecting Sensors to the Control Port 35

2.8 Installing a Parallel System 35

2.8.1 First-time Start-up of Parallel System 37

2.8.2 Commissioning Parallel System 37

Vertiv | Liebert® GXT5™ Installer/User Guide | iii

2.8.3 Adding a Single UPS to the Parallel System 38

3 Operating the UPS 39

3.1 Silencingthe Audible Alarm 39

3.2 Starting-up the UPS 39

3.3 Transferring to Battery Mode 39

3.4 Transferring from Normal to Bypass Mode 40

3.5 Transferring from Bypass to Normal Mode 40

3.6 Shutting-down the UPS Completely 40

3.7 Remote Emergency Power-off (REPO) 40

4 Operation and Display Panel 41

4.1 LED Indicators 42

4.2 LCD Menu and Screens 43

4.2.1 Start-up and Flow Screens 43

4.2.2 Main Menu 43

4.3 Editing Display and Operation Settings 51

4.3.1 Changing the Password 51

4.3.2 Selecting the Display Language 52

4.3.3 Setting the Date and Time 52

5 Maintenance 53

5.1 Replacing Batteries 53

5.2 Charging Batteries 55

5.3 Checking UPS Operation 56

5.4 Cleaning the UPS 56

5.5 Removing the Power-distribution Box 56

6 Troubleshooting 59

6.1 Symptoms that Require Troubleshooting 59

6.2 Audible Alarm (Buzzer) 59

6.2.1 Faults 59

6.3 Troubleshooting UPS Issues 60

7 Specifications 61

7.1 Battery Run Times 69

Appendices 73

Appendix A: Technical Support 73

Vertiv | Liebert® GXT5™ Installer/User Guide | iv

IMPORTANT SAFETY INFORMATION

IMPORTANT! This manual contains important safety instructions that must be followed during the

installation and maintenance of the UPS and batteries. Read this manual thoroughly and the safety and

regulatory information, available at https://www.vertivco.com/ComplianceRegulatoryInfo, before

attempting to install, connect to supply, or operate this UPS.

Vertiv | Liebert® GXT5™ Installer/User Guide

This page intentionally left blank

1 GXT5 DESCRIPTION

The Liebert® GXT5 is a compact, online uninterruptible power system (UPS) that continuously conditions

and regulates its output voltage. The Liebert® GXT5 supplies microcomputers and other sensitive

equipment with clean sine-wave input power.

Upon generation, AC power is clean and stable. However, during transmission and distribution it is subject

to voltage sags, spikes, and complete failure that may interrupt computer operations, cause data loss, and

damage equipment.

The Liebert® GXT5 protects equipment from these disturbances. The Liebert® GXT5 continuously

charges its batteries from the mains, enabling it to supply power to connected loads, even when the mains

fail.

1.1 UPS Features and Available Models

The GXT5 includes the following features. Table 1.1 on the next page, lists the available models and

power ratings.

•Enhanced load capacity with an output power factor of 1.

•Optional tower or rack installation to meet varying installation requirements.

•Parallel-connection capability for 10-kVA, 16-kVA, and 20-kVA models achieves up to 2 + 1

parallel redundant power.

•Adapts to areas with unstable power-mains supply via high-frequency double-conversion

topology structure, with high input-power factor, wide input-voltage range, and output

immune to grid interference.

•Full digital-control platform and hardware-design platform adapts to unstable mains supply

and load impact

•Programmable terminals with cascade protection on 5-kVA to 10-kVA models protect key

devices when load is heavy.

•Innovative design layout and process greatly increase product reliability.

•Operation and display panel with model-specific color LCD offers simple configuration and

control of the UPS.

•ECO power-supply mode and smart-sleep mode help you save the maximum amount of energy.

MODEL NUMBER NOMINAL POWER RATING

GXT5-5000IRT5UXLN

5kVA/5kWGXT5-5000IRT5UXLE

GXT5-5000HVRT5UXLN

GXT5-6000IRT5UXLN

6kVA/6kW

GXT5-6000IRT5UXLE

GXT5-8000IRT5UXLN

8kVA/8kWGXT5-8000IRT5UXLE

GXT5-8000HVRT5UXLN

Table 1.1 UPS Models and Power Ratings

1 GXT5 Description 3

MODEL NUMBER NOMINAL POWER RATING

GXT5-10KIRT5UXLN

10kVA/10kWGXT5-10KIRT5UXLE

GXT5-10KHVRT5UXLN

GXT5-16KIRT9UXLN

16kVA/16kW

GXT5-16KIRT9UXLE

GXT5-20KIRT9UXLN

20kVA/20kW

GXT5-20KIRT9UXLE

Table 1.1 UPS Models and Power Ratings

(continued)

1.2 Front Panels

The various GXT5 models have the same general appearance, with the main difference being the

receptacle types on the rear panel. Figure 1.1 below, shows the 5-kVAto10-kVA model in a tower and a

rack configuration. When mounted in a rack, the 5- to 10-kVA units are turned 90 degrees. The

orientation of the 16-kVA to 20-kVA models is the same in a rack or tower configuration.

Figure 1.1 Front View

ITEM DESCRIPTION

1 Operation/Display panel

2 Upper bezel

3 Lower bezel/battery-access door

1.3 Rear Panels

The following figures detail the rear-panel features for each GXT5 model.

Vertiv | Liebert® GXT5™ Installer/User Guide

Figure 1.2 GXT5-5000/6000IRT5UXLN (XLE) Rear Panel

ITEM DESCRIPTION

1 Liebert® IntelliSlot™ port

2 Terminal-block communication connectors

3 RS-485 port

4 USB port

5 RS-232 port

6 REPOconnector

7 External-battery-cabinet connector

8 Output circuit breaker

9 Maintenance-bypass breaker

10 Input circuit breaker

11 Removable POD with cable-entry for hard-wire I/O

12 Overload protector, 10-A (x2)

13 Programmable C13 output receptacles (x2)

14 Overload protector, 15-A (x2)

15 C19 output receptacles (x2)

1 GXT5 Description 5

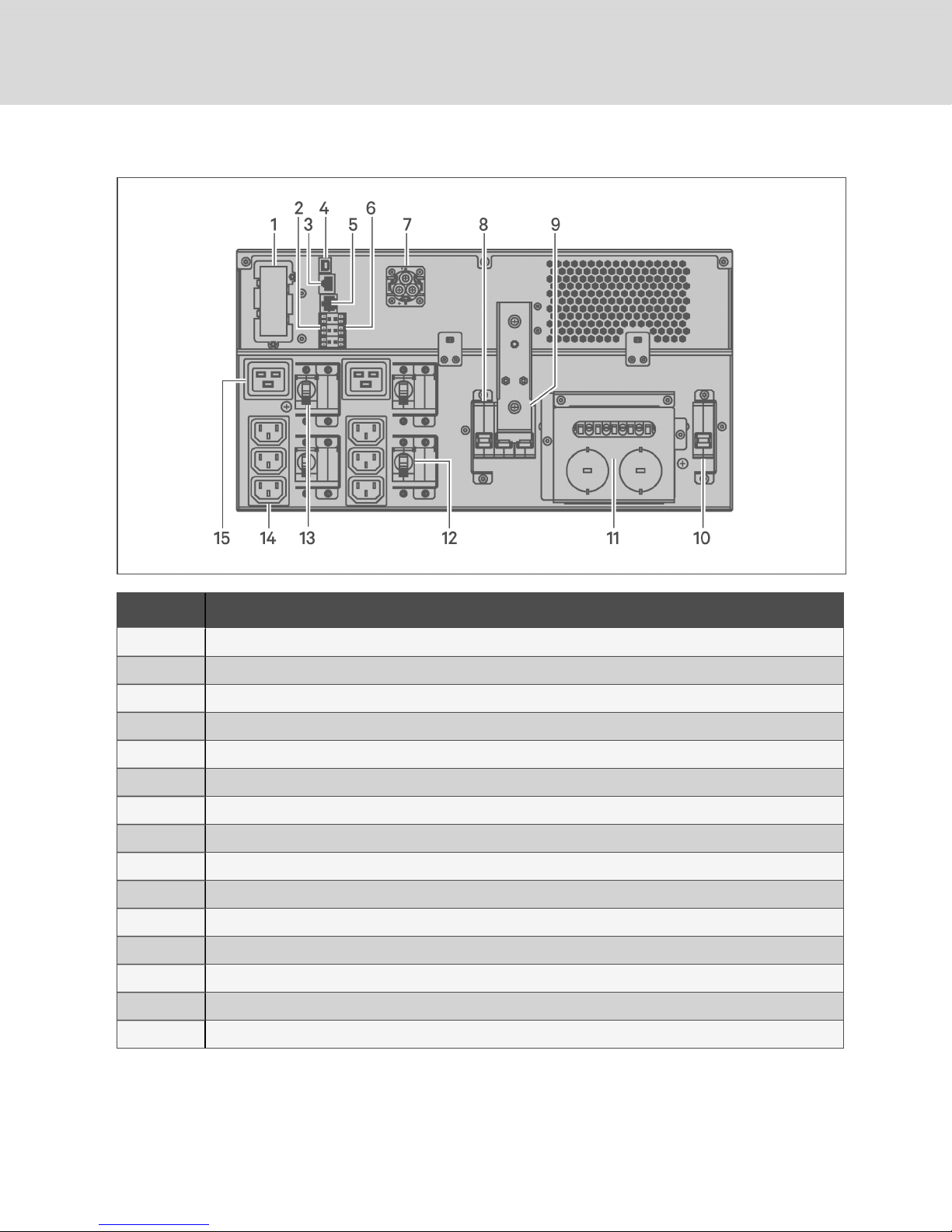

Figure 1.3 GXT5-5000HVRT5UXLN Rear Panel

ITEM DESCRIPTION

1 Liebert® IntelliSlot™ port

2 Terminal-block communication connectors

3 RS-485 port

4 USB port

5 RS-232 port

6 REPOconnector

7 External-battery-cabinet connector

8 Output circuit breaker

9 Maintenance-bypass breaker

10 Input circuit breaker

11 Removable POD with knock-outs/cable-entry for hard-wire I/O

12 Programmable output circuit breaker, 10-A (x2)

13 C19 output circuit breaker

14 Programmable C13 output receptacles (x2)

15 C19 output receptacles (x2)

Vertiv | Liebert® GXT5™ Installer/User Guide
