COMPONENTS
Circulation Pump
Voltage : 220/240 V
Frequency : 50 Hz
Total Power : 88 W
Coil Isolation Class : F
Main Coil : 95%± 7 Ω
Sub Coil : 126%± 7 Ω
Thermal Protection : 109 °C
Pump Outlet Pressure : 300 mbar
Pump Flowrate : 60 lt/min
Drain Pump
Voltage : 220/240 Volt
Frequency : 50 Hz
Total Power : 30 W
Flowrate : 17 –21 lt/min
Coil Resistance : 143 Ω %± 7
Coil Isolation Class : F
Thermal Protection : 120 ° C
Heater Casing Group
Heater
Voltage : 220/240 V
Total Power : 2000 W
Resistance : 23.95±15 Ω
Single direction, single phase, asynchronous and
two pole. It turns opposite clock direction. It is
assembled to the basement with rubber hangers.
Single direction, single phase, asynchronous and two pole. It turns opposite
clock direction. It is assembled to the basement with rubber hangers.
It is used to heat the washing water.
Heater is not active during the drying process.
It is assembled to the sump and located to the
circulation pump.
SERVICE MANUAL
JANUARY 2016
X SERIES
3

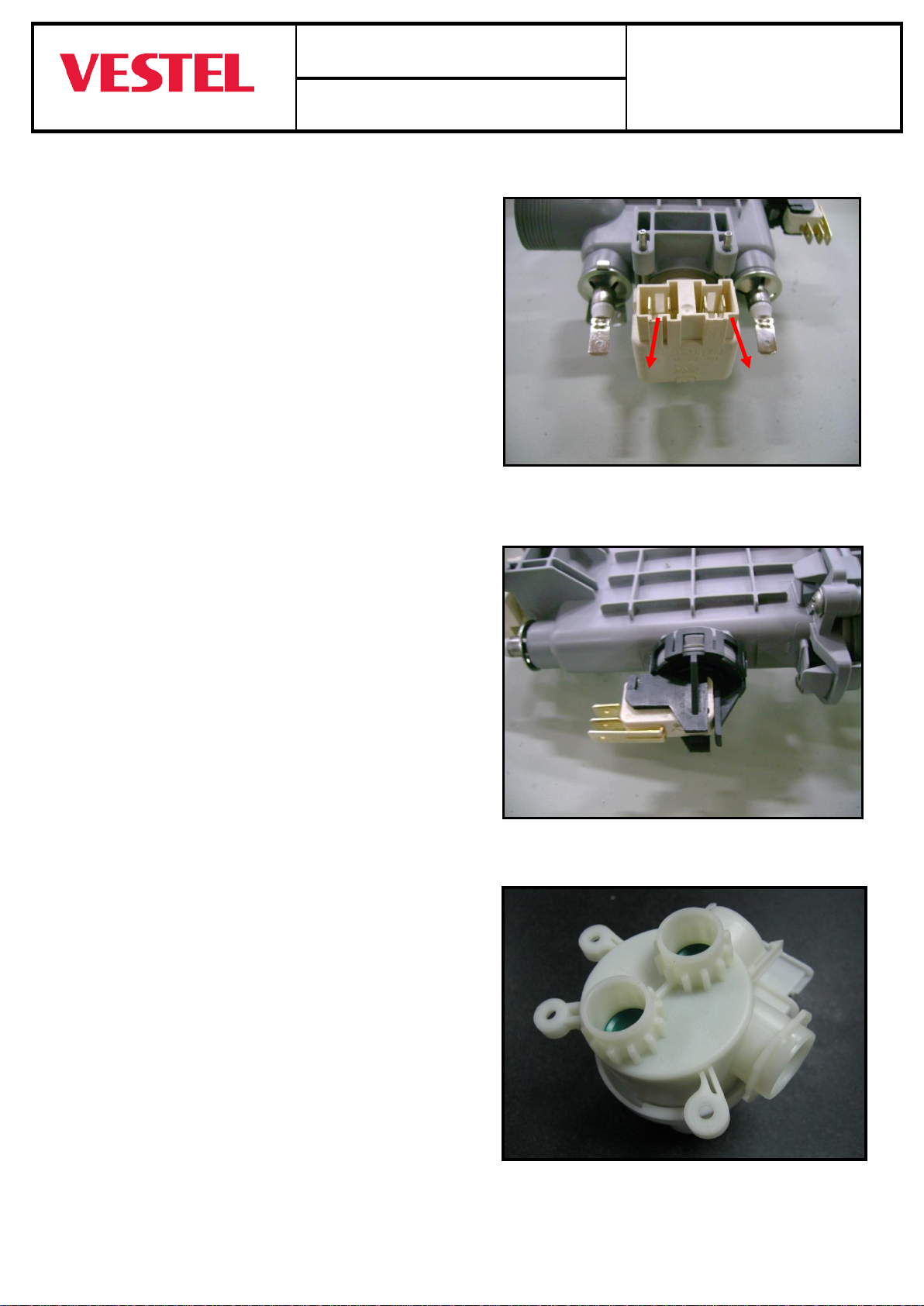

NTC
Thermal Protection 83±3 ° C
Temperatures;
25°- 5000Ω %±5.0
35°- 3300Ω %±5.5
55°- 1520Ω %±6.5
63°- 1174Ω %±7.5
80°- 670Ω %±8.0
90°- 488Ω %±8.5
Pressure Switch
Voltage : 220/240 V
Frequency : 50 Hz (16 A –3 Pins)
Diverter
Voltage : 220/240 V
Frequency : 50 Hz
Power : 8 W
Resistance : 6840±٪5 Ω
T21 models includes diverter .
NTC
Thermal Protection
SERVICE MANUAL
JANUARY 2016
X SERIES
4

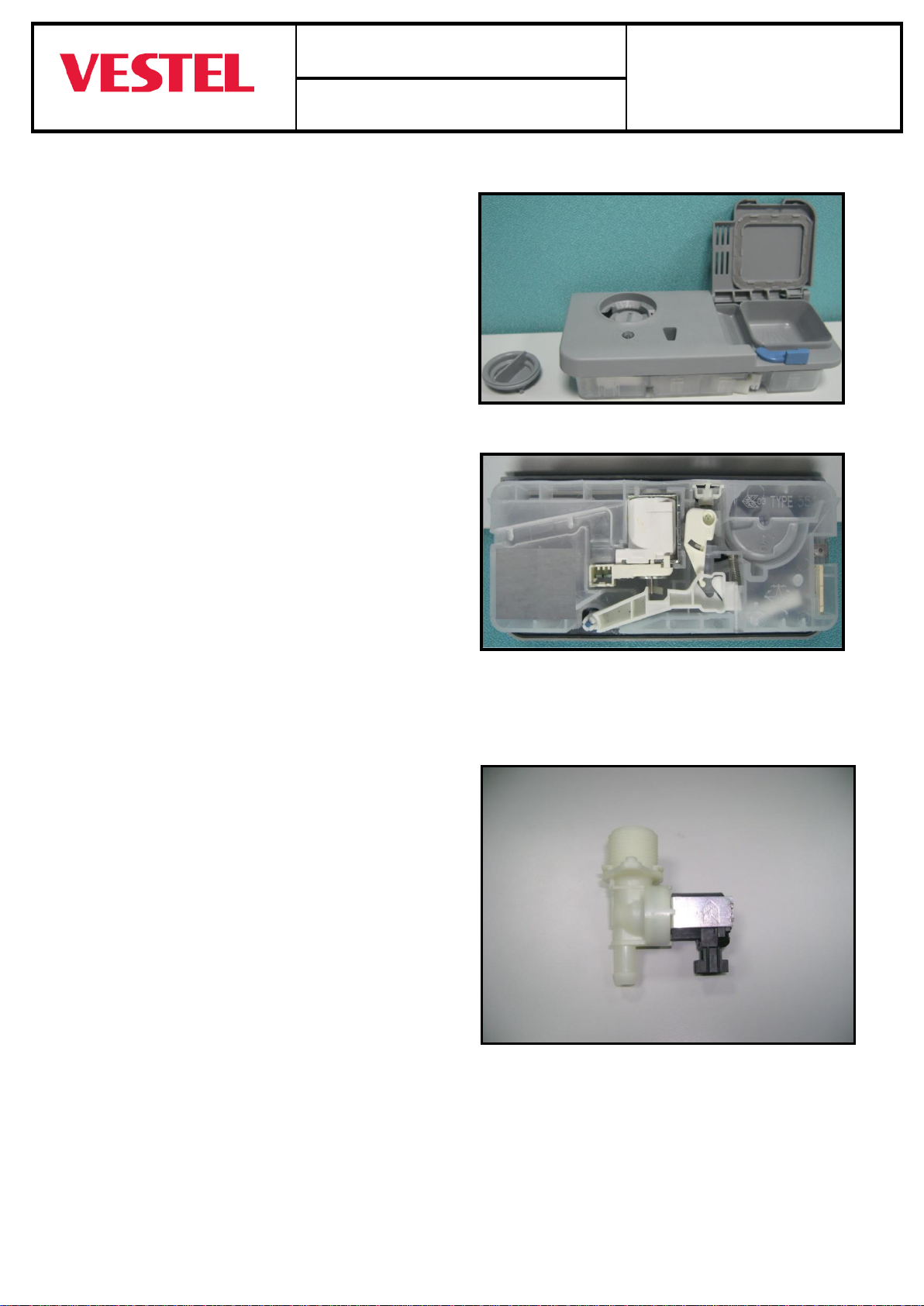

Detergent Dispenser
Detergant Compartment:
Main wash compartment : 40 cm³ (25/15)
Prewash compartment : 5 cm³
Aid Rinse Departmant :
Aid rinse cap : 150 cm³
Factory outlet setting position : 3. level
Detergent Dispenser Bobbin :
Voltage : 220/240 V
Frequency : 50 Hz
Resistance : 1660 ±10 Ω
Detergent Dispanser Rinse Aid Sensor:
Voltage : 250 V
Currency : 16 (4) A
Water Inlet Valve
Voltage : 220/240 Volt
Frequency : 50-60 Hz
Total Power : 6 W
Flowrate : 2,5 lt/min
Resistance : 3750 ±٪10 Ω ( 20 Cº )
Single inlet and single outlet standard single
coil selenoid valve. It is assembled to the
basement and connect to the airbreak by hose.
SERVICE MANUAL
JANUARY 2016
X SERIES
5
Water Softener
Regeneration Valve;
Voltage : 220/240 V
Frequency : 50/60 Hz
Total Power : 6 W
Resistance : 4130±٪10 Ω ( 25 Cº )
Regeneration valve is assembled on the water softener.
Salt Sensör;
Voltage : 250 V
Currency : 16 (4) A
It is assembled to the water softener. It warns if the
salt is less than requested quantity.

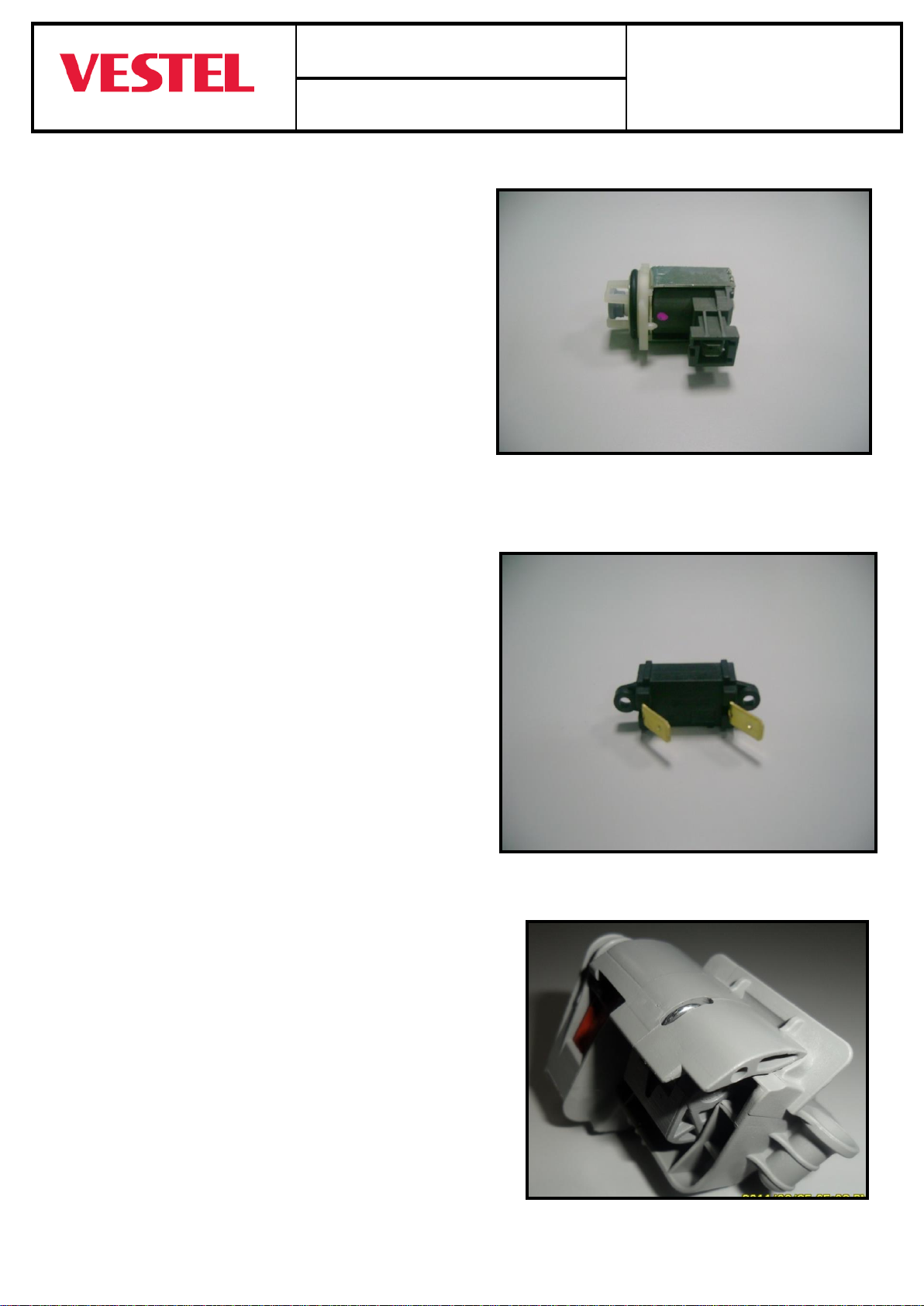

Door Lock Switch ;
It is a mechanical lock/release system that
is closing the door, supplying the connection of
electrical parts in the machine and cutting off the
connection.
Currency : 16 (4) A
SERVICE MANUAL
JANUARY 2016
X SERIES
6
Parasite Filter ;
Voltage : 220/240 V
Frequency : 50/60 Hz
0,1 uF (X1) + 2x0,027uF(Y2) + 1M Ω
It is used to prevent parasites from the main supply.
It has been assemblied to basement.
Flowmetre ;
It measures the inlet water and gives information to the
electronic card.
It causes drying performance for the normal
drying machines owing to the air ducts on it.
SERVICE MANUAL
JANUARY 2016
X SERIES
7

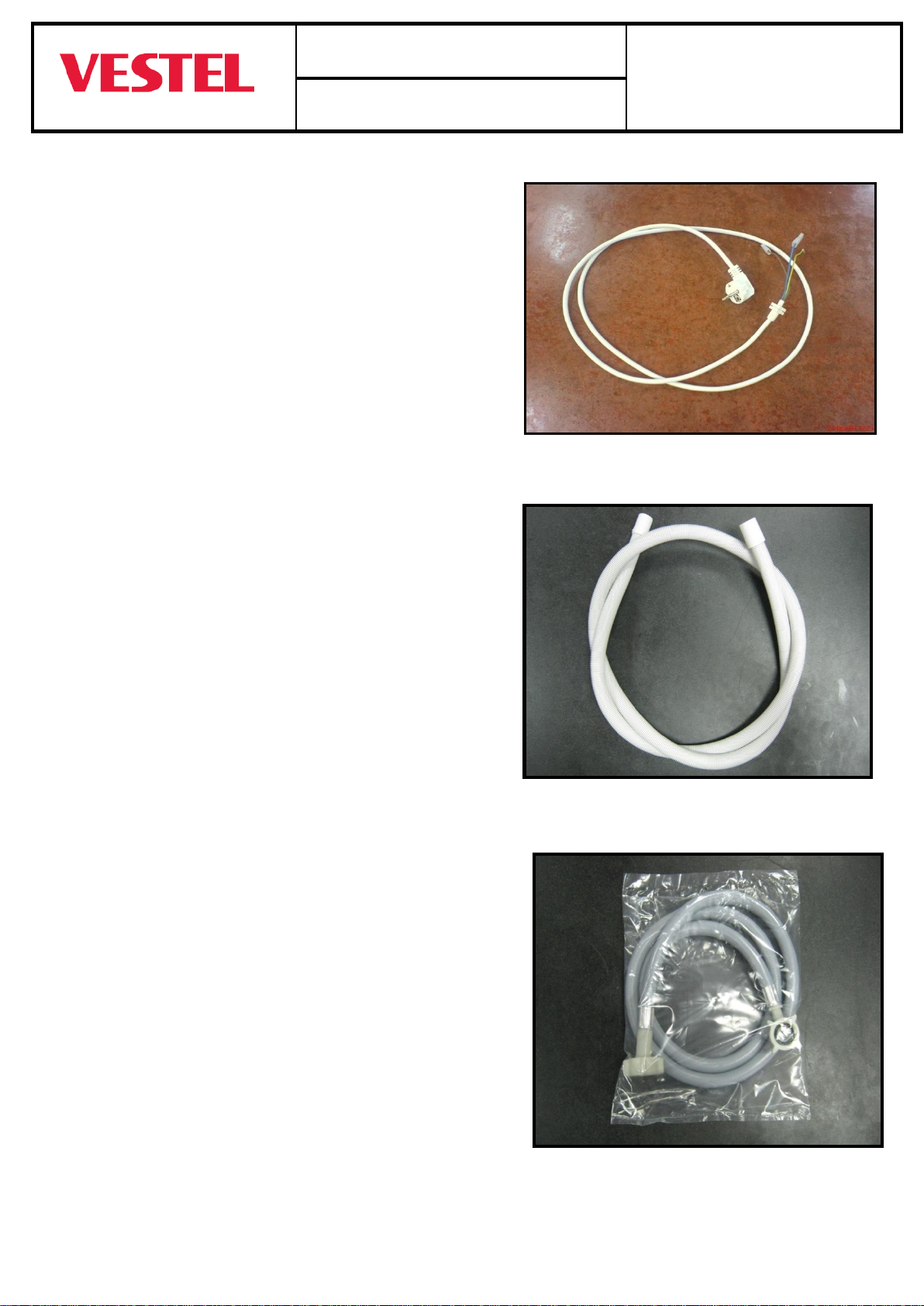

Power Cord;
Type : Euro 3 1mm2, copper conducting
Isolation : TS 9760 H05VV-F
Plug : TS-IEC 60884–1earthed, PVC injected
Length : 1800 mm
Drain Hose;
Drain hose maximum height : 110cm
Drain hose minimum height : 50cm
Drain hose maximum length : 400cm
Water Inlet Hose;
Hose that is flat edge is assemblied to plug.
Another edge that is turned edge is assemblied to water
inlet valve. It must be adjusted for assembly direction.
SERVICE MANUAL
JANUARY 2016
X SERIES
8
Air Break ;
It measure water that comes to inlet dishwasher. And It
gives datas to electronic card.
It causes drying performance for the normal
drying machines owing to the air ducts on it.
Water Softener ;
It decreases hardness of water that comes from main
supply.
It includes 2 departments that “salt department” and
“recine department” with 2 types that is sensor or without
sensor.
Sump;
Sump that is reservoir connects water in tube with
circulation pump and drain pump and heater casing..
SERVICE MANUAL
JANUARY 2016
X SERIES
9
Spray Arm Support;
It distributes water from divisor to upper and below
spray
L Spray Arm;
It transfers water from spray arm support to upper spray
arm
Upper Spray Arm;
It tranfers water from L spray arm to upper spray arm
There are two hole back of the upper spray arm.
The holes provides to work upper basket for
upper and lower position.
SERVICE MANUAL
JANUARY 2016
X SERIES
10
Upper Spray;
It distributes water from upper spray arm to dirty dishes
in the upper basket.
It provides to wash the dishes in the upper basket
through turning by the holes with various angles.
Lower Spray Arm;
It distributes water from lower spray arm to dirty dishes
in the lower basket.
It provides to wash the dishes in the lower basket
through turning by the holes with various angles.
