INTRODUCTION

Thank you for purchasing a Vetta V100 cycle computer. The V100

series computers represent the latest evolution in Vetta's

computer line and are designed for cycling enthusiasts and

competitive cyclists alike. In particular, the V100 model offers a

wide range of unique features and functions such as

Temperature, Dual Bike Memory, Intermediate Distance and

Stopwatch readings and a Service Timer. Please take the time to

familiarize yourself with all the functions of the V100 model so

that you may take full advantage of its programs. And don't

forget to store this manual in a safe place for future reference!

• Vetta cycle computers are sophisticated electronic instruments.

Vetta recommends that this product be installed only by a

qualified bicycle retailer. Failure to read these instructions

and/or improper installation of this device may void the

warranty. If in doubt about any aspect of the installation or

operation of this product, consult your local bicycle retailer for

clarification.

• The head unit is water resistant and sealed to withstand wet

weather conditions. However, do not deliberately place it in

water.

• Avoid leaving the head unit exposed to extremely hot weather

conditions.

• Vetta encourages you to ride safely. Wear a helmet every time

you ride, use front and rear lights at night, and always keep your

eyes on the road ahead of you.

V100 ILLUSTRATIONS

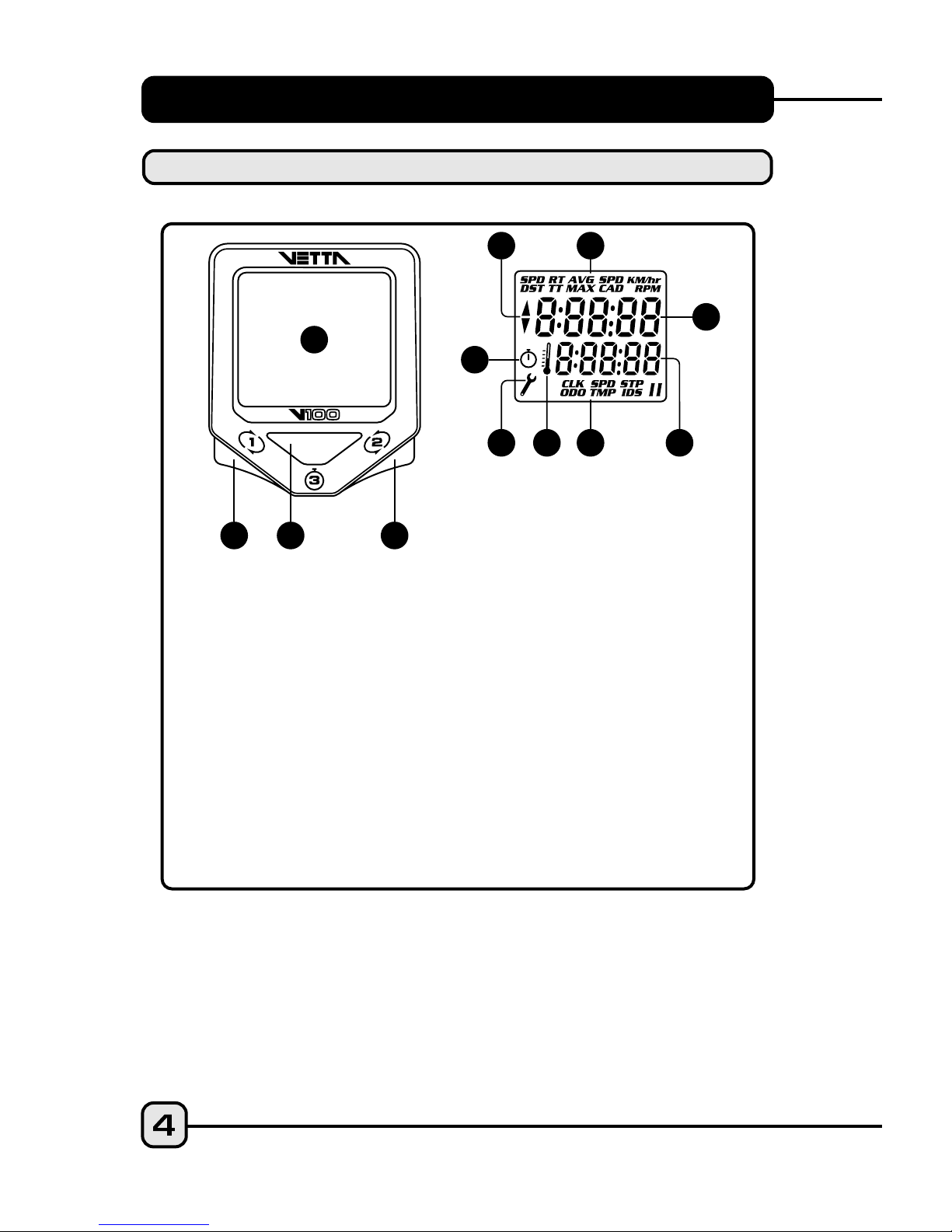

HEAD UNIT: FRONT

Upper Display

Lower Display

Lower Screen Symbols

Temperature Icon

Service Timer Icon

Stopwatch Icon

Speed Comparator Symbol

Upper Screen Symbols

Main Display

Button #1 (Left)

Button #2 (Right)

Button #3 (Center)

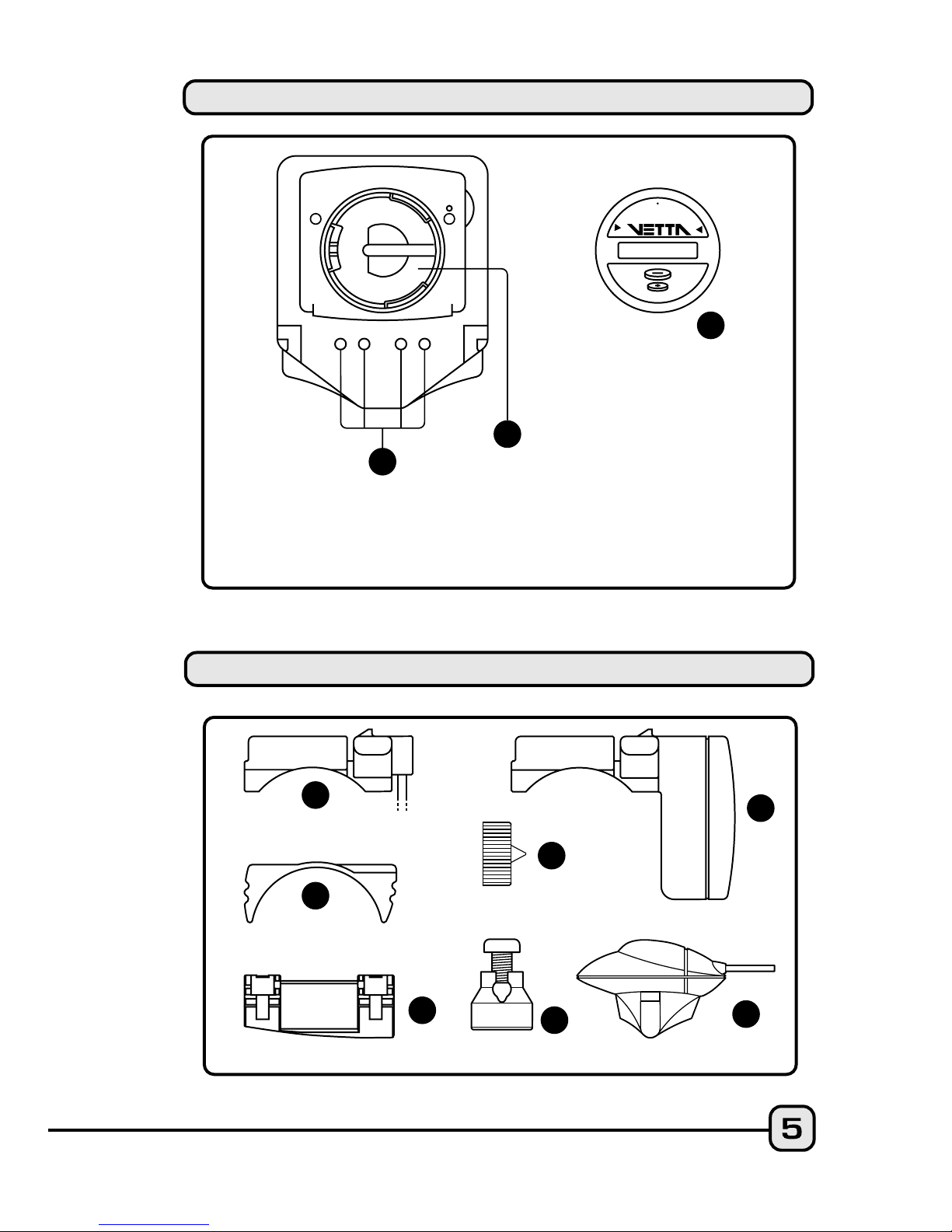

HEAD UNIT: REAR

Contact Pins

Battery Compartment

Battery Cover

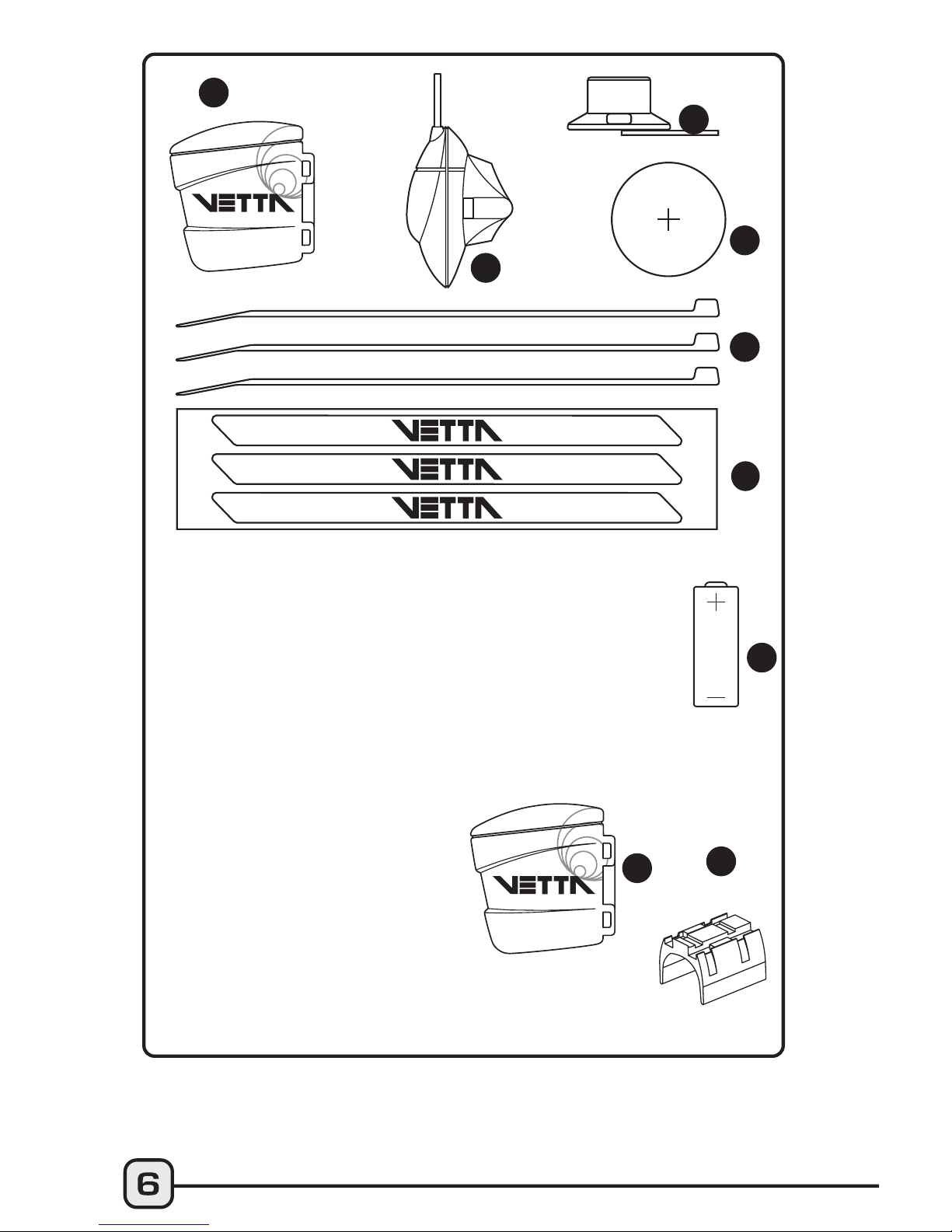

COMPONENT ILLUSTRATIONS

Wired Mounting Bracket

Mounting Bracket Pad

Riser Handle Bar Bracket Pad (You may choose B or C

according to the style of your bicycle handlebar.)

Spoke Magnet

Spacer

Wired Speed Sensor

Wireless Active Mount

WL Wireless Speed Transmitter

Transmitter Mounting Pad

Wired Cadence Sensor*

Cadence Magnet*

CR2032 3V Battery

Zip Ties

Wire Securing Tape

A23 12V Battery

WL2X Wireless Cadence Transmitter*

*(optional)

Sets digits or units and advances to the next item

or screen.

Advances digits and toggles through units. Hold

for fast advance.

Has no function in Initial Setup.

Button #1

Button #2

Button #3

SETUP MODE

Scrolls through lower level screen symbols and

Freeze Frame display screens. Hold 2 seconds in

Temperature mode (SPD/TMP) to display

Maximum and Minimum Temperature. Hold 2

seconds in SPD/CAD* screen to display Average

and Maximum Cadence.

*(optional)

Scrolls through upper level screen symbols. Press

and hold 2 seconds in any primary screen mode to

activate Freeze Frame memory. Resets RT to zero

for Service Timer.

Button #1

Button #2

OPERATING MODE

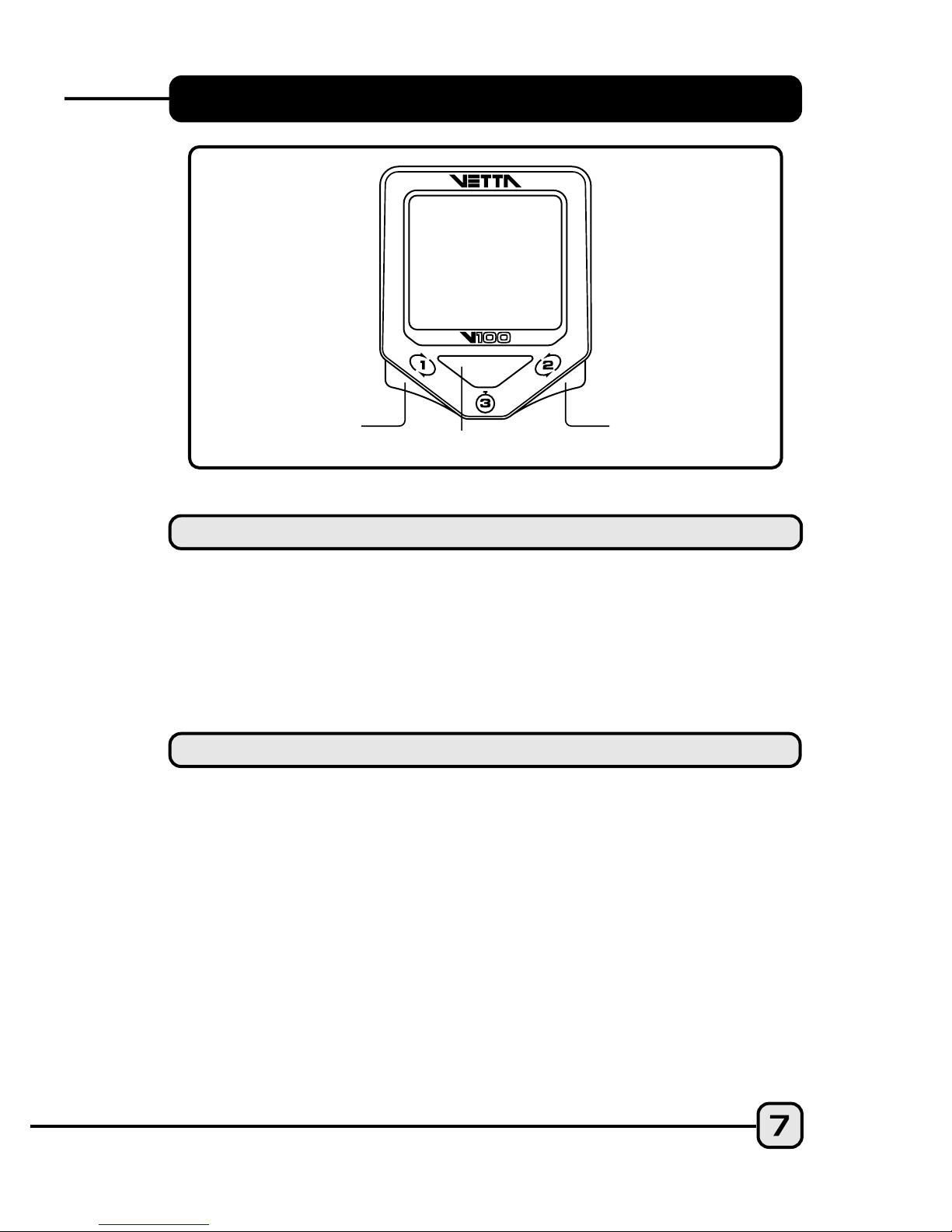

BUTTON FUNCTIONS

Button #1 Button #3 Button #2

Starts and stops the timers and Stopwatch and is

used to reset timers and other ride data to zero.

Exits Normal Operating Mode (NOM) Setup and

advances to NOM System Check and SPD/DST

screen mode.

Note: To enter Setup in the Normal Operating Mode:

1.Make sure the timers are turned off. 2.Go to

SPD/DST screen mode. 3.Press and hold Buttons

#1 and #2 simultaneously for 2 seconds.

Button #3

The V100 series computers are programmed with a Bi-Level Memory

which returns to the last screen function accessed between the

upper and lower screen modes. See illustration for this sequence and

how to advance from one screen to the next.

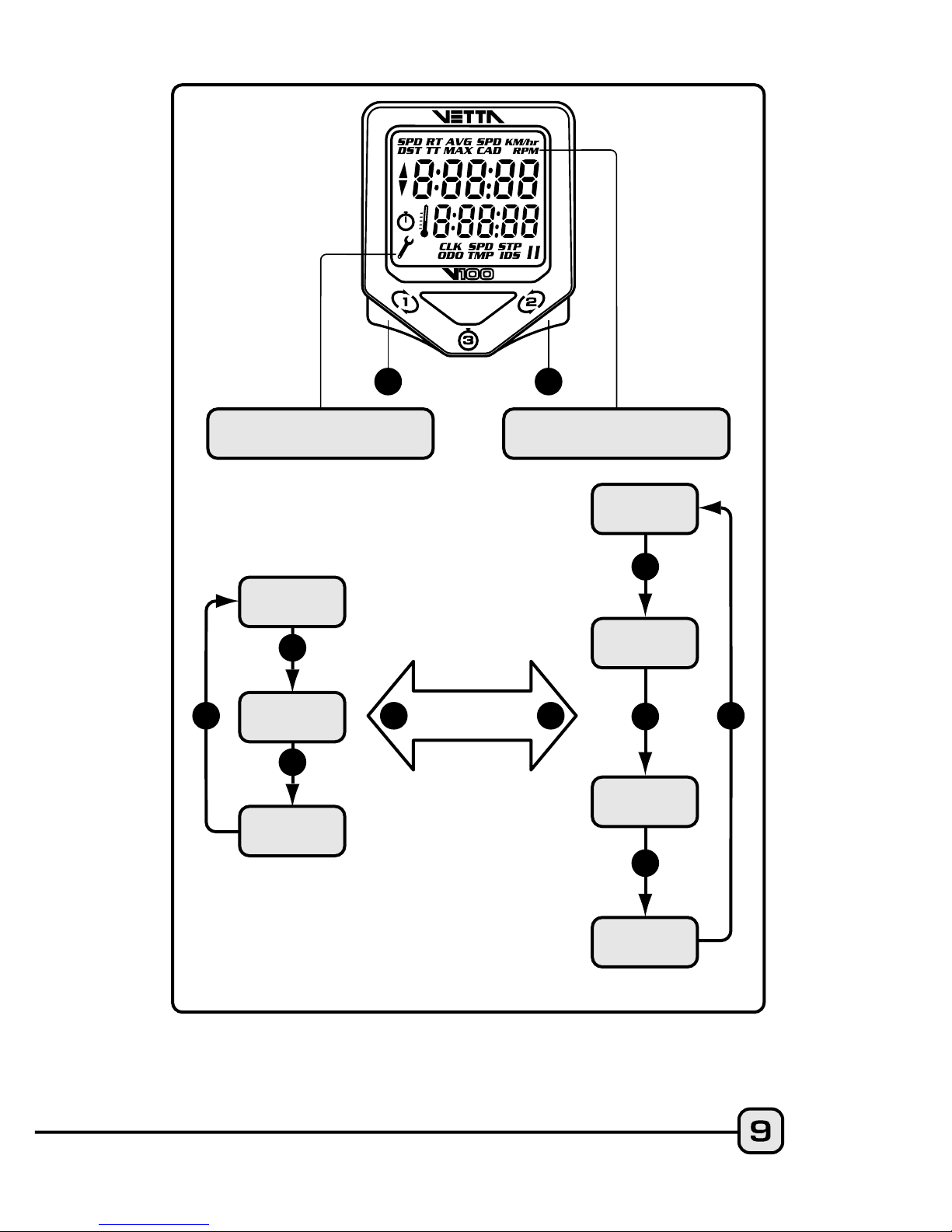

V100 SCREEN DISPLAY SEQUENCE:

BI-LEVEL MEMORY

LOWER SCREEN

MODES

UPPER SCREEN

MODES

STP

IDS

CLK

ODO

SPD

TMP

AVG

MAX

SPD

DST

BI-LEVEL

MEMORY

SPD*

CAD

*(optional)

V100 PRIMARY FUNCTIONS

UPPER SCREEN MODES

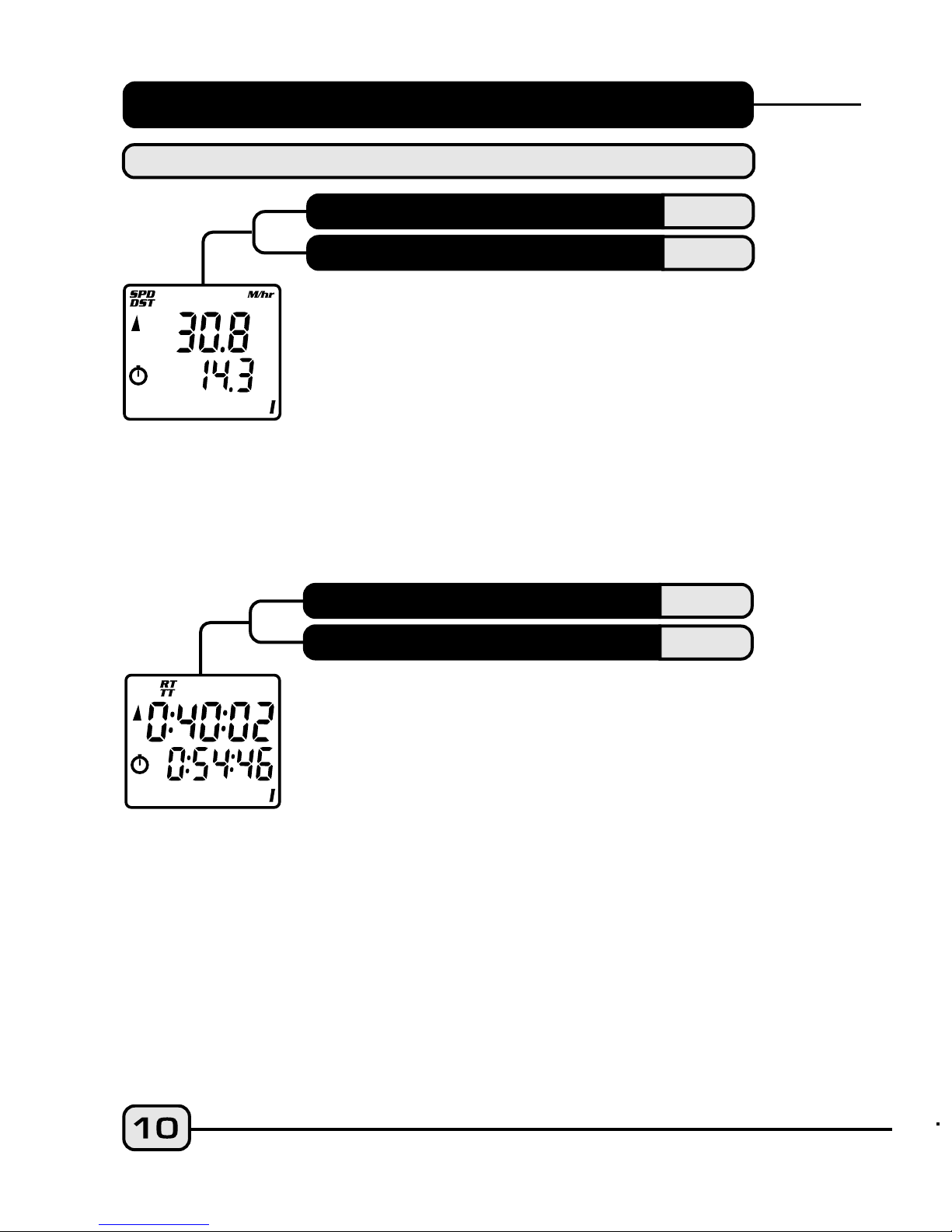

SPD displays the current Speed and is updated

continuously. DST displays current Trip Distance.

Automatically resets after the maximum trip

distance (999.9) is achieved. Trip Distance is

displayed in the SPD/DST screen mode and

starts automatically when the wheel rotates and

TT timer is active. Reset DST to zero by

pressing Button #3 for 2 seconds with the

timers turned off in any screen mode except

STP/IDS.

SPD

DST

SPEED

TRIP DISTANCE

RIDE TIME

TOTAL TIME

Ride Time and Total Time are shown

simul-taneously. Ride Time (RT) measures actual

riding time and starts automatically when the

timers are set to "0:00:00" and the wheel rotates.

If not, TT timer must be active for RT timer to

operate. Total Time (TT) shows the total elapsed

trip time from start to finish. Like RT, TT starts

automatically when the wheel rotates ONLY

when the timers are set to "0:00:00", or it can be

started manually by pressing Button #3 in the

RT/TT screen mode ONLY. TT can only be

stopped manually by momentarily pressing

Button #3 in RT/TT screen mode at the end of a

ride. To reset both RT and TT to zero, turn timers

off and press Button #3 for at least 2 seconds.
