VEVOR HJ-T120 Manuale utente
Technical Support and E-Warranty Certificate www.vevor.com/support
ARM JACK
MODEL: HJ-T120
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: HJ-T120
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ARM JACK
- 2 -
SAFETY INSTRUCTIONS
1. Do not overload.
2. Please be careful not to pinch your hand when lifting.
3. When lifting heavy objects, do not reach into the area below the lifting.
4. Take care to protect the objects you need to lift to prevent damage.
MODEL AND PARAMETERS
Model
HJ-T120
Lifting Height
80mm（Max 120mm）
Lifting Capacity
100kg（Two pieces)
STRUCTURE DIAGRAM
1.Support Rod 2.Release Trigger 3.Main Body 4.Return Spring
5.Back-up Block 6.Base 7.Handle
1
2
3
4
5
6
7
- 3 -
COMPONENTS
No.
Name
Qty
1
Arm Jack
2
2
Fixture Block
2
3
Gradienter
1
4
User Manual
1
OPERATION
Suggestion: The best way to get acquainted with how the ARM JACK
operates is to carry out a few test runs before you actually use it.
NOTE: When the two are used together, it is necessary to pay attention
to lifting at the same time, and balance the force on both sides to avoid
unilateral overload and tipping.
Lifting: Grasp and release the handle to lift .
Handle
- 4 -

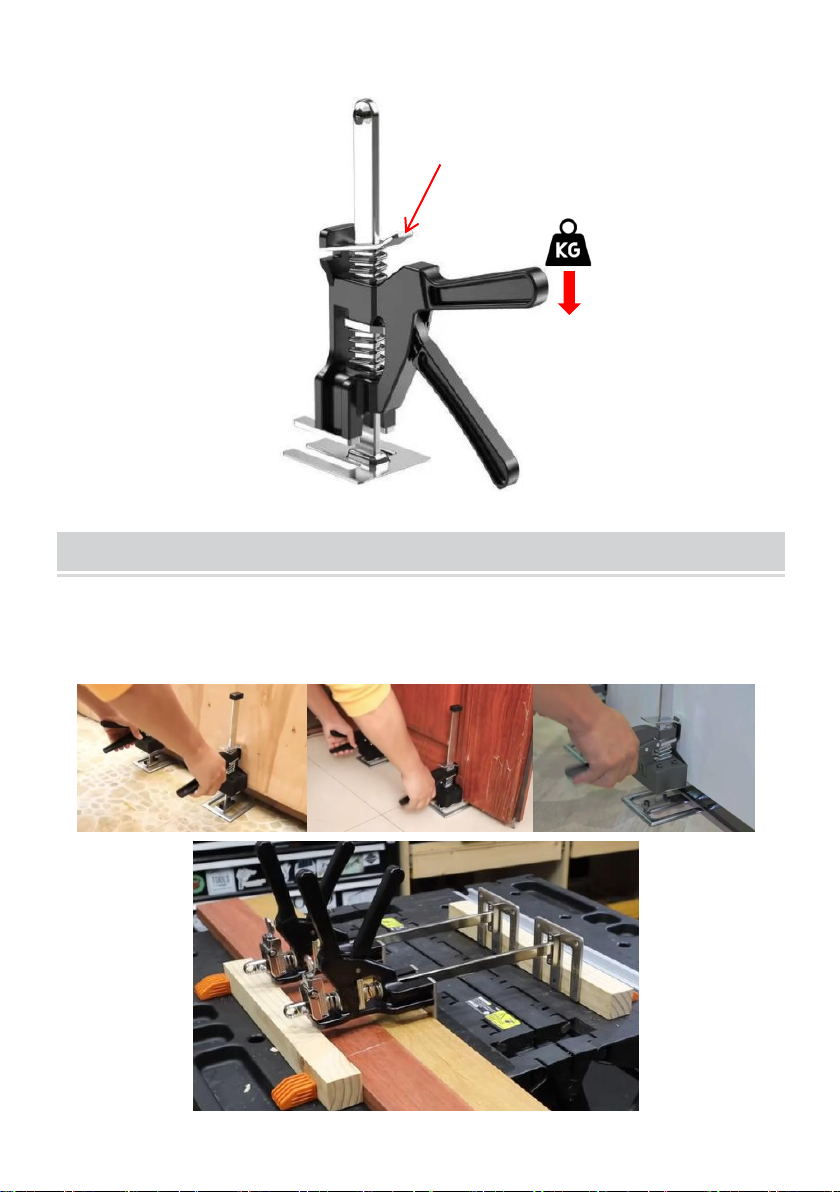

Release: Press the "Release Trigger" and press the body down.
APPLICATION SCENARIOS
Architectural Decoration: It can be used to lift boards, doors, furniture,
tiles to assist in decoration; Assist in wood processing, nail pulling, board
pulling, etc.
Release Trigger
- 5 -
Household cleaning and Maintenance: Lift furniture, refrigerators,
washing machines to clean the bottom; Lift furniture, replace carpets, etc.
MAINTENANCE
1. If it is difficult to lift, please add lubricating oil in the position below.
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351
Linkenheim-Hochstetten, Germany
UK REP：Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston,
United Kingdom
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW
2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place,
Rancho Cucamonga, CA 91730
Made In China
Oil
Oil
