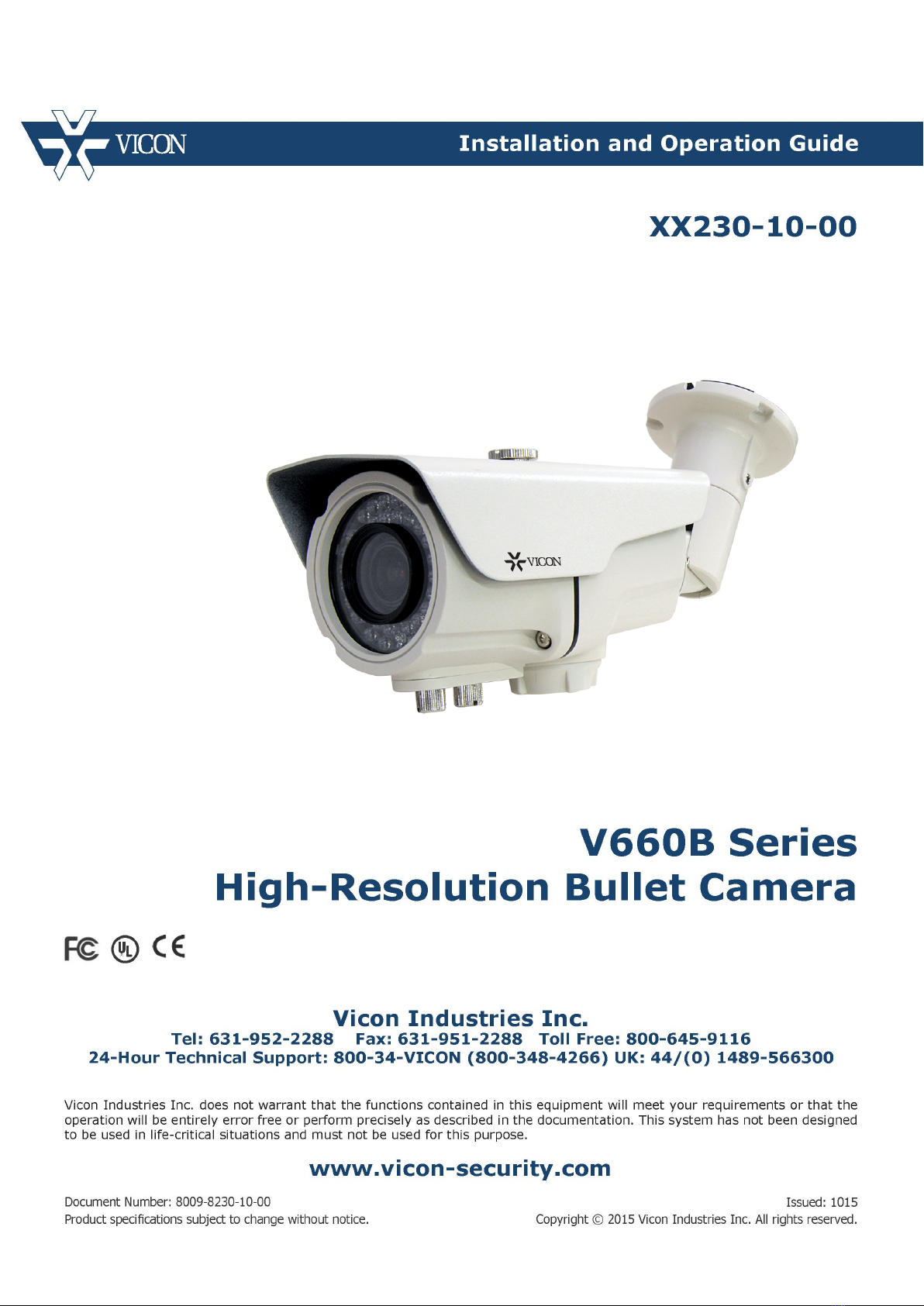

Vicon V660B Series Istruzioni operative

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

WARNING: This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may be

required to take adequate measures.

CAUTION: Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to operate

the equipment.

FCC INFORMATION: This equipment has been tested and found to

comply with the limits for a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not block any ventilation openings. Install in accordance with the

manufacturer`s instructions.

6. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

7. Only use attachments/accessories specified by the manufacturer.

8. Use only with the cart, stand, tripod, bracket, or table specified

by the manufacturer, or sold with the apparatus. When a cart

is used,

use caution when moving the cart/ apparatus

combination to avoid injury from tip-over.

9. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY

QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF

ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER

THAN

THAT CONTAINED IN THE OPERATING INSTRUCTIONS

UNLESS YOU

ARE QUALIFIED TO DO SO.

10. Use satisfy clause 2.5 of IEC60950-1/UL 60950-1 or Certified/Listed

Class 2 power source only.

11. Indoor use only.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s enclosure

that may be of sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

iii

TABLE OF CONTENTS

INTRODUCTION ----------------------------------------------------------------------------------------- 1

CONTENTS of PACKAGE & CAMERA CONNECTION ------------- ----------------------- 2

BASE INSTALLATION----------------------------------------------------------------------------------- 3

OSD MENU STRUCTURE -- -------------------------------------------------------------------------- 4

LENS ADJUSTMENT ---------------------------------------------------------------------------------- 12

EXTERNAL DIMENSIONS ------------ --------------------------------------------------------------- 13

SPECIFICATIONS -------------------------------------------------------------------------------------- 14

INTRODUCTION

The camera provides high-quality images using SONY 1/3” CCD and Digital

Signal Process LSIs.

Features:

● 1/3" HAD CCD Ⅱ for an image of high sensitivity

● 2.8~12mm, 5~50mm Vari-focal Lens(DC AI)

● Digital Wide Dynamic Range (Adaptive Tone Reproduction)

● Excellent picture quality

● 700 lines of resolution

● Minimum illumination 0.15 Lux (Color) / 0 Lux (B/W & IR ON)

● Auto electronic shutter [1/60(1/50) ~ 1/10,000] and manual electronic

shutter modes

● OSD (On Screen Display)

● Auto and manual white balance modes

● Auto BLC and HLC, Day & Night (Auto)

● 2D-NR

● Smart IR

● Privacy Zone 4 point, Motion Detection 4 Point

● MIRROR, SHARPNESS, HUE, CONTRAST, GAIN

● AGC (Auto Gain Control)

● VIDEO OUT (BNC)

● Operates in 12VDC or 24VAC

(If using 12VDC power adaptor, Please use a power supply capable of

supplying over 600mA.)

● Use Certified / Listed Class 2 power source only.

● Auto White Defect

IMPORTANT:

The user of this cam

era is responsible for

checking and complying with local, state, and federal laws and

statutes concerning the recording and monitoring of audio

signals.

CONTENTS of PACKAGE

CAMERA CONNECTION

1. Bullet Camera

2. Power : power source from a DC 12V or AC 24V +/- 10%

3. Video: BNC connector used to connect the camera to a monitor,

switcher, etc.

BASE INSTALLATION

OSD MENU STRUCTURE

SETUP MENU (page 1)

LENS

SHUTTER/AGC

WHITE BAL

BACKLIGHT

PICT ADJUST

ATR

MOTION DET

NEXT (page2)

EXIT SAVE ALL

LENS

AUTO ↵

MANUAL

WHITE BALANCE

ATW ↵

PUSH

USER 1↵

USER 2↵

ANTI CR

MANUAL↵

PUSH LOCK

BACKLIGHT

OFF

BLC

HLC

PICTURE ADJUST↵

MIRROR

BRIGHTNESS

CONTRAST

SHARPNESS

HUE

GAIN

RETURN

SHUTTER/AGC

AUTO↵

MANUAL↵

ATR

OFF

ON↵

MOTION DET

OFF

ON↵

SETUP MENU (page 2)

PRIVACY

DAY/NIGHT

CAMERA ID

LANGUAGE

CAMERA RESET

BACK (page 1)

EXIT SAVE ALL

PRIVACY

OFF

ON↵

DAY/NIGHT

COLOR

B/W↵

NR↵

NR MODE

Y LEVEL

C LEVEL

RETURN

CAMERA ID

OFF

ON↵

LANGUAGE

ENGLISH

日本語

DEUTSCH

FRANCAIS

PYCCKNN

PORTUGUES

ESPANOL

CAMERA RESET

(return the camera to

factory defaults)

Use the joystick to navigate the setup menus. Move it up or down to move the cursor to

select the menu option, left or right to view setting options and press to select.

LENS

This adjusts the brightness of the screen.

AUTO

TYPE (DC / VIDEO)

Sets the type of mechanical iris.

(Video lens is not supported)

MODE (AUTO / OPEN / CLOSE )

Sets the type of control to be applied over the mechanical iris.

SPEED (0 – 255)

Sets the convergence speed of the mechanical iris.

MANUAL

Manual lens only.

. (Note: When in MANUAL mode AUTO mode changes SHUTTER/AGC to

SHUT+AUTO IRIS; when MANUAL is changed to AUTO, AUTO MODE changes to

AUTO IRIS in SHUTTER/AGC)

SHUTTER/AGC

This is used to set the automatic light control method for the camera.

AUTO

HIGH LUMINANCE

MODE (SHUT+AUTO IRIS / AUTO IRIS)

(Note: Only SHUT can be selected if LENS is in MANUAL mode;

SHUT+AUTO IRIS is AE (Auto Exposure); SHUTTER is 1/500 (1/480) and

MIRIS).

BRIGHTNESS (0 ~ 255)

Adjusts the brightness.

LOW LUMINANCE

MODE (AGC / OFF)

Auto Gain Control on or off.

BRIGHTNESS (x0.25 / x0.50 / x0.75/ x1.00).

Controls the amount of AGC applied in low lighting conditions

MANUAL

MODE (SHUT+ AGC)

Auto gain control

SHUTTER

Select the shutter speed (1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,

1/10000).

AGC

Sets the AGC gain applied [dB] for ME (manual exposure) (6, 12, 18, 24, 30,

36, 42, 44.8dB).
