Vicon V2000WM Manuale utente

Vicon part no. 8006-8399-02-00 Rev 599 Section 7

X399

MODEL V2000WM

OUTDOOR WALL MOUNT

Product specifications subject to change without notice.

Lexan is a registered trademark of General Electric.

Vicon and its logo are registered trademarks of Vicon Industries Inc.

VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788

TEL: 516-952-CCTV (2288) FAX: 516-951-CCTV (2288) TOLL FREE: 800-645-9116

UK: 44/(0) 1489-566300 INFOFAX: 1-800-287-1207 WEB: www.vicon-cctv.com

X399 Rev 599 V2000WM Wall Mount Introduction •• 1

Introduction

The information in this instruction manual covers the installation of Model V2000WM Medium-Duty Outdoor Wall

Mount. This unit should only be installed by a qualified technician using approved materials in accordance with

national, state and local codes. Read this manual through completely before attempting installation.

The V2000WM Medium-Duty Outdoor Wall Mount is designed to support camera stations weighing up to a total

of 35 lb (16 kg), including pan-and-tilt or scanner, camera/lens system, and housing. Constructed of molded

Lexan, the V2000WM is suitable for outdoor applications. This unit accepts an optional adjustable head (Model

V2400AH) which provides full 360-degree rotation and a maximum of ± 60-degree tilt angle. If pole mounting is

necessary, the V20A Pole Mounting Adapter is available (see instruction manual X532).

Installation

Note: Use stainless steel hardware for all outdoor mountings.

Bolts or screws should extend through the structure with nuts and washers used on the opposite side. If the

mount must be attached to a blind structure with no access to the rear, make certain that the fasteners or studs

used have a minimum pull-out strength of 400 lb each. Studs should either be anchored in concrete or welded to

steel. (Never use lag screws in the end grain of wood.)

2•• Installation X399 Rev 599 V2000WM Wall Mount

V2000WM Wall Mount

To install the Model V2000WM wall mount, secure the base to the wall with at least four ¼-in. (7 mm) lag screws

or bolts. See Figure 1. Do not overtighten screws. Pull screws snug and then tighten ½ turn beyond snug

position. There are three additional knock-out holes that can be used as required. There is a feed-through hole

for routing cable through the mount. A bushing is supplied to prevent deterioration of the cable.

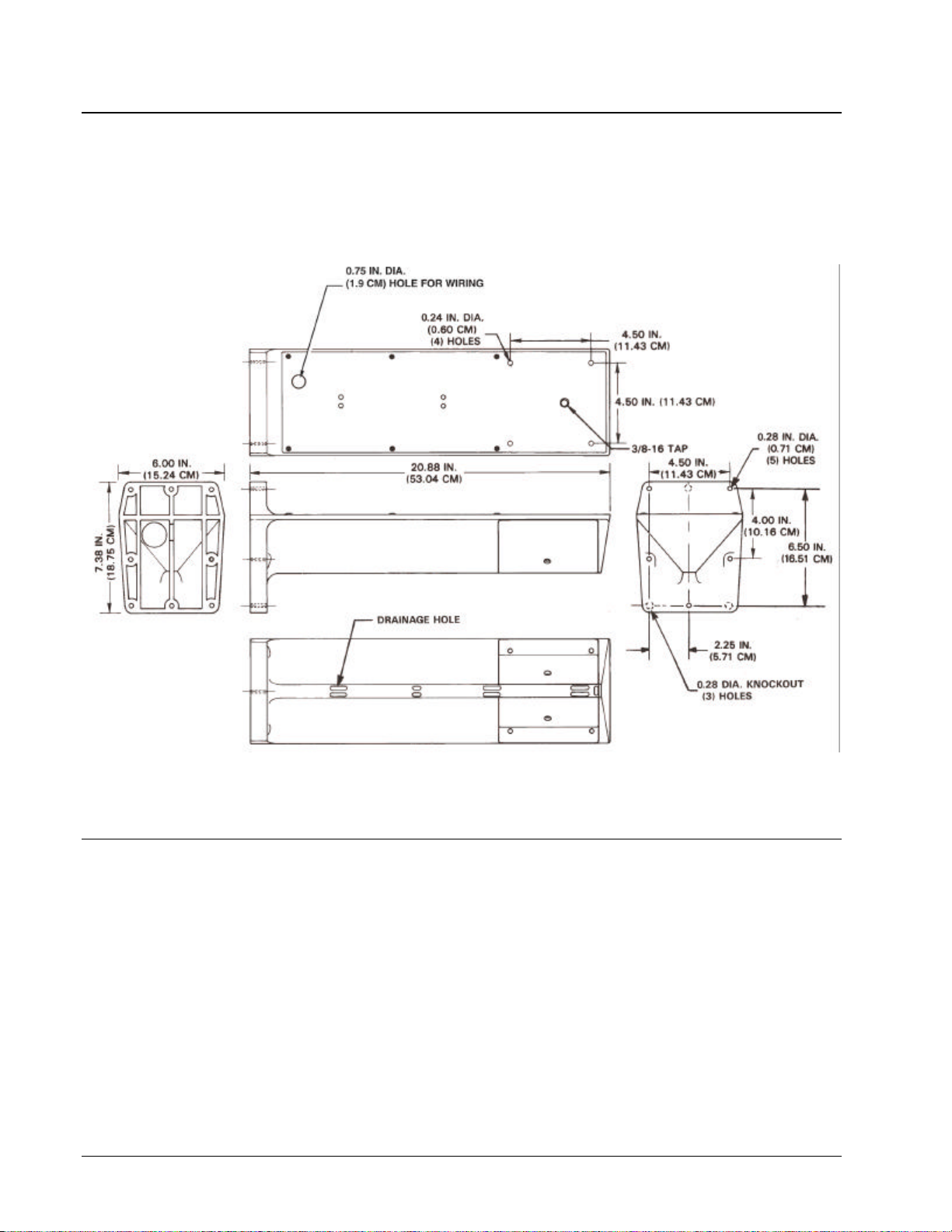

Figure 1

V2000WM Outline Drawing

V2400AH Adjustable Head

The V2400AH Adjustable Head consists of three parts: a circular base, a platform, and a clamping piece, plus

related hardware (3/8 in. hex bolt and washer). Refer to Figure 2.

1. Remove the bolt and washer from the accessory bag. Slide the washer onto the bolt up to the head, and

insert the bolt through the clamp and base. The washer prevents the bolt head from recessing into the

clamp. The threaded portion of the bolt protrudes about 3/8-inch (0.95 cm)from the bottom of the circular

base.

2. Align the adjustable head in the desired direction.

3. Thread the bolt into the threaded hole in the mount. Tighten the bolt finger tight, followed by an additional ½

turn.

X399 Rev 599 V2000WM Wall Mount Maintenance •• 3

Caution: Further tightening could damage the unit. Do not overtighten.

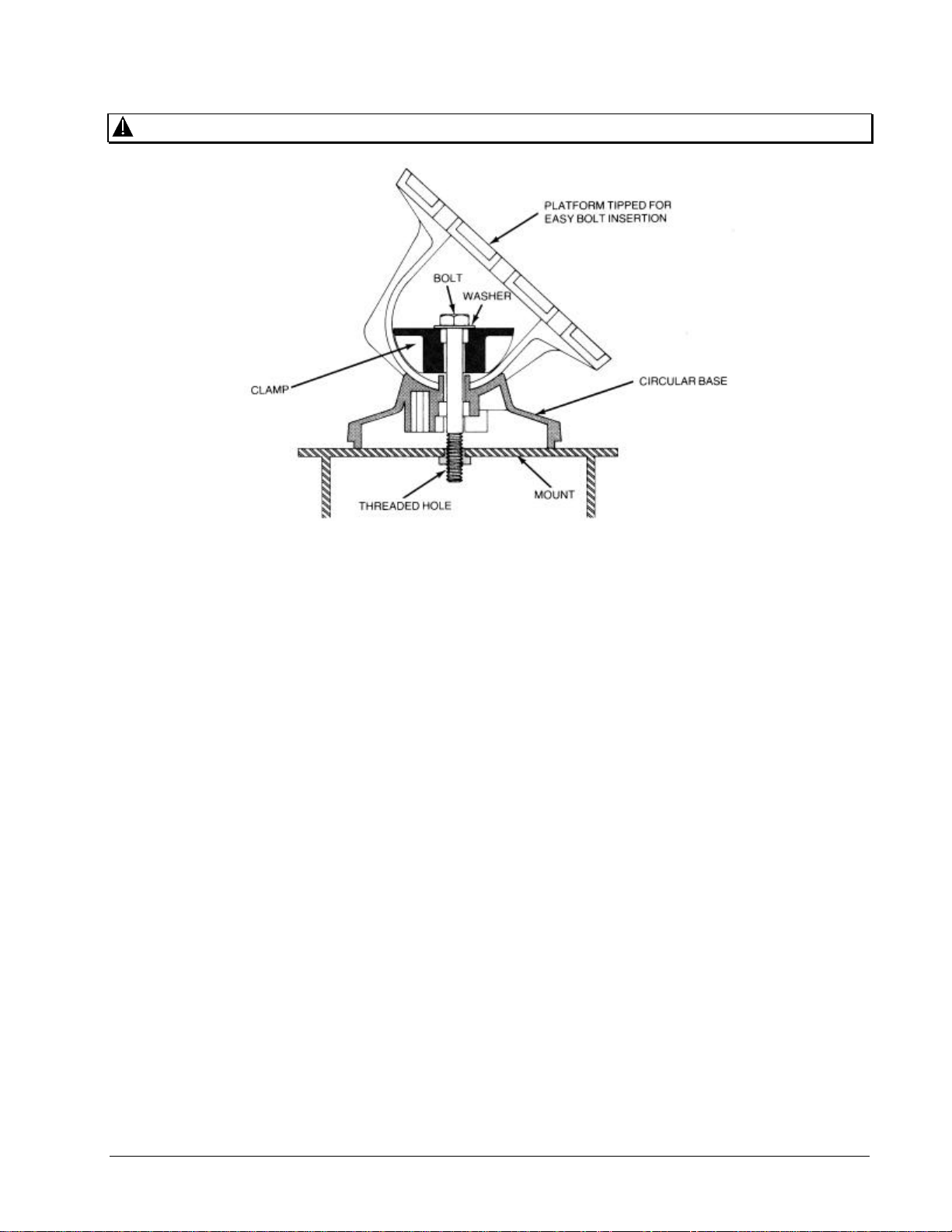

Figure 2

Installation of V2400AH Adjustable Head

Maintenance

Model V2000WM does not require any maintenance other than to clean out the drainage holes periodically (refer

to Figure 1).

4•• Shipping Instructions X399 Rev 599 V2000WM Wall Mount

Shipping Instructions

Use the following procedure when returning a unit to the factory:

1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of

the Vicon employee who issued the R.A.

Vicon Industries Inc.

89 Arkay Drive

Hauppauge, NY 11788

Phone: 516-952-CCTV (2288); Toll-Free: 1-800-645-9116; Fax: 516-951-CCTV (2288)

For service or returns from countries in Europe, contact:

Vicon Industries (U.K.) Ltd

Brunel Way

Fareham, PO15 5TX

United Kingdom

Phone: 44/(0)1489/566300; Fax: 44/(0)1489/566322

2. Attach a sheet of paper to the unit with the following information:

a. Name and address of the company returning the unit

b. Name of the Vicon employee who issued the R.A.

c. R. A. number

d. Brief description of the installation

e. Complete description of the problem and circumstances under which it occurs

f. Unit’s original date of purchase, if still under warranty

3. Pack the unit carefully. Use the original shipping carton or its equivalent for maximum protection.

4. Mark the R.A. number on the outside of the carton on the shipping label.

X399 Rev 599 V2000WM Wall Mount Technical Information •• 5

Technical Information

MECHANICAL

Mounting: Four 1/4-inch lag screws.

Type: Fixed. (Adjustable with V2400AH).

Application: Indoor/Outdoor.

Load Rating: 35 lb (16 kg).

Cable Access: Hole provided in bottom of mount for routing cable.

Dimensions: Height: 7.4 in. (18.8 cm).

Width: 6.0 in. (15.2 cm).

Length: 20.9 in. (53.1 cm).

Weight: 7.2 lb (3.3 kg).

Construction: Molded Lexan.

Finish: Gray.
