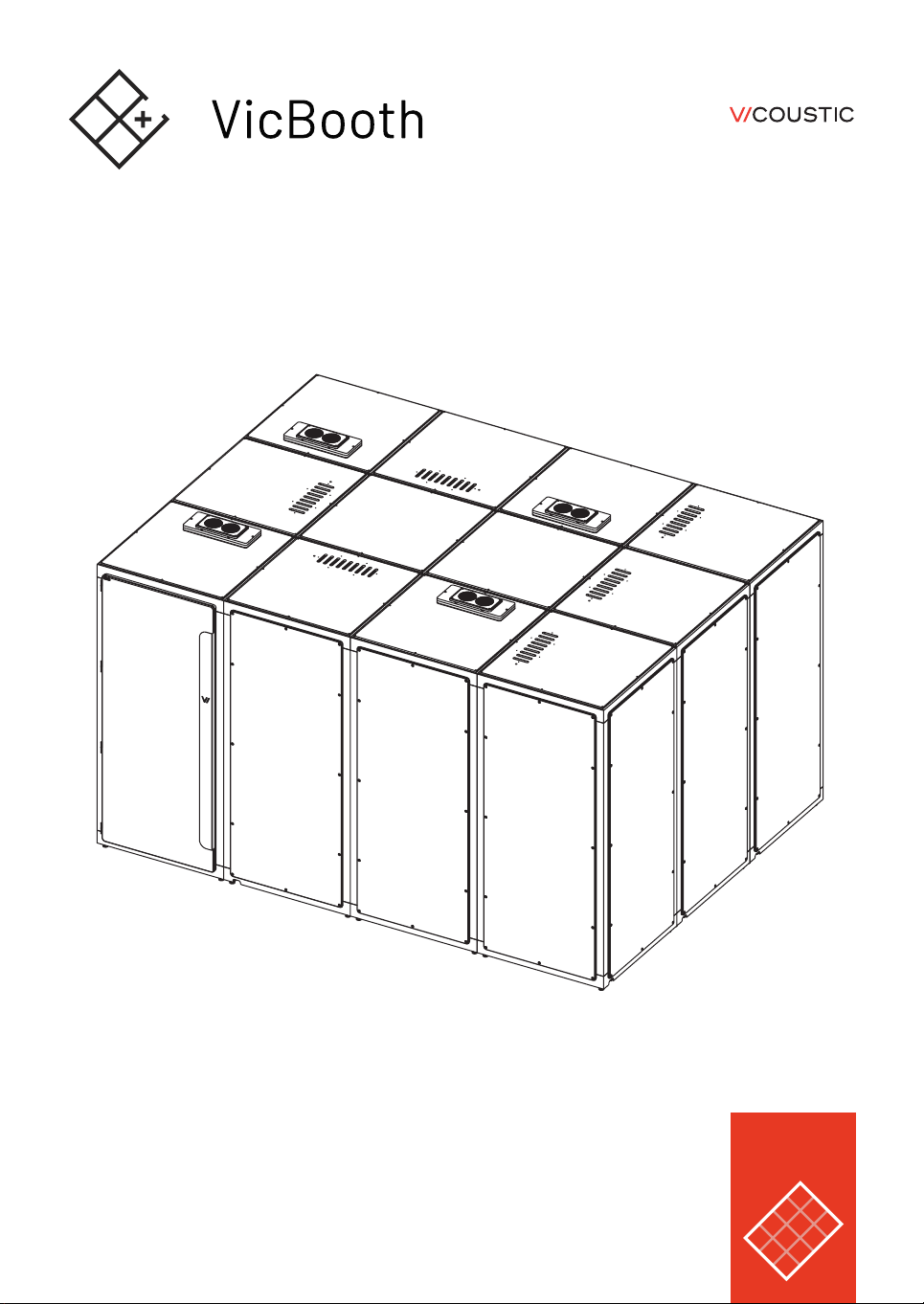

Vicoustic VicBooth Spa Manuale utente
1
3x4
Installation Manual
Spa
2
Included
Material Needed
Lateral | 13 uni.
Door | 1 uni. Floor | 12 uni.
Ceiling | 12 uni.
Structure | 24 uni.
A B C D E F G HJ
192 uni. 96 uni. 96 uni. 78 uni. 312 uni. 78 uni. 36 uni. 6 uni. 96 uni.
K
102 uni. Foam seal
48 uni. 6uni.
V
4 mm | 2 uni. 5 mm | 1 uni.
X
M
48 uni.
I
Q
R
12 uni. 18 uni.
1 uni.
W
24 uni.
P
Y
96 uni.
3
QQ
RR
4 uni. 48 uni. 48 uni.
6 uni.
3 uni.
Not included
Bubble Level Screwdriver | 2 uni.Box Cutter scissors Screwdriver Machine
Ventilation unit | 4 uni.
USB extension cable (0.3m) | 4 uni.
Remote control electrical outlet | 4 uni.USB power adapter | 4 uni.
USB extension cable (3m) | 4 uni. Power Strip | 1 uni.
4
Exploded View
5
1
2
~15mm | 0.59’’
Remove the oor panels and the 3 PET layers from the oor structure.
Unscrew the oor levelers to half their length (about 15 mm - 0.59 in), with exception of the center one, that should
stay fully retracted.
Level the oor structure using the 5mm Hex Key (X) - adjust the center leveler last and make sure it stays in
contact with the oor.
Step’s Material
X5mm Bubble Level
up down
!
The precise leveling of the oor structure is crucial for the correct assembly and operation of the VicBooth - use a
bubble level. Make sure the oor structure is in its nal position - once assembled, the VicBooth should not be moved.
!When walking on top of the VicBooth frame, be careful to only step on the periphery frames.
Avoid placing your feet in the interior of the oor modules.
6
3
scissors
Foam seal
Place the Floor Structures on the ground according to the diagram.
Trim the supplied foam seal to match the base width.
Apply foam seal on one side of the contact surface to ensure an acoustic seal.
Step’s Material
7
4
E
K
E
K
XX
4mm4mm
Step’s Material
Join the oor structures according to the diagram using the 63mm screws (K) and the at heads (E). Use the 4mm
Hex Keys (X).
8
X
5mm Bubble Level
up down
!
5
Step’s Material
Readjust the level of the oor on both axes with the assistance of a bubble level. Once the
structure is levelled on both axes, the center levellers that were collected should be adjusted so that they touch
the oor.
The precise leveling of the oor structure is crucial for the correct assembly and operation of the VicBooth - use
a bubble level. Make sure the oor structure is in its nal position - once assembled, the VicBooth should not be
moved.
!When walking on top of the VicBooth frame, be careful when walking on top of the VicBooth oor, to only
step on the periphery frames. Avoid placing your feet in the interior of the oor modules.
9
A
6
7
B
Insert the wooden dowels (A) in the oor structure according to the diagram.
Screw the metal ttings (B) in the oor structure according to the diagram.
Step’s Material
Step’s Material
10
8Insert the locking cams (C) in the Structure Pillars and insert the wooden dowels (A) in the top end of the
structure pillars.
Step 2
Step’s Material
C
A
1 uni.
Step 1
