Victory VBB-48-B-B Manuale utente
Back Bar Cooler
Standard Features
• Available In Even Increments of 48”, 60” and 72” Widths
• Self-Contained, Capillary Tube Refrigeration System Uses
Environmentally Friendly R-134a Refrigerant
• Sleek, Modern Exterior Design
• Extremely Durable Textured, Black Steel Exterior with a Stainless
Steel Countertop
• Heavy-Duty Reinforced Stainless Steel Floor with Galvanized Steel
Walls and Ceiling
• Threshold Sills are Reinforced with Heavy Gauge Stainless Steel
• Doors Have Replaceable One-Piece Magnetic Perimeter Gaskets
with a Positive Assist Door Closer
• Each Door Has a Cylinder Lock, and Easy Grip Handle
• Two Heavy-Duty Epoxy Coated Shelves are Provided Per Door Section
• Shelves Adjustable on3/4” Increments
• Bright Fluorescent Interior Lighting is Safety Shielded
• An Average of More Than 2” of Energy Saving, High Density,
Polyurethane Insulation Throughout the Cabinet
• Automatic, Non-Electric Condensate Disposal System
• High Efficiency, Quiet Running, Side-Mounted Refrigeration System
• Unique Air Distribution System Chills Product Evenly and Quickly
• “Front Breathing” Design Allows Cabinet to be Recessed
• Refrigeration System Slides Out Providing Easy Access
• Operating Temperature Range 34oF to 38oF
• Listed Under NSF-7 For the Storage and/or Display of Packaged
and Bottled Products
• Two-Year Warranty on Parts and Labor and a Five-Year Warranty on
the Compressor (U.S.A. only)
• Cord and Plug
Optional Features and Accessories
• 6” Adjustable Stainless Steel Legs
• 5” Casters (2 Swivel, 2 with Brakes)
• 3” Casters (2 Swivel, 2 with Brakes)
• Extra Shelves
• Stainless Steel Models (Exterior)
• Low E, Tempered, Double Pane Glass Doors with Black
or Stainless Steel Frames
VBB-48-B-B
VBB-60-B-B
VBB-72-B-B
VBB MODELS —
Textured, Black Steel Exterior
with Stainless Steel Counter Top
and Interior Floor. Galvanized
Steel Interior Walls.
VBB-60-B-B
Victory Refrigeration specification sheets
are available online at www.victory-refrig.com.
Approvals:
Project:
Location:
Item #:
Quantity:
Victory Refrigeration, Inc. I 110 Woodcrest Road I Cherry Hill, NJ 08003 USA I Phone: 856.428.4200 I Fax: 856.428.7299 I E-mail: [email protected]
Victory participates in the KCL CADalog, the most current source of CAD symbols for foodservice designers worldwide. Symbols include
standard equipment in plan, side, front and 3-D views, layered for FEDA/FCSI recommended guidelines.
Continuous product development may necessitate specification changes and design without notice.
Victory
Refrigeration,
Inc. Back
Bar
Cooler
crated dim. & wts.
Ht. Width Depth Lbs
VBB-48-B-B 45 56 34 265
VBB-60-B-B 45 78 34 330
VBB-72-B-B 45 78 34 380
Dimensional tolerance ± 1/4” Metric dimensions (MM)
Copyright January 2007
Printed in U.S.A.
PART OF AGA FOODSERVICE GROUP
CHARACTERISTICS VBB-48-B-B VBB-60-B-B VBB-72-B-B
Width, Overall 48” 60” 72”
Depth, Overall 24” 24” 24”
Height, Overall 36” 36” 36”
Number of Doors 2 2 3
Number of Shelves 4 4 6
Refrigerant R-134a R-134a R-134a
Cabinet Voltage 115/60/1 115/60/1 115/60/1
Condensing Unit Size (HP) 1/4 1/3 1/3
Total Amperes 7.1 8.1 8.1
7<3
7<3#
'2256:,1*
5()5,*(5$7,21
02'8/(
7<3
'22523(1,1*
7<3
'22523(1,1*
7<3
7<3#
'2256:,1*
5()5,*(5$7,21
02'8/(
VBB-60-B-B VBB-48-B-B & VBB-72-B-B
7<3
'22523(1,1*
7<3
'22523(1,1*
5()

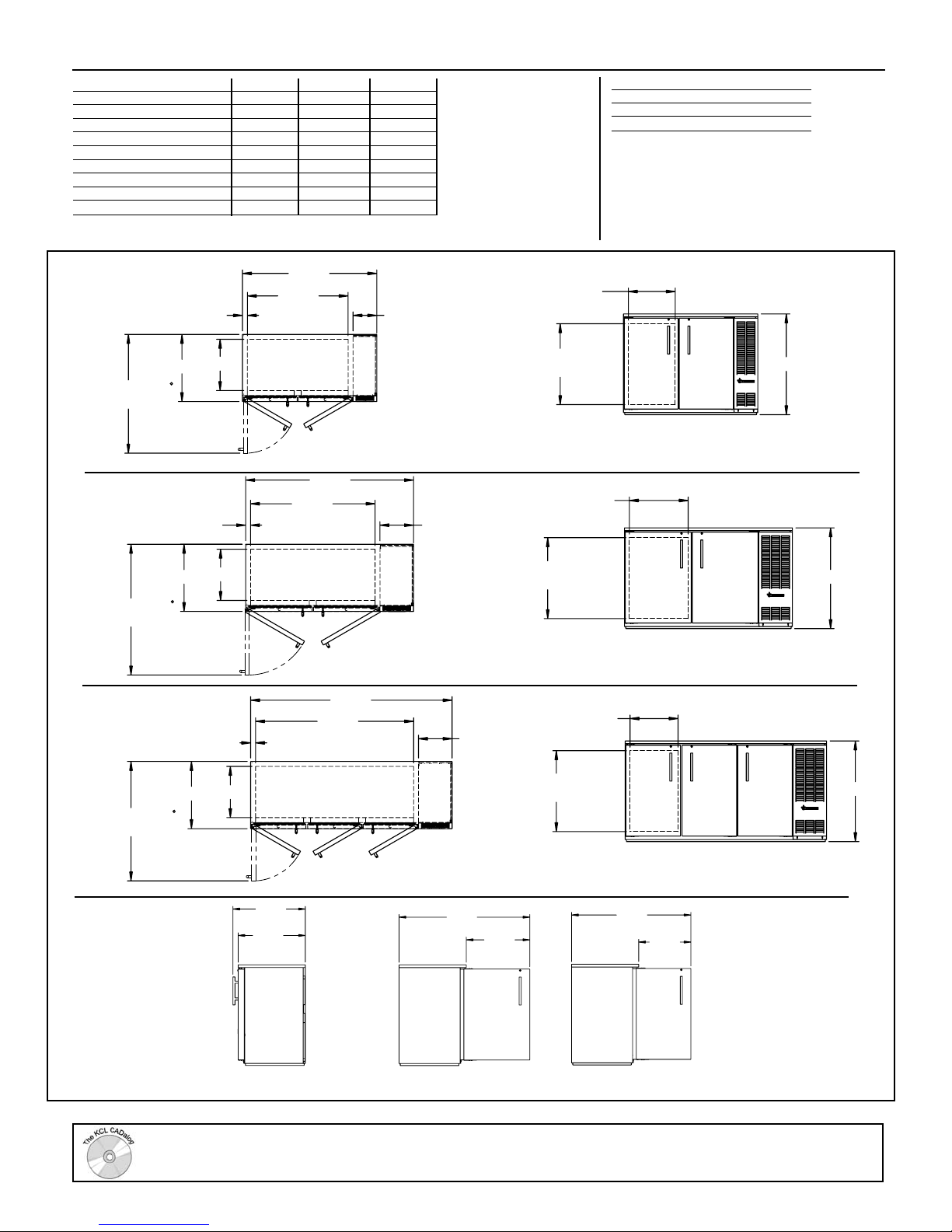

Side View
