BlueSolar charge controllers

MPPT 150/45-Tr MPPT 150/45-MC4

MPPT 150/60-Tr MPPT 150/60-MC4

MPPT 150/70-Tr MPPT 150/70-MC4

EN NL FR DE ES SE Appendix

1. General Description

1.1 PV voltage up to 100V

The charge controller is able to charge a lower nominal-voltage

battery from a higher nominal voltage PV array.

The controller will automatically adjust to a 12 or 24V nominal

battery voltage.

1.2 Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is

changing continuously, an ultra fast MPPT controller will improve

energy harvest by up to 30% compared to PWM charge

controllers and by up to 10% compared to slower MPPT

controllers.

1.3 Advanced Maximum Power Point Detection in case of

partial shading conditions

If partial shading occurs, two or more maximum power points may

be present on the power-voltage curve.

Conventional MPPTs tend to lock to a local MPP, which may not

be the optimum MPP.

The innovative BlueSolar algorithm will always maximize energy

harvest by locking to the optimum MPP.

1.4 Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. Full output

current up to 40°C (104°F).

1.5 Extensive electronic protection

Over-temperature protection and power derating when

temperature is high.

PV short circuit and PV reverse polarity protection.

PV reverse current protection.

1.6 Internal temperature sensor

Compensates absorption and float charge voltages for

temperature. (range 6°C to 40°C)

1.7 Optional external voltage and temperature sensor

(range -20°C to 50°C)

The Smart Battery Sense is a wireless battery voltage-and-

temperature sensor for Victron MPPT Solar Chargers. The Solar

Charger uses these measurements to optimize its charge

parameters. The accuracy of the data it transmits will improve

battery charging efficiency, and prolong battery life (VE.Direct

Bluetooth Smart dongle needed).

Alternatively, Bluetooth communication can be set up between a

BMV-712 battery monitor with battery temperature sensor and the

solar charge controller

(VE.Direct Bluetooth Smart dongle needed). For more detail

please enter smart networking in the search box on our website.

1.8 Automatic battery voltage recognition

The controllers will automatically adjust to a 12V, 24V or a 48V

system one time only. If a different system voltage is required at

a later stage, it must be changed manually, for example with the

Bluetooth app, see section 1.10.

1.9 Flexible charge algorithm

Fully programmable charge algorithm, and eight preprogrammed

algorithms, selectable with a rotary switch.

1.10 Adaptive three step charging

The BlueSolar MPPT Charge Controller is configured for a three

step charging process: Bulk – Absorption – Float.

A regular equalization charge can also be programmed: see

section 3.8 of this manual.

1.10.1. Bulk

During this stage the controller delivers as much charge current

as possible to rapidly recharge the batteries.

1.10.2. Absorption

When the battery voltage reaches the absorption voltage setting,

the controller switches to constant voltage mode.

When only shallow discharges occur the absorption time is kept

short in order to prevent overcharging of the battery. After a deep

discharge the absorption time is automatically increased to make

sure that the battery is completely recharged. Additionally, the

absorption period is also ended when the charge current

decreases to less than 2A.

1.10.3. Float

During this stage, float voltage is applied to the battery to

maintain it in a fully charged state.

1.10.4. Equalization

See section 3.8

1.11 Remote on-off

VE.Direct non inverting remote on-off cable (ASS030550300)

needed. An input HIGH (Vi > 8V) will switch the controller on, and

EN NL FR DE ES SE Appendix

an input LOW (V < 2V, or free floating) will switch the controller

off.

Application example: on/off control by a VE.Bus BMS when

charging Li-ion batteries.

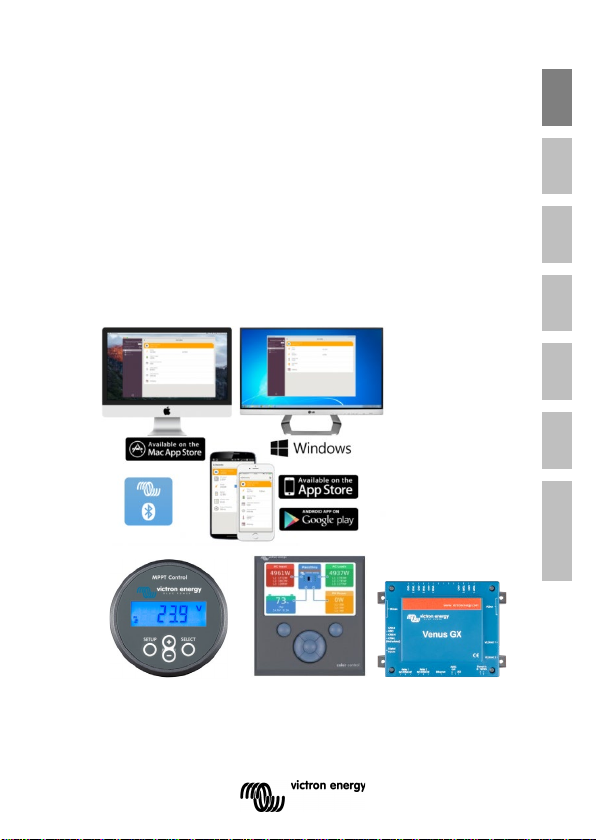

1.12 Configuring and monitoring

Configure the solar charge controller with the VictronConnect

app. Available for iOS & Android devices; as well as macOS and

Windows computers. An accessory might be required; enter

victronconnect in the search box on our website and see the

VictronConnect download page for details.

For simple monitoring, use the MPPT Control; a panel mounted

simple yet effective display that shows all operational parameters.

Full system monitoring including logging to our online portal,

VRM, is done using the GX Product range

MPPT Control

Color Control

Venus GX

2. IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS - This manual contains

important instructions that shall be followed during

installation and maintenance.

● Please read this manual carefully before the product is

installed and put into use.

● This product is designed and tested in accordance with

international standards. The equipment should be used for the

designated application only.

● Install the product in a heatproof environment. Ensure

therefore that there are no chemicals, plastic parts, curtains or

other textiles, etc. in the immediate vicinity of the equipment.

● The product is not allowed to be mounted in a user accessible

area.

● Ensure that the equipment is used under the correct operating

conditions. Never operate it in a wet environment.

● Never use the product at sites where gas or dust explosions

could occur.

● Ensure that there is always sufficient free space around the

product for ventilation.

● Refer to the specifications provided by the manufacturer of the

battery to ensure that the battery is suitable for use with this

product. The battery manufacturer's safety instructions should

always be observed.

●Protect the solar modules from incident light during

installation, e.g. cover them.

● Never touch uninsulated cable ends.

● Use only insulated tools.

● Connections must always be made in the sequence described

in section 3.5.

● The installer of the product must provide a means for cable

strain relief to prevent the transmission of stress to the

connections.

Danger of explosion from sparking

Danger of electric shock

EN NL FR DE ES SE Appendix

● In addition to this manual, the system operation or service

manual must include a battery maintance manual applicable to

the type of batteries used.

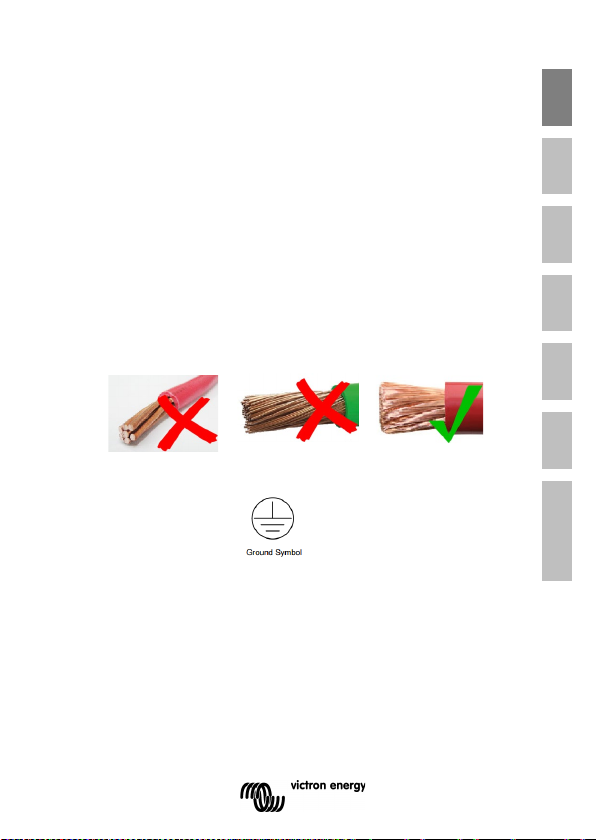

● Use flexible multistranded copper cable for the battery and PV

connections.

The maximum diameter of the individual strands is

0,4mm/0,125mm² (0.016 inch/AWG26).

A 25mm² cable, for example, should have at least 196 strands

(class 5 or higher stranding according to VDE 0295, IEC 60228

and BS6360).

An AWG2 gauge cable should have at least 259/26 stranding

(259 strands of AWG26).

Maximum operating temperature: ≥ 90°C.

Example of suitable cable: class 5 “Tri-rated” cable (it has three

approvals: American (UL), Canadian (CSA) and British (BS))

In case of thicker strands the contact area will be too small

and the resulting high contact resistance will cause severe

overheating, eventually resulting in fire.

● The grounding terminal is located in the wiring compartment

and is identified by the symbol below:

3. Installation

WARNING: DC INPUT NOT ISOLATED FROM BATTERY

CIRCUIT

CAUTION: FOR PROPER TEMPERATURE COMPENSATION

THE AMBIENT CONDITION FOR CHARGER AND BATTERY

MUST BE WITHIN 5°C.

3.1 General

● Mount vertically on a non-flammable surface, with the power

terminals facing downwards. Observe a minimum clearance of

10 cm under and above the product for optimal cooling.

● Mount close to the battery, but never directly above the

battery (in order to prevent damage due to gassing of the

battery).

● Improper internal temperature compensation (e.g. ambient

condition battery and charger not within 5°C) can lead to

reduced battery lifetime.

We recommend using a direct battery voltage sense source

(BMV, Smart Battery Sense or GX device shared voltage sense)

if larger temperature differences or extreme ambient

temperature conditions are expected.

● Battery installation must be done in accordance with the

storage battery rules of the Canadian Electrical Code, Part I.

● The battery connections (and for Tr version also PV

connections) must guarded against inadvertent contact

(e.g. install in an enclosure or install the optional WireBox).

Tr models: use flexible multistranded copper cable for the battery

and PV connections: see safety instructions.

MC4 models: several splitter pairs will be needed to parallel the

strings of solar panels. Do not exceed the maximum current

rating of 25A per connector pair

External battery protection fuse*

Charger Type

Battery Fuse Rating

Minimum

maximum

MPPT150|45

50A

63A

MPPT150|60

70A

80A

MPPT150|70

80A

100A

* The battery fuse must comply with C22.2 standards

EN NL FR DE ES SE Appendix

3.2 Grounding

● Battery grounding: the charger can be installed in a positive or

negative grounded system.

Note: apply a single ground connection to prevent

malfunctioning of the system.

● Chassis grounding: A separate earth path for the chassis

ground is permitted because it is isolated from the positive and

negative terminal.

● The USA National Electrical Code (NEC) requires the use of

an external ground fault protection device (GFPD). The

Victron MPPT chargers do not have internal ground fault

protection. The system electrical negative should be bonded

through a GFPD to earth ground at one (and only one)

location.

● The plus and minus of the PV array should not be grounded.

Ground the frame of the PV panels to reduce the impact of

lightning.

WARNING: WHEN A GROUND FAULT IS INDICATED,

BATTERY TERMINALS AND CONNECTED CIRCUITS MAY BE

UNGROUNDED AND HAZARDOUS.

3.3 PV configuration (also see the MPPT Excel sheet on our

website)

● Provide a means to disconnect all current-carrying

conductors of a photovoltaic power source from all other

conductors in a building or other structure. A switch, circuit

breaker, or other device, either ac or dc, shall not be installed

in a grounded conductor if operation of that switch, circuit

breaker, or other device leaves the marked, grounded

conductor in an ungrounded and energized state.

● The controllers will operate only if the PV voltage exceeds

battery voltage (Vbat).

● PV voltage must exceed Vbat + 5V for the controller to start.

Thereafter minimum PV voltage is Vbat + 1V.

● Maximum open circuit PV voltage: 150V.

For example:

24V battery and mono- or polycristalline panels

● Minimum number of cells in series: 72 (2x 12V panel in series

or one 24V panel).

● Recommended number of cells for highest controller

efficiency: 144 cells (4x 12V panel or 2x 24V panel in series).

● Maximum: 216 cells (6x 12V or 3x 24V panel in series).

48V battery and mono- or polycristalline panels

● Minimum number of cells in series: 144

(4x 12V panel or 2x 24V panel in series).

● Maximum: 216 cells.

Remark: at low temperature the open circuit voltage of a 216 cell

solar array may exceed 150V, depending on local conditions and

cell specifications. In that case the number of cells in series must

be reduced.

3.4 Cable connection sequence (see figure 1)

First: connect the battery.

Second: connect the solar array (when connected with reverse

polarity, the controller will heat up but will not charge the battery).

Torque: 2,4 Nm

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Victron energy Controllori

Victron energy

Victron energy SHS 200 MPPT Manuale utente

Victron energy

Victron energy CCGX Istruzioni operative

Victron energy

Victron energy BlueSolar PWM-Pro Series Manuale utente

Victron energy

Victron energy Bluesolar-5 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 100/50 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 70/15 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 75/10 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 75/15 Manuale utente

Victron energy

Victron energy Cerbo GX Manuale utente

Victron energy

Victron energy BlueSolar MPPT 150/70 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 75/10 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 150/35 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 100/30 Manuale utente

Victron energy

Victron energy BlueSolar 100/50A Manuale utente

Victron energy

Victron energy BlueSolar PWM 12V 24V 5A Manuale utente

Victron energy

Victron energy BlueSolar MPPT 75/10 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 75/10 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 75/50 Manuale utente

Victron energy

Victron energy BlueSolar MPPT 150/45-Tr Manuale utente

Victron energy

Victron energy CCGX Manuale utente

Victron energy

Victron energy SmartSolar MPPT 150/35 Manuale utente

Victron energy

Victron energy Color Control GX Guida all'installazione

Victron energy

Victron energy BlueSolar MPPT 150/60-MC4 Manuale utente

Victron energy

Victron energy NV-48030 Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
