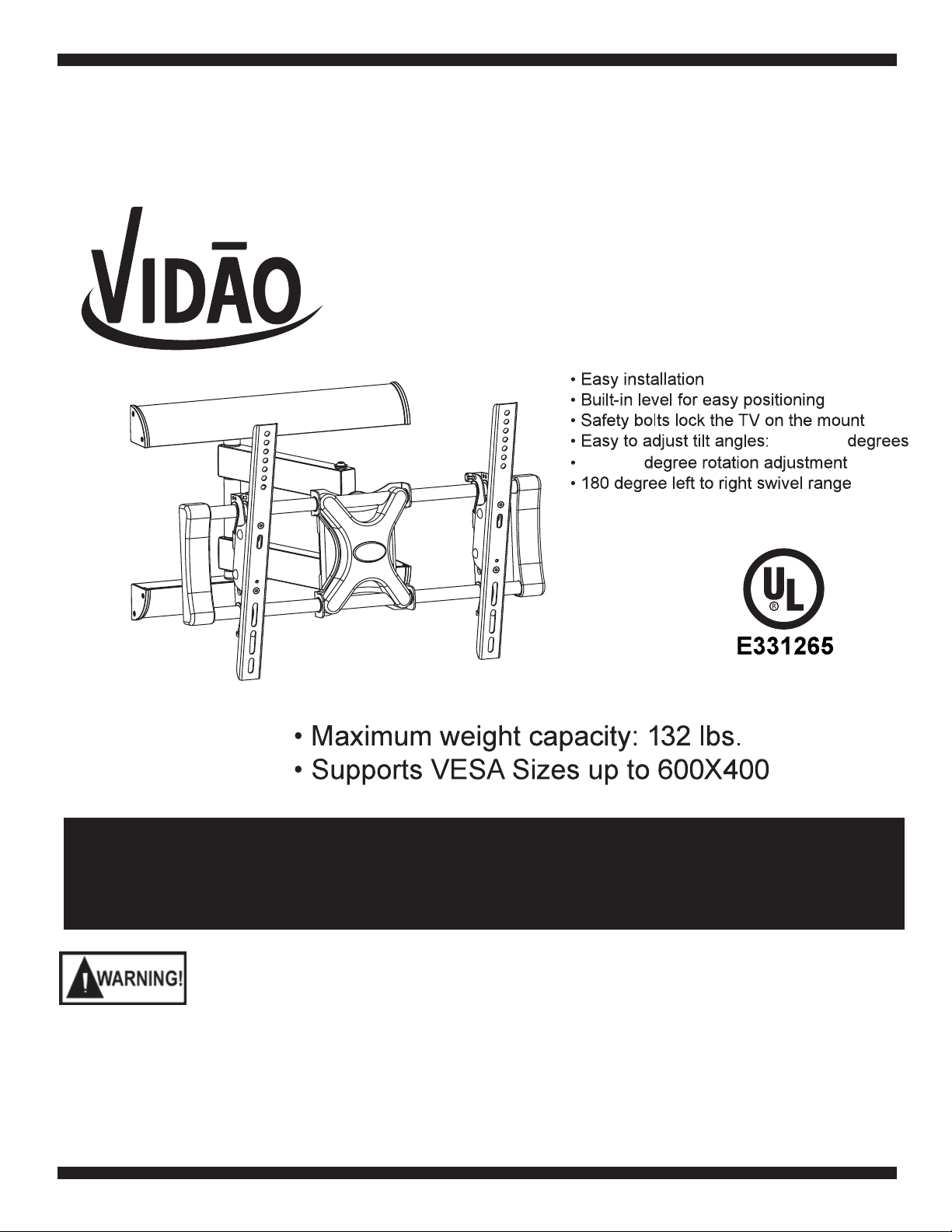

Vidao V5760STC Manuale utente
Swiveling, Tilting Rotating
Flat Panel Wall Mount
Installation Guide
Model: V5760STC
• Supports most 32”- 80” Flat Panel TVs
+5 to -5
+5 to -15
For technical assistance or troubleshooting
please call 1-855-998-4326.
This product Wall Mount frame is intended for use only with an apparatus which has a maximum weight of 132 lbs. See apparatus
instructions. Using with an apparatus heavier than the maximum weight indicated may result in instability and cause possible
injury.
READ THIS FIRST
Read this entire manual! Do not attempt to install this product if you do not understand the instructions. Contact a qualified
mount installer if you have any doubts about a safe and secure mount installation, or if you are not sure what specific wall
materials you are attaching this mount to. Check all the parts carefully to make sure there are no missing or damaged parts.
Improper installation may result in damage to your TV, property, and personal injury.
This product is intended only to mount a television of the indicated size and weight. Using this
product to mount televisions heavier than the maximum weight capacity can damage equip-
ment and cause personal injury.
Schoenfeld International Inc. and VIDAO are not responsible for personal injury or product
damage due to mishandling, incorrect mounting, incorrect assembly, or incorrect use of this
product.
How and where you use your television wall mount is extremely important for Child Safety
As you set up and use your new product, keep all of these safety tips in mind.
• One size of TV wall mount does not fit all TVs. Use only a TV wall mount rated for the weight
of your TV and the size of your screen. Your TV wall mount assembly instructions contains
specific information on the maximum weight and screen size combination that your wall
mount can safely support. Do not exceed the maximum weight of screen size for any TV wall
mount.
• Carefully read all of enclosed instructions for proper use of this product. If you have any
doubts about safe and secure assembly, please contact a professional.
• Don’t let children climb on or play with mounts or TVs.
• Remember that children can become excited while watching a program, especially on a
“larger than life” TV. Make sure to place or install the TV wall mount where it cannot be
pushed, pulled on, or knocked down.
• Make sure that you route all cords and cables so that they cannot be pulled or grabbed by
curious children.
Always wear safety goggles to when drilling or installing hardware.
Tools
For your convenience, we have included an allen wrench and a socket tool with this mount. For the
best assembly experience and mounting safety, we always recommend using full-size tools for
each assembly steps.
Below is a recommended tool list you will need for proper and safe installation. See applicable
warnings in this manual about certain types of mounting surface materials and the special hard-
ware and tools that should be used.
• Drill with a specific size drill bit to pre-drill holes in the wall
• Stud finder
• Tape measure
• Pencil
• Screw drivers
• Socket wrenches
• Small hammer
• Safety goggles

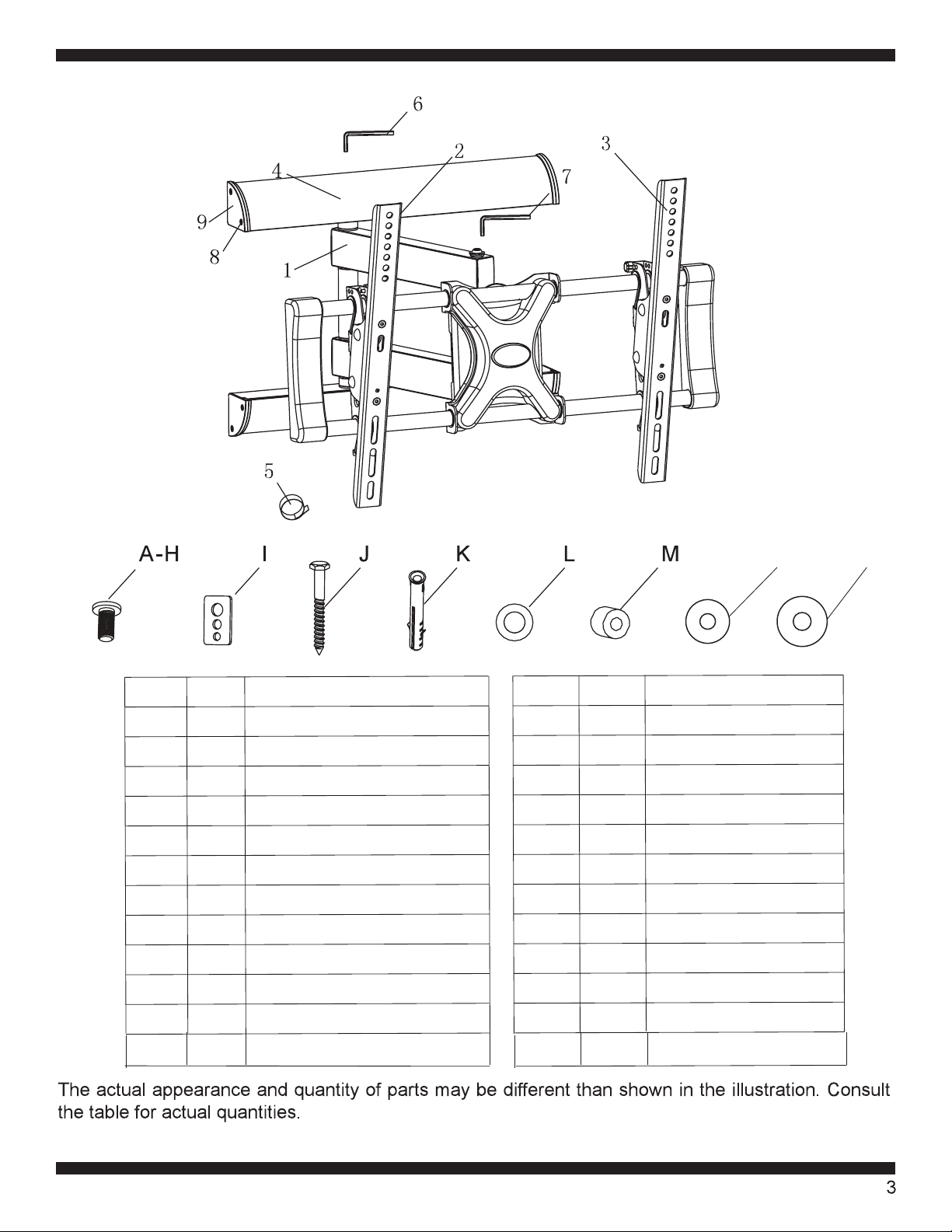

Right bracket
4
I
J
K
L
Square washer
Long bolts
Wall anchors
Long bolt washers
Spacers
Description
Arm assembly
Left bracket
M8×25mm bolts
D4
4
4
4
4
E
F
G
ID Description
Qty
Plastic covers
6mm allen wrench
M4x20mm bolts
ID
1
2
4
A
3
5
B
C
1
1
2
4
1
3
4
4
Qty
7
62
2
Cable management clips
9
88
4
M4x30mm bolts
M5x20mm bolts
M5x30mm bolts
M6x25mm bolts
M6x40mm bolts
M8×45mm bolts
M4/M5 washers
M6/M8 washers
M
5mm allen wrench
Tapping screws
Plastic side covers
H
4
6
6
6
4
12
N
O
NO
A-H

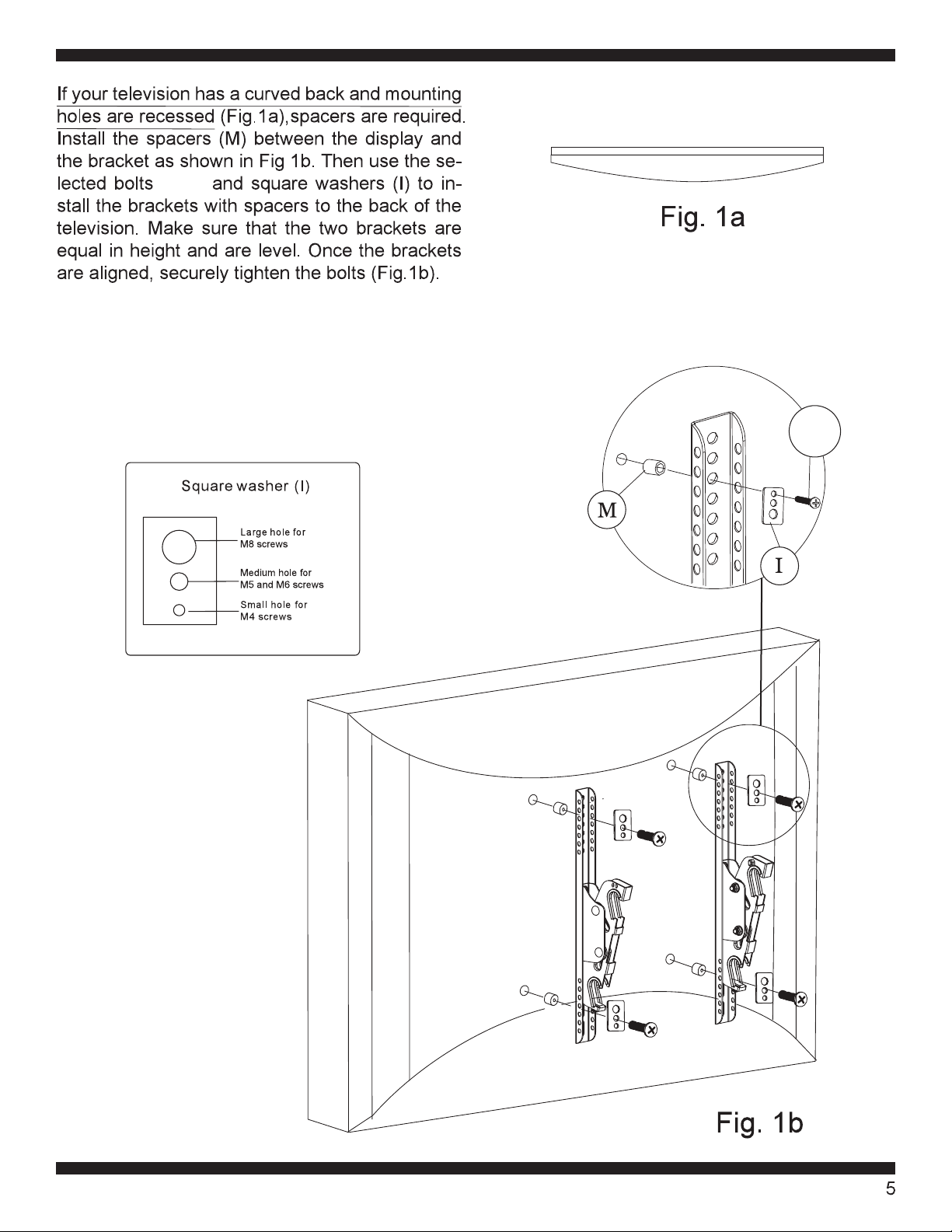

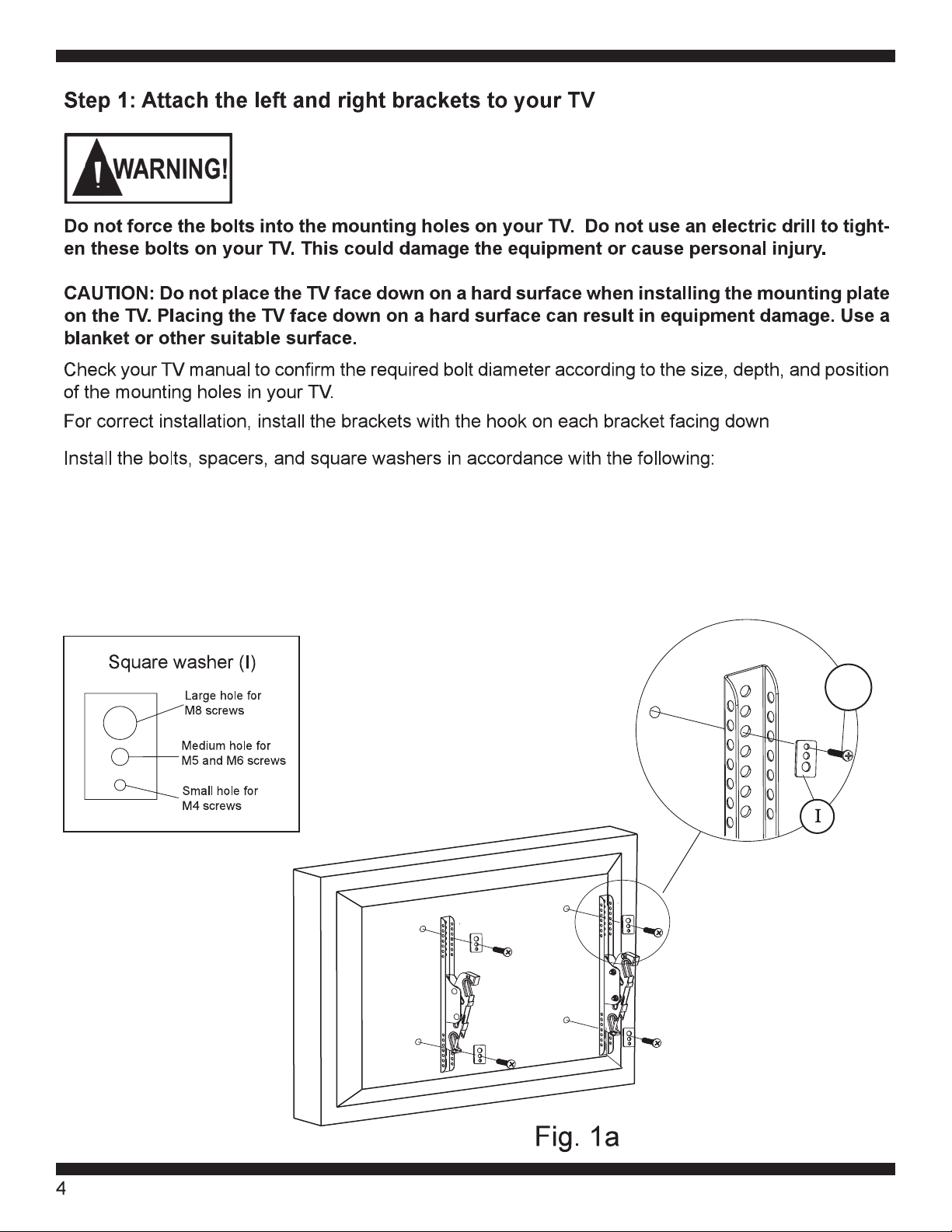

If your television has a straight back, spacers are not required. Use the selected bolts (A-H) and
square washers (I) to install the bracket directly on the back of the television as shown in Fig 1a. Make
sure that the two brackets are equal in height and are level. Once the brackets are aligned, securely
tighten the bolts.
bracket snug to the rear of the TV without over tightening.
If necessary, use additional washers (N, O) to make sure the bolts (A-H) keep the
A-H
(A-H)
If necessary, use additional washers (N, O) to
make sure the the bolts (A-H) keep the bracket
snug to the rear of the TV without over tightening.

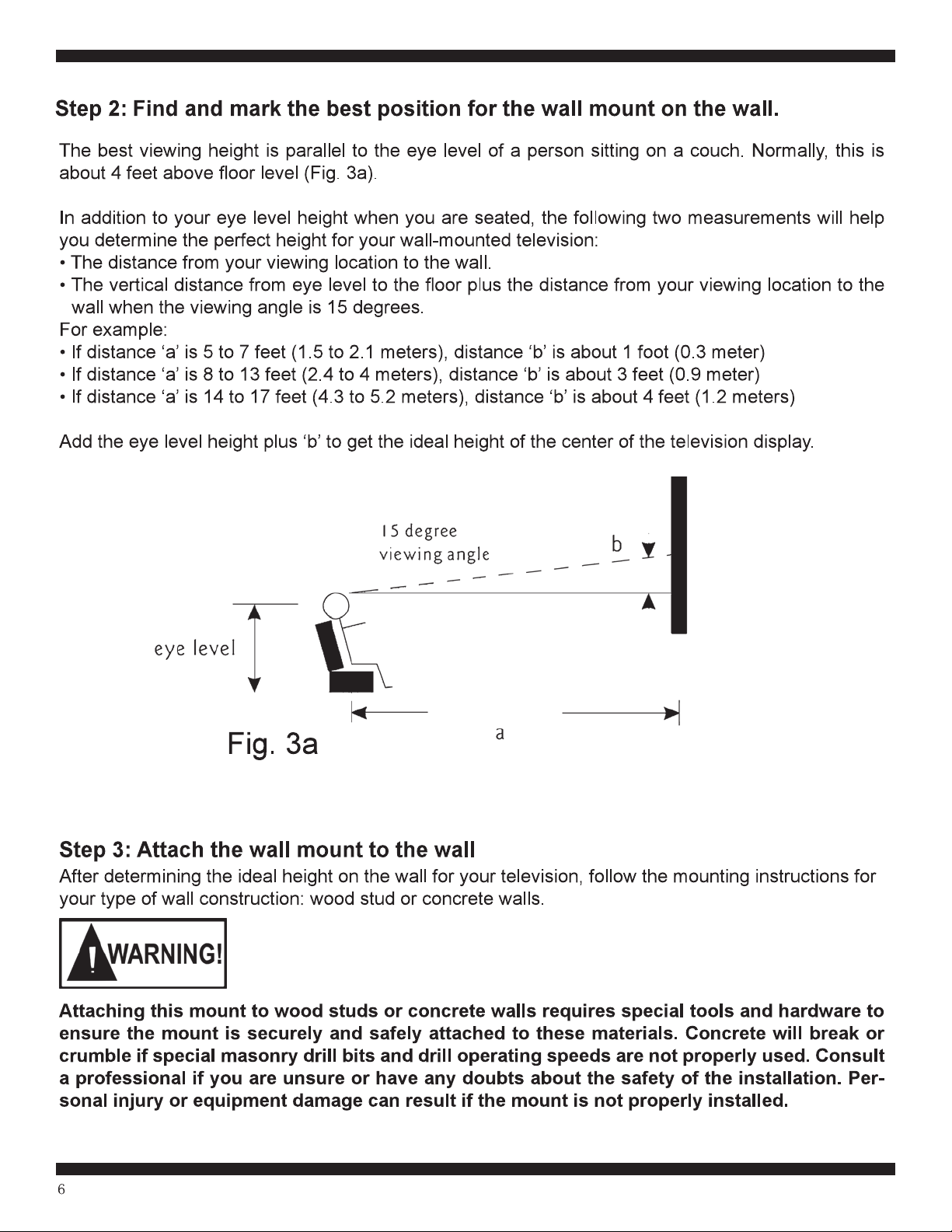

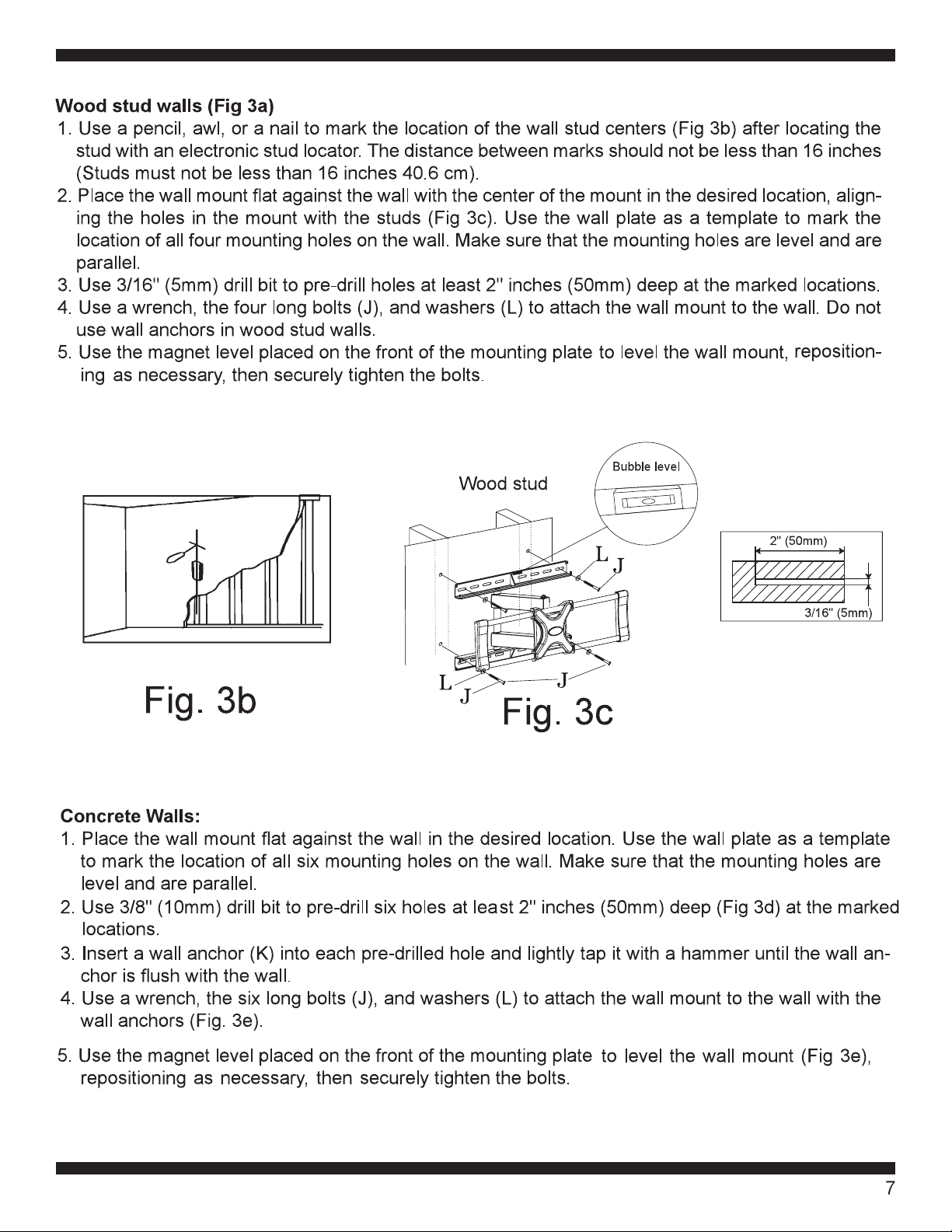

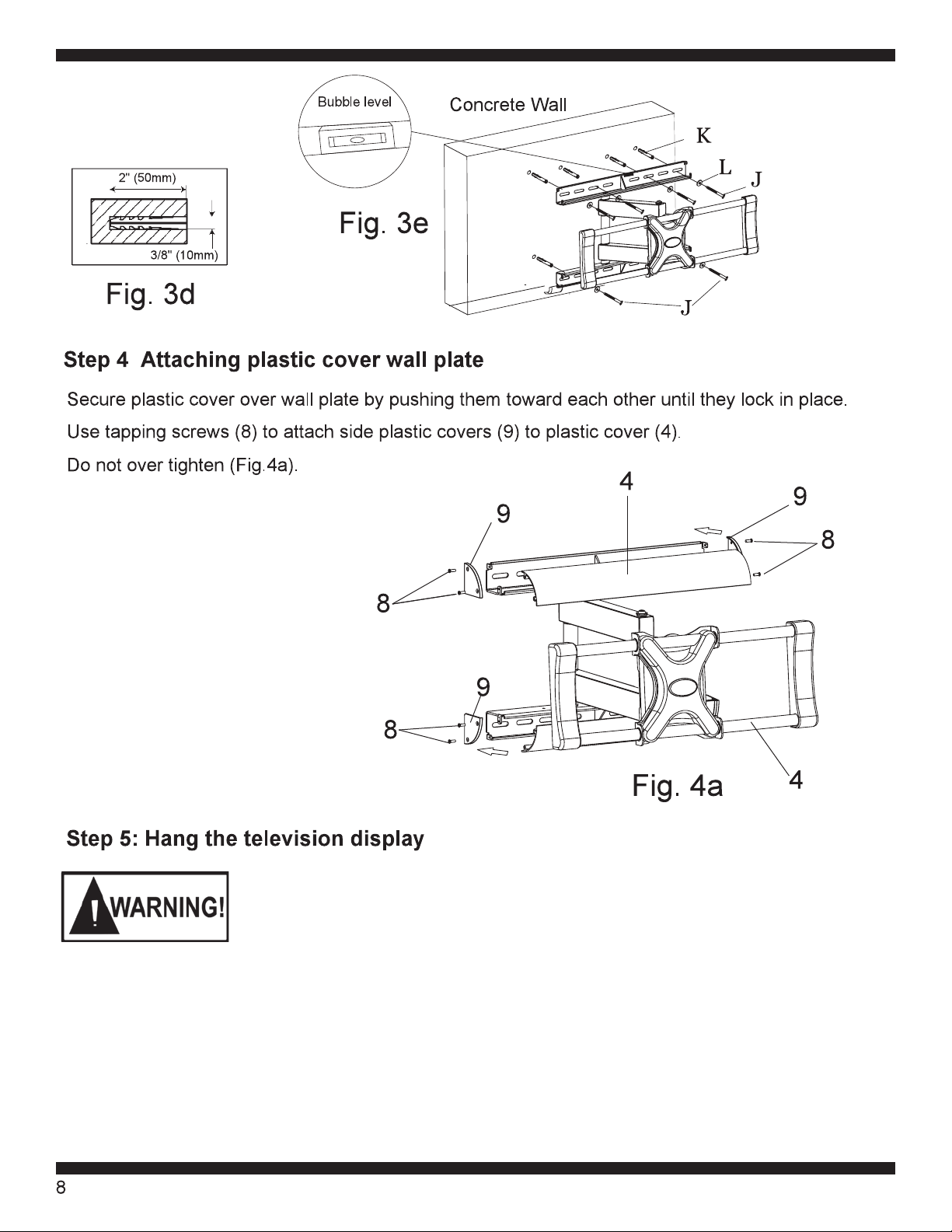

A large television requires two people to lift. Schoenfeld International Inc. and VIDAO are not
responsible for equipment damage or personal injury due to mishandling.

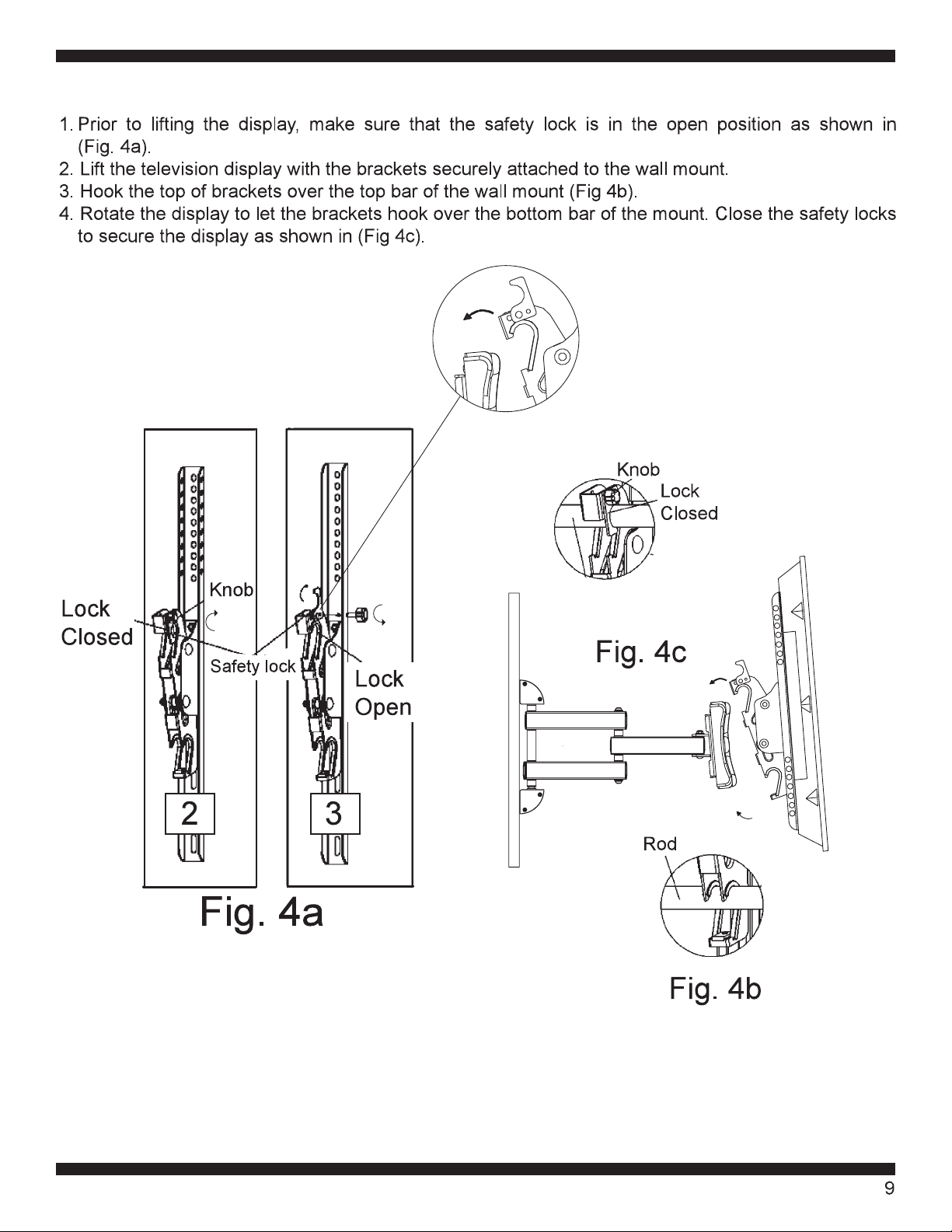

Do not release the TV until you are sure that it is securely mounted. Releasing the TV without
first ensuring that it is securely installed can result in equipment damage or personal injury.

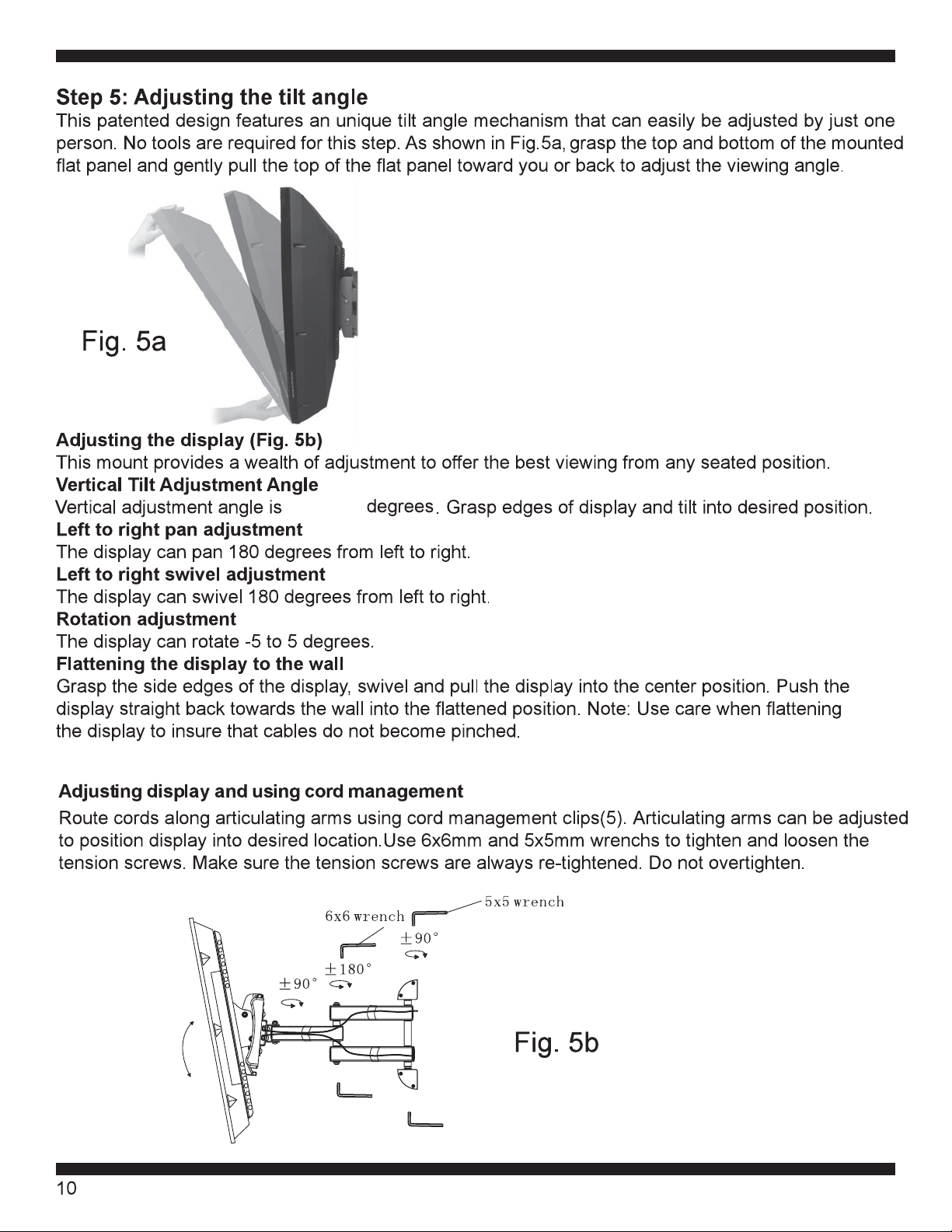

+5° to -15°
+5 to -15
