Product Installation
∅½’’
ID 15
ID 19.2
AF 24
220
8
The Vitocell-H 100 tank is approved for
heating systems ith a maximum DHW
supply of up to 150 °F / 65.6 °C only.
Sensor Well
Vitocell-H 100,
with 42 and 53 USG / 160 and 200 ltr
capacity
Vitocell-H 100 domestic hot ater
tank positioned under the boiler
Please note that only the boiler/tank
combinations stated in the Price List are
possible.
Backflo preventers
Where backflow pre enters are required, a
domestic water expansion tank installation
is recommended in the cold water inlet
piping before the cold water enters the
Vitocell. For the backflow de ice, obser e
local plumbing codes and regulations.
Temperature and pressure
relief valve
A temperature and pressure relief al e
(T&P relief al e) is supplied with the tank.
The heating contractor must install the al e
on each tank in a method meeting code
requirements. If local codes require a
different relief al e, substitute the al e
supplied by the manufacturer. The tank is
appro ed for 150 psig. Maximum operating
pressure is 150 psig.
The T&P relief al e supplied with the tank
is tested under ANSI Z21.22 code for Relief
Val es and Automatic Gas Shut-off De ices
for Hot Water Supply Systems.
Since the heat exchanger coil allo s for

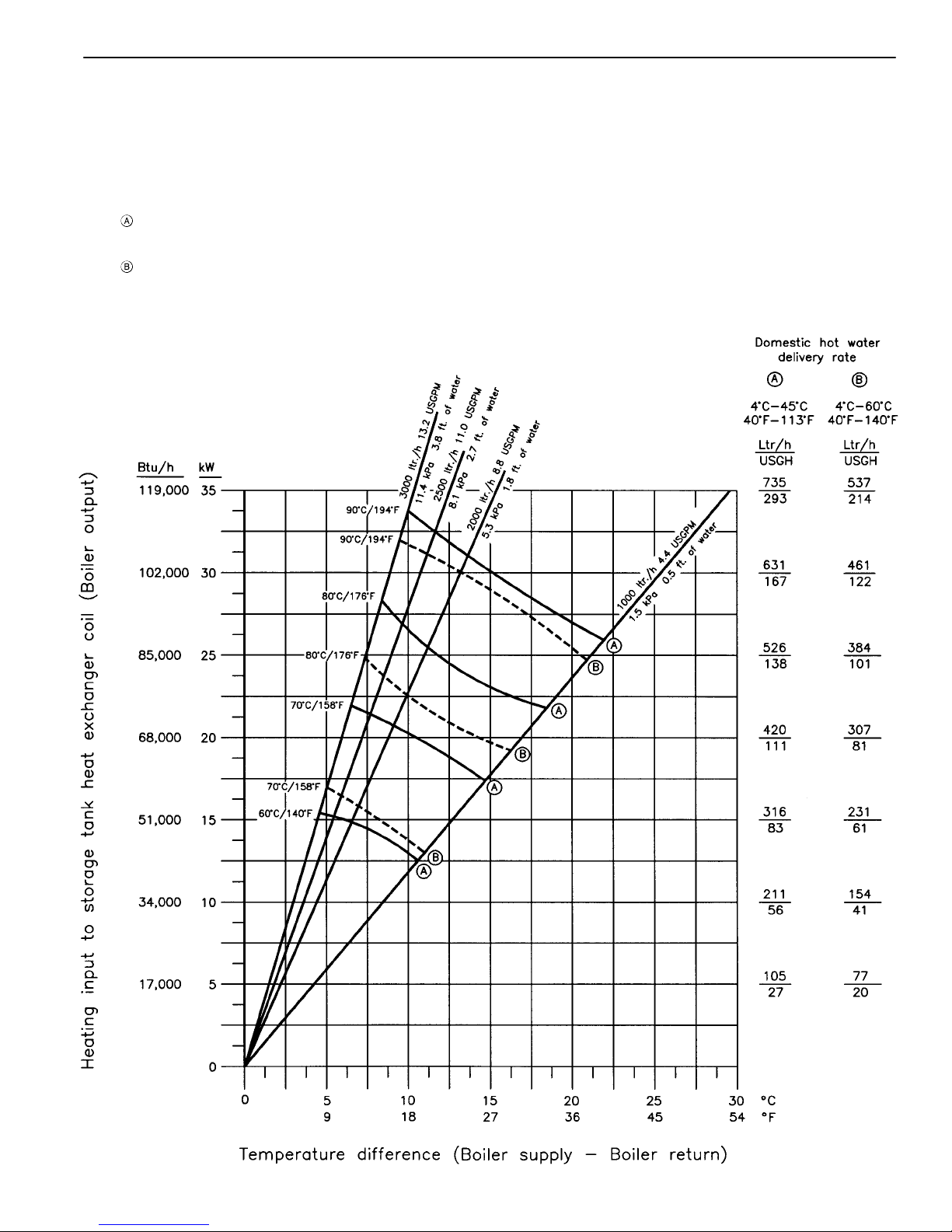

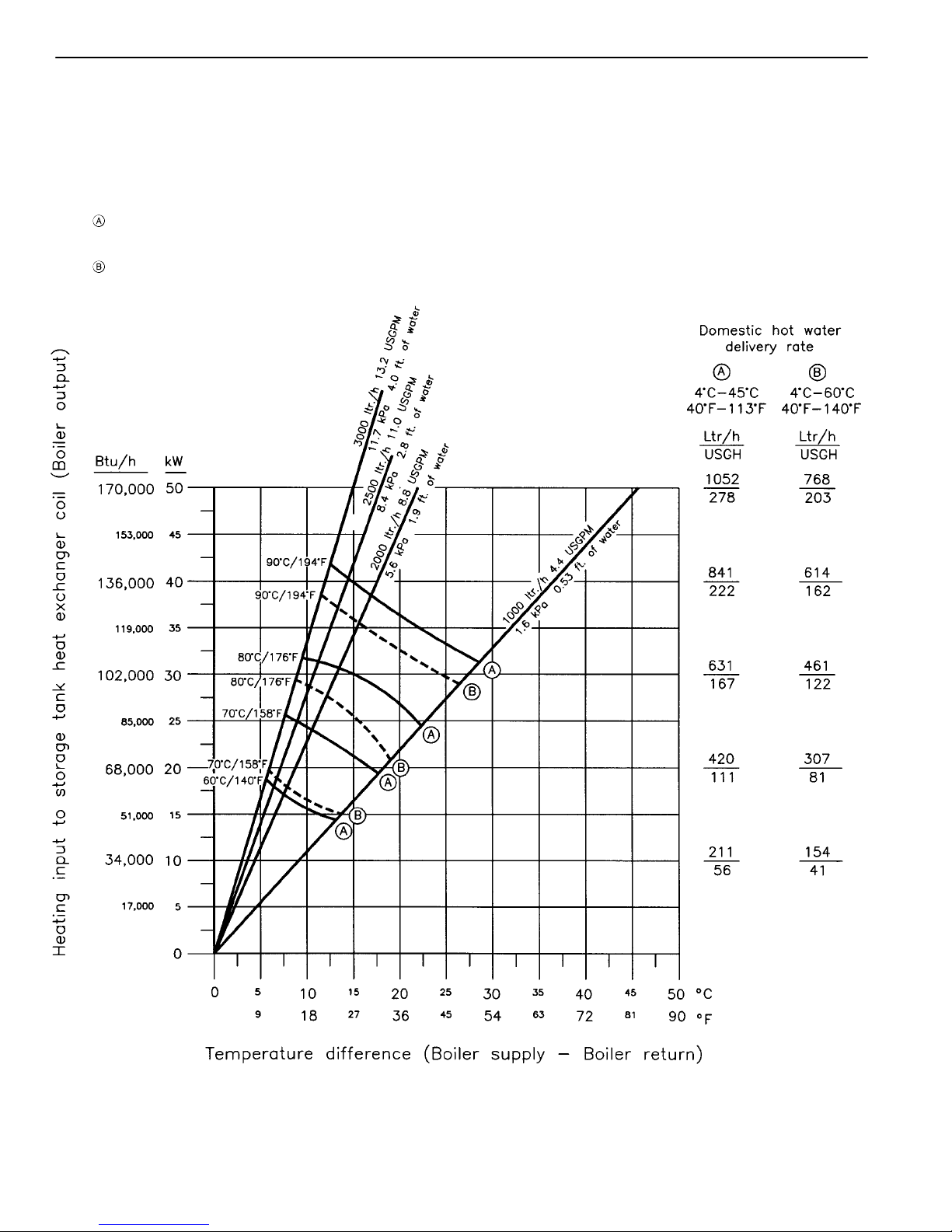

high MBH input (see Vitocell flo charts),
confirmation that the appropriate and
correct size pressure and temperature relief
valve is used and installed, is necessary.
Watts Model
40XL-8
150 psig
(US and Canada)
ASME pressure
steam rating
1438 MBH
CSA temperature
steam rating
205 MBH
Relief
temperature
210ºF (99ºC)
Inlet thread
¾” male
Outlet thread
¾” female
Warranty
Our warranty for domestic hot water tanks
states that the water heated must be of
drinking water quality and that any water
treatment equipment in use must function
correctly.
Viessmann accepts no responsibility for
damage howsoe er caused and reser es the
right to withdraw the product warranty if
the product has been improperly installed or
misapplied by the installer, contractor or
final user. In order to qualify for product
warranty, strict adherence to the installation
and ser ice manuals must be assured. In the
e ent that Viessmann non-appro ed
components are utilized, Viessmann
reser es the right to withdraw all expressed
or implied warranties without written notice.
The water to be heated with the Vitocell
must be drinking (potable) water quality. If
the tank is used to heat other media, the
warranty will be null and oid. Damage
resulting from excessi e pressure or
temperature is clearly not the responsibility
of Viessmann.
The amount of chloride and sulfate
acceptable to the tank is limited. In areas
where high concentrations of chloride and
sulfate are present in drinking water, please
consult Viessmann for directions.
IMPORTANT
To ensure optimum, safe operation,
the supplied stainless steel ell must
be installed. The ell diameter is
large enough to accommodate a ide
variety of sensing bulbs.
Al ays use spring clip to ensure
proper contact of capillary bulb
against the stainless steel ell for
proper sensing/heat transfer!
WARNING
IMPORTANT
