Installation Instructions

Assembly of Boiler Sections, Part No. 7134 271

for Vertomat VSB-17 to -89

and Vitocrossal 300, CT3-17 to -89 boilers

5285 410 v1.1 11/2007

Safety and Installation Requirements

Please ensure that these instructions are read and understood before commencing installation. Failure to comply with the

instructions listed below can cause product/property damage,severe personal injury, and/or loss of life.

Working on the equipment

The installation, adjustment, service,

and maintenance of this product must

be done by a licensed professional

heating contractor who is qualified and

experienced in the installation, service,

and maintenance of hot water boilers.

There are no user serviceable parts on

the boiler, burner, or control.

Ensure main power supply to

equipment, the heating system, and all

external controls has been deactivated.

Close main gas supply valve. Take

precautions in all instances to avoid

accidental activation of power during

service work.

Ensure that the installation

literature of other components

is referenced.

Assembly Instructions

Never put any tools, bolts or any other

parts inside the combustion chamber.

1. Clean combustion chamber surfaces

with stainless steel wire brush

5”/127 mm from the edges.

Do not use solvents. Use only clean

towels and/or rags.

2. Apply supplied tape on the edge

of the front cone section as

illustrated, and finish with 3”/76 mm

loop tabs.

3. Apply supplied tape 3/8“/10 mm

from edge of main boiler section as

illustrated, and finish with 3”/76 mm

loop tabs.

4. Apply generous amount of supplied

Dirko silicone evenly between the

combustion chamber edge and the

steel ring welded to the front

section .

Do not discard empty tubes! Empty

tubes are used for removal of excess

silicone. See next step.

Please file in Service Binder

Fig. 1

Assembly of combustion chamber

IMPORTANT

Fig. 2

Assembled combustion chamber shown

Viessmann Manufacturing Company Inc.

750 McMurray Road

Waterloo, Ontario •N2V 2G5 •Canada

Tel. (519) 885-6300 •Fax (519) 885-0887

www.viessmann.ca •[email protected]

Viessmann Manufacturing Company (U.S.) Inc.

45 Access Road

Warwick, Rhode Island •02886 •USA

Tel. (401) 732-0667 •Fax (401) 732-0590

www.viessmann-us.com •[email protected]

Assembly Instructions (continued)

5. Join front cone section with main

boiler section and ensure that a

gasket has been placed between the

water connection flanges. Tighten all

four bolts around the boiler section

and the flanges. Scrape off

excess silicone from the inside of the

combustion chamber with end of the

empty silicone tube.

6. Using a disposable latex glove (with

liquid soap or hand moisturizer), or

plastic trowel, and smooth silicone

strip on the inside of the combustion

chamber.

7. Remove tape (after approx. 4 hours)

by carefully pulling out tabs from the

combustion chamber.

Wash hands when finished.

Ensure that there are no gaps in the

silicone seal along the joint of the

two sections.

8. Install gaskets on common boiler

supply header and tighten flanges

with the nuts and bolts provided.

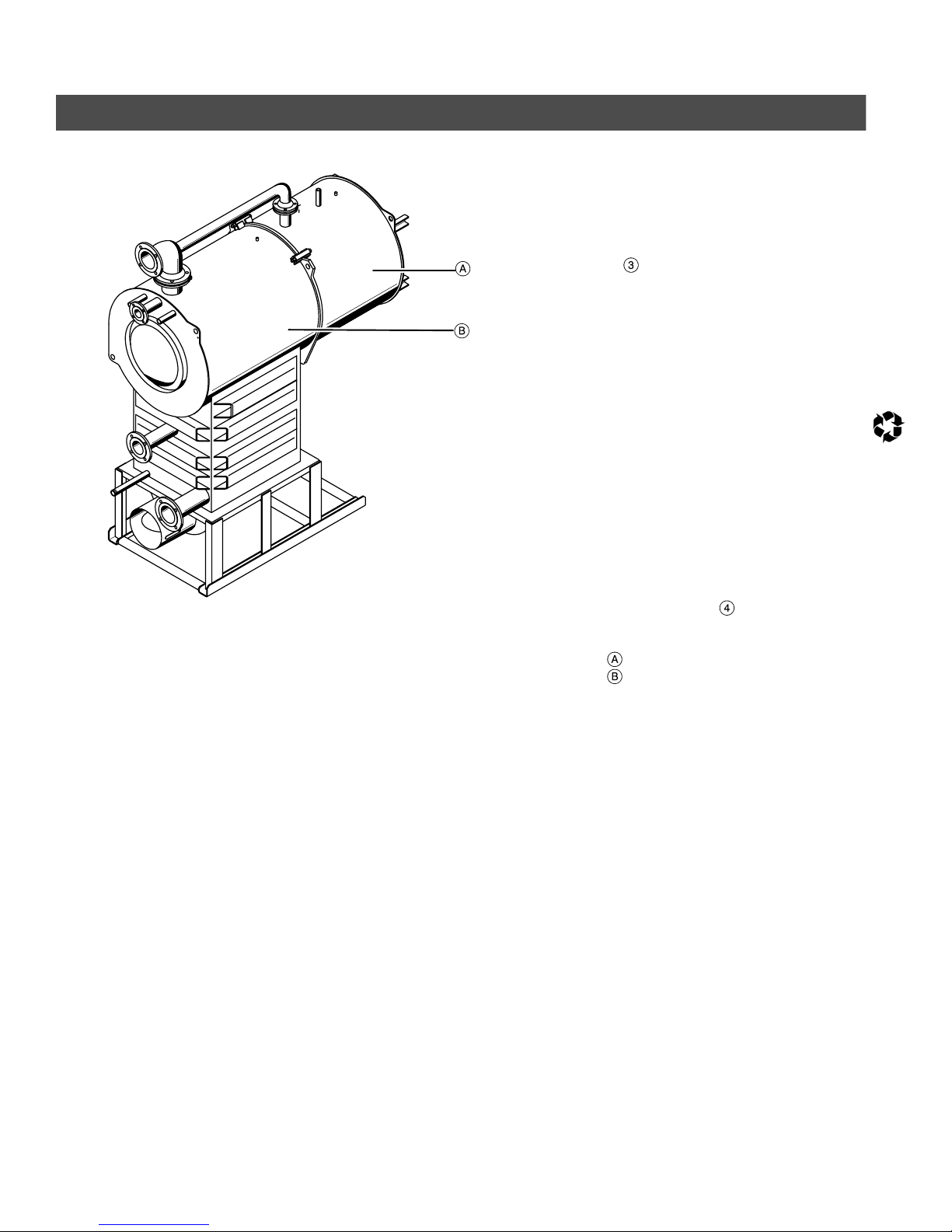

Front cone section

Main boiler section

Printed on environmentally friendly

(recycled and recyclable) paper.

5285 410 v1.1 Technical information subject to change without notice. Printed on environmentally friendly

(recycled and recyclable) paper.
