Viessmann Vitodens 100-W Manuale utente

Domestic Product Guide

10 Year Warranty

on all stainless steel heat exchangers for

gas condensing boilers up to 105 kW

Introduction

Established in 1917, Viessmann draws on more than 90 years of experience in the

development and manufacture of heating systems and due to its high commitment to

quality, it is Europe's single largest brand in heating technology. Viessmann is a third

generation family business and as such is able to hold true to its principles of innovation,

efﬁciency and sustainability; this is a signiﬁcant reason behind Viessmann's

continuing success.

Viessmann's domestic product range has been built around a long established reputation for

high quality commercial heating systems. Viessmann has utilised its extensive knowledge

and expertise to develop domestic heating products that deﬁne the quality benchmark

for other brands. Viessmann manufactures all of its own products and controls to ensure

that the drive for quality remains throughout the entire range and that there are additional

beneﬁts from combining its heating technologies. Viessmann produces and sells products in

the following sectors: high efﬁciency boilers, both domestic and commercial; solar thermal

ﬂat plate and tube collectors and PV panels; air source and ground source heat pumps;

biomass boilers; and CHP units for commercial and domestic use, using a number of fuels

including biogas.

However the principles of innovation, efﬁciency and sustainability don't only apply to

products, but extend to all areas of the business. Viessmann's head ofﬁce and production

facility in Allendorf, Germany, was restructured from 2007 to 2009 at a cost of 220 million

Euros and energy use was aligned with European climate change goals, of a 20% reduction

in energy usage and CO2 emissions and a transfer of 20% of energy production into

renewables, by 2020. In 2009, under the umbrella of the 'Efﬁciency Plus' project, Viessmann

achieved its goal of saving 40% of oil, gas and electricity through the use of renewable

energy while at the same time reducing CO2emissions by a third. Almost all measures to

improve efﬁciency and renewable substitution were achieved with commercially available

products made by members of the Viessmann Group; whether these were Solar panels,

CHP units, Oil, Gas or Biomass boilers.

For this project, Viessmann received the German Sustainability Award 2009 in the category

"Most Sustainable Production" as well as the German Energy Agency’s Efﬁciency Award

in 2010. In addition, Viessmann was honoured with the 2011 German Sustainability Award

in the category "Most Sustainable Brand". These awards recognised the company's

achievement of combining economic success with social responsibility and environmental

conservation. Hence Viessmann products contribute to reducing the carbon footprint of UK

homes even before they are installed.

Leading heating technology from Europe's largest brand -

manufactured in Germany's most sustainable factory

Viessmann

Komplettprogramm IC

Farbe und Größe

der Icon z.T. modifiziert

Überarbeitung Häuser

08. 07.

Beachte: Der Schriftzug

”Effizienz Plus” ist als

Marke zu betrachten

und somit im Detail

typografisch manuell

ausgeglichen, eine

Angabe zu Schriftgröße,

Laufweite enthält daher

minimale Abweichungen.

Bitte auch als Bild bzw.

Marke verwenden !!!

Effizienz:

Univers 67 bold condensed

VH 48 Pt, Laufweite 60

Farbe: Vitorange

Plus

Univers 67 bold condensed

VH 48 Pt, Laufweite 30

Farbe HKS 92, 80 % auf Weiß

auf hellem Fond 10 0%

Zeilenabstand: 46 pt

Deutschlands nachhaltigste

Produktion 2009

Deutschlands nachhaltigste

Produktion 2009

Deutschlands nachhaltigste

Produktion 2009

Deutschlands nachhaltigste

Produktion 2009

Germany's Most Sustainable

Production 2009

deutscher

nachhaltigkeitspreis

Germany's Most Sustainable

Brand 2011

Contents

Vitodens 100-W Combination from page 4

Vitodens 100-W System

Vitodens 100-W Open vent

Vitodens 200-W Combination from page 10

Vitodens 200-W System

Storage combination units from page 14

Vitodens 111-W

Vitodens 222-F

Vitodens 242-F

Viessmann 4-pipe principle page 20

Boiler accessories page 21

Flues from page 22

Controls from page 30

Cylinders from page 34

Solar from page 40

Support services page 47

Training academy from page 48

Vitodens technical speciﬁcation from page 53

High efﬁciency boilers

2/3

Gas condensing

technology

Vitodens 100-W Combination

NEW

Vitodens 100-W WB1C

10 Year Warranty

on all stainless steel heat exchangers for

gas condensing boilers up to 105 kW

VITODENS 100-W COMBINATION

The Vitodens 100-W high efﬁciency

gas condensing boiler, manufactured by

Viessmann in Germany, is loaded with

features for easy installation, high efﬁciency

and impressive fuel savings.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Highly corrosion resistant

Integral Grundfos AquaBloc hydraulic unit

For easy service and maintenance

Take advantage of these beneﬁts

Same output for Heating and Hot Water

(up to 35 kW)

Combined PRV and condense connection,

saving time and expense

Improved installation options with max.

ﬂue length up to 17 metres

New case design improves service

accessibility and reduces noise and weight

Integral ﬁlling loop

Range rate CH to 25% of maximum

output and match output to meet

Building Regulations

Simple conversion to LPG (conversion kit

part no. 7837261 for 26 kW & 7837262 for

30/35 kW)

Integral auto by-pass

Optional sub-mounted mixer kit ideal for

UFH installations

Compact dimensions

Easy installation

Safety valves and ﬁttings

Fully assembled and wired

Boiler ﬂue connection

Hydraulic accessories

Gas tap

Installation aids are available such as

pre-plumbing jig and rear-piping frames,

please see boiler accessories

Output range

Boilers within the range offer the following

outputs of 26 kW, 30 kW, 35 kW

DHW performance

Hot water ﬂow rate up to 14.3 l/min

@35°C rise

Controls

User control interface with large LCD

Plug in controls for wireless operation

Optional weather compensation control

for additional gas savings of up to 12%

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing boiler, with modulating MatriX cylinder burner

and Inox-Radial heat exchanger, for open and balanced ﬂue operation with integral

expansion vessel.

Inox-Radial heat exchanger

Save time

and expense

- combined PRV

and condense

connection, for

fast and simple

installation.

4/5

10 Year Warranty

on all stainless steel heat exchangers for

gas condensing boilers up to 105 kW

Gas condensing

technology

Vitodens 100-W System

NEW

Vitodens 100-W WB1C

VITODENS 100-W SYSTEM

The Vitodens 100-W high efﬁciency gas

condensing boiler, manufactured by Viessmann

in Germany, is loaded with features for easy

installation, high efﬁciency and impressive

fuel savings.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Highly corrosion resistant

Integral Grundfos AquaBloc hydraulic unit

For easy service and maintenance

Take advantage of these beneﬁts

Same output for Heating and Hot Water

(up to 35 kW)

Combined PRV and condense connection,

saving time and expense

Improved installation options with max. ﬂue

length up to 19 metres (19 kW)

New case design improves service

accessibility and reduces noise and weight

Integral auto by-pass

Range rate CH to 25% of maximum

output and match output to meet

Building Regulations

Simple conversion to LPG (conversion kit

part no. 7837261 for 19/26 kW & 7837262

for 30/35 kW)

Compact dimensions

Easy installation

Safety valves and ﬁttings

Fully assembled and wired

Boiler ﬂue connection

Hydraulic accessories

Gas tap

Installation aids are available such as

pre-plumbing jig and rear-piping frames,

please see boiler accessories

Meets G3 building regulations and

saves your time and expense using the

Viessmann 4-pipe principle. (see page 20)

Optional sub-mounted mixer kit ideal for

UFH installations

Output range

Boilers within the range offer the following

outputs of 19 kW, 26 kW, 30 kW, 35 kW

Controls

User control interface with large LCD

Plug in controls for wireless operation

Optional weather compensation control for

additional gas savings of up to 12%

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing system boiler, with modulating MatriX cylinder

burner and Inox-Radial heat exchanger, for open and balanced ﬂue operation with

integral expansion vessel.

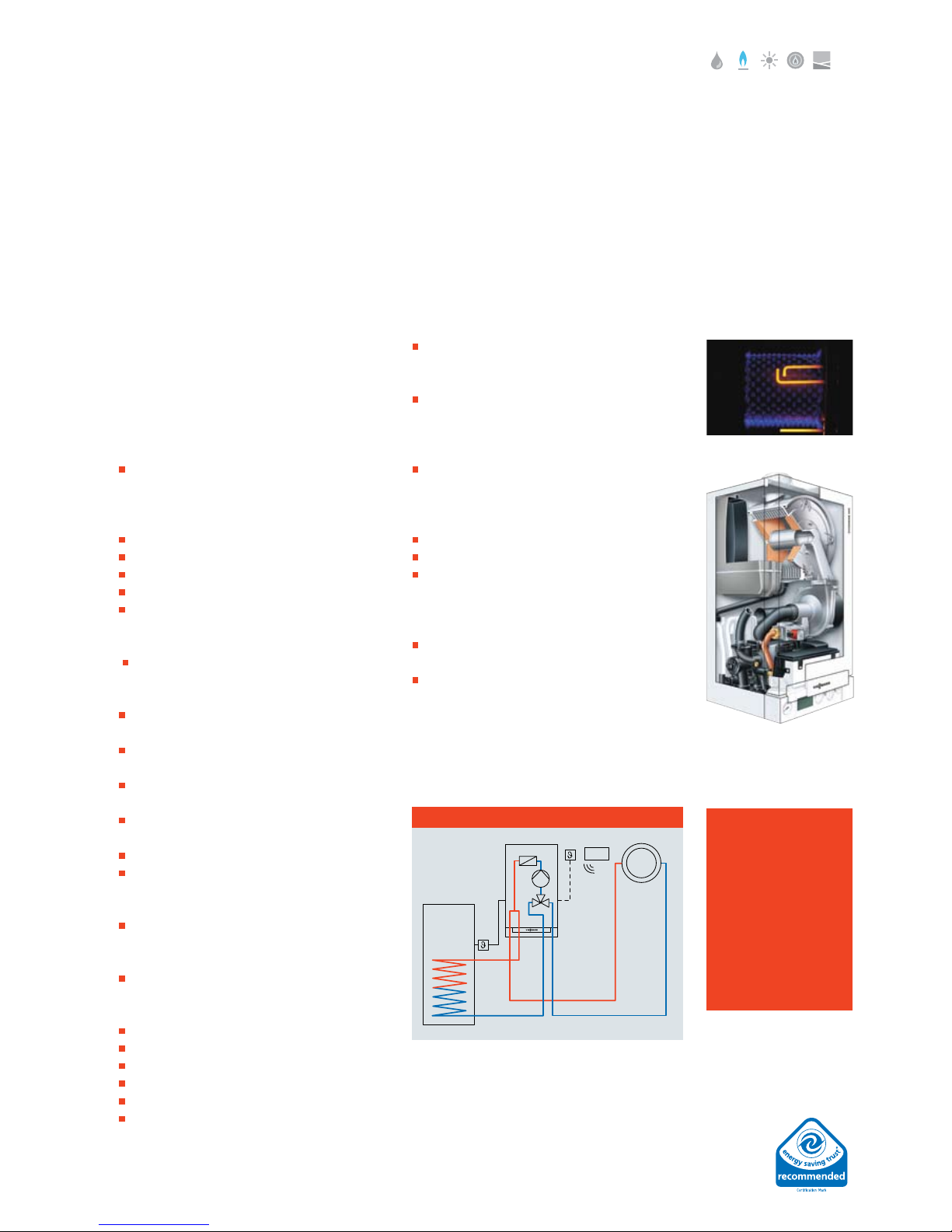

MatriX cylinder burner

100-W showing components

DHW

sensor

Vitotrol 100

Radiator

4-pipe hydraulic system schematic

Save time

and expense

- combined PRV

and condense

connection, for

fast and simple

installation.

6/7

Gas condensing

technology

Vitodens 100-W Open vent

NEW 35 kW model

AVAILABLE NOW

10 Year Warranty

on all stainless steel heat exchangers for

gas condensing boilers up to 105 kW

VITODENS 100-W OPEN VENT

With a depth of only 285 mm (340 mm for

35 kW model) the Vitodens 100-W Compact

boiler is perfectly suited for integration into

standard kitchen cupboards. It can also be

used in a vast number of other applications

where there is only limited

space available.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Take advantage of these beneﬁts

For natural gas and LPG (conversion kit

part no. 7828769)

Permissible boiler operating pressure 3 bar

SEDBUK (2005) seasonal efﬁciency 90.8%

Modulation ratio of 1:3

Room thermostatic and weather

compensated control unit options

Min static head 2 m

Easy installation

Depth of only 285 mm (340 mm for 35 kW

model) for installation into standard kitchen

wall units

No pump over run required

Output range

Boilers within the range offer the

following outputs of 13 kW, 16 kW, 19 kW,

26 kW, 35 kW

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing boiler, with modulating MatriX cylinder burner

and Inox-Radial heat exchanger, for open and balanced ﬂue operation and open

vented heating systems.

Compact dimensions suitable

for standard kitchen wall units

8/9

Gas condensing

technology

Vitodens 200-W Combination

3 year comprehensive

warranty as standard

5 years if ﬁtted by a Viessmann

trained installer

10 Year Warranty

on all stainless steel heat exchangers for

gas condensing boilers up to 105 kW

Altri manuali per Vitodens 100-W

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Viessmann Caldaia

Viessmann

Viessmann Vitorond 100 Guida rapida

Viessmann

Viessmann Vitomax HW Series Manuale di formazione

Viessmann

Viessmann VITOCROSSAL 300 Istruzioni operative

Viessmann

Viessmann Vitocrossal 200 CM2 Series Guida rapida

Viessmann

Viessmann VITOMAX 200-HS M73A Manuale utente

Viessmann

Viessmann Vitodens 111-W Guida rapida

Viessmann

Viessmann VITOTRONIC 300 Guida rapida

Viessmann

Viessmann VITORADIAL 300-T Manuale utente

Viessmann

Viessmann VITOCROSSAL 200 Istruzioni operative

Viessmann

Viessmann VITOCROSSAL 200 Istruzioni operative

Viessmann

Viessmann Vitodens 222-F B2TA series Guida rapida

Viessmann

Viessmann CM2-620 TX Manuale utente

Viessmann

Viessmann VITOCROSSAL 200 Istruzioni operative

Viessmann

Viessmann Vitodens 200 WB2 11-44 Manuale utente

Viessmann

Viessmann Vitodens 200-W System Istruzioni operative

Viessmann

Viessmann Vitorond 100 Guida rapida

Viessmann

Viessmann Vitomax HS Series Manuale utente

Viessmann

Viessmann VITODENS 333 Istruzioni operative

Viessmann

Viessmann VITOCROSSAL 200 Manuale di istruzioni

Viessmann

Viessmann KOB Pyrotec KPT Series Manuale di istruzioni

Viessmann

Viessmann Vitorond 200 Series Istruzioni operative

Viessmann

Viessmann Vitorond 200 VD2 320 Istruzioni operative

Viessmann

Viessmann Vitotron 100 Istruzioni operative

Viessmann

Viessmann VITOROND 200 Manuale di istruzioni

Manuali Caldaia popolari di altre marche

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuale utente

Radijator

Radijator BIO max 23.1 Manuale utente

Brunner

Brunner BSV 20 Manuale utente

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuale utente

Potterton

Potterton 50e Scheda tecnica

UTICA BOILERS

UTICA BOILERS TriFire Manuale utente

Joannes

Joannes LADY Series Manuale

ECR International

ECR International UB90-125 Manuale di istruzioni

Froling

Froling FHG Turbo 3000 Manuale utente

Froling

Froling P4 Pellet 8 - 105 Manuale utente

U.S. Boiler Company

U.S. Boiler Company K2 Manuale utente

Henrad

Henrad C95 FF Manuale utente

NeOvo

NeOvo EcoNox EF 36 Manuale utente

Potterton

Potterton PROMAX SL 12 Manuale utente

Eco Hometec

Eco Hometec EC 25 COMPACT Manuale utente

Baxi

Baxi Prime 1.24 Manuale utente

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuale utente

Radiant

Radiant R2K 55 Manuale
