Viessmann Vitocal 200-S Manuale utente

Natural Heat

VITOCAL 200-S

Heat pumps Vitocal 200-S

3 to 10 kW

Heating or cooling system with

interior and external unit

The Vitocal 200-S heat pump is available in

two options, a heating only unit or a heating/

cooling unit, both using natural heat from the

air. The split system comprises of an external

weatherproofed unit and an internal wall

mounted unit the size of a standard domestic

boiler, meaning internal space loss is kept to a

minimum. The external unit can be sited by the

side of the house or on a ﬂat roof. The internal

unit contains the heat exchanger, heating

circuit pump and 3-way diverter valve, ensuring

a constant supply of heating and domestic hot

water. Electric ﬂow heaters can be added as

an option where there is no existing boiler, to

ensure the cylinder achieves 60°C temperature

(standard on type AWS AC).

In the summer the Vitocal 200-S (Type AWS

AC) system with fan convectors or underﬂoor

heating can also be used to cool the building.

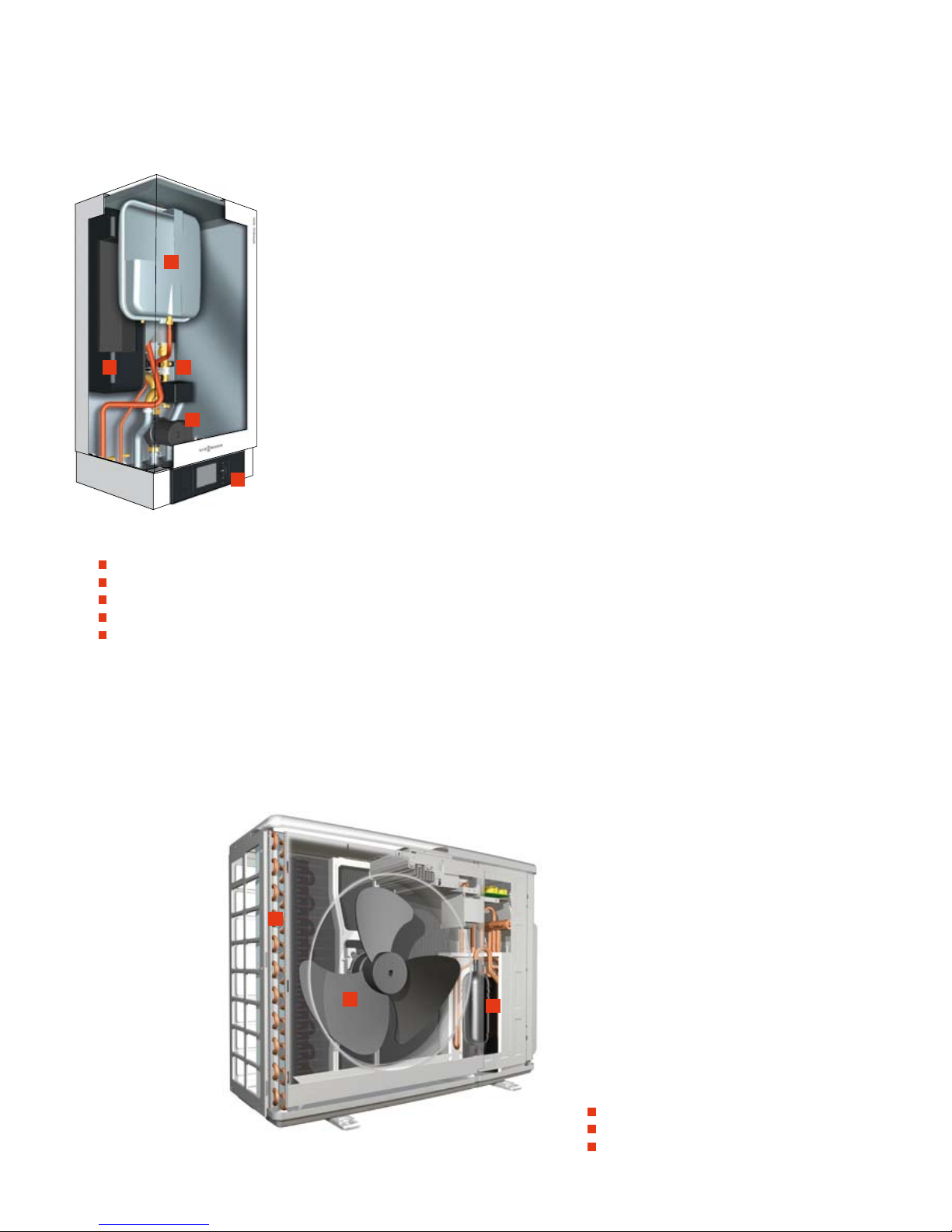

Vitocal 200-S

internal unit

1Expansion vessel

23-Way diverter valve

3Heating circuit pump

4Heat exchanger

5Vitotronic 200 controller

The Vitocal 200-S uses the free energy from surrounding air. It is suitable for new

buildings and renovations and can be used with existing gas or oil boilers.

Efﬁcient and economical

The Vitocal 200-S is particularly efﬁcient in

part load operation, using the advantages

of a DC inverter. The inverter matches the

compressor output exactly to the building

heat demand. When adding to an existing

system the Vitocal 200-S assumes primary

control and ensures efﬁcient operation by

using the existing system to cover the peak

heat demand only. Modulating operation

reduces continuous starting and stopping,

which extends component life and the speed

controlled fan results in quieter operation.

Vitotronic control

While the Vitotronic 200 controller is designed

for ease of programming of the heat pump

unit, it also controls the whole heating system.

It has a clear and easy to read display with a

help menu to aid operation and includes a full

diagnosis and fault ﬁnding facility as standard.

The display will also show heating and cooling

curves which can be tailored to personal

preferences. The programming unit of the

Vitotronic 200 can be removed from the front

of this appliance and can be sited up to 5 m

away from the boiler, enabling installation in

areas with restricted access, e.g. if the boiler is

installed in a garage or loft.

Complete service and

commissioning from Viessmann

Both the external and internal units

beneﬁt from a complete service and

commissioning facility via Viessmann‘s

Technical Service Department.

Vitocal 200-S external unit

1Evaporator

2Fan

3Compressor

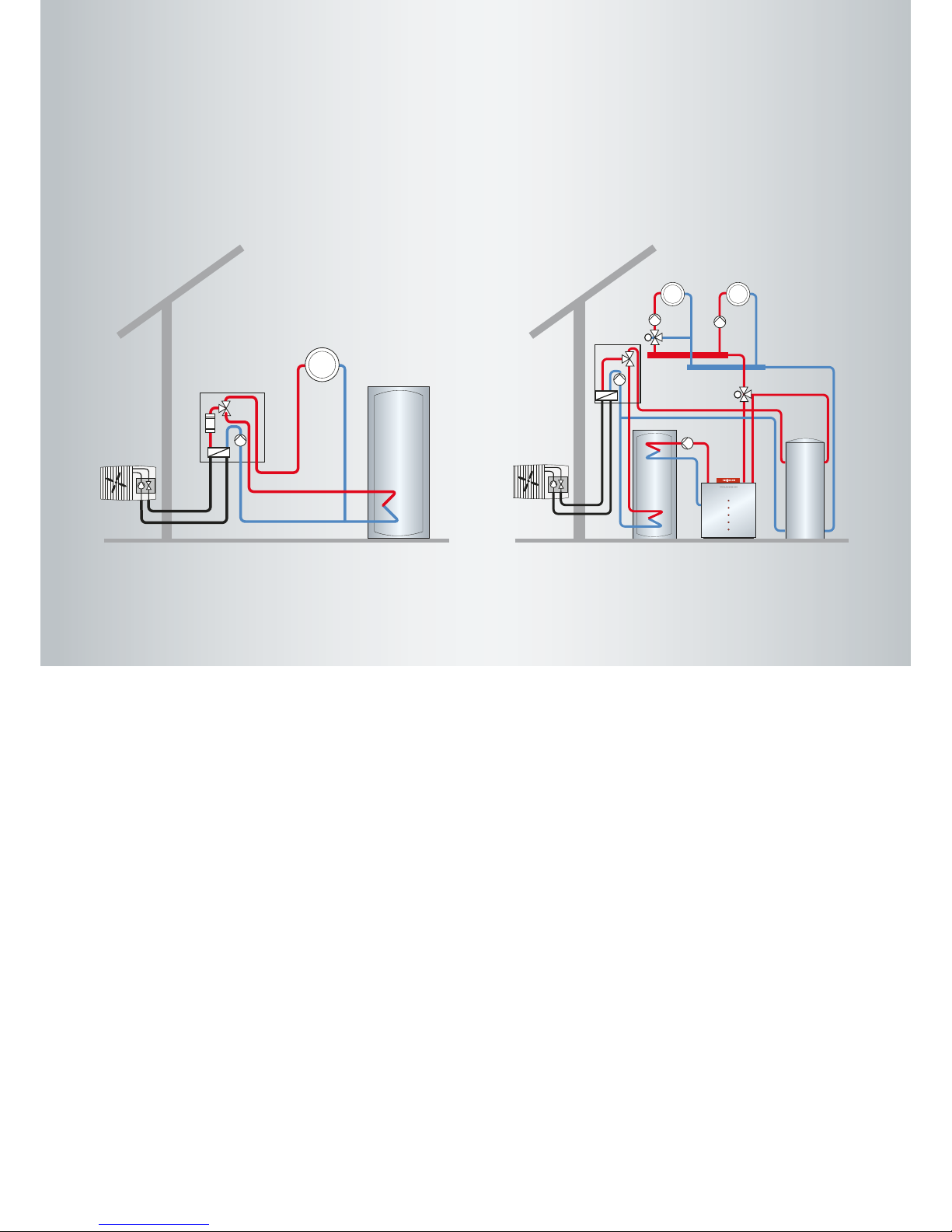

Schematic representation of a heating system with Vitocal

200 -S in a new building (left) and a modernisation project.

Beneﬁts at a glance

Attractively priced air/water heat pump with outputs from 3 to 10 kW

Modulating output for high efﬁciency in part load

Low operating costs due to high COP value (Up to 4.6 at A7/W35,

3.5 at A2/W35) according to EN14511

Maximum ﬂow temperature up to 55°C at - 15°C outside temperature

Weatherproofed external unit with evaporator, compressor, expansion

valve and fan

Interior unit with heating circuit pump, heat exchanger, 3-way diverter

valve, safety equipment,and control unit; also with integrated ﬂow

heater on heating/cooling variant

Vitotronic 200 controller for easy programming of the heat pump unit

Commissioning via Viessmann Technical Service

Vitocal 200-S external

and internal units

Vitocal 200-S

external and

internal units

DHW cylinder Buffer tankDHW

cylinder

Boiler

Vitocal 200-S heating system in a new building Vitocal 200-S and gas boiler for modernisation projects

(Plant example: AWS 104/107)

Radiator

Radiators

Viessmann Limited

Hortonwood 30, Telford

Shropshire, TF1 7YP

Tel: 01952 675000

Fax: 01952 675040

www.viessmann.co.uk

944 3644 GB 02 / 2 011

Duplication and alternative use only with prior written consent.

Subject to technical modiﬁcations.

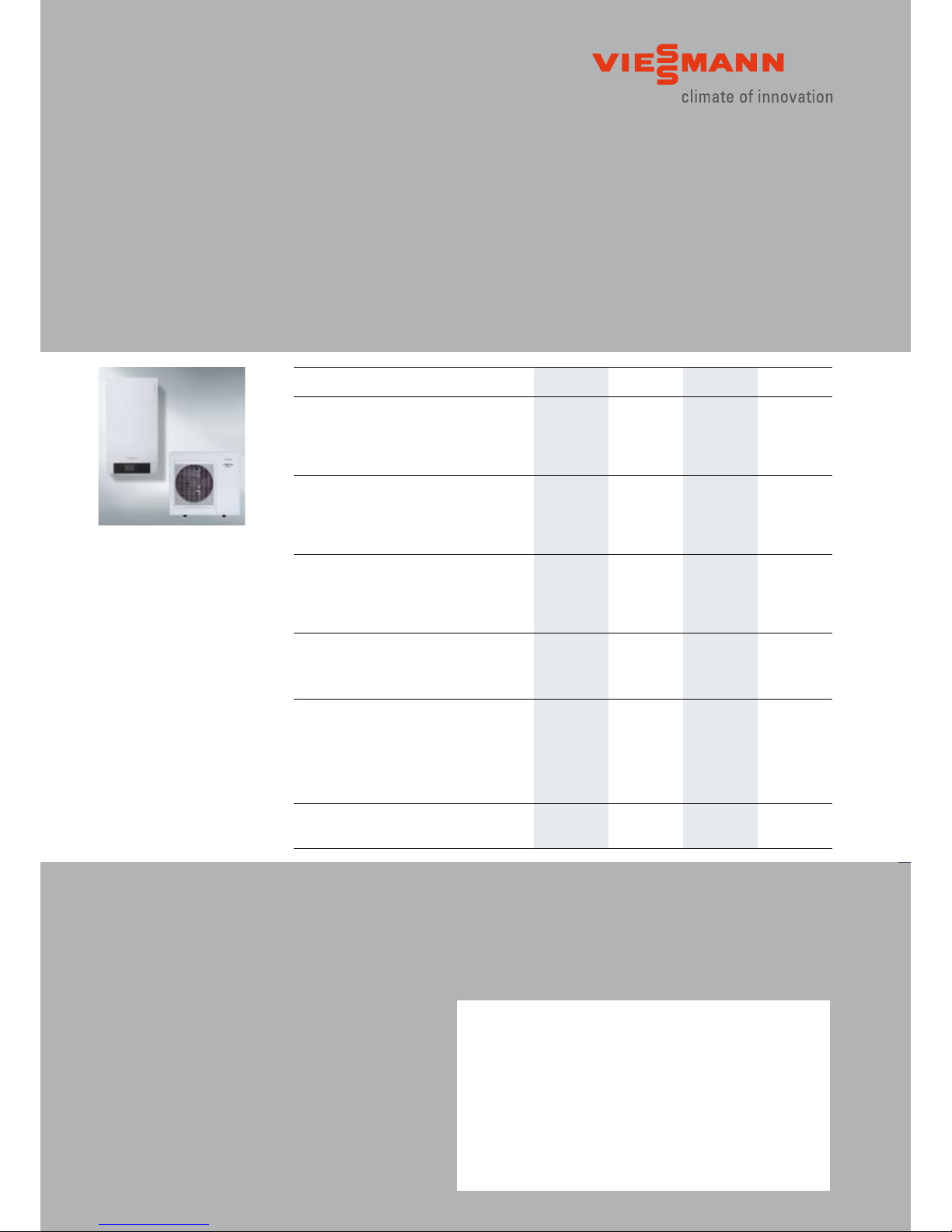

Technical Data Vitocal 200-S

Your trade partner:

Vitocal 200-S Type AWS 104

AWS AC 104

AWS 107

AWS AC 107

AWS 110

AWS AC 110

AWS 113

AWS AC 113

Heating output data at 100% to

EN14511 (A2/W35°C, Delta T 5 K)

Rated output

COP in heating mode

Output control

3.0

3.30

1.1 - 3.8

5.6

3.24

1.3 - 7.7

7.7

3.50

4.4 - 9.9

10.6

3.26

5.0 - 11.9

Heating output data at 100% to

EN14511 (A7/W35°C, Delta T 5 K)

Rated output

COP in heating mode

Output control

4.5

4.64

1.2 - 5.3

8.0

4.26

1.8 - 9.5

10.9

4.62

5.0 - 14.0

14.6

4.29

5.0 - 16.1

Cooling capacity data at 100% to

EN14511 (A35/W7°C, Delta T 5 K)

Rated cooling capacity

Energy efﬁciency ratio ε(EER) in cooling mode

Output control

3.2

2.96

1.2 - 3.8

6.2

2.6

1.6 - 8.0

7.4

2.75

2.4 - 8.5

9.1

2.50

2.4 - 10.0

Cooling capacity data at 100% to

EN14511 (A35/W7°C, Delta T 5 K)

Rated cooling capacity

Energy efﬁciency ratio ε(EER) in cooling mode

Output control

kW 4.2

3.72

8.8

3.35

10.0

3.57

12.6

3.00

External unit dimensions

Overall depth

Overall width

Overall height

Internal unit dimensions

Overall depth

Overall width

Overall height

290

869

610

360

450

850

340

1 040

865

360

450

850

340

900

1 255

360

450

850

340

900

1 255

360

450

850

Overall weight

External unit

Internal unit

110
