VITOCAL 300 Type BW and WW

Up to 55 °C flow temperature

Heat pump with electric drive for DHW and central heating

in mono or dual-mode heating systems

&Brine/water heat pump

(typeBW)with6.4to32.6kW

&Water/water heat pump

(type WW = type BW plus conversion kit)

with8.4to43.0kW

VITOCAL 350 Type BWH and WWH

Up to 65 °C flow temperature

Heat pump with electric drive for DHW and central heating

in mono or dual-mode heating systems

&Brine/water heat pump

(typeBWH)with11.0and17.1kW

&Water/water heat pump

(type WWH = type BWH plus conversion kit)

with 14.1 and 20.0 kW

VIESMANN

Datasheet

Part numbers and prices: see pricelist

VITOCAL 300/350

Heat pump

Brine/Water –6.4to32.6kW

Water/Water –8.4to43.0kW

File in:

Vitotec folder, register 11

5822 119-7 GB 4/2007

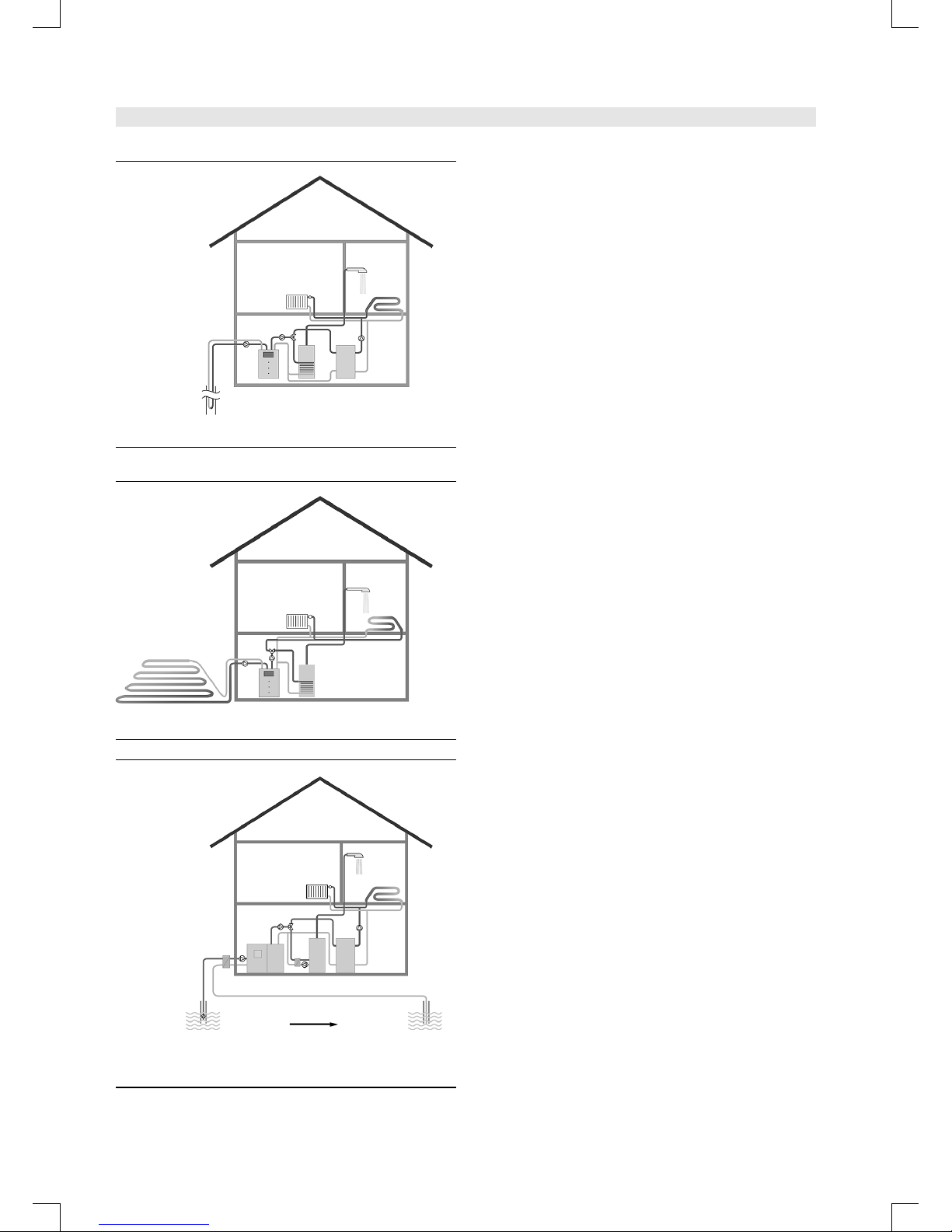

Brine/water heat pump (type BW/BWH) with ground probe

Type BW/BWH –heat from the ground:

The Vitocal 300/350 extracts heat from the ground with the help of

ground collectors or ground probes.

The ground provides almost completely stable temperatures all

the year round, enabling the Vitocal 300/350 to operate virtually

independently of the outside temperature. It can cover the entire

heat demand of a building, even on colder days.

Brine/water heat pump (type BW/BWH) with ground collector

Water/water heat pump (type WW/WWH) with supply and

return wells

Type WW/WWH –heat from water:

The Vitocal 300/350 draws energy from groundwater, where the

temperature is stable, and therefore achieves consistently high

performance factors.

This means that it is suitable for year round heating operation and

DHW provision.

5822 119-7 GB

2VIESMANN VITOCAL 300/350

Product description

&Suitable for all operating modes:

–Provides all DHW and central heating in mono-mode opera-

tion

–Can operate in dual-mode with a second heat source, e.g. in

modernisation projects

&Achieves high performance factors:

–up to 4.61 to DIN EN 255 with the Vitocal 300 BW

(brine: 0 °C, flow temperature: 35 °C)

–up to 5.9 to DIN EN 255 with the Vitocal 300 WW

(groundwater: 10 °C, flow temperature: 35 °C)

&Can cover any heating requirement all the year round

&High operational safety, reliability and quiet running through

hermetically sealed Compliant scroll compressor with dual anti-

vibration mounts

&Especially suitable for low heating system temperatures, e.g.

underfloor heating

&Vitocal 350 with 65 °C flow temperature for use in systems with

radiators used in modernisation projects

&Weather-compensated, digital heat pump control unit CD 60

with integral cooling function. Menu-guided functions with plain

text support and integral diagnostic system

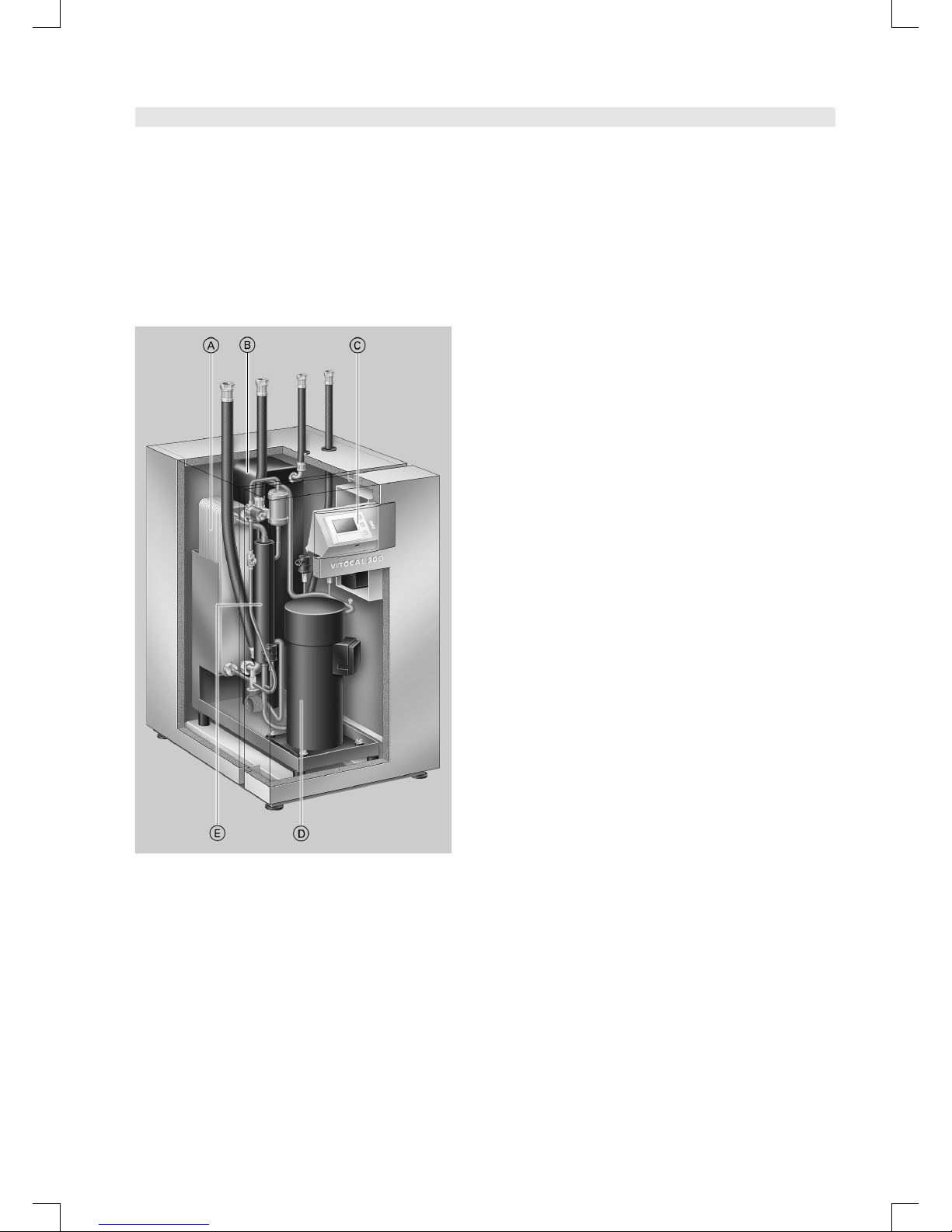

Vitocal 300 AEvaporator

BCondenser

CWeather-compensated, digital heat pump control unit CD 60

DHermetically sealed Compliant scroll compressor

EAdditional heat exchanger

5822 119-7 GB

VITOCAL 300/350 VIESMANN 3

Benefits

Vitocal 300 brine/water heat pump (single stage)

Vitocal 300 (single stage) Type BW 106 BW 108 BW 110 BW 113 BW 116

Output data*1

Rated heating output kW 6.4 8.3 10.8 14.0 16.3

Refrigerating capacity kW 5.00 6.50 8.40 10.95 12.70

Power consumption kW 1.40 1.80 2.40 3.05 3.60

Coefficient of Performance ∊(COP) 4.57 4.61 4.50 4.59 4.53

Brine (primary)

Content litre 2.3 2.8 3.7 4.7 4.7

Min. throughput*2l/h 1600 2100 2700 3600 3900

Pressure drop mbar 90 90 90 90 105

Max. inlet temperature °C 25 25 25 25 25

Min. inlet temperature °C –5–5–5–5–5

Heating water (secondary)

Content litre 1.6 2.2 2.7 3.3 3.3

Min. throughput l/h 530 700 950 1200 1400

Pressure drop mbar 40 40 40 40 60

Max. flow temperature °C 55 55 55 55 55

Electrical values

Heat pump

Rated voltage 3/N/PE 400 V/50 Hz

Rated current (max.) A 4.8 6.6 7.9 10.0 13.3

Starting current A 27 14*320*323*326*3

Starting current

(with stalled armature)

A 31.0 43.5 51.0 59.5 70.5

Fuse(slow) A 3×10 3×16 3×16 3×16 3×20

Protection IP 20

Control circuit rated voltage 230 V/50 Hz

Fuse (internal) 6.3 A H (slow)

Refrigerant circuit

Refrigerant R 407 C

Fill volume kg 1.9 2.2 2.6 3.1 3.4

Compressor Type Hermetically sealed scroll compressor

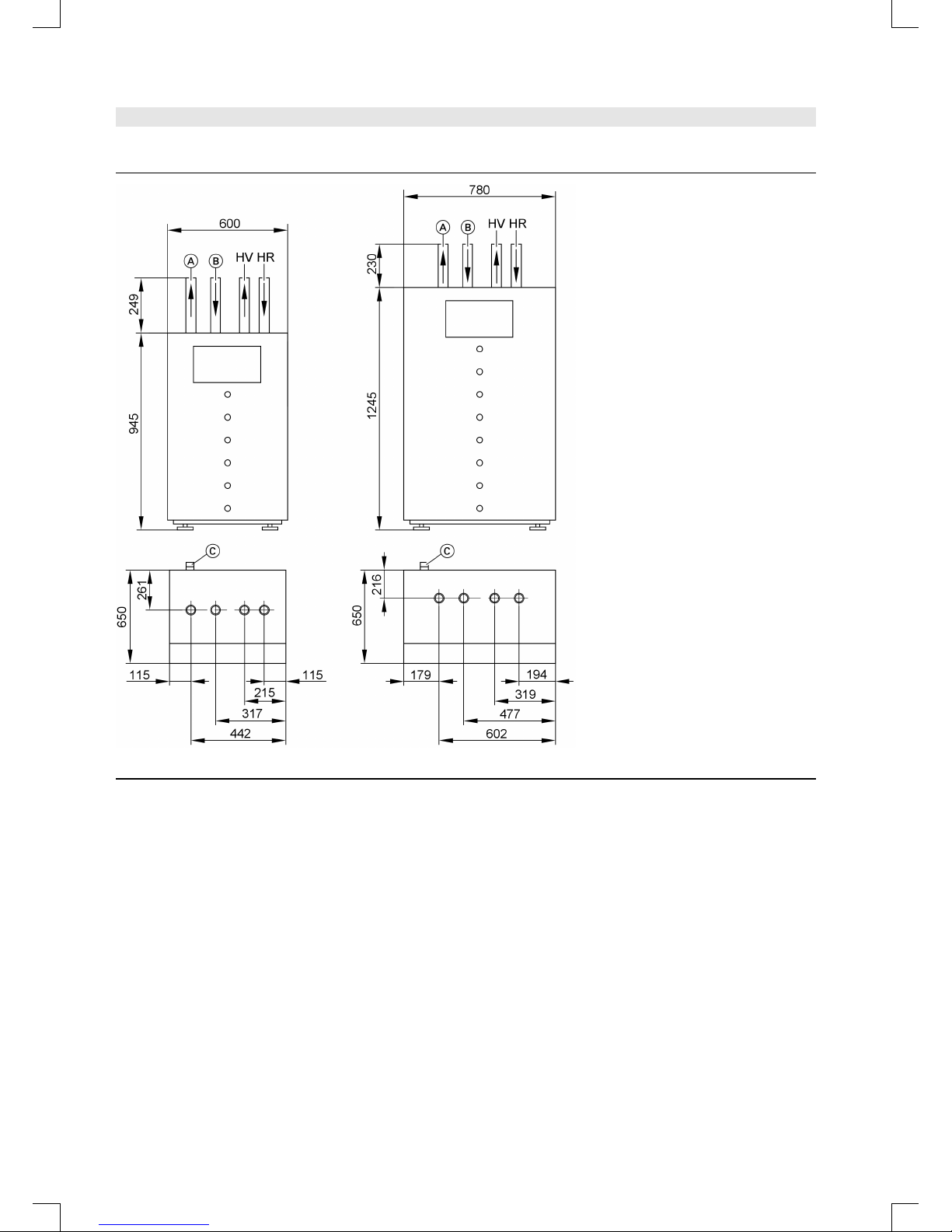

Dimensions

Total length mm 650 650 650 650 650

Total width mm 600 600 600 600 600

Total height mm 945 945 945 945 945

Permissible operating pressure

Brine circuit (primary) bar 4 4 4 4 4

Heating water circuit (secondary) bar 4 4 4 4 4

Connections

Primary IN and OUT R 1" 1" 1¼" 1¼" 1¼"

Heating flow and return R 1" 1" 1" 1" 1"

Weight kg 110 120 140 160 165

5822 119-7 GB

4VIESMANN VITOCAL 300/350

At operating point B0/W35 to DIN EN 255: B0 = brine inlet temperature 0 °C/W35 = heating water outlet temperature 35 °C.

For further operating points, see the output diagrams.

Always safeguard the min. throughput.

With starting current limiter.

Specification

Vitocal 300 brine/water heat pump (two-stage)

Vitocal 300 (two-stage) Type BW 212 BW 216 BW 220 BW 226 BW 232

Output data*1

Rated heating output kW 12.8 16.6 21.6 28.0 32.6

Refrigerating capacity kW 10.0 13.0 16.8 21.9 25.4

Power consumption kW 2.8 3.6 4.8 6.1 7.2

Coefficient of Performance ∊(COP) 4.56 4.60 4.49 4.57 4.51

Brine (primary)

Content litre 4.6 5.6 7.4 9.4 9.4

Min. throughput*2l/h 3200 4200 5400 7200 7800

Pressure drop mbar 100 100 100 100 120

Max. inlet temperature °C 25 25 25 25 25

Min. inlet temperature °C –5–5–5–5–5

Heating water (secondary)

Content litre 3.2 4.4 5.4 6.6 6.6

Min. throughput*2l/h 1100 1400 1900 2400 2800

Pressure drop mbar 100 100 100 100 130

Max. flow temperature °C 55 55 55 55 55

Electrical values

Heat pump

Rated voltage 3/N/PE 400 V/50 Hz

Rated current (max.) A 9.6 13.2 15.8 20.0 26.6

Starting current (per compressor) A 27 14*320*323*326*3

Starting current (per compressor)

(with stalled armature)

A 31.0 43.5 51.0 59.5 70.5

Fuse(slow) A 3×16 3×20 3×20 3×35 3×35

Protection IP 20

Control circuit rated voltage 230 V/50 Hz

Fuse (internal) 6.3 A H (slow)

Refrigerant circuit

Refrigerant R 407C

Fillvolume kg 2×1.9 2×2.2 2×2.6 2×3.1 2×3.4

Compressor Type 2 hermetically sealed scroll compressors

Dimensions

Total length mm 650 650 650 650 650

Total width mm 780 780 780 780 780

Total height mm 1245 1245 1245 1245 1245

Permiss. operating pressure

Brine circuit (primary) bar 4 4 4 4 4

Heating water circuit (secondary) bar 4 4 4 4 4

Connections

Primary IN and OUT R 1" 1¼" 1¼" 1½" 1½"

Heating flow and return R 1" 1" 1" 1" 1"

Weight kg 250 270 280 300 310

5822 119-7 GB

VITOCAL 300/350 VIESMANN 5

At operating point B0/W35 to DIN EN 255: B0 = brine inlet temperature 0 °C/W35 = heating water outlet temperature 35 °C.

For further operating points, see the output diagrams.

Always safeguard the min. throughput.

With starting current limiter.

Specification (cont.)

Vitocal 300 water/water heat pump (single stage)

Vitocal 300 (single stage) Type WW 106 WW 108 WW 110 WW 113 WW 116

Output data*1

Rated heating output kW 8.4 10.9 14.2 18.3 21.5

Refrigerating capacity kW 6.90 9.00 11.70 15.20 17.80

Power consumption kW 1.50 1.90 2.50 3.10 3.70

Coefficient of Performance ∊(COP) 5.60 5.74 5.68 5.90 5.81

Groundwater (primary)

Content litre 2.3 2.8 3.7 4.7 4.7

Min. throughput*2l/h 1600 2100 2700 3600 3900

Pressure drop mbar 90 90 90 90 105

Max. inlet temperature °C 25 25 25 25 25

Min. inlet temperature

–at min. throughput °C 7.5 7.5 7.5 7.5 7.5

–at min. throughput +40 °C 6.5 6.5 6.5 6.5 6.5

Heating water (secondary)

Content litre 1.6 2.2 2.7 3.3 3.3

Min. throughput*2l/h 580 730 1000 1250 1500

Pressure drop mbar 45 45 45 40 60

Max. flow temperature °C 55 55 55 55 55

Electrical values

Heat pump

Rated voltage 3/N/PE 400 V/50 Hz

Rated current (max.) A 4.8 6.6 7.9 10.0 13.3

Starting current A 27 14*320*323*326*3

Starting current

(with stalled armature)

A 31.0 43.5 51.0 59.5 70.5

Fuse(slow) A 3×10 3×16 3×16 3×16 3×20

Protection IP 20

Control circuit rated voltage 230 V/50 Hz

Fuse (internal) 6.3 A H (slow)

Refrigerant circuit

Refrigerant R 407 C

Fill volume kg 1.9 2.2 2.6 3.1 3.4

Compressor Type Hermetically sealed scroll compressor

Dimensions

Total length mm 650 650 650 650 650

Total width mm 600 600 600 600 600

Total height mm 945 945 945 945 945

Permissible operating pressure

Groundwater circuit (primary) bar 4 4 4 4 4

Heating water circuit (secondary) bar 4 4 4 4 4

Intermediate circuit for indirect operation bar 4 4 4 4 4

Connections

Primary IN and OUT R 1" 1" 1¼" 1¼" 1¼"

Heating flow and return R 1" 1" 1" 1" 1"

Weight kg 110 120 140 160 165

5822 119-7 GB

6VIESMANN VITOCAL 300/350

At operating point W10/W35 to DIN EN 255: W10 = groundwater inlet temperature 10 °C/W35 = heating water outlet temperature 35 °

For further operating points, see the output diagrams.

Always safeguard the min. throughput.

With starting current limiter.

Specification (cont.)

Vitocal 300 water/water heat pump (two-stage)

Vitocal 300 (two-stage) Type WW 212 WW 216 WW 220 WW 226 WW 232

Output data*1

Rated heating output kW 16.8 21.8 28.4 36.6 43.0

Refrigerating capacity kW 13.80 18.00 23.40 30.40 35.60

Power consumption kW 3.00 3.80 5.00 6.20 7.40

Coefficient of Performance ∊(COP) 5.58 5.72 5.66 5.87 5.79

Groundwater (primary)

Content litre 4.6 5.6 7.4 9.4 9.4

Min. throughput*2l/h 3200 4200 5400 7200 7800

Pressure drop mbar 100 100 110 120 120

Max. inlet temperature °C 25 25 25 25 25

Min. inlet temperature

–for min. throughput °C 7.5 7.5 7.5 7.5 7.5

–for min. throughput +40 °C 6.5 6.5 6.5 6.5 6.5

Heating water (secondary)

Content litre 3.2 4.4 5.4 6.6 6.6

Min. throughput*2l/h 1160 1460 2000 2500 3000

Pressure drop mbar 105 105 105 110 110

Max. flow temperature °C 55 55 55 55 55

Electrical values

Heat pump

Rated voltage 3/N/PE 400 V/50 Hz

Rated current (max.) A 9.6 13.2 15.8 20.0 26.6

Starting current (per compressor) A 27 14*320*323*326*3

Starting current (per compressor) A 31.0 43.5 51.0 59.5 70.5

(with stalled armature)

Fuse(slow) A 3×16 3×20 3×20 3×35 3×35

Protection IP 20

Control circuit rated voltage 230 V/50 Hz

Fuse (internal) 6.3 A H (slow)

Refrigerant circuit

Refrigerant R 407 C

Fill volume kg 2 × 1.9 2 × 2.2 2 × 2.6 2 × 3.1 2× 3.4

Compressor Type 2 hermetically sealed scroll compressors

Dimensions

Total length mm 650 650 650 650 650

Total width mm 780 780 780 780 780

Total height mm 1245 1245 1245 1245 1245

Permissible operating pressure

Groundwater circuit (primary) bar 4 4 4 4 4

Heating water circuit (secondary) bar 4 4 4 4 4

Intermediate circuit for indirect

operation

bar 4 4 4 4 4

Connections

Primary IN and OUT R 1" 1¼" 1¼" 1½" 1½"

Heating flow and return R 1" 1" 1" 1" 1"

Weight kg 250 270 280 310 320

5822 119-7 GB

VITOCAL 300/350 VIESMANN 7

At operating point W10/W35 to DIN EN 255: W10 = groundwater inlet temperature 10 °C/W35 = heating water outlet temperature 35 °

For further operating points, see the output diagrams.

Always safeguard the min. throughput.

With starting current limiter.

Specification (cont.)

Vitocal 350 brine/water heat pump (single stage)

Vitocal 350 (single stage) Type BWH 110 BWH 113

Output data

At operating point*1B0/W35 B2/W55 B2/W65 B0/W35 B2/W55 B2/W65

Rated output kW 11.0 13.2 13.2 16.2 17.7 17.7

Refrigerating capacity kW 8.45 9.00 8.10 12.45 12.00 10.60

Power consumption kW 2.55 4.20 5.10 3.75 5.70 7.10

Coefficient of Performance ∊(COP) 4.31 3.14 2.59 4.32 3.11 2.49

Brine (primary)

Content litre 3.7 4.7

Min. throughput*2l/h 2700 3800

Pressure drop mbar 90 100

Max. inlet temperature °C 20 20

Min. inlet temperature °C -5 -5

Heating water (secondary)

Content litre 3.3 3.3

Min. throughput*2l/h 1060 1350

Pressure drop mbar 40 35

Max. flow temperature °C 65 65

Electrical values

Heat pump

Rated voltage 3/N/PE 400 V/50 Hz

Rated current (max.) A 9.1 14.0

Starting current A 23*326*3

Starting current A 59.5 70.5

(with stalled armature)

Fuse (slow) A 3 × 20 3 × 20

Protection IP 20

Control circuit rated voltage 230 V/50 Hz

Fuse (internal) 6.3 A H (slow)

Refrigerant circuit

Refrigerant R 407 C

Fill volume kg 2.9 3.2

Compressor Type Hermetically sealed scroll compressor with injection

Dimensions

Total length mm 650 650

Total width mm 600 600

Total height mm 945 945

Permissible operating pressure

Brine circuit (primary) bar 4 4

Heating water circuit (secondary) bar 4 4

Connections

Primary IN and OUT R 1¼" 1¼"

Heating flow and return R 1" 1"

Weight kg 145 165

5822 119-7 GB

8VIESMANN VITOCAL 300/350

Operating point to DIN EN 255: B0 = brine inlet temperature 0 °C/W35 = heating water outlet temperature 35 °C.

Operating point: B2 = brine inlet temperature 2 °C/W35 = heating water outlet temperature 55 °C.

Operating point: B2 = brine inlet temperature 2 °C/W35 = heating water outlet temperature 65 °C.

For further operating points, see the output diagrams.

Always safeguard the min. throughput.

With starting current limiter.

Specification (cont.)

Vitocal 350 water/water heat pump (single stage)

Vitocal 350 (single stage) Type WWH 110 WWH 113

Output data

At operating point*1W10/W35 W8/W55 W8/W65 W10/W35 W8/W55 W8/W65

Rated heating output kW 14.1 14.6 14.6 19.7 19.4 19.4

Refrigerating capacity kW 11.40 10.30 9.45 15.90 13.65 12.15

Power consumption kW 2.70 4.30 5.15 3.80 5.75 7.25

Coefficient of Performance ∊(COP) 5.22 3.39 2.83 5.18 3.37 2.68

Groundwater (primary)

Content litre 3.7 4.7

Min. throughput*2l/h 2700 3800

Pressure drop mbar 90 100

Max. inlet temperature °C 20 20

Min. inlet temperature

–for min. throughput °C 7.5 7.5

–for min. throughput +40 °C 6.5 6.5

Heating water (secondary)

Content litre 3.3 3.3

Min. throughput*2l/h 1060 1430

Pressure drop mbar 40 45

Max. flow temperature °C 65 65

Electrical values

Heat pump

Rated voltage 3/N/PE 400 V/50 Hz

Rated current (max.) A 9.1 14.0

Starting current A 23*326*3

Starting current A 59.5 70.5

(with stalled armature)

Fuse(slow) A 3×20 3×20

Protection IP 20

Control circuit rated voltage 230 V/50 Hz

Fuse (internal) 6.3 A H (slow)

Refrigerant circuit

Refrigerant R 407 C

Fill volume kg 2.9 3.2

Compressor Type Hermetically sealed scroll compressor with injection

Dimensions

Total length mm 650 650

Total width mm 600 600

Total height mm 945 945

Permissible operating pressure

Groundwater circuit (primary) bar 4 4

Heating water circuit (secondary) bar 4 4

Intermediate circuit for indirect

operation

bar 4 4

Connections

Primary IN and OUT R 1¼" 1¼"

Heating flow and return R 1" 1"

Weight kg 145 165

5822 119-7 GB

VITOCAL 300/350 VIESMANN 9

Operating point to DIN EN 255: W10 = groundwater inlet temperature 10 °C/W35 = heating water outlet temperature 35 °C.

Operating point: W8 = groundwater inlet temperature 8 °C/W55 = heating water outlet temperature 55 °C.

Operating point: W8 = groundwater inlet temperature 8 °C/W65 = heating water outlet temperature 65 °C.

For further operating points, see the output diagrams.

Always safeguard the min. throughput.

With starting current limiter.

Specification (cont.)

Dimensions

Left illustration - Vitocal 300/350, single stage; right illustration: Vitocal 300, two-stage

APrimary OUT (brine)

BPrimary IN (brine)

CCable entries

HR Heating return

HV Heating flow

5822 119-7 GB

10 VIESMANN VITOCAL 300/350

Specification (cont.)

Altri manuali per VITOCAL 300

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Viessmann Pompa di calore

Viessmann

Viessmann VITOCAL 300-G Istruzioni operative

Viessmann

Viessmann VITOCAL 222-G Manuale utente

Viessmann

Viessmann VITOCAL 300-G Guida rapida

Viessmann

Viessmann VITOCAL 200-G Guida rapida

Viessmann

Viessmann VITOBLOC 200 Manuale utente

Viessmann

Viessmann Vitocal 350-G Guida rapida

Viessmann

Viessmann Vitocal 350-A AWHO 351.A Series Guida rapida

Viessmann

Viessmann VITOCAL 350-A Manuale utente

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guida rapida

Viessmann

Viessmann Vitocal 300-G BW Guida rapida

Viessmann

Viessmann Vitocal 200-S Guida rapida

Viessmann

Viessmann Vitocal 200-S Guida rapida

Viessmann

Viessmann VITOCAL 300-G Guida rapida

Viessmann

Viessmann VITOCAL 200-G Guida rapida

Viessmann

Viessmann Vitocal 242-S Guida rapida

Viessmann

Viessmann VITOCAL 160-A Guida rapida

Viessmann

Viessmann Vitocal 242-S Guida rapida

Viessmann

Viessmann VITOCAL 300-A Istruzioni operative

Viessmann

Viessmann VITOCAL 350-A Guida rapida

Viessmann

Viessmann BW 30 .CS Series Guida rapida

Viessmann

Viessmann VITOCAL 300-A Guida rapida

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Istruzioni operative

Viessmann

Viessmann VITOCAL 300-A Guida rapida

Viessmann

Viessmann Vitocal 200-A Guida rapida

Manuali Pompa di calore popolari di altre marche

MICROWELL

MICROWELL HP 1000 GREEN Manuale utente

Sanyo

Sanyo SAP120FCH Manuale utente

Daikin

Daikin EHYHBH05AA Manuale utente

Panasonic

Panasonic WH-SDF03E3E5 Guida

Bryant

Bryant 544B Manuale utente

Airxcel

Airxcel 45000 Series Manuale

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuale utente

Dimplex

Dimplex LI 16I-TUR Guida utente

Carrier

Carrier WSHP Open v3 Guida rapida alla configurazione

TGM

TGM CTV14CN018A Manuale utente

Carrier

Carrier 38MGQ Series Manuale utente

Kokido

Kokido K2O K880BX/EU Guida alla risoluzione dei problemi

Carrier

Carrier 48EZN Manuale utente

Ariston

Ariston NIMBUS Manuale utente

Weishaupt

Weishaupt WWP L 7 Guida utente

GE Zoneline AZ85H09EAC Manuale utente

Bryant

Bryant Preferred Series Manuale utente

Daikin

Daikin altherma EJHA04AAV3 Manuale utente
