Viessmann VITOSOL-F Manuale utente
Installation instructions
for contractors
VIESMANN
Vitosol-F/-FM
Type SV and SH
Flat-plate collector for installation on collector supports and walls
Collector supports with variable angle of inclination
VITOSOL-F/-FM
5698349 GB/en 9/2017 Dispose after installation.
2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for author-
ised contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for the protection of the envi-
ronment
■Codes of practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Safety instructions
5698349
3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 5
2. Preparing for installation Calculating collector row clearance z .................................................... 6
3. Installation sequence Installation on collector supports ........................................................... 7
■Components, Vitosol-F/-FM, type SH ................................................. 7
■Components, Vitosol-F/-FM, type SV ................................................. 8
■Fitting collector supports, adjusting angle of inclination α ................... 9
■Installation on substructure, e.g. steel beams .................................... 9
■Installation on concrete slabs, only for type SH .................................. 12
Wall mounting (only for type SH) ........................................................... 15
■Components ....................................................................................... 15
■Fitting collector supports, adjusting angle of inclination γ ................... 16
■Installing the collectors ....................................................................... 16
Fitting the connection set and collector temperature sensor ................. 19
■Components ....................................................................................... 19
Covering the collector ............................................................................ 20
Installation .............................................................................................. 20
Commissioning and adjustment ............................................................. 21
Index
5698349
4
Disposal of packaging
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Disposal of packaging
5698349
5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
5698349
6
When installing several collectors one behind the
other, maintain clearance z to prevent unwanted shad-
ing.
z
β
α α
Fig. 1
z Collector row clearance
αCollector angle of inclination
βAngle of the sun
Angle of inclination αCollector row clearance z in mm
Type SV Type SH
Flensburg
25° 6890 3060
35° 8370 3720
45° 9600 4260
50° 10100 4490
60° 10890 4830
Kassel
25° 5830 2590
35° 6940 3100
45° 7840 3480
50° 8190 3640
60° 8720 3870
Munich
25° 5160 2290
35° 6030 2680
45° 6710 2980
50° 6980 3100
60° 7350 3260
Calculating collector row clearance z
5698349
7
Components, Vitosol-F/-FM, type SH
50
Ø 11
95 6 8
qQ qW
qP
80
75
897
100 722
α= 55°
α= 50°
α= 75°
α= 70°
α= 65°
α= 80°
α= 60°
100
α
100
α
α= 25°
α= 30°
α= 35°
α= 40°
α= 45°
1
2
3
4
1
2
3
4
AB
2
7
M8x25
Fig. 2
ACollector support for angle of inclination α 25 to
45°
BCollector support for angle of inclination α 50 to
80°
1Collector support
2Base rail
3Adjustable support, lower part
4Adjustable support, upper part (2-part)
5Washer 7 8.4 mm
6Hexagon nut M 8
7Hexagon bolt M 8 x 25
8Retaining bracket
9Clamping bracket
qP Joining plate
qQ Cross brace
qW Support rail (only for roofs with gravel ballast layer)
Connection pipe
Armaturenfett
rP rQ
Fig. 3
rP Connection pipe
rQ Special valve grease
Installation on collector supports
5698349
8

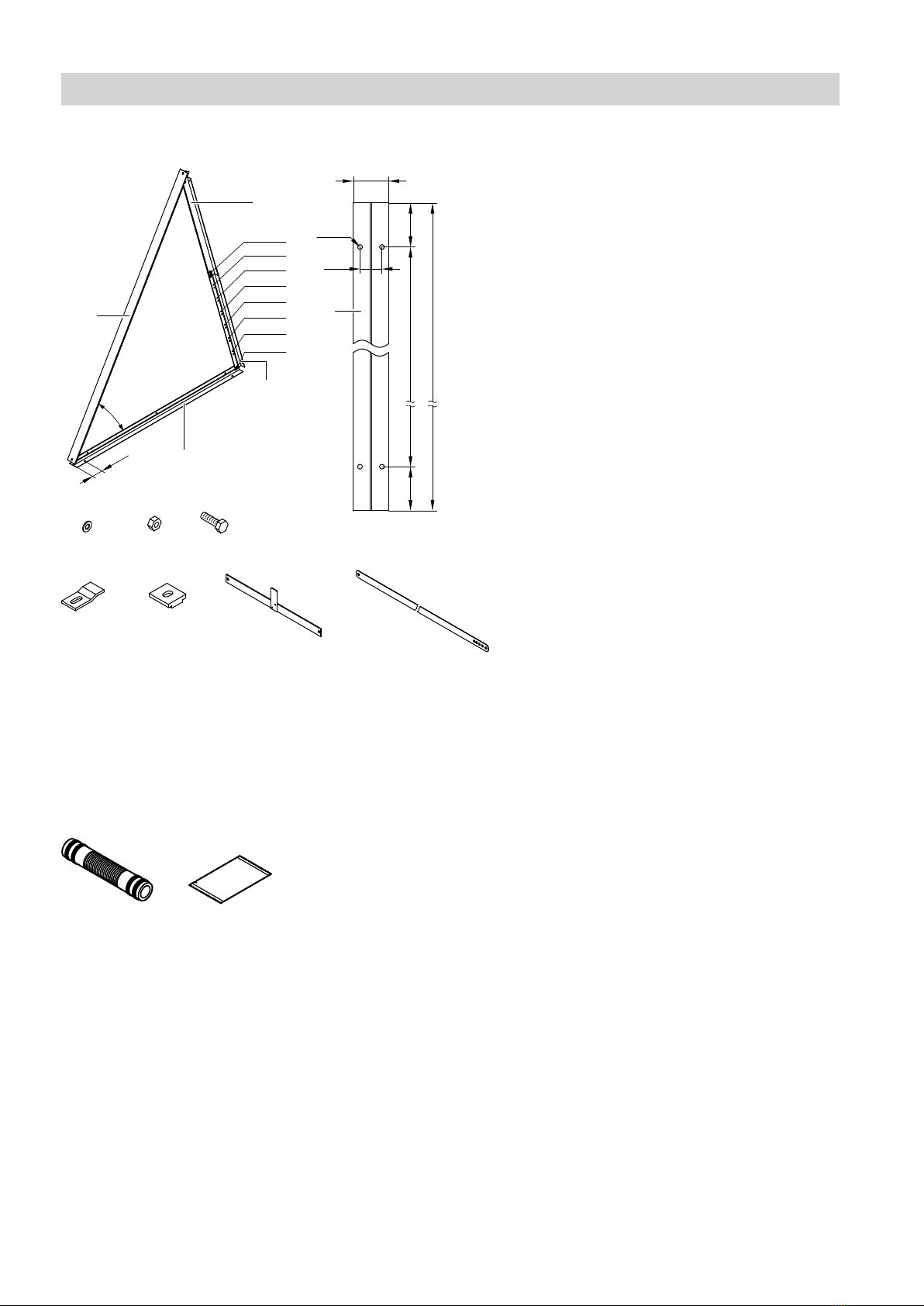

Components, Vitosol-F/-FM, type SV
9
5 6
8qQ
qP
α= 35°
α= 40
α= 45°
α= 50°
α= 25°
α= 55°
α= 60°
α= 30°
100
α
Ø 11
80
100100 1600
1800
50
1
2
3
4
2
7
M8x25
Fig. 4
1Collector support
2Base rail
3Adjustable support, lower part
4Adjustable support, upper part (2-part)
5Washer 7 8.4 mm
6Hexagon nut M 8
7Hexagon bolt M 8 x 25
8Retaining bracket
9Clamping bracket
qP Joining plate
qQ Cross brace
Connection pipe
Armaturenfett
rP rQ
Fig. 5
rP Connection pipe
rQ Special valve grease
Installation on collector supports (cont.)
5698349
9
Fitting collector supports, adjusting angle of inclination α
7
2.
1.
6 5
7
5
6
Fig. 6 For angles of inclination, see Fig. 2 and 4.
Installation on substructure, e.g. steel beams
Installation information:
■Observe the maximum load and distance from the
edge of the roof for the on-site substructure to DIN
1055.
■Install the on-site substructure at right angles to and
horizontally level with the collector orientation.
■Secure joining plate qP to the retaining plates
between the second and third supports, the fourth
and fifth, etc.
■For each of the 1 to 6 collectors installed side by
side, secure 2 cross braces diagonally to the adjust-
able supports using screws (see following diagram).
Installation on collector supports (cont.)
5698349
10

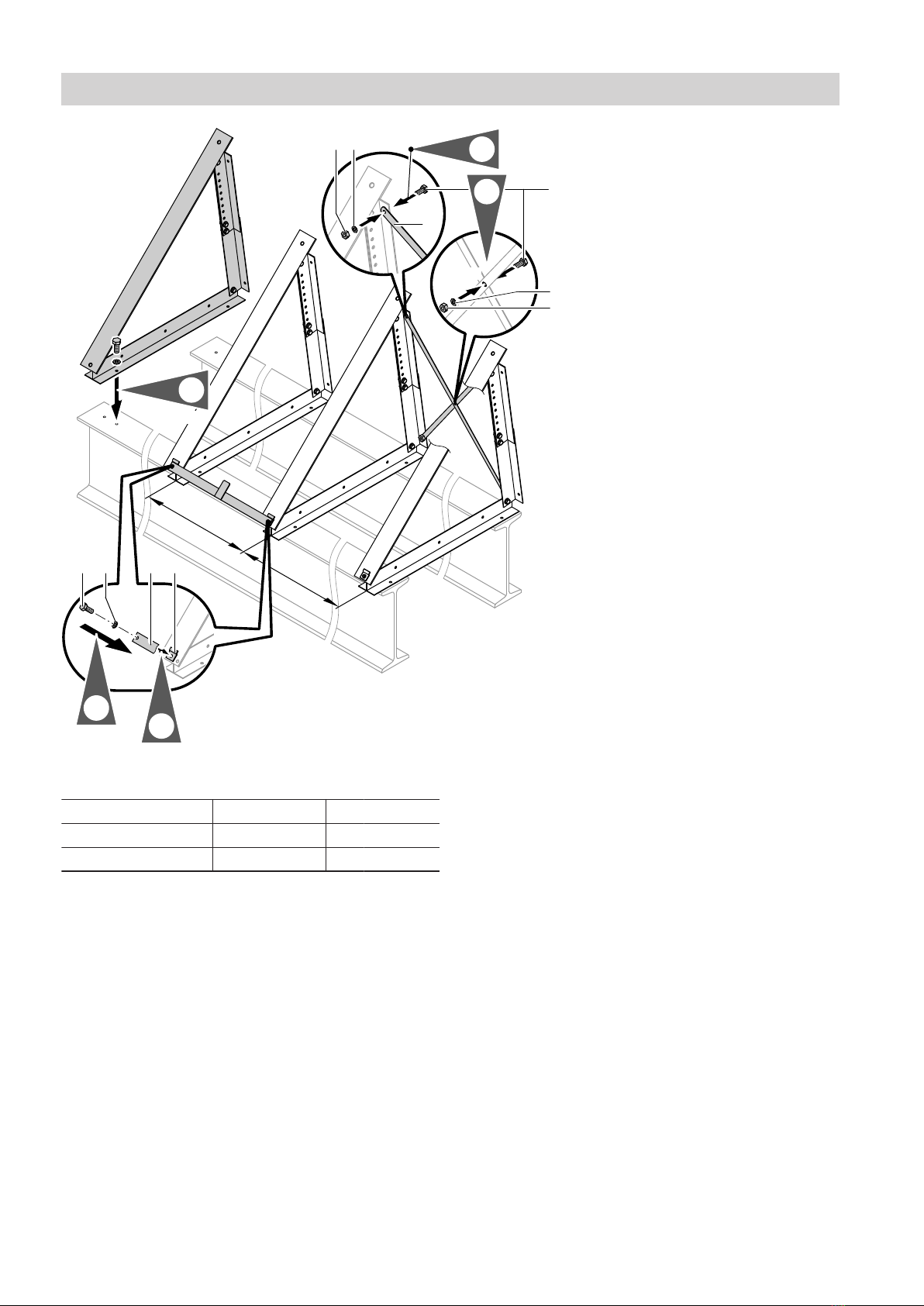

yx
4x
qQ
Ø 8,5
3.
56 6.
7
7.
6
5
qP 8
5.
4.
7 5
Fig. 7 Use the base rails as a drilling template.
Type x mm y mm
SV 595 481
SH 1920 481
Installation on collector supports (cont.)
5698349
