Viewpro Q20KTIR Manuale utente

User Manual

Q20KTIR 20x 4K EO + IR Dual-Sensor Object

Tracking Gimbal Camera

User Manual

Standard Version

标准版快拆版

Viewport Version

For more details please scan the QR code

or visit our website:

www.viewprotech.com

Disclaimer and Warning

Legends

1.1 Introduction

1.Product Introduction

Important NoteWarning

Q20KTIR is a 3-axis high-precision gimbal with 20x optical zoom

SONY RGB camera, it integrated with 20x optical zoom EO sensor

which provides not only 4K IP output but also 4K 8.51 picture& video

storage and with a 25mm lens 640*480 IR thermal sensor. It

supports IR thermal and visible PIP switch, IR color palette switch,

photographing and video, target tracking, thermal digital zoom.

When the external GPS and time input, GPS coordinate and

shooting time can be saved in image file, OSD can display GPS and

real-time as well. It features aluminum alloy housing and anti-inter-

ference. The 3 axis gimbal can achieve stabilization in yaw, roll and

pitch. The integrated design of damping system and gimbal can

greatly reduce mechanical vibration.

Q20KTIR is widely used in UAV industries of public security, electric

power, fire fighting, zoom aerial photography and other industrial

applications.

Congratulations on purchasing your new Viewpro product. Please

read this entire document carefully. Failure to read or follow instruc-

tions and warnings in this document may result in damage to your

Viewpro product. Disassemble the gimbal camera by user is not

permitted, as which may cause the camera does not work normally.

Viewpro accepts no liability for damage, injury or any legal responsi-

bility incurred directly or indirectly from the use of this project. The

user shall observe safe and lawful practices including, but no limited

to, those set forth in the manual.

1.2 In the Box

A. Standard Version

B. Viewport Version

Gimbal Camera

x 1 pc

USB to TTL Cable

x 1 pc

Power Cable

x 1 pc

Gimbal Camera

x 1 pc

USB to TTL Cable

x 1 pc

M3 Screw

x 8 pcs

Copper Cylinder

x 4 pcs

Copper Cylinder

x 4 pcs

Power Cable

x 1 pc

PWM Control Cable

x 1 pc

M3 Screw

x 8 pcs

2.1 Overview

TTL / S.BUS Control

Cable x 1 pc

TTL Connect Cable

x 3 pcs

Ethernet Cable x 1 pc

Viewport

Control Box Back Side

(Standard Version)

(Viewport Version)

[13]

[14]

[12]

[11]

2. Installation Instruction

[3]

[2]

[4]

[1]

[9]

[7]

[10]

[5]

]

[8]

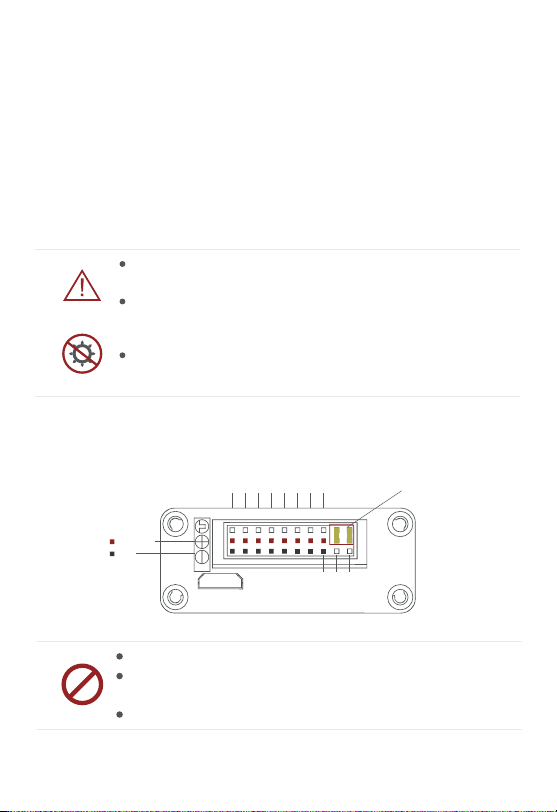

2.2.1 Control Box Printing (Standard Version)

[1] Control box

[2] Upper damping board

[3] Lower damping board

[4] FHD zoom camera

[6] Damping ball

[7] Yaw axis motor

[8] TF card slot

[9] Roll axis motor

[10] Pitch axis motor

[11] 3-6S power interface

[12] Micro HDMI interface

[14] Viewport unlock button

[13] Ethernet interface

[5] Infrared thermal camera

PITCH

Yellow Jumper Cap

GND

YAW

MODE

ZOOM

FOCUS

PIC/REC

MULTI

USB

5V output

GND

123

Please ensure that there isn’t any obstacle while the

motor rotating.

Please remove the obstacle immediately if gimbal

camera is blocked during rotation.

Don’t put the infrared thermal camera towards the

sun in case any burn to the camera

The input voltage cannot be higher than 6S.

The pin insertion interface cannot be connected with

power supply.

The yellow jumper cap cannot be removed

Front Side

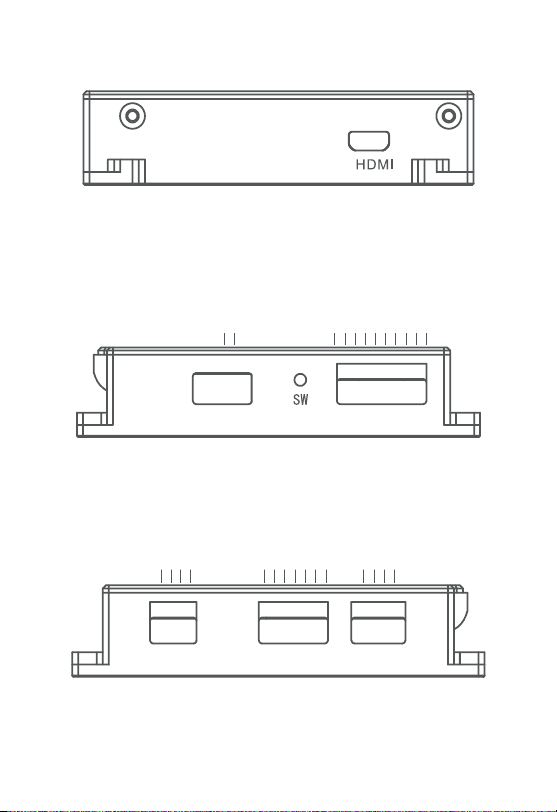

2.2.2 Control Box Printing (Viewport Version)

Left Side

Right Side

PITCH

YAW

MODE

ZOOM

FOCUS/PPM

PIC/REC

MULTI

GND

CVBS

3S-6S

GND

POWER PWM

GND

CANL

CANH

DC5V

GND

S.BUS

TTX

GND

RXD

TXD

RX-

RX+

TX-

TX+

ETHERNET UART & S.BUS CAN

Unit: mm

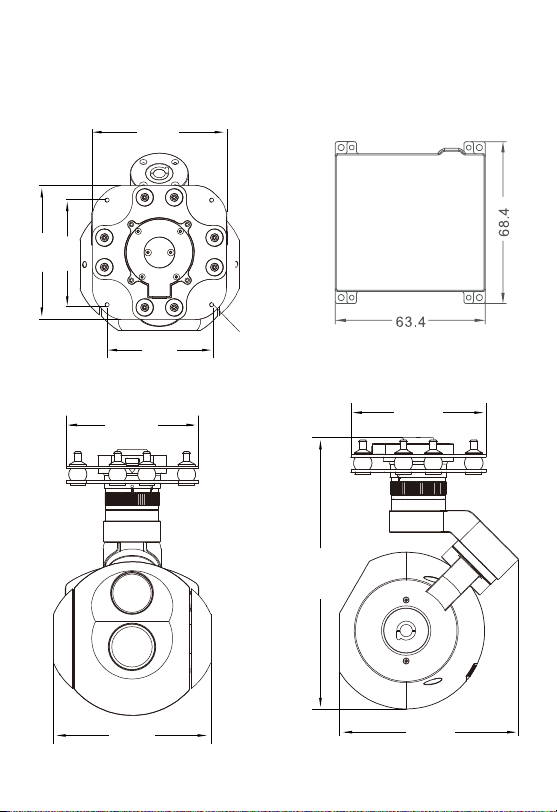

2.3 Device Dimensions (Standard Version)

62.2

99.9

φ110.0

φ3.5

107.0

195.6

132.3

31.5

13.0

118.7

107.0

Unit: mm

2.3 Device Dimensions (Viewport Version)

Control Box

φ3.5

100.0 100.0

200.8

118.7 132.3

99.9

78.0

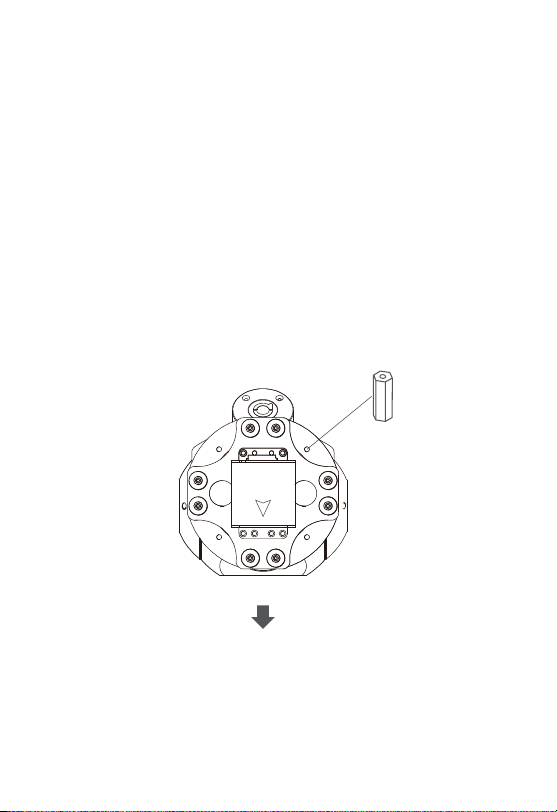

2.4 Install Mounting Part

(1) Find out the arrow on the gimbal which indicating the yaw

heading of the payload (i.e. the lens direction when the camera

power on), and synchronize with the direction specified by the UAV.

(2) Fix one end of the copper cylinder on the screw hole of lower

damping board, and use M3 screw to fasten it.

(3) According to the provided screw hole dimension you can make

suitable mounting holes on the UAV mounting board, and fixes the

other end of the copper cylinder on the mounting board of the UAV

(Viewport version is the same).

Front

2.5 Viewport Release Instruction

1. Make sure the two white stripes indicated in above picture are

aligned with each other. (If the stripes are not aligned to each other,

please pinch the connector part and turn it to left manually)
