ViewSonic VFD826-70 Manuale utente
VFD826
Digital Photo Frame
User Guide
Model No. VS13787
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specic languages using the Regional selection
box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”
i
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
ii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown
below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+)0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic
ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing
up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
iii
Copyright Information
Copyright © ViewSonic® Corporation, 2011. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks
of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VFD826
ViewSonic Digital Photo Frame
VS13787
VFD826_UG_ENG Rev. 1a 08-18-11
__________________________________
__________________________________
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green. Thank you
for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
iv
Important Safety Information
Always follow the basic safety precautions below when using your Digital Photo Frame. This will reduce
the risk of re, electric shock, and injury.
Warning: To reduce the risk of re or shock hazard, do not expose this product to rain or moisture.
Warning: To prevent the risk, do not remove the cover, there are no spare parts inside, refer all product
services to professional personnel.
• Digital Photo frame is for indoor use only.
• Unplug Digital Photo frame before performing care and maintenance.
• Do not block the ventilation holes on the back of Digital Photo Frame at any time.
• Keep your Multimedia Digital Photo Frame out of direct sunlight and heat source.
• Protect the power cord. Route power cords appropriately to avoid trip over by someone else or
pinched by items placed on or against it. Pay particular attention to the point where the cord
attaches to Digital Photo Frame.
• Only use the AC adapter included with the Digital Photo Frame. Using any other power adapter
will void your warranty.
• Unplug the power cord from the outlet when the unit is not in use.
Cleaning LCD Screen
Touch the screen gently. The screen is made of glass which can be scratched or damaged.
To clean ngerprints or dust from the LCD screen, we recommend using a soft / nonabrasive cloth
such as a camera lens cloth to clean the LCD screen.
If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the LCD screen.
Clean the LCD screen with a cleaning cloth moistened with the liquid.
Package Content
•
Digital Photo Frame
•
AC power adapter (5V, 1A)
•
User Guide
•
Quick Start Guide
•
Stand
1
Table of Contents
1.Precautions
2.Product Information
2.1 Features
2.2 Specications
2.3 Accessories
2.4 Navigation Buttons
2.5 Input Connections
3.Getting Started
3.1 Stand
4.Operating Instructions
4.1 Turn on/off the Digital Photo Frame
4.2 OSD Navigation
4.3 Viewing Photos
4.4 View Calendar
4.5 Settings
5.Troubleshooting
...............................................................2
..................................................3
.............................................................3
......................................................3
.........................................................3
..............................................4
.............................................5
..........................................................6
...................................................................6
...............................................7
....................7
..................................................7
...................................................8
.....................................................9
.............................................................10
.......................................................11
2
1.Precautions

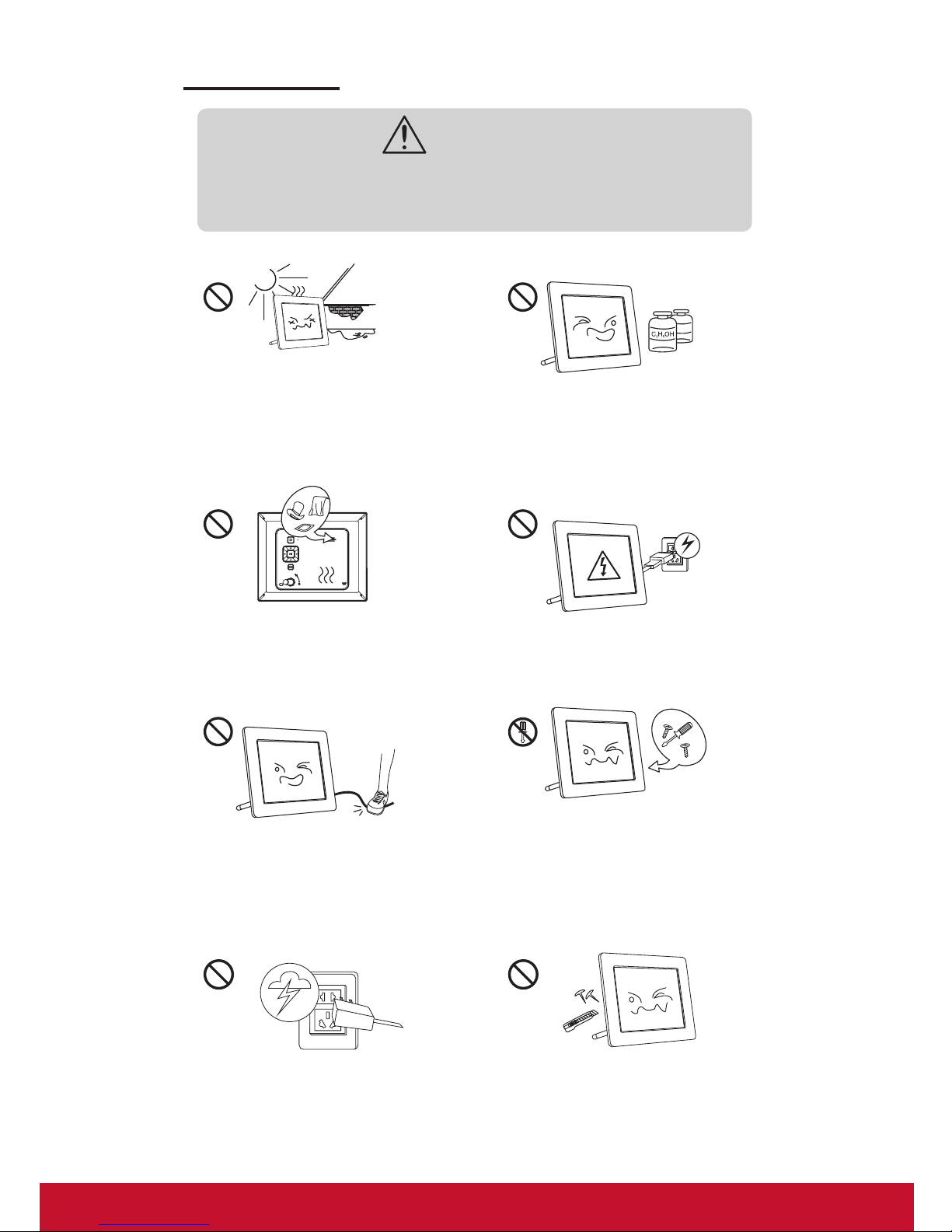

Warnings
Please read this manual carefully before operating and save it for future
reference.
Avoid exposing this device to water,
moisture or high temperature. Do not
place it near swimming pool, bathtub or
sink where it may come in contact with
water.
Clean only with a dry soft cloth; do not use
any chemical liquid for cleaning.
To ensure reliable operation of the
device and to protect it from overheating,
do not block any ventilation openings.
Only use accessories specied by the
manufacturer.
Do not step on the power cable, plug or
adapter to avoid electrical shock.
Do not attempt to service this device
yourself. Opening or removing covers
may expose you to electrical shock or
other hazards. Refer all services to a
qualied service personnel.
Please unplug this device during the
thunderstorm or not in use for a long
period.
Do not apply force on the LCD screen
during transport or usage. Avoid sharp
objects.
3
2.1 Features
2.2 Specications
■High quality 8 inch LCD: 800x600 high resolution.
■Slim and fashionable design, suitable for gifts and home decoration.
■High-speed picture decoding technology in JPG format with rotation and
zooming supported.
■Slideshow with multiple transition effects.
■Calendar and Clock functions.
■User-friendly navigation buttons.
■Three-in-one (SD/SDHC/MMC) and USB ash drive supported.
LCD Screen
Panel size / Aspect
ratio 8-inch 4:3
Effective viewing
area 162.0(W)x121.5(H) mm (6.4”W x 4.8”H)
Resolution 800(W)x600(H) pixels
Photo File
Image formats
supported JPG, JPEG (baseline coding)
Max. image
resolution 30 million pixels
Calendar Clock, Calendar
Memory Medium
Memory Card
supported MMC, SD, SDHC (max. 16GB)
USB USB ash drive
File system FAT, FAT32
Electrical
Specications
Power input 5VDC, 1.0A
Power
consumption ≤5W
Power adapter
Input AC 100-240V,
50/60Hz
Output DC5V, 1.0A
Dimensions
Dimensions 217x176x24 mm (8.5”W x 6.9”H x 0.9”D)
Weight Approx. 415g (0.9 lbs)
Operating mode Buttons on the panel
Environmental
Requirements
Operating
temperature 0°C~40°C (32°F~104°F)
Storage
temperature -20°C~60°C (-4°F~140°F)
2.Product Information
4

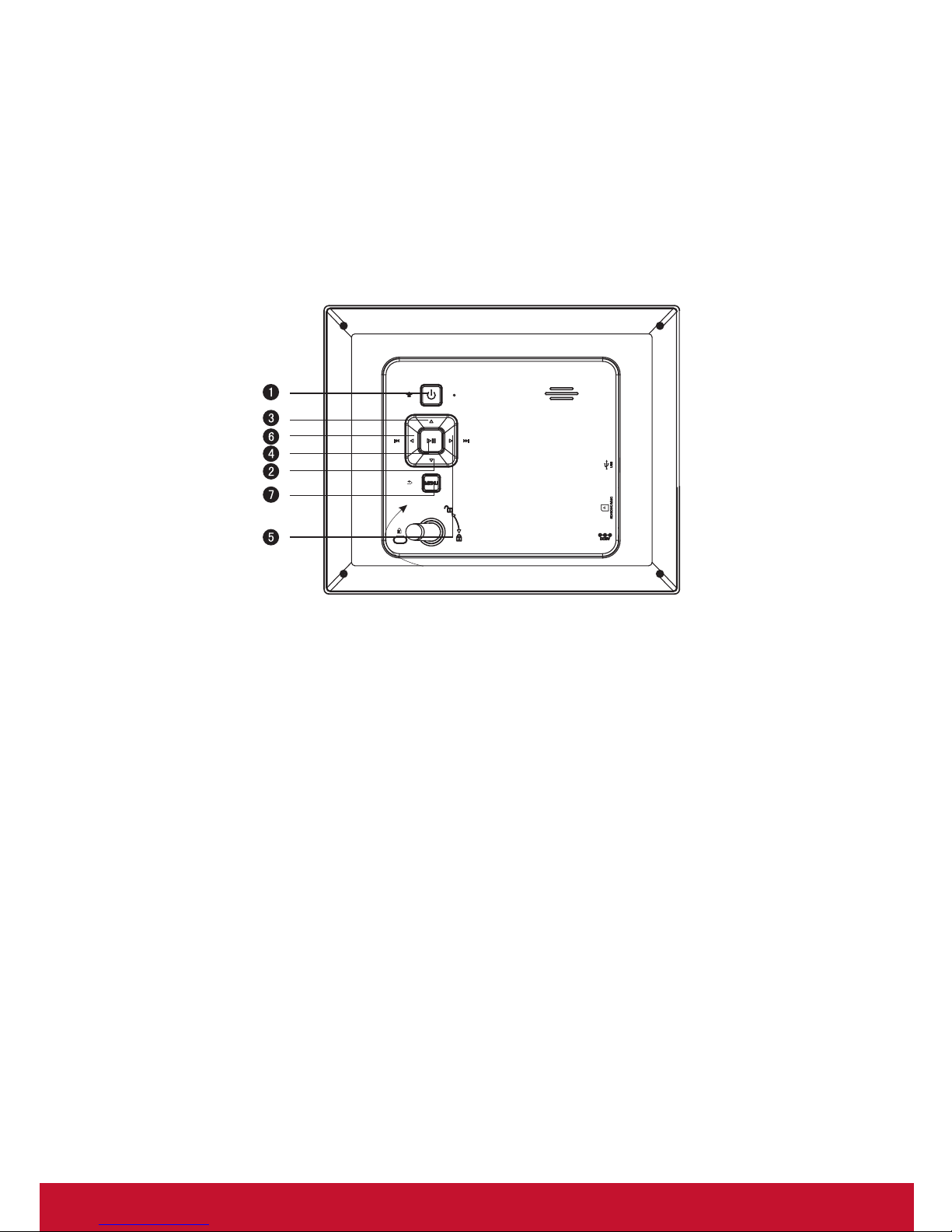

2.4 Navigation Buttons
Power: a. Press briey to turn on the device when the power is off;
b. Press & hold to turn off the device when the power is on;
c. Press briey to turn to the Main Menu when the power is on.
DOWN: Down.
UP: Up.
PLAY: a. Conrm/Enter; b. Press & hold for 3s to pop up the
shortcut menu; c. Play/ pause.
LEFT: a. Left; b. Backward.
RIGHT: a. Right; b. Forward.
RETURN: Exit.
Digital Photo Frame ---------------------- 1 piece
Power adapter ----------------------------- 1 piece
User’s manual ----------------------------- 1 piece
Quick start guide ------------------------- 1 piece
Stand ---------------------------------------- 1 piece
2.3 Accessories
➊
➋
➌
➍
➎
➏
➐
5

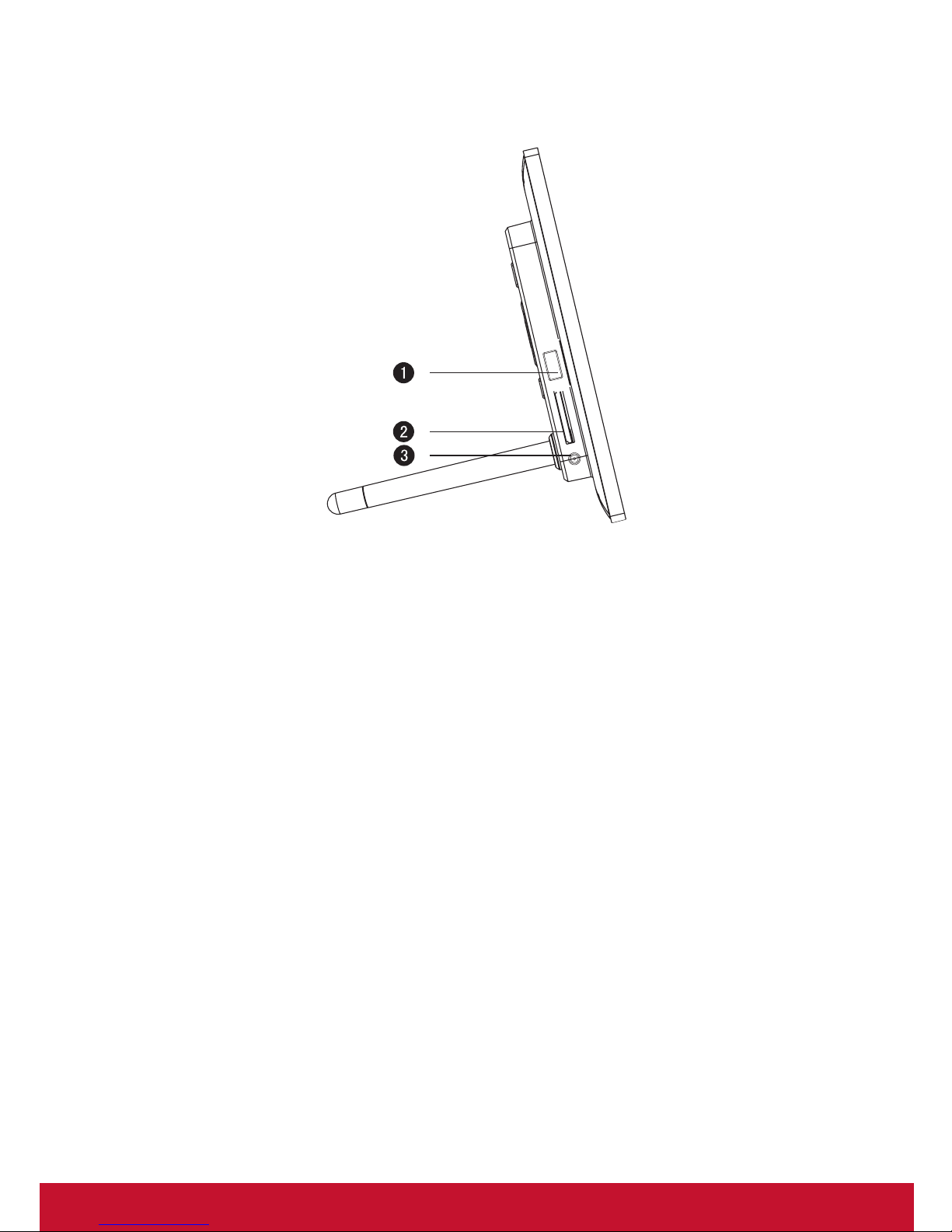

2.5 Input Connections
USB : connect to USB ash drive.
SD/SDHC/MMC card slot.
DC-IN: power input 5V DC 1.0A
➊
➋
➌
Altri manuali per VFD826-70
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali ViewSonic Cornice digitale
ViewSonic
ViewSonic VFM836-54 Manuale utente
ViewSonic
ViewSonic VFA720w-10 Manuale utente
ViewSonic
ViewSonic VS13442 Manuale utente
ViewSonic
ViewSonic VFD870-50E Manuale utente
ViewSonic
ViewSonic DPG807BK - Digital Photo Frame Manuale utente
ViewSonic
ViewSonic VFD820-70 Manuale utente
ViewSonic
ViewSonic DF87G-533 Manuale utente
ViewSonic
ViewSonic DP701W4WH Manuale utente
ViewSonic
ViewSonic VFD874 Manuale utente
ViewSonic
ViewSonic VFM823-50 Manuale utente
ViewSonic
ViewSonic VFM886-50E Manuale utente
ViewSonic
ViewSonic VFD724w-11 Manuale utente
ViewSonic
ViewSonic VFP838-11 Manuale utente
ViewSonic
ViewSonic VFD820-50 Manuale utente
ViewSonic
ViewSonic DPX802 Manuale utente
ViewSonic
ViewSonic VFA770W-10 Manuale utente
ViewSonic
ViewSonic DPX704BK - Digital Photo Frame Manuale utente
ViewSonic
ViewSonic DPG807BK - Digital Photo Frame Manuale utente
ViewSonic
ViewSonic DF88W-523 Manuale utente
ViewSonic
ViewSonic VFD1027w-11 Manuale utente
