ViewSonic VT2730-1M Manuale utente

Service Manual

ViewSonic VT2730-1M

Model No. VS13154-1M

27” LCD TV

(VT2730-1M_SM Rev. 1aMar.2010)

ViewSonic®381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or

computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,

manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to the contents

hereof and specifically disclaims any warranty of merchantability or fitness for any particular purpose. Further,

ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents

hereof without obligation of ViewSonic to notify any person of such revision or changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation.

ViewSonic is a registered trademark of ViewSonic Corporation.

All other trademarks used within this document are the property of their respective owners.

Revision History

Revision SM Editing Date ECR Number Description of Changes Editor

1a 03/26/10 Initial Release Sophia Kao

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

TABLE OF CONTENTS

1. Precautions and Safety Notices................................................................. 3

3. Front Panel Function Control Description................................................ 11

4. Circuit Description....................................................................................... 31

5.AdjustmentProcedure................................................................................ 38

6. Trouble Shooting Flow Chart................................................................ ..... 62

7.BlockDiagram............................................................................................. 64

8.SchematicDiagrams.................................................................................... 65

9.PCBLayoutDiagrams................................................................................. 75

10.Exploded View And Exploded Parts List..................................................81

11. Recommend Spare Parts List................................................................... 84

2.Specification................................................................................................. 5

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

1. Precautions and Safety Notices

1. Appropriate Operation

(1) Turn off the product before cleaning.

(2) Use only a dry soft cloth when cleaning the LCD panel surface.

(3) Use a soft cloth soaked with mild detergent to clean the display housing.

(4) Disconnect the power plug from AC outlet if the product is not used for a long period of time.

(5) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.

(6) Do not touch the LCD panel surface with sharp or hard objects.

(7) Do not place heavy objects on the LCD display, video cable, or power cord.

(8) Do not use abrasive cleaners, waxes or solvents for your cleaning.

(9) Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

2. Caution

No modification of any circuit should be attempted. Service work should only be performed after you are

thoroughly familiar with all of the following safety checks and servicing guidelines.

3. Safety Check

Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter

circuit, the voltage is exposed in such areas as the associated transformer circuits.

4. Power Supply Requirements

The external AC power operating range shall be from 90 to 264Vac

5. LCD Module Handling Precautions

5.1. Handling Precautions

(1) Since front polarizer is easily damaged, pay attention not to scratch it.

(2) Be sure to turn off power supply when inserting or disconnecting from input connector.

(3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

(6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth

when handling.

(7) Do not open nor modify the Module Assembly.

(8) Do not press the reflector sheet at the back of the module to any directions.

(9) In case if a Module has to be put back into the packing container slot after once it was taken out

from the container, do not press the center of the CCFL Reflector edge. Instead, press at the far

ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.

(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the

Interface Connector of the TFT Module.

(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do

not twist nor bend the TFT Module even momentary. At designing the enclosure, it should be

taken into consideration that no bending/twisting forces are applied to the TFT Module from

outside. Otherwise the TFT Module may be damaged.

(12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local

ordinances or regulations for disposal.

(13) Small amount of materials having no flammability grade is used in the LCD module. The LCD

module should be supplied by power complied with requirements of Limited Power Source

(IEC60950 or UL1950), or be applied exemption.

(14) The LCD module is designed so that the CFL in it is supplied by Limited Current Circuit

(IEC60950 or UL1950). Do not connect the CFL in Hazardous Voltage Circuit.

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

5.2. Handling and Placing Methods

Correct Methods: Incorrect Methods:

Only touch the metal frame of the LCD panel or the

front cover of the monitor. Do not touch the surface

of the polarizer.

Surface of the LCD panel is pressed by fingers and

that may cause “Mura”

Take out the monitor with cushions Taking out the monitor by grasping the LCD panel.

That may cause “Mura”

Place the monitor on a clean and soft foam pad. Placing the monitor on foreign objects. That could

scratch the surface of the panel or cause “Mura”

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

2. Specification

LCD panel of this product shall be provided by “CMO” with a model number of M270H1-L01.The

following table defines this panel specification. Any changes in panel must be pre-approved by

ViewSonic in written.

Parameter Specification

LCD Type a-Si TFT Active Matrix Wide Color, Transmissive Mode,

Normally Black

LCD Interface 2-Channel LVDS

Resolution (Native) 1920 x 1080

Display Area 27” diagonal; 597.89 (H) x 336.31 (V) mm

Pixel Pitch

0.3114 (H) x 0.3114(V) mm

Viewing Angle H = 170, V = 160 with CR10 (Typical)

Contrast Ratio 1200:1 (Typical)

Brightness 300 nits (Typical)

Response Time 3.4 ms, (Typical), g-g

Brightness Uniformity 1.33 (Max), measured per panel spec.

Chromaticity(CIE1931) White-x:0.313,White-y:0.329 (Standard Mode Only)

Colors 16.7M (8-bits)

Surface Treatment Hard coating (3H)

Backlight 4 CCFLs (Cold cathode Fluorescent Lamp)

Preset Color Panel Default

Gray Scale 0-255

Rated Life (Backlight) > 50KHrs*(ILO at 3.0mA)

Front Screen Artifacts

VS Standard:

a.) No Visible Streaking, Sag or Smearing artifacts when

driven by the specified video cards (see 7.1 General Test

Equipment) in the primary mode (VGA & 60 Hz) and after

user adjustment

b.) No image drift or lose fine-tune settings due to panel

temperature change.

Panel Acceptance Spec

Refer to the panel acceptance criteria specification.

Note: Intermittent and/or Display Pattern defects which result

in further bright or dark dots will be counted individually

against the above specification.

Note: Also refer to the panel defect acceptance specification.

Panel performance characteristics “ MUST BE” met in all display modes/inputs at standard test

conditions.

1. RF Tuner

RF tuner of this product shall be provided by “Samsung DTVA50FVH10109B” for NTSC/ATSC. The

following table defines this tuner specification.

Parameter Specification

RF Tuning Range NTSC/ATSC: 55.25 to 803 MHz, 2-69 Channels for Off-Air and

1-125 Channels for CATV

RF Tuner Sensitivity (S/N

Ratio at un-weight) 44 dB (min.)// 48 dB (max.)

Channel Bandwidth NTSC/ATSC/Digital Cable: 6 MHz Maximum

CVBS Characteristics:

Video Amplitude Signal 0.8(min.)–1.2(max.) V

Audio Characteristics:

SIF out level 500mV (typ.)

Compatible system TUNER NTSC/ATSC/QAM

Compatible system AV NTSC M

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

2. Video

Built-in A/D converter shall provide analog to digital converter for this product.

Input Parameter Specification

CVBS Characteristics:

Video Amplitude Signal

DC Level Sync Pulse

0.7(min.) – 1.1(max.) V

Typical. 0.3 V

S-Video Characteristics:

Video Amplitude Signal

Y : 1.0Vp-p W / Neg. Sync (IN 75 ȍ)

C : 0.285Vp-p (IN 75 ȍ)

Y, Pb, Pr Characteristics:

Video Amplitude Signal

Y:1.0Vp-p (IN 75 ȍ)

Pb:0.7 Vp-p(IN 75 ȍ),Pr:0.7 Vp-p (IN 75 ȍ)

Video Bandwidth

TSC:6MHzMaximum

HDMI Characteristics Panel Link T.M.D.S HDMI-1.3

RGB Characteristics:

Signal Type

Sync Type

Input Signal Rating

Sync Level:

Frequency Range

Pixel Color

DDC Compliance

EDID Data Table

Analog VGA

TTL, Separate Sync, with 2.2K:pull-down resistors

1250mV Max without damage to the product, 0-700 mV Full Range

2.5-5.25 V

Horizontal: 30-82K Hz, Vertical: 55-76 Hz

16.7 M

DDC2B Compliant, Rev 1.3

Refer to Appendix

3. Audio

Audio amp of this product shall be provided by “TI” with a Model Number of TPA3113D2 .

“MST” MSD3003 for VT2730-1M shall be used as sound processor. In addition, a pair of speakers shall

be integrated within this product. The audio signals of this product shall comply with the specification

listed in the following table.

Parameter Specification

Tuner Input Base band Input

Power Output Max Rating 5W at 10 % T.H.D Distortion 5W at 10% T.H.D Distortion

Speaker Impedance main speaker :6ȍmain speaker :6 ȍ

Line In NTSC: BTSC Mono / Stereo(standard)

PAL: FM Mono / Stereo(standard)

500 mV rms (Typ)

1.6 V rms (Max)

Impedance: 600 ohms

Line Out earphone jack 500 mV rms

15 mW@32ȍ

Flatness of Amplitude

Response +/- 3 db (at 1KHz @1W) +/- 3 db (at 1KHz @1W)

Total Harmonic Distortion

(Po=0.1 to 1 W, f=1KHz) <2% <2%

Signal to Noise: 12 dB (100Hz to 1KHz)

8 dB (1kHz to 10kHz) 35 dB (100Hz to 10 kHz)

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

Electrical

The following table defines the electrical specification of this product.

ELECTRICAL SPECIFICATION

1 Power Input Voltage Range 100-240VAC +/- 10% Wide Range

2 Input Frequency Range 47-63 Hz

3 Input Current 1.0A @ 115VAC // 0.5A @ 230VAC

4 Power Supply Inrush

Max in < 80A (with fully loaded power supply) at 230Vac

Shall not result in permanent failure of power supply

(including blown fuse)

5 Power Consumption: 70 W (Normal), 75W (Max) // Stand by: < 1W

6 Interference with RF and Video

There shall be no visible interference between power supply,

RF and video signals. This applies to all available RF

channels and video modes.

7 Electromagnetic Compatibility This product shall adhere to the compatibility and immunity

specifications in FCC.

8Power Supply Transient Immunity

(Supply Transients and Outage)

Able to withstand an ANSI / IEEE C62.41 – 1980 2000V

ring wave with no damage.

9 Surge Immunity Test Able to withstand 1.25X nominal Line Voltage for one cycle

with no damage.

10 Power Supply Missing Cycle

Immunity

Function properly without reset or visible screen artifact

when 1/3 cycle of AC Power is randomly missing.

11 Power Supply Acoustics

The Power Supply shall not produce audible noise that would

be detectable by the user (Excluding Power Supply Fan).

“Audible” shall be defined in accordance with ISO 7779

(DIN EN27779:1991).

Power Switch noise shall be Excluded.

12 Efficiency >= 80% @ full load, nominal line

13 Leakage Current <0.5mA @ 240VAC

14 Power Saving(DPMS) N/A

15 Recovery Time < 3 sec.

16 Power Factor Correction Compliant with EN61000-3-2

5. Firmware & OSD

The product firmware of VS13154-1M shall have a firmware version of V2.00EB0. Any

changes/revisions afterward shall also be pre-approved by ViewSonic in written. For VS13154-1M, its

firmware shall have a built-in frequency table for NTSC/ATSC off-air TV/CATV, and with MTS

implementation.

All audio/video and other output adjustments shall be performed by using an On Screen Display (OSD)

via a Remote Control Unit (RCU) in conjunction with the front panel adjustments.The following tables

list the OSD functions supported by VS13154-1M.

OSD Table for VS13154-1M

Picture Mode Standard, Dynamic, Soft ,Personal

Contrast 0~50~100

Brightness 0~50~100

Sharpness 0~50~100

Tint 0~50~100

Color 0~50~100


Color Mode Cool, Normal, Warm, Personal

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

Zoom Mode Movie Scale, Zoom In,4:3, Normal

NR Middle, Strong, Off, Weak,

Sound Mode Standard, Music, Movie, Sports, Personal

Treble/Bass Bass, Treble, Balance

Audio Language(ATSC) English, French, Spanish

Surround Sound SRS TruSurround HD, Off

AUDIO

Audio Only On, Off

Sleep Timer OFF, 5,10,15,30,45,60,90,120,180,240 Min

Time Zone Pacific, Alaska, Eastern, Central, Mountain, Hawaii,

Atlantic

DST On, Off

Time-Format 12/24-hour

Auto Sync On, Off

TIME

Clock Year, Month, Day, Hour, Min, OK, Cancel

Menu Language English, French, Spanish

Transparency 0%,25%,50%,75%,100%

OSD Time Out 5,15,30,45,60 sec.

Closed Caption CC off, CC on, CC on mute

Basic Selection off, CC 1~4 Text 1~4

Advanced

Selection(ATSC) off, Service 1~6

Custom, Font style, Front size, Font edge style

Font edge color, FG color, BG color, F G Opacity

Option(ATSC)

DG Opacity

Restore Default Yes, No

Input label TV,AV,S-Video, YPbPr, HDMI1, HDMI2,HDMI3,PC,

USB

DCR On, Off

Display Mode Home, Retail

Media SlideShow Timer 5Sec,10sec,30Sec,1Min,30Min

Trans. Effect Random, None, Right Drag Left Drag, Down Drag, Up

Drag, S-Play, N-Play, Fade In/Out, Fly In/Out

File List Sorting None, Sort by Name, Sort by Name Z->A, Sort by

Size, Sort by Date, Sort by Date New->Old

OPTION

SlideShow Repeat on, Off

TV Source Air, Cable

Auto Scan Scan all channels, Digital channel only, Analog channel

only

Favorite ʳ

Show/Hide ʳ

Channel No. ʳ

Channel Label ʳ

CHANNEL

DTV Signal ʳ

LOCK Enter Password ʳ

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

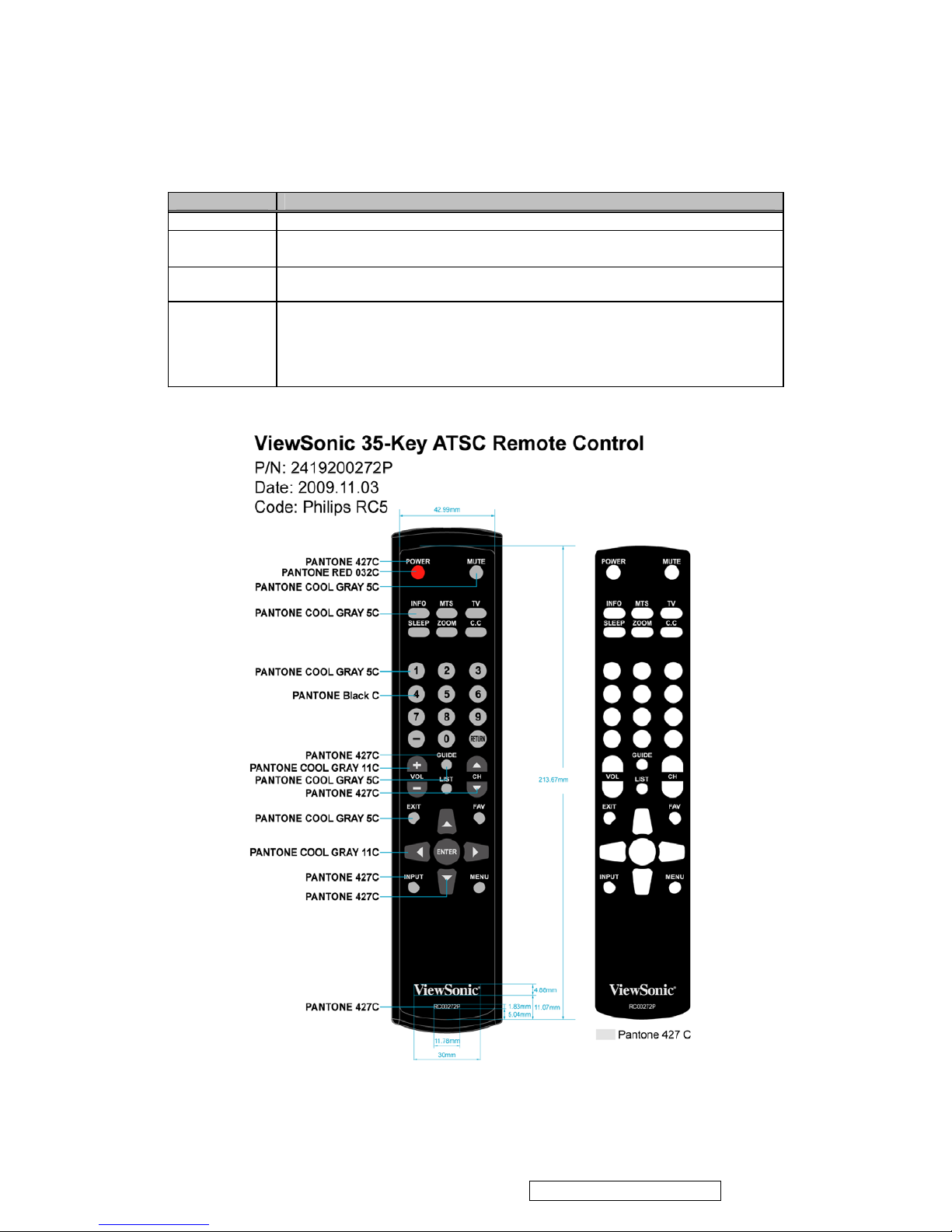

6. Remote Control Unit (RCU)

An IR remote control unit shall accompany this product along with battery. In addition, this remote

control unit shall have an operational distance of 5 meters and an operational angle of 15 degrees for both

horizontal and vertical. Besides the key-code and protocol has fully conformed to VS standard.

Parameter Specification

Type IR; Made by Sighter Electronics Co., Ltd.

Range Off axis r15qt5M

On axis: t7M

Life Testing

(Buttons)

100,000 cycle operations at a rate of 20~30 cycle / minute without load (with

battery)

Color

Painting Color - PANTONE 427C (Black for front & back cover)

Power Key - PANTONE 032C (RED)

Key Pads – PANTONE 10C & PANTONE 7C(Cool Gray)

Texts Printed on Front Cover and Key Pads - PANTONE 427C

Protocol VS key-code & protocol.

ViewSonic Corporation Confidential - DoNot Copy VT2730-1M

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ViewSonic TV LCD

ViewSonic

ViewSonic NX1932W - DiamaniDuo - 19" LCD TV Manuale utente

ViewSonic

ViewSonic LCD TV VS11769-2M Manuale utente

ViewSonic

ViewSonic N2751w Manuale utente

ViewSonic

ViewSonic VT2405LED Manuale utente

ViewSonic

ViewSonic VS11439-3M Manuale utente

ViewSonic

ViewSonic VX2260WM - 22" LCD Monitor Manuale utente

ViewSonic

ViewSonic VT2300LED Manuale utente

ViewSonic

ViewSonic N3235w - 32" LCD TV Manuale utente

ViewSonic

ViewSonic VT3200-L Manuale utente

ViewSonic

ViewSonic VIEWSONIC N3290W Manuale utente

ViewSonic

ViewSonic VS12197-1G Manuale utente

ViewSonic

ViewSonic N3766w Manuale utente

ViewSonic

ViewSonic VT3745 - 37" LCD TV Manuale utente

ViewSonic

ViewSonic N3252w-1M Manuale utente

ViewSonic

ViewSonic NextVision N3260w Manuale utente

ViewSonic

ViewSonic N2752w Manuale utente

ViewSonic

ViewSonic N4280p - 42" LCD TV Manuale utente

ViewSonic

ViewSonic N2635W Manuale utente

ViewSonic

ViewSonic VT2405LED Manuale utente

ViewSonic

ViewSonic N2011 Manuale utente

ViewSonic

ViewSonic N3200W - NextVision - 32" LCD TV Manuale utente

ViewSonic

ViewSonic N2050W - NextVision - 20" LCD TV Manuale utente

ViewSonic

ViewSonic N4261w-1M Manuale utente

ViewSonic

ViewSonic N4290p Manuale utente

Manuali TV LCD popolari di altre marche

LG 32LC4R* Manuale utente

Salora

Salora 22LED1600 Manuale utente

Samsung

Samsung LA32E420 Guida

Dell

Dell W1900 19 Istruzioni utente

Samsung

Samsung LN40C670M1F Manuale utente

Samsung

Samsung Series 4+ Manuale utente

Samsung

Samsung 5 Series Manuale utente

Grundig

Grundig 40 VLE 8230 BP Manuale utente

Philips

Philips 43PFL4901/F7 Manuale utente

Sony

Sony Bravia XBR-43X830C Manuale utente

LG 32LS350 Manuale utente

VIORE

VIORE LED32VF60 Manuale utente

Toshiba

Toshiba Regza 42HL167 Manuale utente

JVC

JVC LT-32A220 Manuale utente

Philips

Philips 20TA1000/93 Manuale utente

Philips

Philips 32PFL3158T/12 Manuale utente

Sony

Sony Bravia KDL-V32XBR2 Manuale utente

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuale utente
