ViewSonic E70mb Manuale utente

ViewSonic®

- User Guide

- Guide de l'utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guida dell'utente

- Guia do usuário

- Användarhandbok

- Käyttöopas

- Podręcznik użytkownika

- Pyководство польэователя

E70m/E70mB

CRT Monitor

Contents

Product Registration...................................................4

For Your Records.......................................................4

Getting Started

Package Contents......................................................5

Precautions................................................................5

Quick Installation........................................................6

Using the Monitor

Setting the Timing Mode............................................7

OSD Lock Settings.....................................................7

Adjusting the Screen Image.......................................8

Main Menu Controls..................................................10

Other Information

Specifications...........................................................12

Troubleshooting.......................................................13

Customer Support....................................................14

Cleaning the Monitor................................................15

Limited Warranty......................................................16

Important Safety Instructions ....................................3

Compliance Information .............................................2

ViewSonic E70m 1

Compliance Information

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy, and if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the cables

which are included with the equipment or specified. Also, any unauthorized changes or

modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate this device.

For Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numeique de la Classe B repecte toutes les exigences du Reglement sur le materiel

brouilleur du Canada.

For European Countriess

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic

compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

“Safety.”

ViewSonic E70m 2

User Information for all Countries

Notice: Use the cables which are included with the unit or specified.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instruc-

tions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs. Convenience

receptacles and the point where they exit from the unit. Be sure that the power outlet is located

near the unit so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with

the unit. When a cart is used, use caution when moving the cart/unit combination to avoid injury

from tip-over

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the unit has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate

normally, or has been dropped.

ViewSonic E70m 3

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product speciﬁcations without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The

ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration

form, which you may mail or fax to ViewSonic.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

E70m

ViewSonic 17” Color CRT Monitor

VS10083

E70m/B-2_UG_ENG Rev. 1D 12-06-04

_____________________________________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this

product properly at the end of its useful life. For TCO’03 recycling information, please refer to

our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

ViewSonic E70m 4

Getting Started

Congratulations on your purchase of a ViewSonic®color monitor. Important!

Save the original box and all packing material for future shipping needs.

NOTE: The word “Windows” in this user guide refers to the following Microsoft

operating systems: Windows 95, Windows NT, Windows 98, Windows 2000,

Windows Me (Millennium), and Windows XP.

Package Contents

Your package includes:

• Color monitor

• DB-15 video cable

• Power cord

•ViewSonic Wizard CD-ROM

NOTE: The CD jacket contains the Quick Start Guide, and the CD includes the

User Guide PDF files and INF/ICM display optimization files. The INF file

ensures compatibility with Windows operating systems, and the ICM file (Image

Color Matching) ensures accurate on-screen colors. ViewSonic recommends that

you install both files.

Precautions

• For best viewing conditions sit at least

16" from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to continue

using the monitor.

ViewSonic E70m 5

•Audiocable

Quick Installation

1 Connect power cord

Connect the power cord to a properly

grounded AC outlet.

2 Connect video cable

Make sure both the monitor and computer

are turned OFF.

• Connect the video cable to the computer.

Macintosh®users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic. See “Customer Support”

3 Turn ON monitor and computer

Turn ON the monitor, then turn ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows users may

receive a message asking them to install the

INF file.

4 Install Display Optimization files

(INF and ICM files)

(1) Insert the ViewSonic Wizard CD-ROM

into your computer’s CD-ROM drive.

NOTE: If your computer does not have a

CD-ROM drive, see “Customer Support” on

(Continued)

(2) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in

Windows Explorer, then double-click on

viewsonic.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh

rate)

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

ViewSonic color monitor.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in “For Your Records” on

page 4. (See back of monitor.)

To register your product go online to

www.viewsonic.com.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print the

registration form which you may mail or fax

to ViewSonic.

on page14.

page 14.

Example: 1024 X 768 @ 75Hz.

ViewSonic E70m 6

Power Cable

Wall socket

Audio In

Headphone Out

VGA vidio cable

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

example 75 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

For the best picture quality set your monitor timing mode to:

To set the Resolution:

1Right-click on the Windows desktop.

2Click Properties on the drop-down menu.

3Click the Settings tab.

4Move the slider pointer which displays in the Desktop area or Screen area in

the window.

NOTE: The refresh rate should already be set if you have done the CD

installation (or refer to your graphics card documentation).

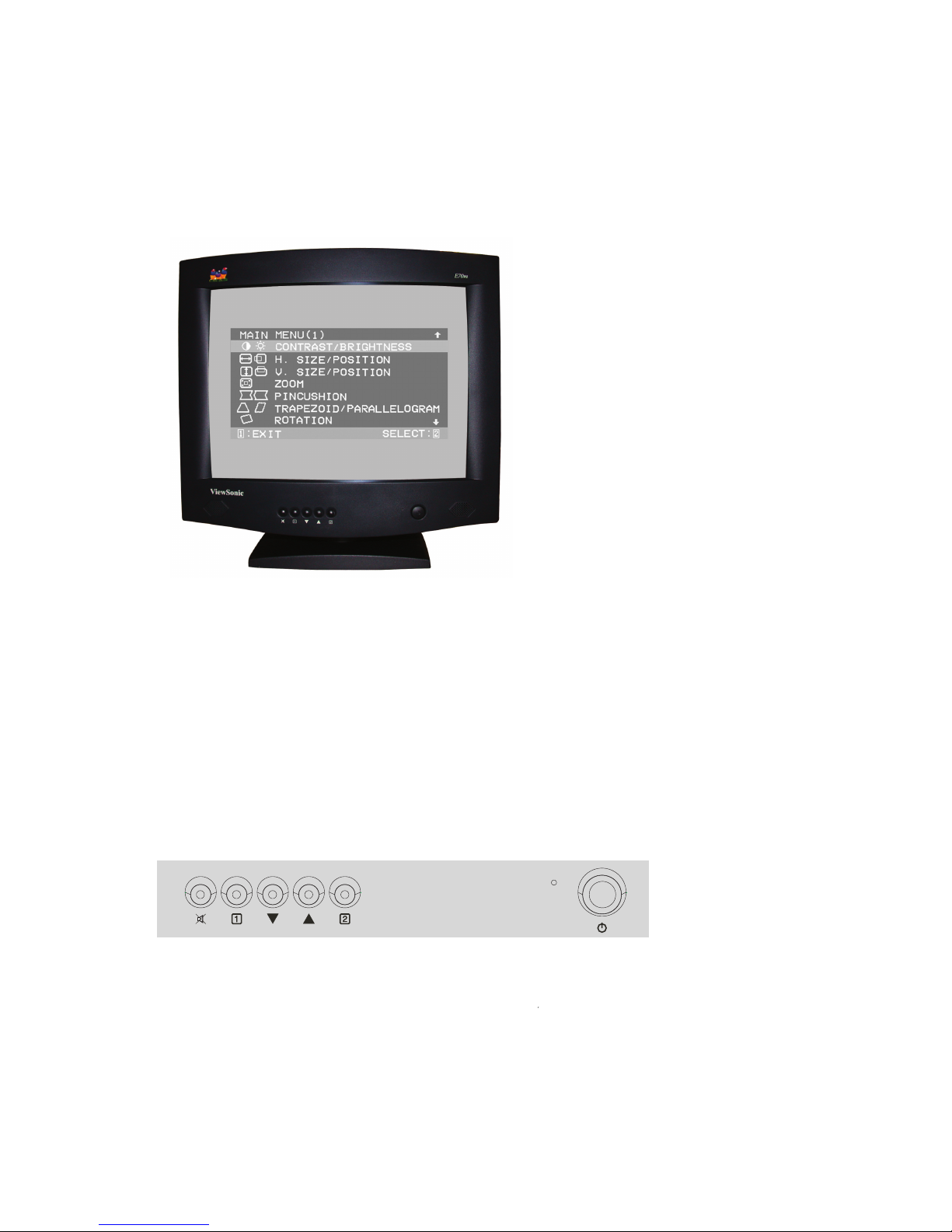

OSD Lock Settings

You have the option of using the On Screen Display (OSD) locking feature,

OSD LOCK, to prevent unwanted changes to the current image settings.

•

for 5 seconds. The message “OSD LOCK” will then display briefly,

indicating that the OSD image settings are now locked.

•

message “OSD UNLOCK” will then display briefly, indicating that the OSD

image settings are now unlocked.

resolution (example 1024 x 768) and refresh rate (or vertical frequency;

VESA 1024 x 768 @ 85 Hz.

OSD Lock: Press and hold the [2] button on the face of the monitor

OSD Unlock: Press and hold the [2] button again for 5 seconds. The

ViewSonic E70m 7

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®

controls which display on the screen. The OnView controls are explained at the

top of the next page and are defined in “Main Menu Controls” on page 10.

Power Light Power On/Off

Displays control screen for

highlighted control (or pair

of controls). Also, toggles

between pairs of controls on

some control screens.

Scrolls through menu

options and adjusts

the displayed control.

Main Menu

With OnView controls

Front Control Panel

Displays Main Menu

ViewSonic E70m 8

Mutes Audio

Do the following to adjust the screen image:

1To display the Main Menu, press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor and scroll through the choices. When the

control you want is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Display control screen (sample shown in step 3 below).

Press button [2] to toggle to the next control in the pair.

3To adjust the selected control, such as CONTRAST in the sample below,

press the arrow buttons.

4To save the control setting and Exit the menu press button [1] twice.

ViewSonic E70m 9

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ViewSonic Monitor

ViewSonic

ViewSonic VA1703wb-2 Guida di riferimento

ViewSonic

ViewSonic VG720 - 17" LCD Monitor Manuale utente

ViewSonic

ViewSonic VA1913wm VS12490 Manuale utente

ViewSonic

ViewSonic XG3220 Manuale utente

ViewSonic

ViewSonic VG3456C Manuale utente

ViewSonic

ViewSonic Q19WB - Optiquest - 19" LCD Monitor Manuale utente

ViewSonic

ViewSonic CDP3235 Manuale utente

ViewSonic

ViewSonic LDE135-151 Manuale utente

ViewSonic

ViewSonic VSD220 Manuale utente

ViewSonic

ViewSonic CD4620 - 46" LCD Flat Panel Display Manuale utente

ViewSonic

ViewSonic VX2758A-2K-PRO Manuale utente

ViewSonic

ViewSonic VA1931wm-LED Manuale utente

ViewSonic

ViewSonic VX500+ Manuale utente

ViewSonic

ViewSonic ViewPanel VE170 Manuale utente

ViewSonic

ViewSonic VA2402-h Manuale utente

ViewSonic

ViewSonic VA2447-mh Manuale utente

ViewSonic

ViewSonic VS19112 Manuale utente

ViewSonic

ViewSonic ViewBoard IFP4320 Series Manuale utente

ViewSonic

ViewSonic CD4230 - 42" LCD Flat Panel Display Manuale utente

ViewSonic

ViewSonic OptiSync VX710 Manuale utente

ViewSonic

ViewSonic VG1932wm-LED Manuale utente

ViewSonic

ViewSonic MA1014H Manuale utente

ViewSonic

ViewSonic VS15138 Manuale utente

ViewSonic

ViewSonic VA730M Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
