ViewSonic P225f - 22" CRT Display Manuale utente

User Guide

Guide de l’utilisateur

Bedienungsanleitung

Guía del usuario

Guida dell’utente

Guia do usuário

Användarhandbok

Руководство пользователя

Podręcznik użytkownika

With Plug & Play

✘

22" (20" Viewable Diagonal)

P225f Color Monitor

P225f-FrCover.fm Page 1 Friday, October 13, 2000 3:25 PM

Contents

ViewSonic P225f 1

Electronic Warranty Registration.......................... 2

For Your Records................................................. 2

Getting Started

Package Contents................................................ 3

Precautions .......................................................... 3

Quick Installation.................................................. 4

Using the Monitor

Setting the Timing Mode ...................................... 5

Adjusting the Screen Image ................................. 6

Other Information

Specifications ..................................................... 11

Troubleshooting ................................................. 12

Customer Support .............................................. 13

Cleaning the Monitor .......................................... 14

Limited Warranty ................................................ 15

Appendix

Power Cord Safety Guidelines ........................... 16

FCC Information................................................. 17

P225f.book Page 1 Friday, October 13, 2000 3:00 PM

2 ViewSonic P225f

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this

material, or the performance or use this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

Electronic Warranty Registration

To meet your future needs, and to receive any additional product information as it becomes available,

please register your monitor's warranty on the Internet at: http://www.viewsonic.com

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product

properly at the end of its useful life. Your local waste disposal company may provide information

about proper disposal.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewSonic P225f

VCDTS22074-1

P225f-1_UG_90

______________

P225f.book Page 2 Friday, October 13, 2000 3:00 PM

ViewSonic P225f 3

Getting Started

Congratulations on your purchase of a ViewSonic P225f color monitor.

Important! Save the original box and all packing material for future shipping

needs.

NOTE: This product was designed for operation in the magnetic fields of the

hemisphere where it was purchased. Also, the word “Windows” in this user

guide refers to the following Microsoft operating systems: Windows ‘95,

Windows NT, Windows ‘98, Windows 2000 and Windows ME (Millennium).

Package Contents

Your P225f package includes:

• P225f monitor

• DB-15 video cable

• Power cord

• Setup Guide

• ViewSonic Wizard CD-ROM (including User Guide PDF files and INF/ICM

Display Optimization files)

NOTE: The supplied INF file ensures compatibility with Windows operating

systems, and the ICM file (Image Color Matching) ensures accurate on-screen

colors. ViewSonic®recommends that you install both files.

Precautions

• For best viewing conditions sit at least

18"from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high-

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source. The

monitor should be facing away from

direct sunlight to reduce glare.

• Do not place your monitor near a source

of water or moisture.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that blocks the ventilation slots

or prevents adequate dissipation of heat.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to operate

your monitor under these conditions.

• Keep the monitor away from magnets,

motors, transformers and televisions.

P225f.book Page 3 Friday, October 13, 2000 3:00 PM

4 ViewSonic P225f

Quick Installation

1 Connect video cable(s)

Make sure both the monitor and computer

are powered OFF.

The monitor can be connected to one or two

computers using either the DB-15 video

cable (included) or a BNC video cable

(purchased separately). To toggle between

two computers: connect the DB-15 video

cable from the monitor to the first computer,

and the BNC video cables from the monitor

to the second computer.

Macintosh users: Models older than G3

require a ViewSonic Macintosh adapter.

Attach the adapter to the computer and plug

the video cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic. See Customer Support

in this user guide.

2 Connect power cord

Connect the power cord from the monitor to

a properly grounded AC outlet.

3 Power-ON monitor and computer

Power-ON the monitor, then power-ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows 98 users may

receive a message asking them to install the

P225f INF file.

4 Install Display Optimization files

(1) Insert the ViewSonic wizard CD-ROM

into your computer’sCD-ROMdrive.

NOTE: if your computer does not have a

CD-ROM drive, see the Customer Support

section of this user guide.

(2) Wait for the CD-ROM to auto-start.

NOTE: if the CD-ROM does not auto-start:

double-click on the CD-ROM icon in

Windows Explorer, then double-click on

install.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate)

Example: 1600 X 1200 @ 85 Hz.

For instructions on changing the resolution

and refresh rate, see the user guide for your

computer's graphics card.

Installation is complete. Enjoy your new

P225f monitor!

To be best prepared for any future customer

service needs:

Write the serial number (see back of the

monitor) in “For your Records” on page 2

of this guide.

Internet at: www.viewsonic.com

Port for DB-15

video cable

Ports for

optional BNC

video cables

Power Cord

from monitor

to AC outlet

Power Cord

from computer

to AC outlet

P225f.book Page 4 Friday, October 13, 2000 3:00 PM

ViewSonic P225f 5

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1280 x 1024) and refresh rate (or vertical frequency;

example 75 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

The recommended timing mode for this monitor is:

VESA 1600 x 1200 @ 85 Hz.

To set the Timing Mode:

1Set the resolution: Right-click on the Windows®desktop > Properties >

Settings > Desktop Area (Screen Area for Windows 95 and newer) > set the

resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

NOTE: To minimize the adjustments required for an optimal screen image,

select a timing mode from the Preset Timing Modes table below.

WA R N I N G : Do NOT set the graphics card in your computer to exceed the

maximum refresh rates; doing so may result in permanent damage to your

monitor.

(NI = Non Interlaced)

Preset Timing Modes

VGA 640 x 400 @ 70 Hz

VESA 800 x 600 @ 75 Hz

VESA 800 x 600 @ 85 Hz

VESA 1024 x 768 @ 75 Hz

VESA 1024 x 768 @ 85 Hz

VESA 1280 x 1024 @ 75 Hz

VESA 1280 x 1024 @ 85 Hz

VESA 1600 x 1200 @ 75 Hz

VESA 1600 x 1200 @ 85 Hz

VESA 1920 x 1440 @ 75 Hz

VESA (GTF) 2048 x 1536 @ 75 Hz

Macintosh 1152 x 870 @ 75 Hz

Timing Modes with Maximum Refresh Rates

2048 x 1536 NI @ 79 Hz

1920 x 1440 NI @ 84 Hz

1856 x 1392 NI @ 86 Hz

1792 x 1344 NI @ 89 Hz

1600 x 1200 NI @ 99 Hz

1280 x 1024 NI @ 115 Hz

1152 x 864 NI @ 135 Hz

1024 x 768 NI @ 151 Hz

800 x 600 NI @ 180 Hz

640 x 480 NI @ 180 Hz

P225f.book Page 5 Friday, October 13, 2000 3:00 PM

6 ViewSonic P225f

Adjusting the Screen Image

Beginning with the Main Menu shown below, use the buttons on the front

control panel to adjust the OnView®controls which display on the screen. The

OnView controls are explained in the four steps at the top of the next page and

are further explained on pages 8-10.

IMPORTANT: The monitor should be warmed up for 30 minutes prior to

making any adjustments.

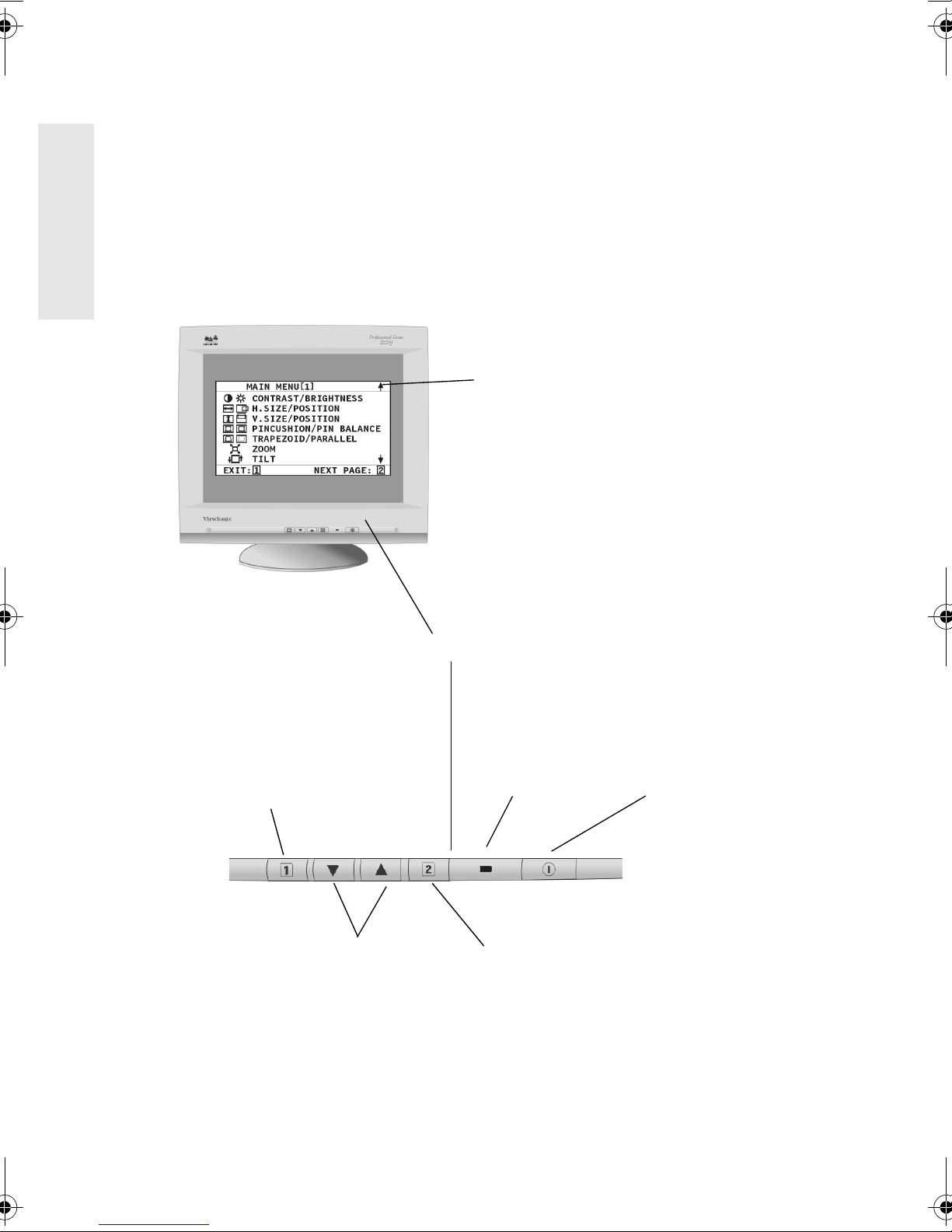

Main Menu with OnView controls

Front Control Panel

Power On/Off

Power Light

Displays Main Menu; also saves

changes/exits Main Menu.

Scroll Up/Down

menu options

Displays control screen for

highlighted control (or pair

of controls). Also, toggles

between pair of controls on

some control screens.

P225f.book Page 6 Friday, October 13, 2000 3:00 PM

ViewSonic P225f 7

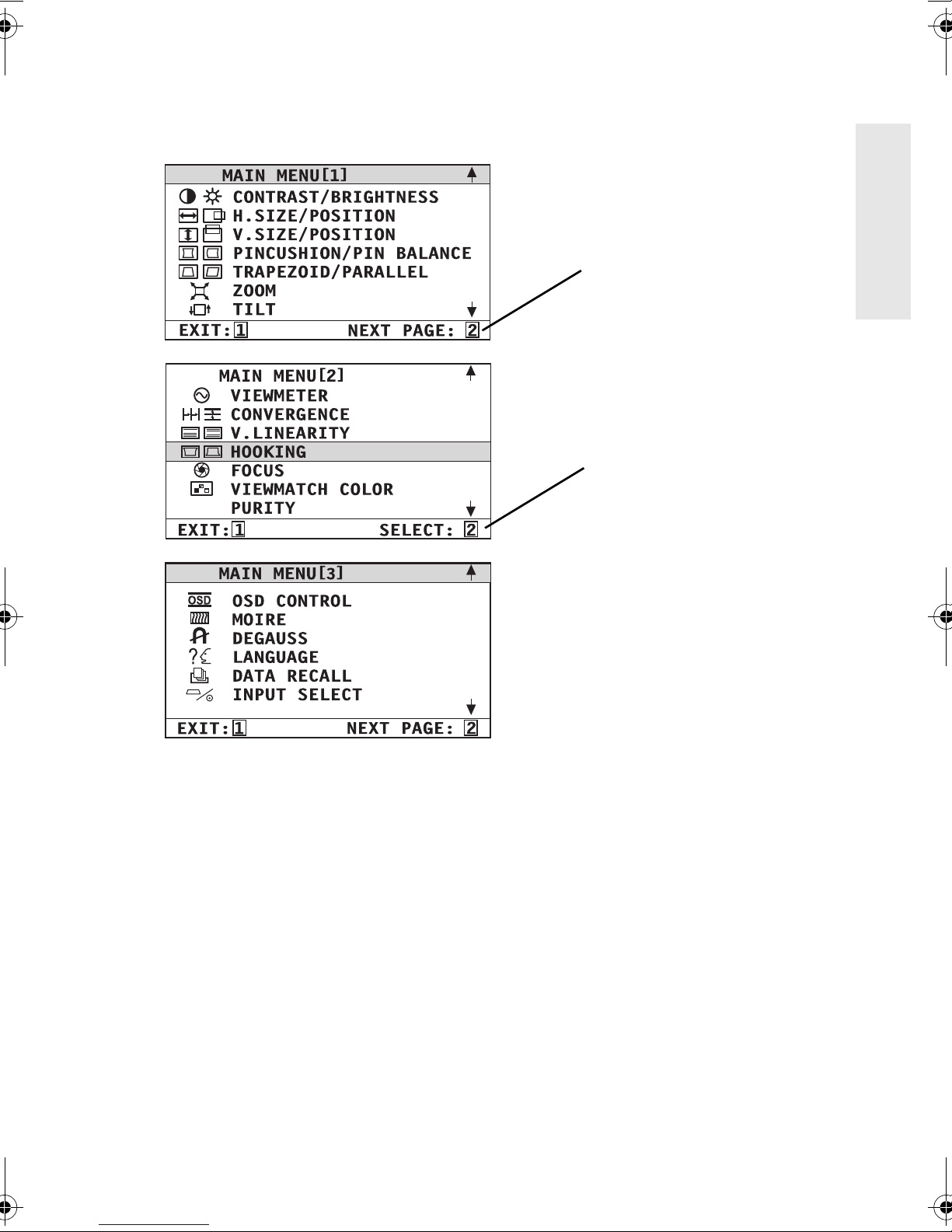

To adjust the screen image:

1To display the Main Menu (parts 1-3 shown below), press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor (▼▲) and scroll through the choices.

When the control you want to adjust is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Press button [2] to toggle between control pairs after

displaying a control screen.

3To adjust the selected control, press the arrow buttons (▼▲).

4To save the control setting and Exit the menu, press button [1] twice.

With Main Menu

highlighted, as

shown on the left,

press button [2] to

toggle tothe next

Main Menu.

With a control

highlighted, button [2]

displays a control

screen for making

adjustments.

P225f.book Page 7 Friday, October 13, 2000 3:00 PM

8 ViewSonic P225f

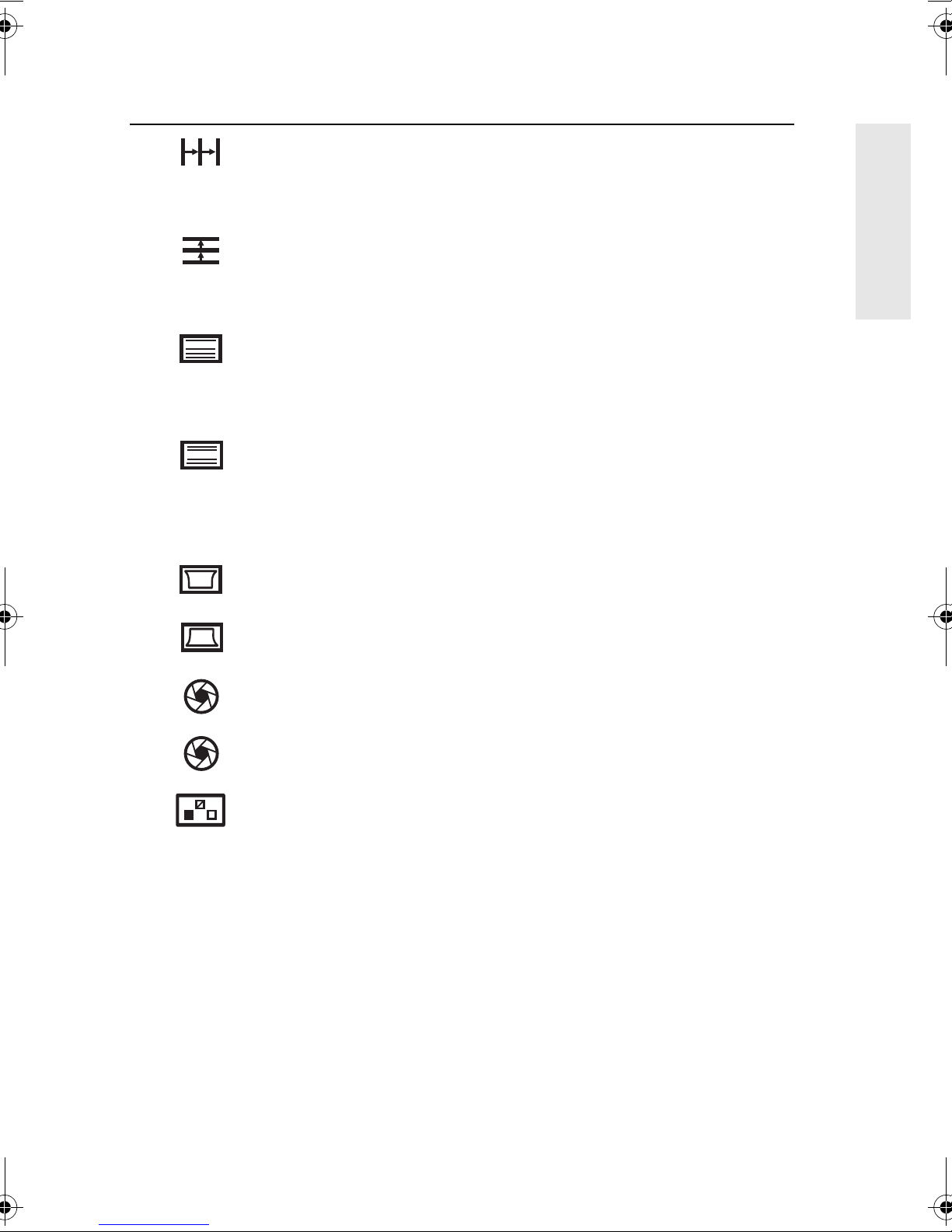

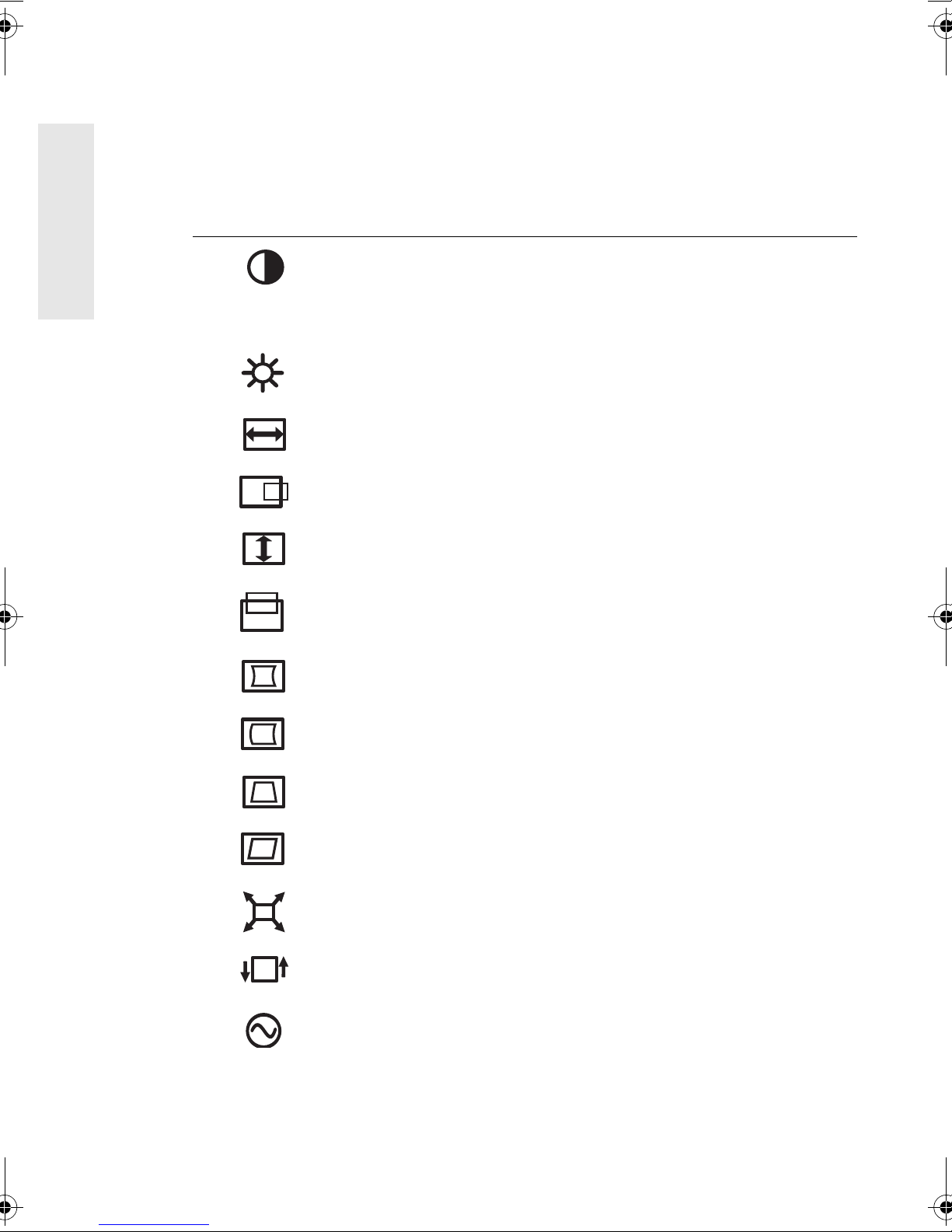

Main Menu Controls

The menu items shown below can be adjusted by using the arrow buttons (▲▼)

on the front of your monitor.

Control Explanation

Contrast adjusts the difference between the image

background (black level) and the foreground (white level).

Shortcut: Before displaying the Main Menu, press ▼or ▲

to display the Contrast/Brightness control screen.

Brightness adjusts the background black level of the screen

image.

Horizontal Size adjusts the width of the screen image.

Horizontal Position moves the screen image left or right.

Vertical Size adjusts the height of the screen image.

Vertical Position moves the screen image up or down.

Pincushion straightens curves along the vertical edges of

the screen image that bow inward or outward.

Pin Balance straightens curves along the vertical edges of

the screen image that bow in the same direction.

Trapezoid adjusts the top and bottom of the screen image

until they have equal length.

Parallel slants the vertical edges of the screen image until

they are parallel.

Zoom expands and contracts the entire screen image.

Tilt rotates the entire screen image.

ViewMeter®displays information about the video signal

coming from your computer’s graphics card. This includes

the refresh rate (or Vertical Frequency) and the scan rate

(or Horizontal Frequency).

P225f.book Page 8 Friday, October 13, 2000 3:00 PM

ViewSonic P225f 9

H. Convergence (Horizontal Convergence) adjusts vertical

color alignment. Use this control when red or blue borders

are present around the vertical segments of black letters on a

white background.

V. Convergence (Vertical Convergence) adjusts horizontal

color alignment. Use this control when red or blue borders

are present around the horizontal segments of black letters

on a white background.

V. Linear (Vertical Linearity Center) adjusts the vertical

distortion at the center of the screen image.

NOTE: Vertical Linearity Center is an advanced control and

should be used for setup and calibration only.

V. Linear Sym (Vertical Linearity Symmetry) minimizes the

distortion (squeezing or stretching) images between the top

and bottom of the screen image.

NOTE: Vertical Linearity Symmetry is an advanced control

and should be used for setup and calibration only.

Top Hooking straightens the top corners of the screen

image.

Bottom Hooking straightens the bottom corners of the

screen image.

H. Focus (Horizontal Focus) adjusts the sharpness of the

screen image in the horizontal direction.

V. Focus (Vertical Focus) adjusts the sharpness of the

screen image in the vertical direction.

ViewMatch®Color provides several color options: three

preset color temperatures and User Color,which allows you

to adjust red (R), green (G), and blue (B). The factory

setting for this product is 9300K (9300 Kelvin).

9300K —Adds blue to the screen image for cooler white

(often used in office settings with fluorescent lighting).

6500K —Adds red to the screen image for warmer white

and richer red.

5000K —Adds blue and green to the screen image.

User Color —Individual adjustments for red, green, and

blue.

Control Explanation (Continued)

P225f.book Page 9 Friday, October 13, 2000 3:00 PM

Altri manuali per P225f - 22" CRT Display

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ViewSonic Monitor

ViewSonic

ViewSonic ViewPanel VP150m Manuale utente

ViewSonic

ViewSonic VPW425 - 42" Plasma TV Manuale utente

ViewSonic

ViewSonic VX3211-4K-mhd Manuale utente

ViewSonic

ViewSonic VX2776-h Manuale utente

ViewSonic

ViewSonic VP2330WB - 23" LCD Monitor Manuale utente

ViewSonic

ViewSonic VA1903WB - 19" LCD Monitor Manuale utente

ViewSonic

ViewSonic CDE6510 Manuale utente

ViewSonic

ViewSonic VA2261H-9 Manuale utente

ViewSonic

ViewSonic VP211B - 21.3" LCD Monitor Manuale utente

ViewSonic

ViewSonic VS17100 Manuale utente

ViewSonic

ViewSonic VX2025wm VS10859 Manuale utente

ViewSonic

ViewSonic VA2759-smh Manuale utente

ViewSonic

ViewSonic VX2258wm Manuale utente

ViewSonic

ViewSonic VG2728wm Manuale utente

ViewSonic

ViewSonic VG Series Manuale utente

ViewSonic

ViewSonic Q2201wb - Optiquest - 21.6" LCD Monitor Manuale utente

ViewSonic

ViewSonic LCD Display VA1912w-1 Manuale utente

ViewSonic

ViewSonic Color Pro VP3256-4K Manuale utente

ViewSonic

ViewSonic VA1930WM - 19" LCD Monitor Manuale utente

ViewSonic

ViewSonic A70f Manuale utente

ViewSonic

ViewSonic VS11369 Manuale utente

ViewSonic

ViewSonic VP2000S Manuale utente

ViewSonic

ViewSonic VS12415 Manuale utente

ViewSonic

ViewSonic VG2439smh Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
