ViewSonic Q71B - Optiquest - 17" CRT Display Manuale utente

User Guide

Guide de l’utilisateur

Guía del usuario

Guia do usuário

With Plug & Play

✘

17" (16" Viewable Diagonal)

Color Monitor

Contents

Product Registration..............................................................2

For Your Records ..................................................................2

Getting Started

Package Contents ................................................................. 3

Precautions ...........................................................................3

Quick Installation ...................................................................4

Using the Monitor

Setting the Timing Mode .......................................................5

OSD Lock Settings ................................................................7

Main Menu Controls ..............................................................8

Other Information

Specifications ......................................................................10

Troubleshooting...................................................................11

Customer Support ...............................................................12

Cleaning the Monitor ...........................................................13

Limited Warranty .................................................................14

Appendix

Safety Guidelines ................................................................15

Compliance Information for U.S.A.......................................16

CE Conformity for Europe ...................................................16

Optiquest Q71/B-8 1

08/15/03 B

Adjusting the Screen Image ..................................................6

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

Optiquest, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

Optiquest Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGYSTAR®partner,OptiquestCorporation has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

Disclaimer: Optiquest Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this mate-

rial, or the performance or use of this product.

In the interest of continuing product improvement, Optiquest Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from Optiquest Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available,

please register your product on the Internet at: www.viewsonic.com. The Wizard CD- ROM also

provides an opportunity for you to print the registration form, which you may mail or fax to

ViewSonic.

Product disposal at end of product life

Optiquest is concerned about the preservation of our environment. Please dispose of this product

properly at the end of its useful life. Your local waste disposal company may provide information

about proper disposal.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

Optiquest Q71/B

VCDTS22355-8

A-CD-Q71/B-8

_______________

Optiquest Q71/B-8 2

Getting Started

Congratulations on your purchase of a Optiquest®color monitor. Important!

Save the original box and all packing material for future shipping needs.

NOTE: The word “Windows” in this user guide refers to the following Microsoft

operating systems: Windows 95, Windows NT, Windows 98, Windows 2000,

Windows Me (Millennium), and Windows XP.

Package Contents

Your package includes:

• Color monitor

• DB-15 video cable

• Power cord

• Wizard CD-ROM

NOTE: The CD includes the User Guide PDF files and INF/ICM display

optimization files. The INF file ensures compatibility with Windows operating

systems, and the ICM file (Image Color Matching) ensures accurate on-screen

colors. Optiquest recommends that you install both files.

Precautions

• For best viewing conditions sit at least

18” from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to continue

using the monitor.

Optiquest Q71/B-8 3

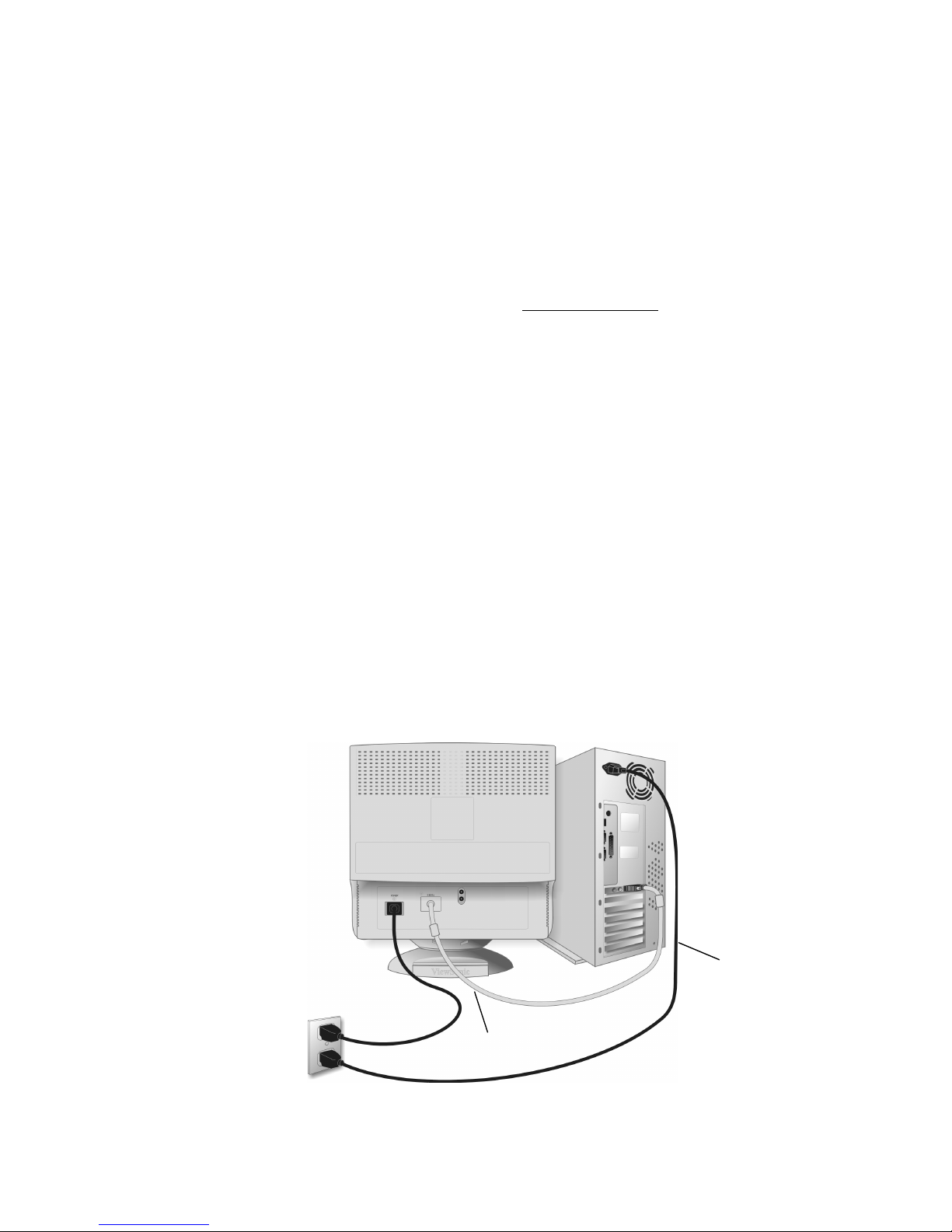

Quick Installation

1 Connect power cord

Connect the power cord to a properly

grounded AC outlet.

2 Connect video cable

Make sure both the monitor and computer

are turned OFF.

• Connect the video cable to the computer.

Macintosh®users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order anadapter, contact ViewSonic.

See “Customer Support” on page 12.

3 Turn ON monitor and computer

Turn ON the monitor, then turn ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows users may

receive a message asking them to install the

INF file.

4 Install Display Optimization files

(INF and ICM files)

(1) Insert the Wizard CD-ROM into your

computer’s CD-ROM drive.

NOTE: If your computer does not have a

CD-ROM drive, see “Customer Support” on

page 12.

(Continued)

(2) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in

Windows Explorer, then double-click on

viewsonic.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate) Example:

1024 X 768 @ 75Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

Optiquest color monitor.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in "For Your Records" on

page 2. (See back of monitor.)

To register your product go online to

www.viewsonic.com.

The Wizard CD-ROM also provides an

opportunity for you to print the registration

form which you may mail or fax to ViewSonic.

Video cable

Power cord

AC wall

outlet

Optiquest Q71/B-8 4

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1024 x 768) and refresh rate (or vertical frequency;

example 85 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

For the best picture quality set your monitor timing mode to:

VESA 1024 x 768 @ 85 Hz.

To set the Resolution:

1Right-click on the Windows desktop.

2Click Properties on the drop-down menu.

3Click the Settings tab.

4Move the slider pointer which displays in the Desktop area or Screen area in

the window.

NOTE: The refresh rate should already be set if you have done the CD

installation (or refer to your graphics card documentation).

Optiquest Q71/B-8 5

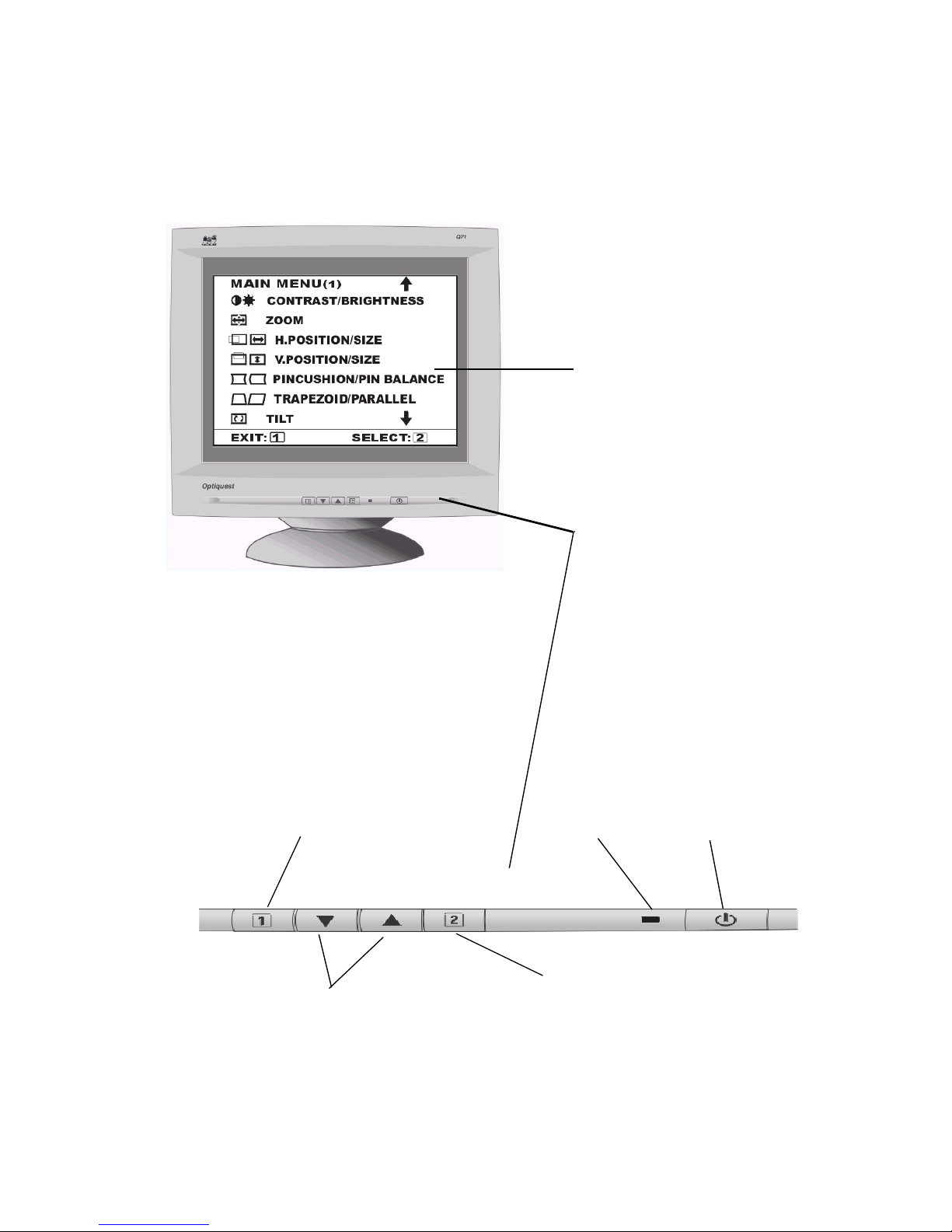

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®

controls which display on the screen. The OnView controls are explained at the

top of the next page and are defined in “Main Menu Controls” on page 8.

Main Menu

With OnView controls

Front Control Panel

Displays Main Menu; also saves

changes/exits Main Menu Power Light Power On/Off

Scroll through menu Displays control screen for

highlighted control (or pair

of controls). Also, toggles

between pairs of controls on

some control screens

options and adjust the

displayed control

Optiquest Q71/B-8 6

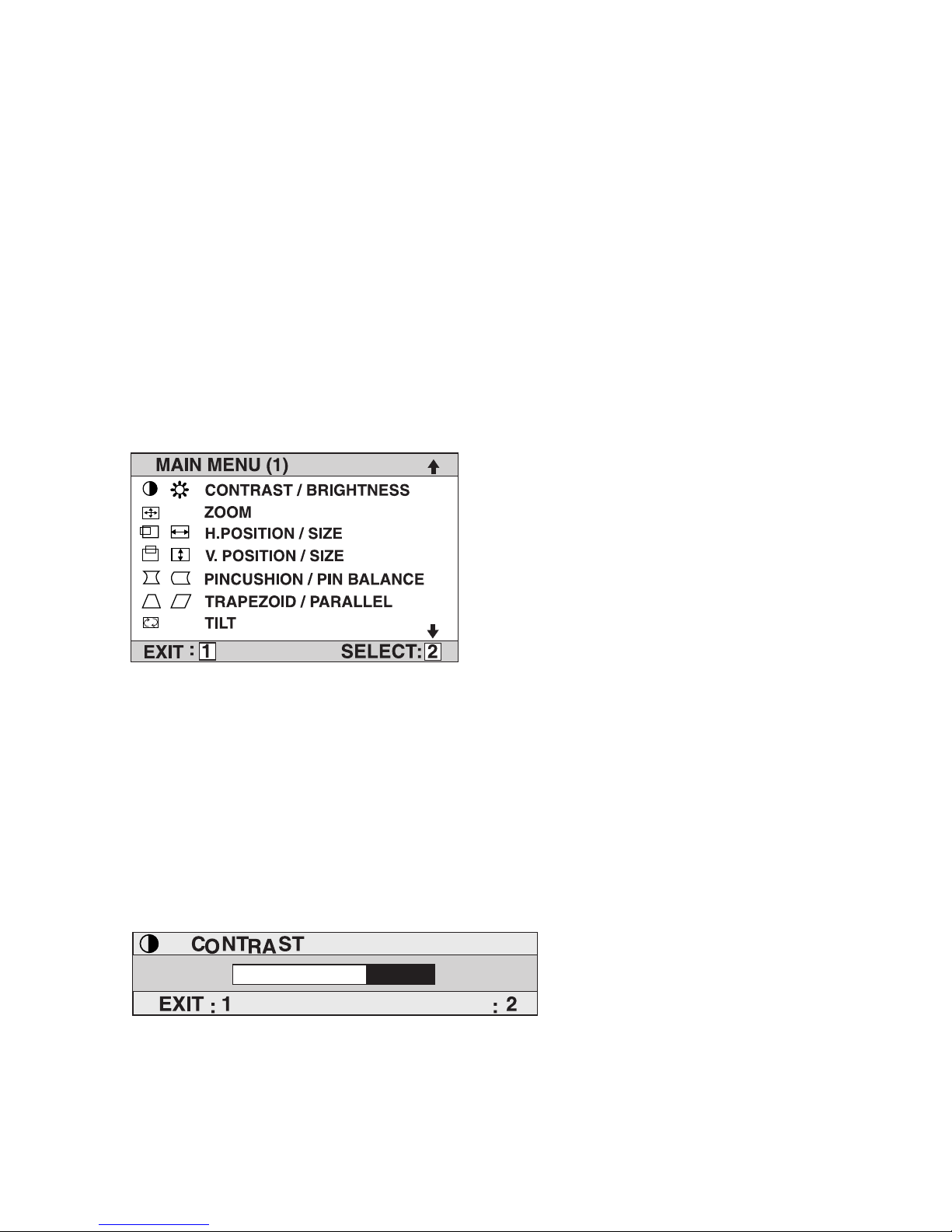

Do the following to adjust the screen image:

1To display the Main Menu, press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor and scroll through the choices. When the

control you want is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Display control screen (sample shown in step 3 below).

Press button [2] to toggle to the next control in the pair.

3To adjust the selected control, such as CONTRAST in the sample below,

press the arrow buttons.

4To save the control setting and Exit the menu press button [1] twice.

BRIGHTNESS

OSD Lock Settings

You have the option of using the On Screen Display (OSD) locking feature,

OSD LOCK, to prevent unwanted changes to the current image settings.

•OSD Lock: Press and hold the [1] and [

▼

]

buttons on the face of the monitor

for 10 seconds. The message "OSD LOCK" will then display briefly,

indicating that the OSD image settings are now locked.

•OSD Unlock: Press and hold the [1] and [

▼

]

buttons again for 10 seconds. The

message "OSD UNLOCK"will then display briefly, indicating that the OSD

image settings are now unlocked.

Optiquest Q71/B-8 7

Main Menu Controls

Adjust the menu items shown below by using the up and down buttons.

Control Explanation

Contrast adjusts the difference between the image

background (black level) and the foreground (white level).

Brightness adjusts the background black level of the screen

image.

Zoom expands and contracts the entire screen image.

Horizontal Position moves the screen image left or right.

Horizontal Size adjusts width of the screen image.

Vertical Position moves the screen image up or down.

Vertical Size adjusts the height of the screen image.

Pincushion curves the vertical sides of the screen image.

Pin Balance curves the vertical edges of the screen image to

the left or right.

Trapezoid adjusts the top and bottom of the screen image

until they have equal length.

Parallel slants the vertical edges of the screen image until

they are parallel.

Tilt rotates the entire screen image.

Optiquest Q71/B-8 8

Degauss removes the build-up of magnetic fields that can

cause irregular colors to appear around the edges of screen

images. There are two ways to degauss the display:

automatically by turning the monitor on, or manually by

selecting the Degauss control from the menu.

With Degauss selected from the menu, press button [2] to

degauss the monitor manually.

Important: Do not degauss repeatedly. Doing so can be

harmful to the display. Wait at least 20 minutes (before

selecting this control again.

ViewMatch®Color provides several color options: several

preset color temperatures and User Color which allows you

to adjust red (R), green (G), and blue (B). The factory

setting for this product is 9300K (9300°Kelvin).

9300K — Adds blue to the screen image for cooler white

(used in most office settings with fluorescent lighting).

6500K — Adds red to the screen image for warmer white

and richer red.

5000K — Adds blue and green to the screen image for a

darker color.

User Color — Individual adjustments for red, green, and

blue.

Moire reduces interference patterns that appear as ripples,

waves, or unwanted background color textures. Interference

patterns of this type are most noticeable when viewing

images having closely spaced lines or finely detailed

patterns.

Language allows you to choose from among several

languages for the menus and control screens: English,

French, German, Italian, and Spanish.

Memory Recall returns adjustments to the original factory

settings if the display is operating in a factory preset timing

mode listed in this user guide.

Exception: This control does not affect changes made with

the User Color control.

ViewMeter displays the frequencies (horizontal and

vertical) coming from the graphics card of the computer.

Control Explanation

Optiquest Q71/B-8 9

Altri manuali per Q71B - Optiquest - 17" CRT Display

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ViewSonic Monitor

ViewSonic

ViewSonic VX2435wm Manuale

ViewSonic

ViewSonic OptiSync VX710 Guida alla risoluzione dei problemi

ViewSonic

ViewSonic CDP4260-L Manuale utente

ViewSonic

ViewSonic VA2012WB Manuale utente

ViewSonic

ViewSonic VG2236wm-LED Manuale utente

ViewSonic

ViewSonic ND5000 Manuale utente

ViewSonic

ViewSonic VA1932wma Manuale utente

ViewSonic

ViewSonic VLED221WM - 22" LCD Monitor Manuale utente

ViewSonic

ViewSonic A90 Manuale utente

ViewSonic

ViewSonic VSD243 Manuale utente

ViewSonic

ViewSonic VA1931wma-LED Manuale utente

ViewSonic

ViewSonic VA2246m-LED Manuale utente

ViewSonic

ViewSonic VX2245wm - 22" Widescreen LCD Monitor Manuale utente

ViewSonic

ViewSonic VS2447M Manuale utente

ViewSonic

ViewSonic VX1940W - 19" LCD Monitor Manuale utente

ViewSonic

ViewSonic E50 - 15" CRT Display Manuale utente

ViewSonic

ViewSonic VA1938w-LED Manuale utente

ViewSonic

ViewSonic VP2000S Manuale utente

ViewSonic

ViewSonic CDE4200-L Manuale utente

ViewSonic

ViewSonic VS13518 Manuale utente

ViewSonic

ViewSonic VA2232wa Manuale utente

ViewSonic

ViewSonic VG720-1 Manuale utente

ViewSonic

ViewSonic VE710b/VE710s Manuale utente

ViewSonic

ViewSonic VX712 Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
