ViewSonic UltraBrite A71f+ Manuale utente

ViewSonic®

- User Guide

- Guide de l'utilisateur

- Guida dell'utente

- Guia do usuário

A71f+

CRT Monitor

Compliance Information

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•  Reorient or relocate the receiving antenna.

•  Increase the separation between the equipment and receiver.

•  Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•  Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord

and the cables which are included with the equipment or speciﬁed. Also, any unauthorized

changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate this device.

For Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numeique de la Classe B repecte toutes les exigences du Reglement sur le

materiel brouilleur du Canada.

CE Conformity for European Countries

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic

compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

“Safety.”

User Information for all Countries

Notice: Use the cables which are included with the unit or speciﬁed.

Important Safety Instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this unit near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other

devices (including ampliﬁ ers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that the

power outlet is located near the unit so that it is easily accessible.

11.

Only use attachments/accessories speciﬁ ed by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,

or sold with the unit. When a cart is used, use caution when moving the cart/unit

combination to avoid injury from tip-over

13.

Unplug this unit when unused for long periods of time.

14.

Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the unit has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the unit, the unit has been exposed to rain or

moisture, does not operate normally, or has been dropped.

Contents

Getting Started .....................................................3

Package Contents .....................................................3

Precautions ...............................................................3

Quick Installation .......................................................4

Using your monitor ..............................................5

Setting the Timing Mode ...........................................5

OSD Lock Settings ....................................................5

Adjusting the Screen Image ......................................6

Other Information ...............................................10

Specifications ..........................................................10

Troubleshooting ......................................................11

Customer Support ...................................................12

Cleaning the Monitor ...............................................13

Limited Warranty .....................................................14

ViewSonic A71f+ 1

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product speciﬁcations without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

A71f+

ViewSonic 17” Color CRT Monitor

VS10083

A71f+-1_UG_ENG Rev. 1B 12-06-04

_____________________________________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this

product properly at the end of its useful life. For TCO’03 recycling information, please refer to

our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

2ViewSonic A71f+

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The

ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration

form, which you may mail or fax to ViewSonic.

Getting Started

NOTE: The word “Windows” refers to Microsoft Windows 95, NT, 98, 2000

and Me (Millennium).

Package Contents

•Color monitor

• Power cord

• D-sub video cable (attached)

• Quick Start Guide

• ViewSonic Wizard CD-ROM (includes User Guide PDF and INF/ICM dis-

play optimization files)

Precautions

• For best viewing conditions sit at least

18” from the monitor.

• Avoid touching the screen with your

fingers. Oils from the skin are difficult to

remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to continue

using the monitor.

3ViewSonic A71f+

Quick Installation

1Connect the monitor and

computer power cords to a

properly grounded AC outlet.

2Connect the video cable from

your monitor to your computer.

NOTE: Macintosh users may

need an adapter. (See Customer

Support on page 12.)

3Turn on your monitor, then your

computer. This sequence (monitor

before computer) is important.

NOTE: Windows 95, 98 or 2000

users may receive a message

asking them to install the INF file.

This is on the CD.

4Insert the ViewSonic Wizard CD.

NOTE: If you do not have a

CD-ROM drive, contact

ViewSonic Customer Support.

NOTE: If the CD does not auto-

start, double-click the CD icon in

Windows Explorer, then double-

click vswzrd.exe.

Macintosh users: from the

Macintosh desktop, double-click

on the “ViewSonic Wizard”

folder, then double-click on the

“ViewSonic” icon.

5Follow the on-screen instructions.

Windows users: Set the timing

mode (see Setting up the Timing

Mode on page 5).

To register your product online, go to

the ViewSonic website for your

region. See the Customer Support

table in this guide.

AC wall

outlet

VGA video

cable

Power cables

ViewSonic A71f+

Using your monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen

image and minimizing eye strain. The timing mode consists of the resolution

(example: 1024 x 768) and refresh rate (or vertical frequency, example: 85 Hz).

For the best picture quality set your monitor to: VESA®1024 x 768@ 85 Hz.

To set the Resolution:

1Right-click on the Windows desktop.

2Click Properties on the drop-down menu.

3Click the Settings tab.

4Select the resolution by moving the slider, which displays in the Desktop

area or Screen area in the window.

NOTE: The refresh rate should already be set if you have completed the

ViewSonic Wizard CD installation (or refer to your graphics card’s

documentation).

OSD Lock Settings

You have the option of using the OSD Lock feature to prevent current image

adjustments from being changed.

•

OSD Unlock: Press and hold [2] for 10 seconds.

message OSD Locked will display for 5 seconds.

OSD Lock: Press and hold [2] for 10 seconds. If any buttons are pressed the

ViewSonic A71f+

Adjusting the Screen Image

Use the buttons on the monitor control panel to adjust the OnView®controls.

1Press [1] to display the Main Menu.

NOTE: OnView controls disappear after 15 seconds.

2Press ▲or ▼to highlight an option.

3Press [2].

4Press ▲or ▼ to adjust the setting.

5Press [1] twice to save and exit.

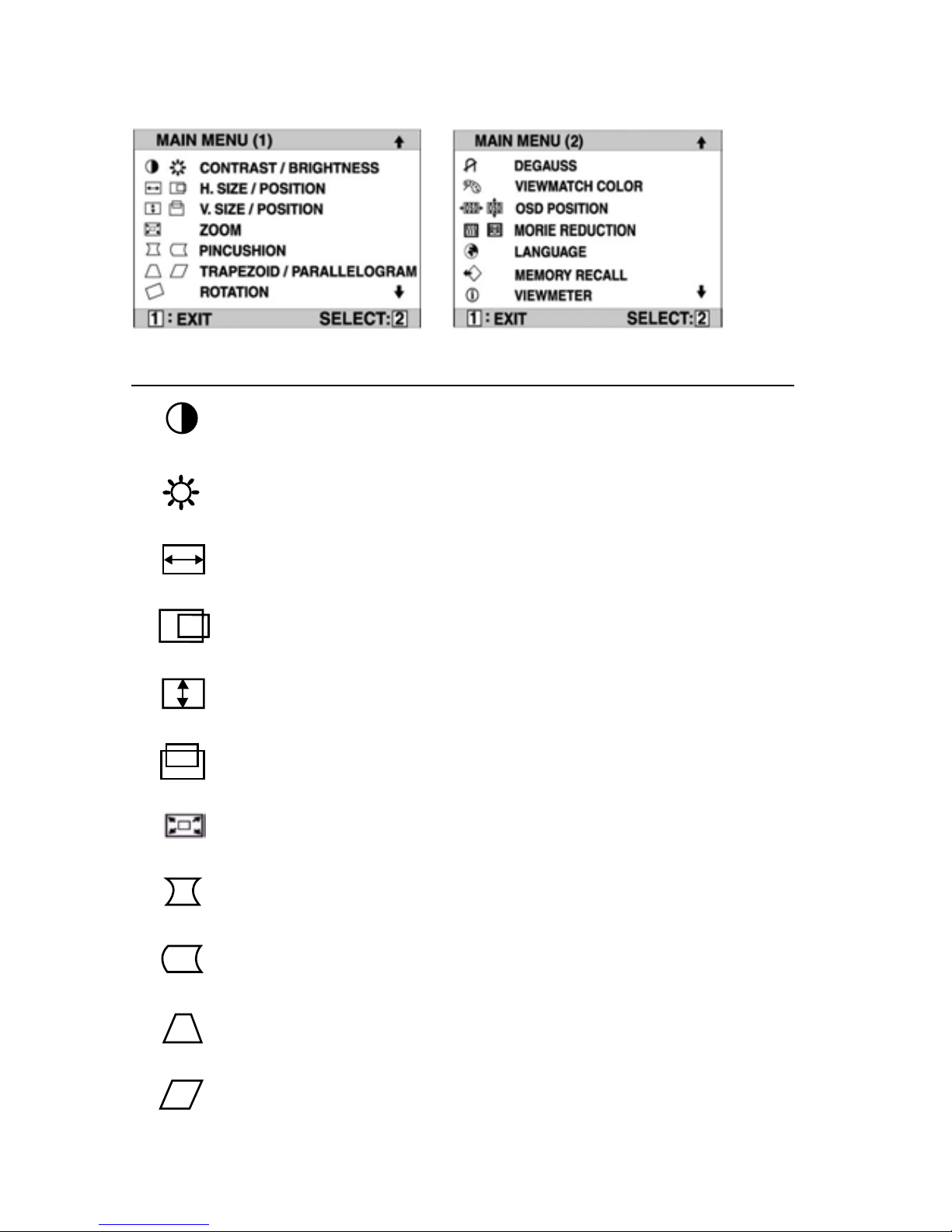

Main Menu

Control panel

Displays the Main

Menu or exits and

saves

Displays the highlighted

option or toggles

between options

Power button

Scrolls through

options or adjusts

settings

Power light:

green = on

orange = power save

Switches between Normal and

UltraBrite modes.

"NORMAL: TEXT/SPREADSHEET":

When selected, this brightness level setting

"ULTRABRITE: GRAPHICS/GAME/VIDEO":

When selected, this UltraBrite™setting

displays a standard CRT brightness of 120

nits for text and spreadsheet applications.

displays up to 300nits of brightness for

optimum display performanceof grapics and

video applications and games.

Memory Recall returns adjustments to

the original factory settings if the display

isoperating in a Preset Timing Mode.

ViewSonic A71f+

Menu Options

Control Explanation

Contrast adjusts the difference between the image background

(black level) and the foreground (white level).

Brightness adjusts the background black level of the screen

image.

Zoom expands and contracts the entire screen image.

Horizontal Position moves the screen image left or right.

Horizontal Size adjusts width of the screen image.

Vertical Position moves the screen image up or down.

Vertical Size adjusts the height of the screen image.

Pincushion curves the vertical sides of the screen image.

Pin Balance curves the vertical edges of the screen image to the

left or right.

Trapezoid adjusts the top and bottom of the screen image until

they have equal length.

Parallelogram slants the vertical edges of the screen image until

they are parallel.

7ViewSonic A71f+

Altri manuali per UltraBrite A71f+

Indice

Altri manuali ViewSonic Monitor

ViewSonic

ViewSonic VP275-4K Manuale utente

ViewSonic

ViewSonic VX2260s-LED Manuale utente

ViewSonic

ViewSonic VA2037m-LED Manuale utente

ViewSonic

ViewSonic VS12400 Manuale utente

ViewSonic

ViewSonic VX2450w-LED Manuale utente

ViewSonic

ViewSonic VA1912WB - 19" LCD Monitor Manuale utente

ViewSonic

ViewSonic VP920B - ThinEdge - 19" LCD Monitor Manuale utente

ViewSonic

ViewSonic VA712B - 17" LCD Monitor Manuale utente

ViewSonic

ViewSonic CD4232 Manuale utente

ViewSonic

ViewSonic VA1930WM - 19" LCD Monitor Guida alla risoluzione dei problemi

ViewSonic

ViewSonic PT813 Manuale utente

ViewSonic

ViewSonic VA500 Manuale utente

ViewSonic

ViewSonic VSD220 Manuale utente

ViewSonic

ViewSonic VA703M - 17" LCD Monitor Manuale utente

ViewSonic

ViewSonic VP201B Guida alla risoluzione dei problemi

ViewSonic

ViewSonic VA502mb-1 Manuale utente

ViewSonic

ViewSonic VS11135 Guida rapida

ViewSonic

ViewSonic VX2370S-LED Manuale utente

ViewSonic

ViewSonic VP3881 Manuale utente

ViewSonic

ViewSonic VP2330WB - 23" LCD Monitor Manuale utente

ViewSonic

ViewSonic VS11894 Manuale utente

ViewSonic

ViewSonic ViewBoard IFP50 Series Manuale utente

ViewSonic

ViewSonic VX2258wm Manuale utente

ViewSonic

ViewSonic VA2932-mhd Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
