ViewSonic ViewBoard ID710 Manuale utente

ID710

ViewBoard Pen Display

User Guide

Model No. VS18678

P/N: ID710

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precautions

Please read the following Safety Precauons before you start using the device.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

ventilation.

• Place the device in a well-ventilated area. Do not place anything on the device

that prevents heat dissipation.

• Do not use the device near water. To reduce the risk of fire or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including amplifiers) that may increase the temperature of the

device to dangerous levels.

• Use a soft, dry cloth to clean the external housing.

• Oil may collect on the screen if you touch it.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen.

• When moving the device, be careful not to drop or bump the device on

anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulting in an injury or a malfunction.

• Do not place any heavy objects on the device or connection cables.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device off and call your dealer or ViewSonic®. It is dangerous to continue using

the device.

• When connecting to a power outlet, DO NOT remove the grounding prong.

Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched,

particularly at the plug, and at the point where it emerges from

the equipment. Ensure that the power outlet is located near the

equipment so that it is easily accessible.

• Only use attachments/accessories specified by the manufacturer.

• Disconnect the device if it is not going to be used for a long period of time.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 6

Package Contents ...................................................................................................6

Product Overview...................................................................................................7

Making Connections.................................................... 8

Connecting the Pen Display....................................................................................8

Driver Installation, Use, and Removal.......................... 9

Installing Drivers and Software (Windows) ............................................................9

DisplayLink Driver.................................................................................................... 9

Pen Display Driver ................................................................................................. 10

Setting the Display Area .......................................................................................11

Pen Input Area Mapping.......................................................................................12

Uninstalling the Driver..........................................................................................14

Installing Drivers and Software (MAC OSX) ..........................................................15

DisplayLink Driver.................................................................................................. 15

Pen Display Driver ................................................................................................. 17

Pen Input Area Mapping.......................................................................................20

Uninstalling the Driver..........................................................................................22

Appendix................................................................... 23

Specifications........................................................................................................23

Product Dimensions .............................................................................................24

Troubleshooting ...................................................................................................25

FAQ.......................................................................................................................26

Maintenance.........................................................................................................27

General Precautions.............................................................................................. 27

Cleaning the Device............................................................................................... 27

Replacing the Pen Nib...........................................................................................28

Regulatory and Service Information .......................... 29

Compliance Information.......................................................................................29

FCC Compliance Statement................................................................................... 29

Industry Canada Statement................................................................................... 29

CE Conformity for European Countries ................................................................. 29

Declaration of RoHS2 Compliance......................................................................... 30

Indian Restriction of Hazardous Substances ......................................................... 31

Product Disposal at End of Product Life................................................................ 31

Customer Service .................................................................................................. 33

Limited Warranty .................................................................................................. 34

Mexico Limited Warranty...................................................................................... 37

Introduction

Package Contents

ID710 ViewBoard

Pen Display

USB Cable

(Type C to Type A) ViewSonic Stylus

Pen nib x 3 Nib removal tool Quick start guide

NOTE: The contents included in your package may vary depending on your

country. Please contact your local reseller for more informaon.

Product Overview

Pen Display

1. USB Type C Port 2. Pen 3. Display Screen

4. Pen Holder

Making Connecons

Connecng the Pen Display

1. With the USB Cable, connect the USB Type C end to the Pen Display.

2. Connect the USB Type A end to the computer.

Driver Installaon, Use, and Removal

Installing Drivers and Soware (Windows)

System Requirements: Windows 7/8/10 or above.

Before connecng and using the pen display, it is necessary to install the below

drivers and soware. The drivers and soware can be downloaded at:

hps://www.viewsonic.com/global/products/pendisplay/ID710-BWW

DisplayLink Driver

Open the DisplayLink installaon le and install the driver.

NOTE: DisplayLink Driver can be installed through Windows Update.

1010

Pen Display Driver

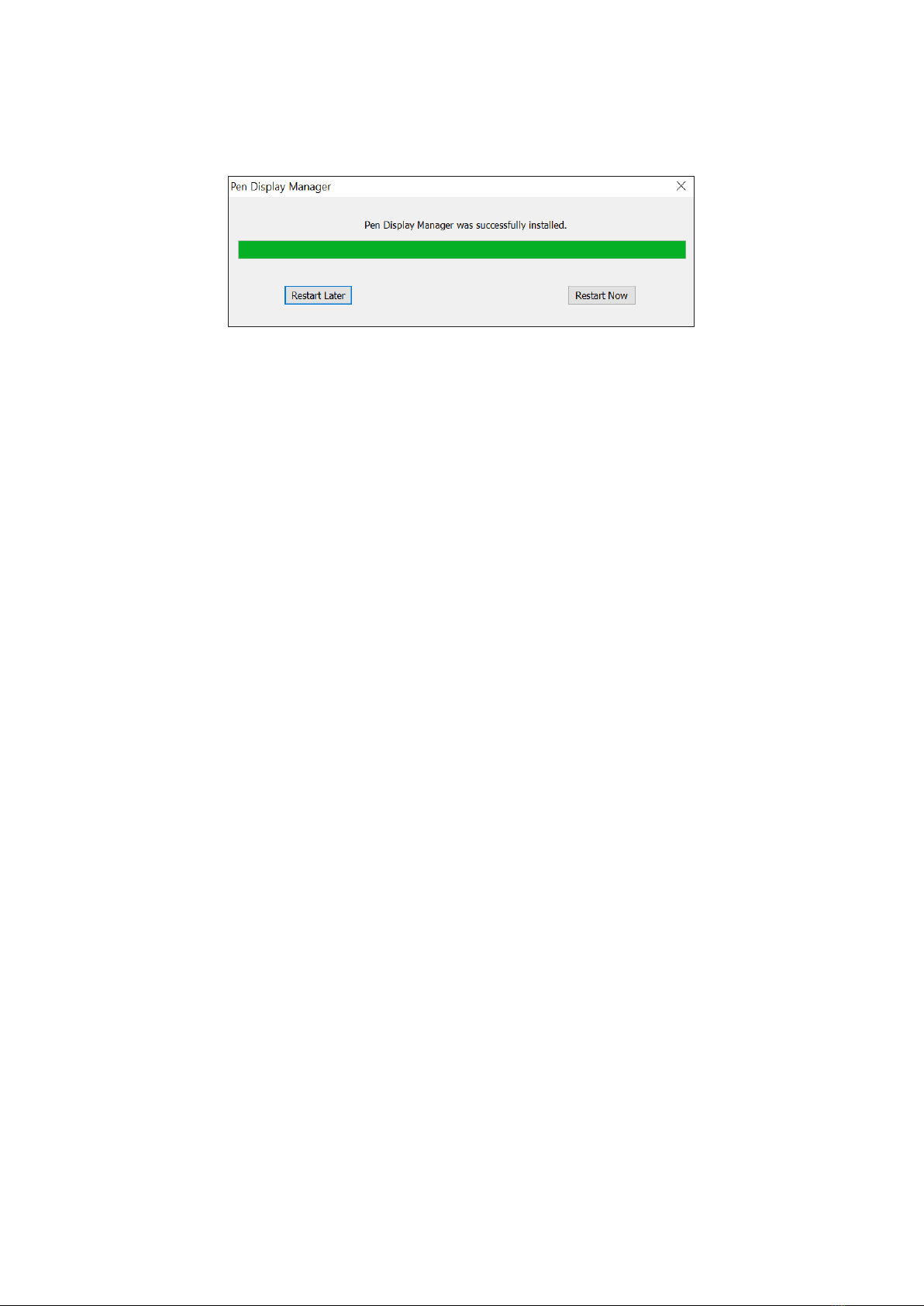

1. Open the PenDisplayDriver installaon le and install the driver.

2. Aer the installaon completes, you will need to restart the computer.
