ViewSonic VX1755 Manuale utente

VX1755

Display

User Guide

Model No. VS18891

P/N: VX1755

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

Please read the following Safety Precautions before you start using the device.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Sit at least 18" (45 cm) away from the device.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

ventilation.

• Place the device in a well-ventilated area. Do not place anything on the device

that prevents heat dissipation.

• Do not use the device near water. To reduce the risk of fire or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including amplifiers) that may increase the temperature of the

device to dangerous levels.

• Use a soft, dry cloth to clean the external housing. For more information, refer

to the "Maintenance" section of this manual.

• Avoid touching the screen, as oil may collect on the screen if you touch it.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen.

• Do not place the device on cloth or other materials that may be placed between

the product and supporting furniture.

• When moving the device, be careful not to drop or bump the device on

anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulting in an injury or a malfunction.

• Do not place any heavy objects on the device or connection cables.

• Always use cabinets, stands, or installation methods recommended by the

manufacturer of the device set.

• Always use furniture that can safely support the device.

• Always ensure the device is not overhanging the edge of the supporting

furniture.

• Do not place the device on tall furniture, such as cupboards or bookcases,

without anchoring both the furniture and the device to a suitable support.

• Always educate children about the dangers of climbing on furniture to reach the

device or related equipment.

• Do not place items that might tempt children to climb, such as toys and remote

controls, on the top of the device or furniture on which the product is placed.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device off and call your dealer or ViewSonic®. It is dangerous to continue using

the device.

• Do not attempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the plug does not

fit into your outlet, obtain an adapter and do not attempt to force the plug into

the outlet.

• When connecting to a power outlet, Do not remove the grounding prong. Please

ensure grounding prongs are never removed.

• Always route and manage cords and cables connected to your device so they

cannot be tripped over, pulled, or grabbed.

• Protect the power cord from being treaded upon or pinched, particularly at the

plug, and at the point where it emerges from the equipment. Ensure that the

power outlet is located near the equipment so that it is easily accessible.

• Disconnect the power plug from the power outlet if the device is not being used

for a long period of time.

• Please confirm the distribution system installed in the building. The system

should provide a circuit breaker rated at 120/240V, 20A.

• Only use attachments/accessories, such as carts, stands, tripods, brackets or

tables, specified by the manufacturer.

• When a cart is used, use with caution when moving the cart/equipment

combination to avoid injury from tipping over.

• Refer all servicing to qualified service personnel. Service will be required when

the unit has been damaged in any way, such as:

if the power-supply cord or plug is damaged.

if liquid is spilled onto or objects fall into the unit.

if the unit is exposed to rain or moisture.

if the unit does not operate normally or has been dropped.

• When using ear-/headphones, adjust the volume to appropriate levels, or

hearing damage may result.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 7

Package Contents ...................................................................................................7

Product Overview...................................................................................................8

Front and Left Side View ......................................................................................... 8

Rear and Right Side View ........................................................................................ 8

I/O Ports ................................................................................................................. 8

Initial Setup................................................................. 9

Installing the Cover.................................................................................................9

Using the Cover and Stand .....................................................................................9

Making Connections.................................................. 10

Connecting to Power ............................................................................................10

Connecting External Devices ................................................................................11

Power Delivery .....................................................................................................12

Powering a Notebook or Mobile Phone................................................................ 12

Power Supply Detection........................................................................................ 12

Power Delivery - Further Information................................................................... 13

Using the Monitor ..................................................... 14

Adjusting the Viewing Angle.................................................................................14

Tilt Angle Adjustment............................................................................................ 14

Turning the Device On/Off ...................................................................................15

Quick Menu........................................................................................................... 16

Hot Keys ................................................................................................................ 17

Configuring the Settings .......................................................................................19

General Operations............................................................................................... 19

On-Screen Display (OSD) Menu Tree .................................................................... 21

Appendix................................................................... 26

Specifications........................................................................................................26

Glossary ................................................................................................................28

Troubleshooting ...................................................................................................32

Maintenance.........................................................................................................34

General Precautions.............................................................................................. 34

Cleaning the Screen............................................................................................... 34

Cleaning the Case.................................................................................................. 34

Regulatory and Service Information .......................... 35

Compliance Information.......................................................................................35

FCC Compliance Statement................................................................................... 35

Industry Canada Statement................................................................................... 35

CE Conformity for European Countries ................................................................. 35

Declaration of RoHS2 Compliance......................................................................... 36

Indian Restriction of Hazardous Substances ......................................................... 37

Product Disposal at End of Product Life................................................................ 37

Customer Service .................................................................................................. 39

Limited Warranty .................................................................................................. 40

Mexico Limited Warranty...................................................................................... 43

Introducon

Package Contents

• Portable display

• Power adapter

• USB Type C cable

• USB Type C to Type A cable

• Mini HDMI to HDMI cable

• Protective cover

• Quick start guide

NOTE: The power adapter and video cables included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

Product Overview

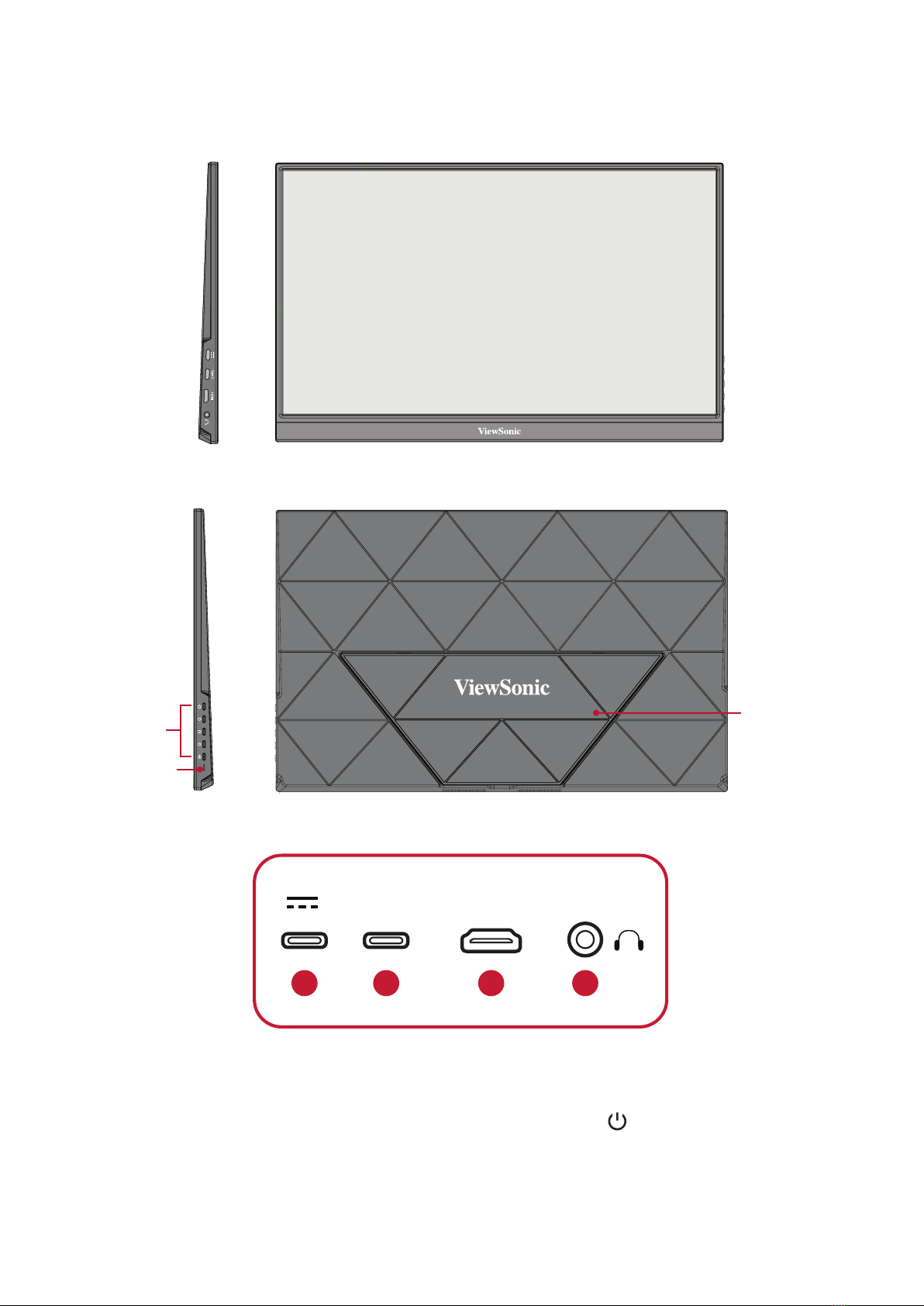

Front and Le Side View

Rear and Right Side View

I/O Ports

Type C HDMI

1 1 2 3

1. USB Type C 2. Mini HDMI 3. Audio Out

NOTE: For more informaon about the 1(«)/2/3/4/5( ) key and its funcons,

refer to “Hot Keys” on page 17.

Power LED

Control Panel

Keys

Stand

Inial Setup

Installing the Cover

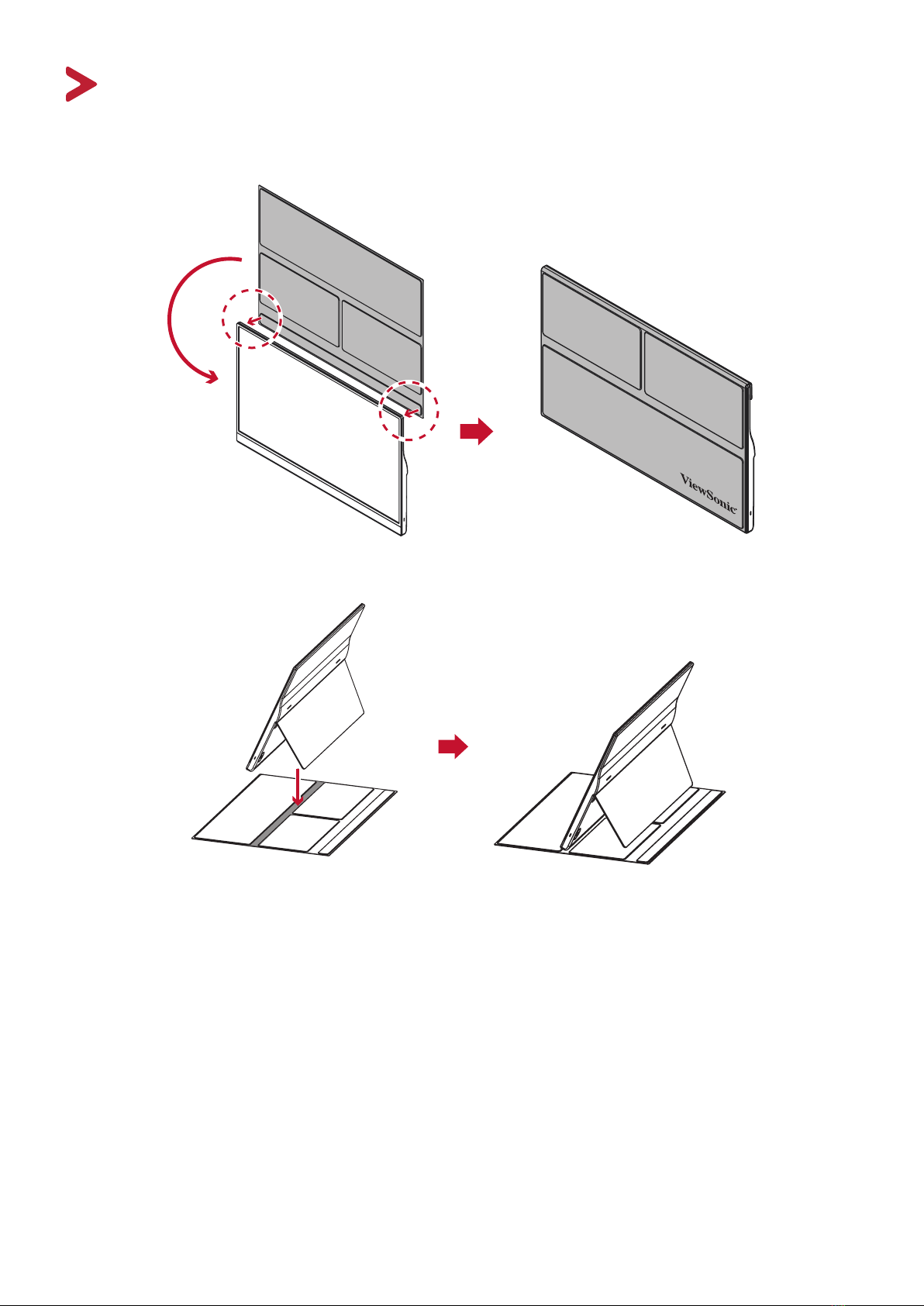

Using the Cover and Stand

NOTE: Always place the device on a at, stable surface. Failure to do so may

cause the device to fall and damage the device and/or result in personal

injury.

Making Connecons

Connecng to Power

The monitor can be powered in any of the following conguraons:

• Type C Connecon

(The power output must be greater than 10W)

• Type A Connecon

(The power output must be greater than 10W)

• Power Adapter

100-240 Vac

50/60 Hz

NOTE: For more informaon, please see “Power Delivery” on page 12.
