ViewSonic XG321UG Manuale utente

XG321UG

Display

User Guide

Model No. VS18555

P/N: XG321UG

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

Please read the following Safety Precautions before you start using the device.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Sit at least 18" (45 cm) away from the device.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

ventilation.

• Place the device in a well-ventilated area. Do not place anything on the device

that prevents heat dissipation.

• Do not use the device near water. To reduce the risk of fire or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including amplifiers) that may increase the temperature of the

device to dangerous levels.

• Use a soft, dry cloth to clean the external housing. For more information, refer

to the "Maintenance" section of this manual.

• Avoid touching the screen, as oil may collect on the screen if you touch it.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen.

• Do not place the device on cloth or other materials that may be placed between

the product and supporting furniture.

• When moving the device, be careful not to drop or bump the device on

anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulting in an injury or a malfunction.

• Do not place any heavy objects on the device or connection cables.

• Always use cabinets, stands, or installation methods recommended by the

manufacturer of the device set.

• Always use furniture that can safely support the device.

• Always ensure the device is not overhanging the edge of the supporting

furniture.

• Do not place the device on tall furniture, such as cupboards or bookcases,

without anchoring both the furniture and the device to a suitable support.

• Always educate children about the dangers of climbing on furniture to reach the

device or related equipment.

• Do not place items that might tempt children to climb, such as toys and remote

controls, on the top of the device or furniture on which the product is placed.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device off and call your dealer or ViewSonic®. It is dangerous to continue using

the device.

• Do not attempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the plug does not

fit into your outlet, obtain an adapter and do not attempt to force the plug into

the outlet.

• When connecting to a power outlet, Do not remove the grounding prong. Please

ensure grounding prongs are never removed.

• Always route and manage cords and cables connected to your device so they

cannot be tripped over, pulled, or grabbed.

• Protect the power cord from being treaded upon or pinched, particularly at the

plug, and at the point where it emerges from the equipment. Ensure that the

power outlet is located near the equipment so that it is easily accessible.

• Disconnect the power plug from the power outlet if the device is not being used

for a long period of time.

• Please confirm the distribution system installed in the building. The system

should provide a circuit breaker rated at 120/240V, 20A.

• Only use attachments/accessories, such as carts, stands, tripods, brackets or

tables, specified by the manufacturer.

• When a cart is used, use with caution when moving the cart/equipment

combination to avoid injury from tipping over.

• Refer all servicing to qualified service personnel. Service will be required when

the unit has been damaged in any way, such as:

if the power-supply cord or plug is damaged.

if liquid is spilled onto or objects fall into the unit.

if the unit is exposed to rain or moisture.

if the unit does not operate normally or has been dropped.

• When using ear-/headphones, adjust the volume to appropriate levels, or

hearing damage may result.

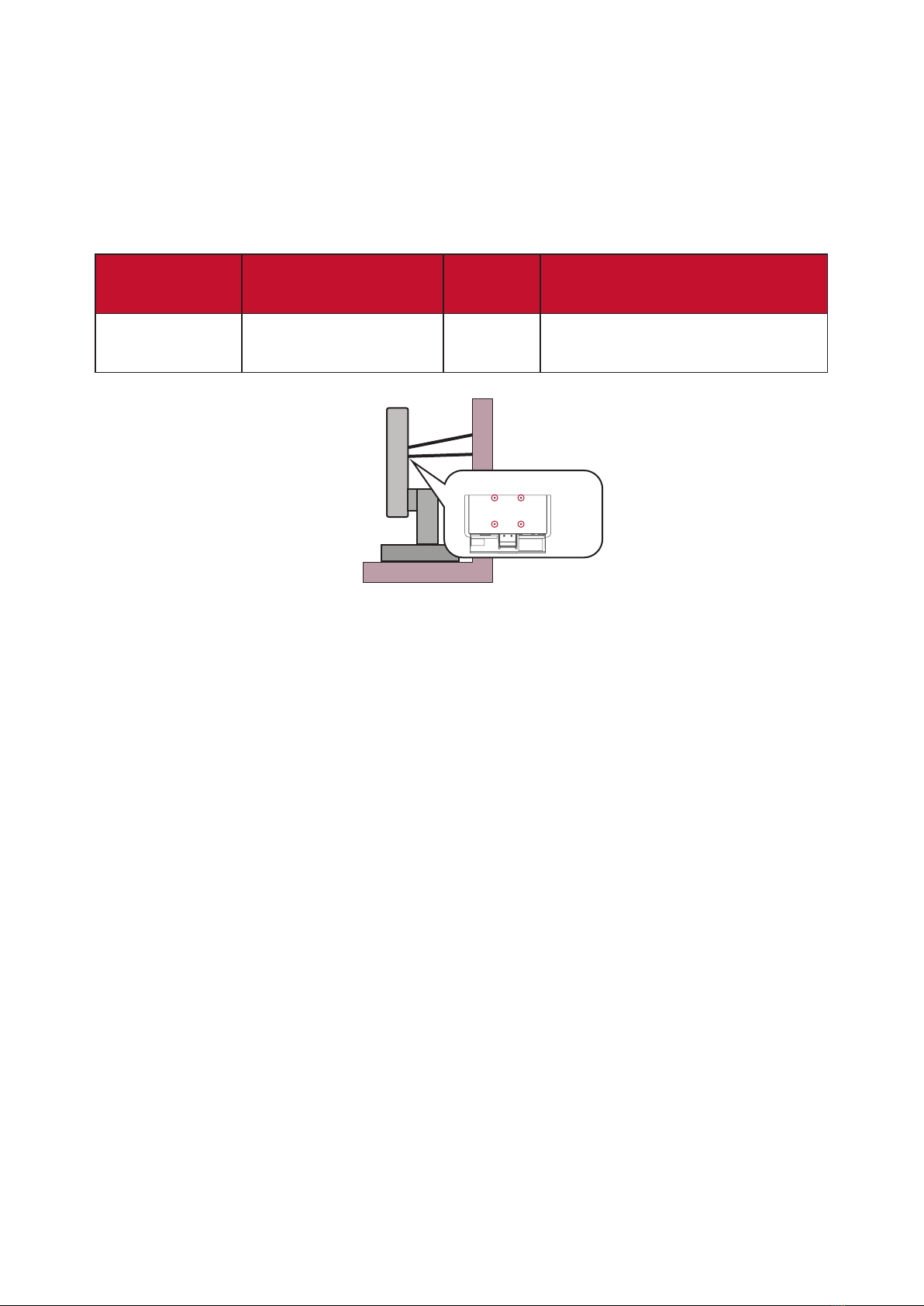

• Stability Hazard: The display may fall, causing serious personal injury or death.

To prevent injury, this display must be securely attached to the floor/wall in

accordance with the installation instructions.

• Fastening the display to a wall or fixed object using cordage or other restraining

devices can help support the weight of the display in order to prevent the

display from falling over.

Hole paern

(W x H)

Interface Pad

(W x H x D) Pad Hole Screw Specicaon & Quanty

100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm

4 pieces

VESA wall mounng hole

NOTE:

• Restraining device/cordage should be able to withstand 100N force.

• Make sure the cordage is straightened, and any slack is removed. The back

of the device shall face the wall to ensure the device cannot tilt under

external force.

• Make sure the display does not tilt under external force at any height and

rotation angle of the device.

• If the existing display is going to be retained and relocated, the same

considerations as above should be applied.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 8

Package Contents ...................................................................................................8

Product Overview...................................................................................................9

Initial Setup............................................................... 10

Installing the Stand...............................................................................................10

Using the Mouse Anchor ......................................................................................13

Wall Mounting......................................................................................................14

Using the Security Slot..........................................................................................16

Making Connections.................................................. 17

Connecting to Power ............................................................................................17

Connecting External Devices ................................................................................18

HDMI Connection.................................................................................................. 18

DisplayPort Connection......................................................................................... 19

USB Connection..................................................................................................... 20

Audio Connection.................................................................................................. 21

Using the Monitor ..................................................... 22

Adjusting the Viewing Angle.................................................................................22

Height Adjustment ................................................................................................ 22

Tilt Angle Adjustment............................................................................................ 23

Turning the Device On/Off ...................................................................................24

Using the Control Panel Keys................................................................................25

Quick Access Menu .............................................................................................. 25

Hot Keys ................................................................................................................ 26

Configuring the Settings .......................................................................................28

General Operations............................................................................................... 28

On-Screen Display (OSD) Menu Tree .................................................................... 31

Menu Options ....................................................................................................... 38

Advanced Features and Settings................................ 48

NVIDIA Reflex Latency Analyzer ...........................................................................48

Blue Light Filter and Eye Health............................................................................50

Quick Access Blue Light Filter Setup...................................................................... 50

Calculating Breaks ................................................................................................. 51

Looking at Distant Objects .................................................................................... 51

Eye and Neck Exercises ......................................................................................... 51

Quick Access .........................................................................................................52

Elite RGB Lighting .................................................................................................53

Crosshair...............................................................................................................54

Appendix................................................................... 55

Specifications........................................................................................................55

Glossary ................................................................................................................56

Troubleshooting ...................................................................................................61

Maintenance.........................................................................................................63

General Precautions.............................................................................................. 63

Cleaning the Screen............................................................................................... 63

Cleaning the Case.................................................................................................. 63

Regulatory and Service Information .......................... 64

Compliance Information.......................................................................................64

FCC Compliance Statement................................................................................... 64

Industry Canada Statement................................................................................... 64

Declaration of RoHS2 Compliance......................................................................... 65

Indian Restriction of Hazardous Substances ......................................................... 66

Product Disposal at End of Product Life................................................................ 66

Customer Service .................................................................................................. 68

Limited Warranty .................................................................................................. 69

Mexico Limited Warranty...................................................................................... 72

Introducon

Package Contents

• Monitor

• Power cord

• Power adapter

• Video cable

• Quick start guide

NOTE: The power cord and video cables included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

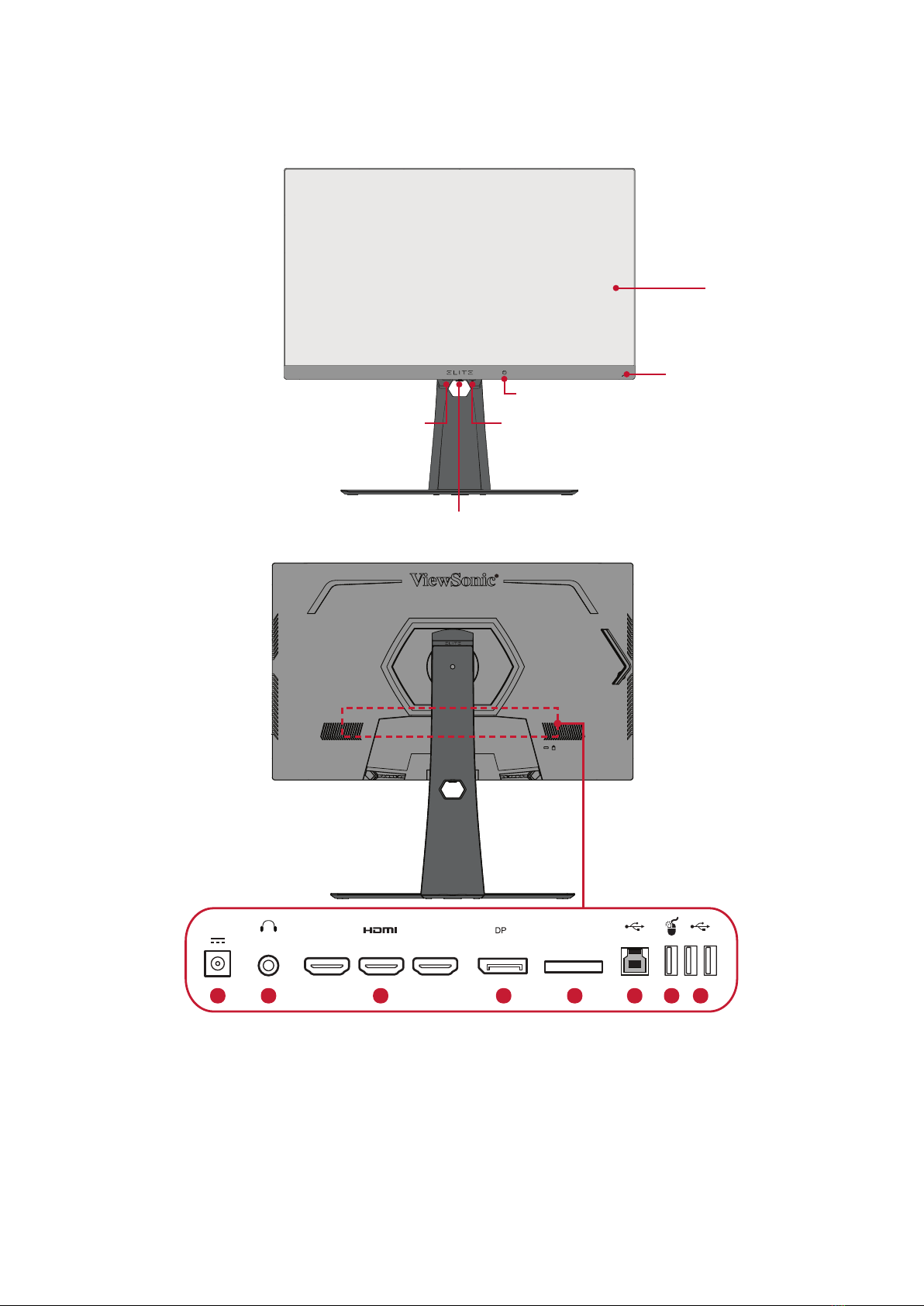

Product Overview

Front View

Rear View

17 8

2 3 4 56

1. DC IN 2. Audio Out 3. HDMI 4. DisplayPort

5. JTAG 6. USB Upstream 7. USB Downstream

(NVIDIA Reex)

8. USB Downstream

NOTE: For more informaon about the [●] / [◄] / [►] /[▲] /[▼]key and its

funcons, refer to “Hot Keys” on page 26page 26.

Display screen

Power LED

Power Key

Joy Key

Quick Access Key

Light Sensor

Inial Setup

This secon provides detailed instrucons for seng up your monitor.

Installing the Stand

1. Place the monitor on a at, stable surface with the screen facing down.

2. Align and connect the two (2) points on the monitor stand’s base with the

monitor stand’s neck.

3. Use the captured screw in the monitor stand’s base and secure it to the monitor

stand’s neck.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ViewSonic Monitor

ViewSonic

ViewSonic VS11305 Manuale utente

ViewSonic

ViewSonic VA2408-H Manuale utente

ViewSonic

ViewSonic CDE3201LED Manuale utente

ViewSonic

ViewSonic VG2438Sm Manuale utente

ViewSonic

ViewSonic VA2413wm Manuale utente

ViewSonic

ViewSonic VA1616W Manuale utente

ViewSonic

ViewSonic VLED221WM - 22" LCD Monitor Manuale utente

ViewSonic

ViewSonic VS18563 Manuale utente

ViewSonic

ViewSonic VX2753MH-LED VS13918 Manuale utente

ViewSonic

ViewSonic VX2000 - 20.1" LCD Monitor Manuale utente

ViewSonic

ViewSonic VX2433WM - 23.6" LCD Monitor Manuale utente

ViewSonic

ViewSonic VG750 - 17.4" LCD Monitor Manuale utente

ViewSonic

ViewSonic VX2433WM - 23.6" LCD Monitor Manuale utente

ViewSonic

ViewSonic VA2447-mh Manuale utente

ViewSonic

ViewSonic VA1912a-LED Manuale utente

ViewSonic

ViewSonic VX912 Manuale utente

ViewSonic

ViewSonic M70 Manuale utente

ViewSonic

ViewSonic VS19568 Manuale utente

ViewSonic

ViewSonic Q71 - Optiquest - 17" CRT Display Manuale utente

ViewSonic

ViewSonic Optiquest Q22wb Manuale utente

ViewSonic

ViewSonic VA1903h Manuale utente

ViewSonic

ViewSonic VA1931wm Manuale utente

ViewSonic

ViewSonic LCD Display VS11349 Manuale utente

ViewSonic

ViewSonic VX800-3 - 18" LCD Monitor Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
