ViewZ VZ-15RTV Manuale utente

15-INCH VALUE

TFT-LCD MONITOR

USER MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION ………………………………………………………….……

2 ~ 3

CAUTIONS ……………………………………………………………..........................

FCC RF INTERFERENCE STATEMENT …………………………….......................

CONNECTING WITH EXTERNAL EQUIPMENT ……………………………………

REMOTE FUNCTIONS …………………………………………………………………

CONTROLS AND FUNCTIONS ………………………………………………………..

8 ~ 12

MOUNTING GUIDE ……………………………………………………………………..

D-SUB CONNECTOR PIN ASSIGNMENTS …………………………………………

POWER MANAGEMENT ………………………………………………………………

SPECIFICATIONS ………………………………………………………………………

TROUBLE SHOOTING GUIDE ………………………………………………….........

- 1 -

This Monitor was

Manufactured by ISO 9001

Certified Factory

Important Safety Instruction

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers,stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

Apolarized plug has two blades with one wider than the other.

Agrounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement

of the bsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or

sold with the apparatus. When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus the apparatus has been exposed to

rain or moisture does not operate normally or has been dropped.

- 2 -

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed no the apparatus.

- Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.

“WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”

“The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.”

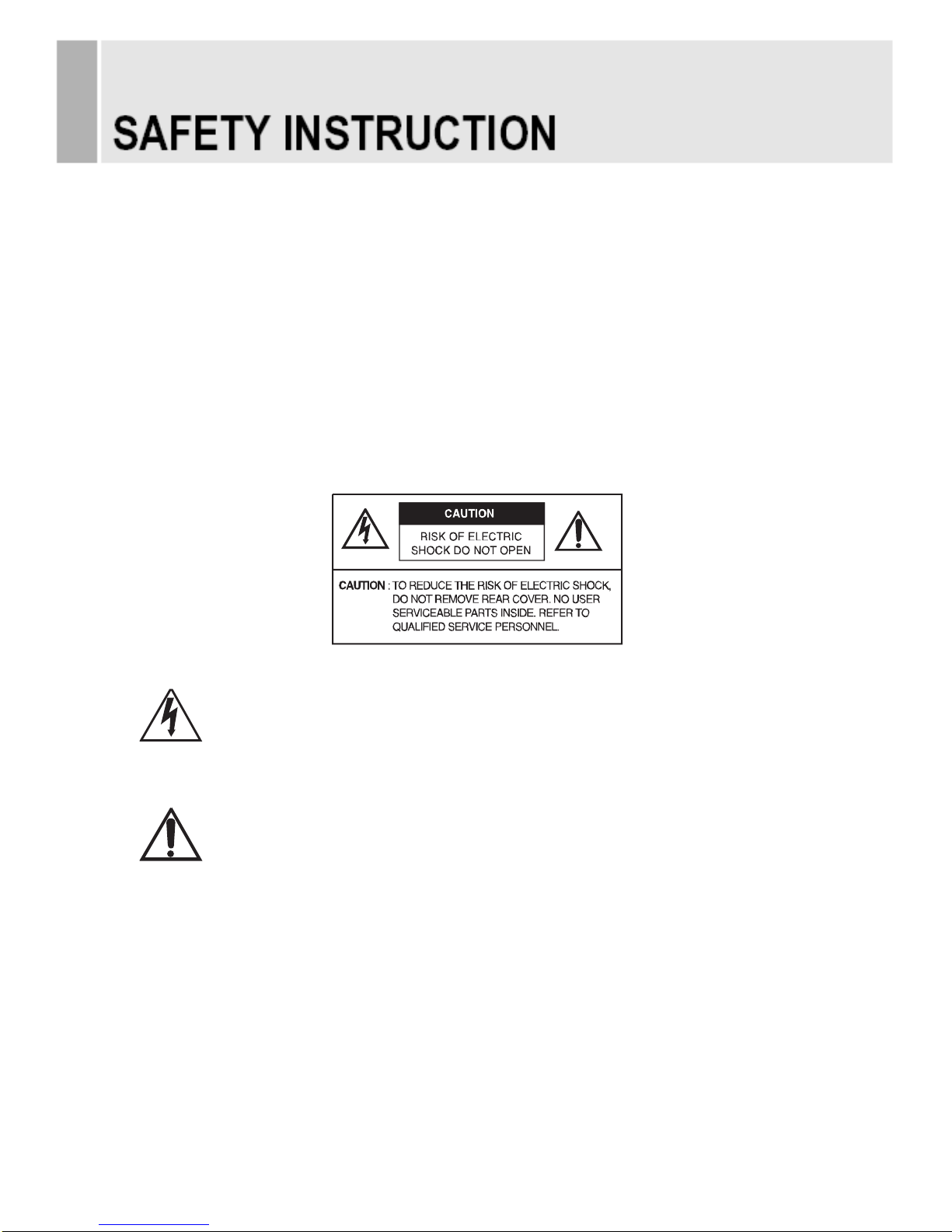

This symbol is intended to alert the user to the presence of uninsulated :

dangerous voltage with in the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating

and maintenance(servicing) instructions in the literature accompanying the

appliance.

- 3 -

CAUTION

The power supply cord is used as the main disconnect device, ensure that the socket-outlet is

located/installed near the equipment and is easily accessible.

ATTENTIONN

Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être

située ou installée à proximité du matériel et être facile d`accès

▶NEVER REMOVE THE BACK COVER

Removal of the back cover should be carried out only by qualified personnel.

▶DO NOT USE IN HOSTILE ENVIRONMENTS

To prevent shock or fire hazard, do not expose the unit to rain or moisture.

This unit is designed to be used in the office or home. Do not subject the unit to vibrations,

dust of corrosive gases.

▶KEEP IN A WELL VENTILATED PLACE

Ventilation holes are provided on the cabinet to prevent the temperature from rising.

Do not cover the unit or place anything on the top of unit.

▶AVOID HEAT

Avoid placing the unit in direct sunshine or near a heating appliance.

▶TO ELIMINATE EYE FATIGUE

Do not use the unit against a bright back ground and where sunlight or other light sources will

shine directly on the monitor.

▶BE CAREFUL OF HEAVY OBJECT

Neither the monitor itself nor any other heavy object should rest on the power cord.

Damage to a power cord can cause fire or electrical shock.

- 4 -

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio, TV technician for help.

- Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by

the grantee or manufacturer could void the users authority to operate such equipment.

▶DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus set out in the radio interference regulation of Canadian Department of

communications.

- 5 -

A. REAR CONNECTION

1. DC 12V

2. VGA

PC Signal Input

3. VIDEO 1 IN

Composite signal Input for AV1

4. VIDEO 1 OUT

Video looping output for AV1

5. VIDEO 2 IN

Composite signal Input for AV2

6. VIDEO 2 OUT

Video looping output for AV2

7 & 8 AUDIO L & R

Stereo Audio Signal Input

9. S-VIDEO IN

Y/C separated signal input

10. S-VIDEO OUT

Y/C separated signal looping output

11. PC STEREO IN

- 6 -

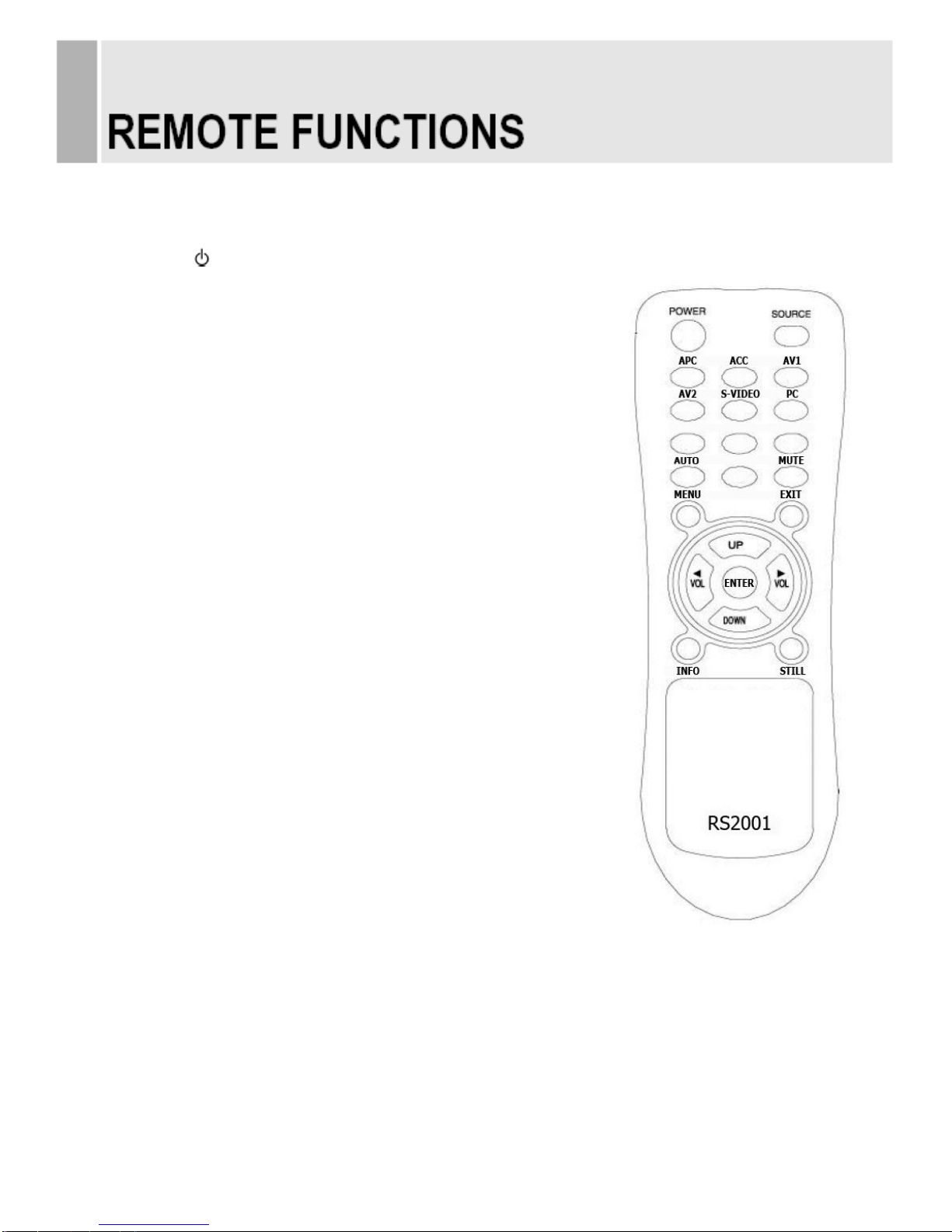

B. REMOTE CONTROLLER(Optional)

1. POWER( )

Turns the power ON or OFF.

There will be a few seconds delay before the display appears.

2. SOURCE

Selects an input source.

3. APC (Auto Picture Control)

Selects a picture mode.

4. ACC (Auto Color Control)

Selects a color mode.

5. AV1

Select AV1 mode

6. AV2

Select AV2 mode

7. S-VIDEO

Select S-VODEO mode

8. PC

Select PC mode

9. AUTO

Auto geometry adjustment in PC Source.

10. MUTE

Mutes the sound.

11. MENU

Activates and exits the On Screen Display.

12. EXIT

Exits the On Screen Display.

13. VOL(◀&▶)

Increases or decreases the level of audio volume.

14. UP &DOWN

Moves upwards or downwards in OSD menu.

15. ENTER

Enters an OSD submenu or accepts your selection

16. INFO

Displays the information about input source.

17. STILL

Pauses the picture.

- 7 -

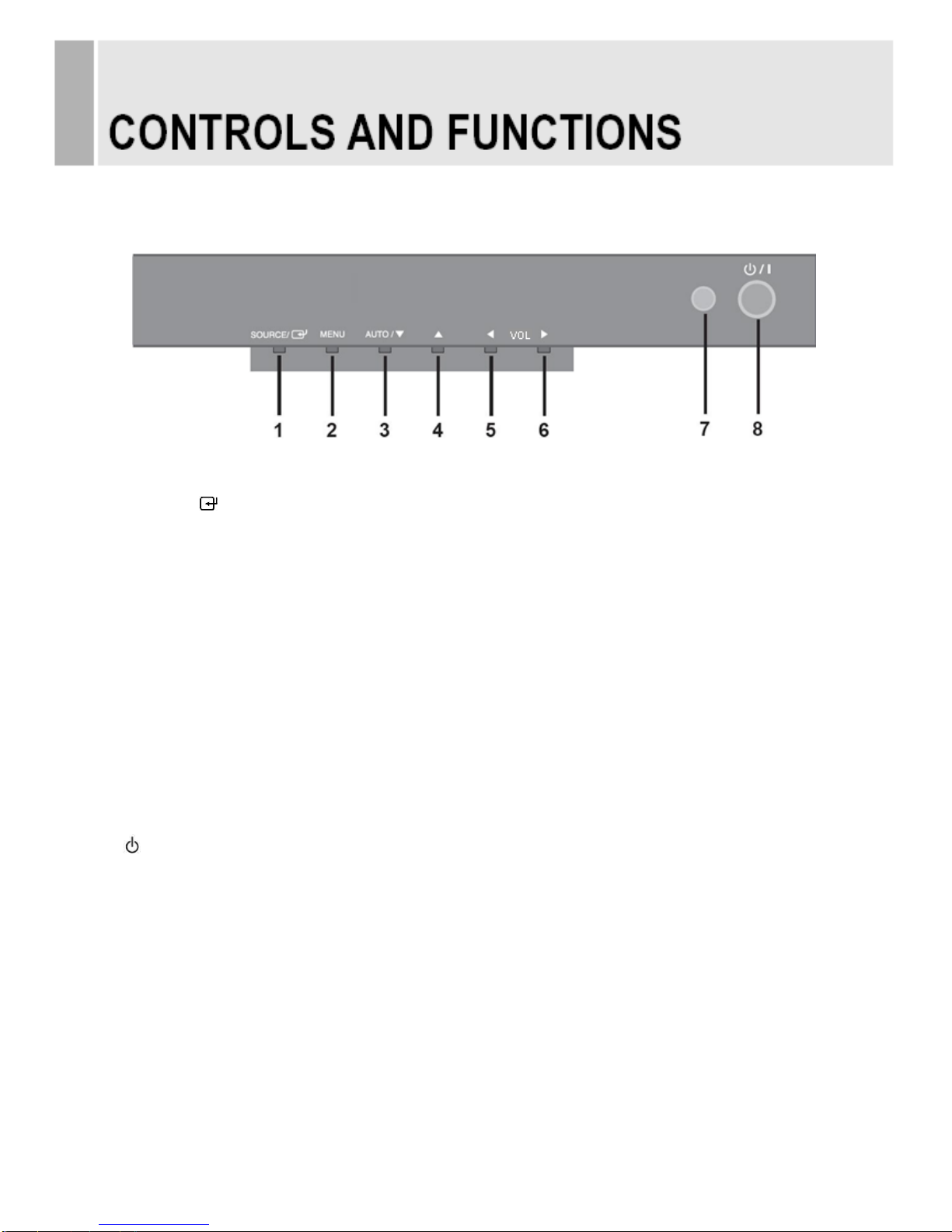

C. FRONT & BOTTOM KEY CONTROL

1. SOURCE/

Selects an input source.

Enters a submenu or accepts your selection in the OSD menu.

2. MENU

Activates or exits the OSD.

Moves previous menu or status in the OSD.

3 & 4. AUTO/▼& ▲

Moves another option in the OSD.

The AUTO/▼ button is auto adjustment function in the VGA input.

5 & 6. ◀VOL ▶

Adjust the volume or menu settings.

7. IR Sensor

Remote controller sensor.

8. / I &LED

Turns the power on or off. There will be a few seconds delay before the display appears.

Turned on is green color and turned off is red color.

- 8 -
