Vigilant Vision DS23.6SDI Manuale utente

HD-SDI

23.6” (16:9 ) LED Monitor

DS23.6SDI

Panel Type 23.6” (16:9) LED Monitor Metal Cased

Maximum Resolution 1920(H) x 1080(V)

Active Display Area 521.28 ( H ) × 293.22 ( V ) mm

Pixel Pitch 0.2715 (H) x 0.2715 (V) mm

Bezel Thickness 16.7mm

Contrast Ratio 1000:1

Brightness 300 cd/ m²

Response Time 1.5 - 3.5ms

Viewing Angle U/D: 80° / 80°, L/R: 85° / 85°

Display Colours 16.7 M

Video Synchronization Yes

PC Compatible Frequency 30-80KHz(H) / 50-75Hz(V)

Adjustable Colour Temperature 9300K / 6500K / 5800K / User

Video Compatiblity Multi-Standard for NTSC / PAL

Aspect Ratio 16: 9 With 4:3 Function

VGA Auto Frequency correction Yes

Speaker Multimedia Speakers

Number of Speakers Right x 1, Left x 1, 2.5W

Sound Demodulation Stereo, Audio

Mute Yes

Work Humidity 20 % - 70 %

Work Temperature -10 to 50 °C

Volume +/- Power On/Off Yes

IN/OUT INTERFACE

Video Interface HDMI x1 VGA x 1, BNC x 2 In/ BNC x 2

Out, SDI In / SDI Out

Audio Interface Audio In x 1

Power Interface AC In x 1

Termination 75 Ohms (Automatic termination)

Safety & EMC Certification CE / FCC / ROHS

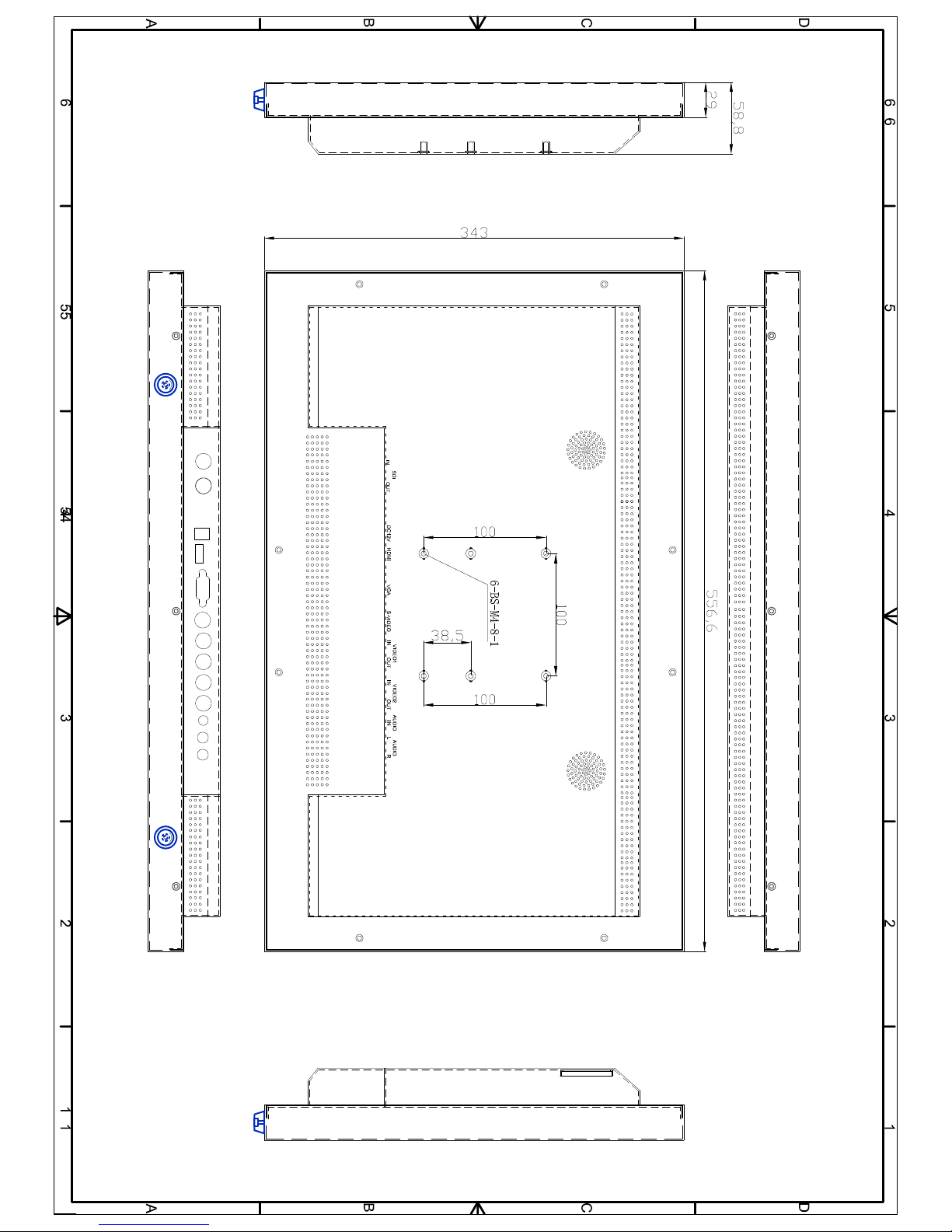

Vesa Standard Mount 100 x 100mm

Stand Type Desktop

Colour Black

Button Position Front, Right

Packing Dimension 640 (W) x 500 (H) x 165 (D) mm

NET Weight 7.5Kg

GROSS Weight 8.9Kg

POWER

Power

Supply 12VDC, 3amp

Voltage AC100 - 240V 50 / 60Hz

Power

Consumption<35W in ‘ON’ mode

OSD CONTROLS

Contrast, Brightness, OSD Duration,

H-Position, V-Position, Language,

Picture Mode, Colour Temp, Scale,

Saturation, Backlight, Sleep Timer,

Sound, Memory Recall, 3D NR,

MPEG NR, PIP, POP

OSD LANGUAGE

English, French, German, Spanish,

Italian, Russian, Polish and

Portuguese

ACCESSORIES

Power Supply / Kettle Lead /VGA Cable /

Audio Cable / User Manual / Remote

Control

T: +44 (0)208 765 9624 | F: +44 (0)208 765 9628 | E: sales@vigilantvision.com | W: www.vigilantvision.com
