VigilLink VLVW-MX29P Manuale utente

VLVW-MX29P

2X9 HDMI 2.0 Videowall processor 18Gbp

VER 1.02

Thank you for purchasing this product

Please read these instructions carefully for optimum performance and safety before connecting,

operating, or adjusting this product. Please keep this manual for future reference.

A surge protection device recommended

This product contains sensitive electrical components that electrical spikes may damage,

surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly

recommended to protect and extend the life of your equipment.

Table of Contents

1. Introduction.....................................................................................................................

2. Features...........................................................................................................................

3. Package Contents. ........................................................................................................

4. Specifications. ................................................................................................................

5. Operation Controls and Functions................................................................................

6. RS-232/LAN Control Connection...................................................................................

6.1. RS-232 Control Connection. ...................................................................................

6.2. Network Control Connection. ................................................................................

7. PC Tool User Guide.........................................................................................................

8. Safety Instructions. .........................................................................................................

9. Connection Diagram. ....................................................................................................

- 1 / 12 -

1. Introduction

This product is an HDMI 2.0 Video Wall controller with 2 HDMI inputs, 2 HDMI loop outputs,

and 9 HDMI scaling outputs for video wall processing. The Toslink jack terminal provides

analog L/R audio and digital SPDIF audio output. The 5-pin phoenix jacket provides balanced

L/R audio output. The product also supports the RS-232 bypass feature for the daisy chain

and cascade connection among different units.

2. Features

☆HDMI 2.0 and HDCP 2.2 compliant

☆Supports multi-resolution up to 3840x2160@60Hz video output for video wall

☆Supports Bezel Compensation with two modes

☆Supports 2 channels HDMI loop out

☆Supports PIP on a video wall

☆Supports 180º rotation

☆Supports RS-232 and TCP/IP control

☆Supports CEC control with displayers by PC Tool or commands

3. Package Contents

①1 x Ultra HD Video Wall Processor

②1 x AC Power Cord

③1 x 5-pin Phoenix Connector

④2 x 3-pin Phoenix Connector

⑤1× RS232 to Phoenix Cable

⑥1× Cat 6 cable

⑦1× USB to RS232 Cable

⑧1× User Manual

- 2 / 12 -

4. Specifications

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2/1.4

RS-232

Baud rate: 57600, Data bit: 8, Stop bit: 1, no parity

1024x768@60, 1280x800@60, 1280x1024@60,

1280x960@60, 1360x768@60, 1366x768@60,

1440x900@60, 1400x1050@60, 1600x900@60,

Input Video Formats

1600x1200@60, 1680x1050@60, 1920x1200@60,

480p@60, 576p@50, 720p@50, 720p@60, 1080i@50,

1080i@60, 1080p@24, 1080p@25, 1080p@30, 1080p@50

1080p@60, 3840x2160@24, 3840x2160@25,

3840x2160@30, 3840x2160@50, 3840x2160@60,

4096x2160@24, 4096x2160@30, 4096x2160@50,

4096x2160@60

Audio Format 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS

ESD Protection

Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Mechanical

Housing

Metal Enclosure

Color Black

Dimension 430mm (W)×220mm (D)×44mm (H)

Weight

5Kg

Supply Voltage

110-220V AC

Operating Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F

Relative Humidity

10%~50% RH (Non-Condensation)

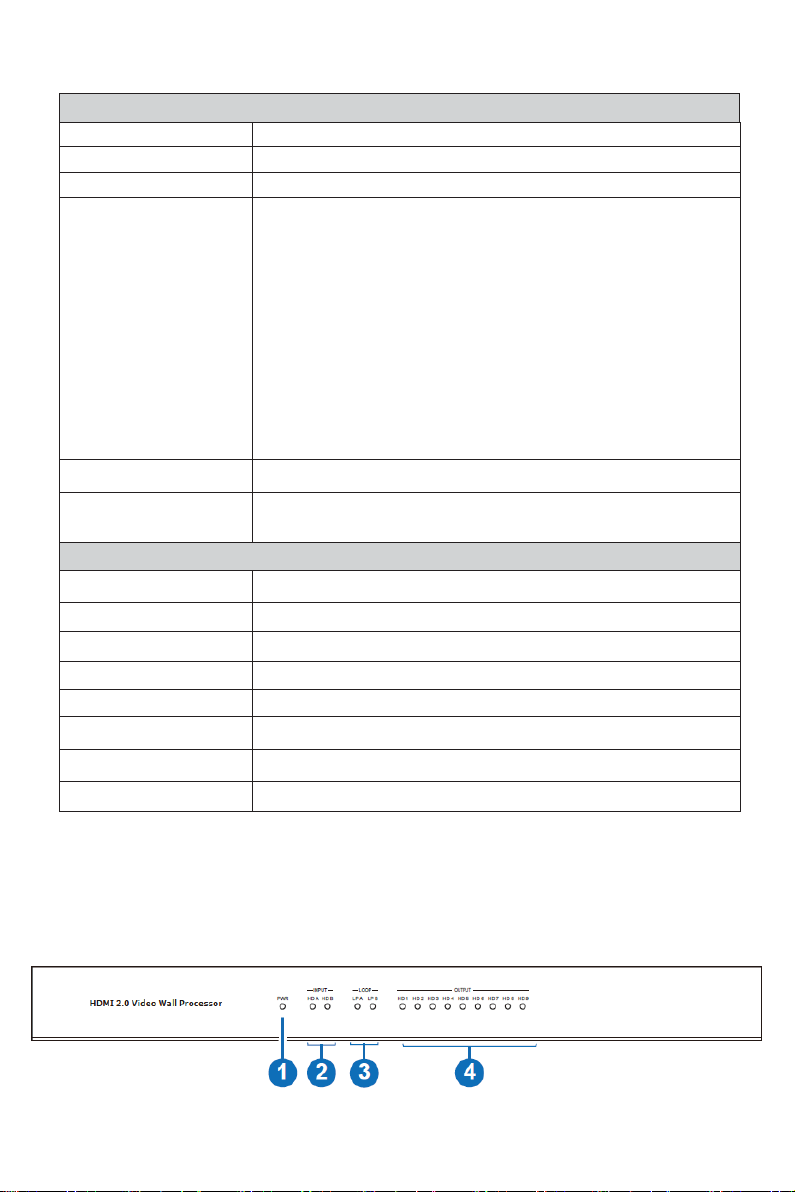

5. Operation Controls and Functions

Front Panel

- 3 / 12 -

No.

Name

Function Description

Power LED

The power LED will be on when the unit is powered on.

2INPUT LED The LED will be on when the corresponding HDMI input port is

connected to an active HDMI source device.

3LOOP LED

The LED will be on when the corresponding LOOP OUT port is

connected to the HDMI display device.

4OUTPUT LED

(1-9)

The LED will be on when the corresponding HDMI output port is

connected to the HDMI display device.

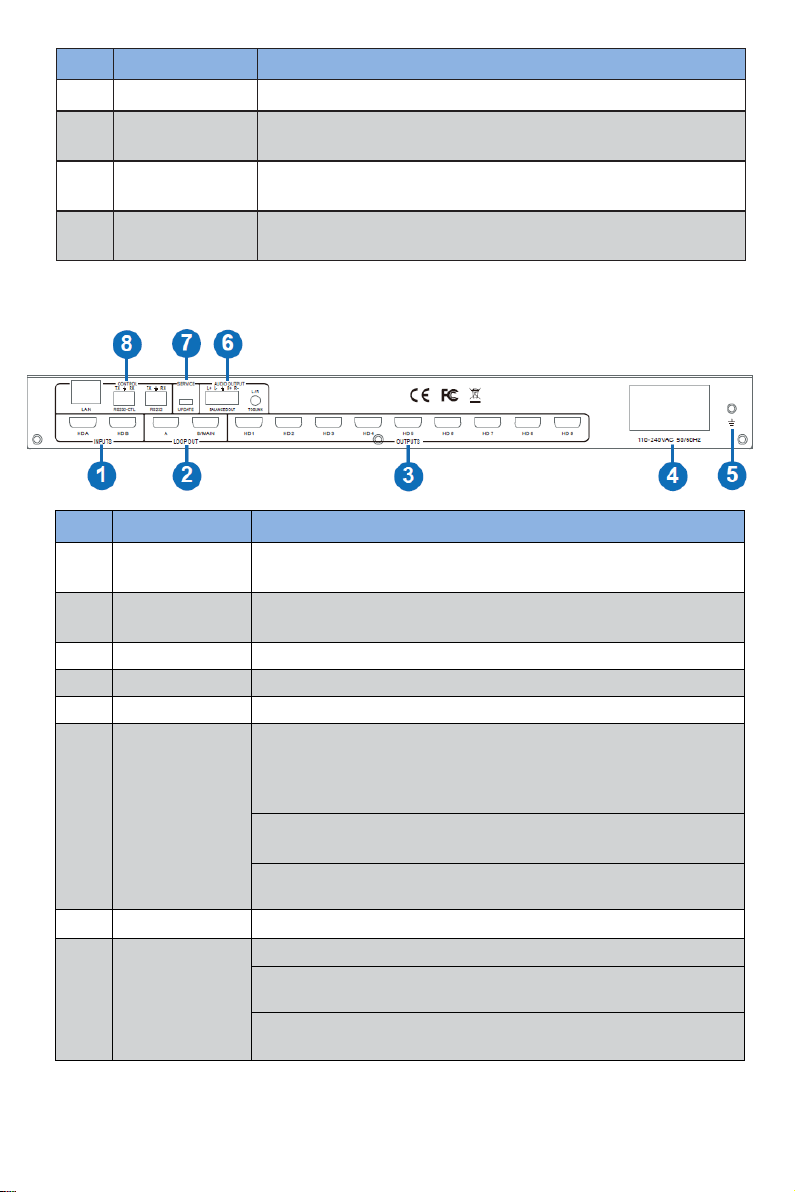

Rear Panel

No.

Name

Function Description

INPUTS HDMI signal input ports connect to HDMI source devices such

as DVD or PS4 with HDMI cable.

LOOP OUT

HDMI signal loops out ports. Loop out HDMI A/B signal

downstream. The RS-232 command can configure it.

OUTPUTS

HDMI signal scaling output for video wall.

110-240VAC

110-240V AC power input port.

GND

Ground the product housing.

AUDIO

OUTPUT

TOSLINK:

• Analog L/R audio output

3.5mm Stereo Jack. 20Hz ~ 20kHz, 1.5Vrms max

• Digital SPDIF audio output

BALANCED OUT: Balanced audio output port. 5-pin phoenix

connector, 20Hz ~ 20kHz, 1.5Vrms max.

BALANCED OUT: Balanced audio output port. 5-pin phoenix

connector, 20Hz ~ 20kHz, 1.5Vrms max.

SERVICE

Firmware update port.

CONTROL

RS232: Bypass RS232-CTL commands to the next unit.

RS232-CTL: External RS-232 control, Baud Rate: 57600

Data Bits:8, Parity: None Stop Bits:1

LAN: Network port for TCP/IP control. Connect to an active

Ethernet link with an RJ45 cable.

- 4 / 12 -

-pin Phoenix Connector

RS-232

RS-232 to USB cable

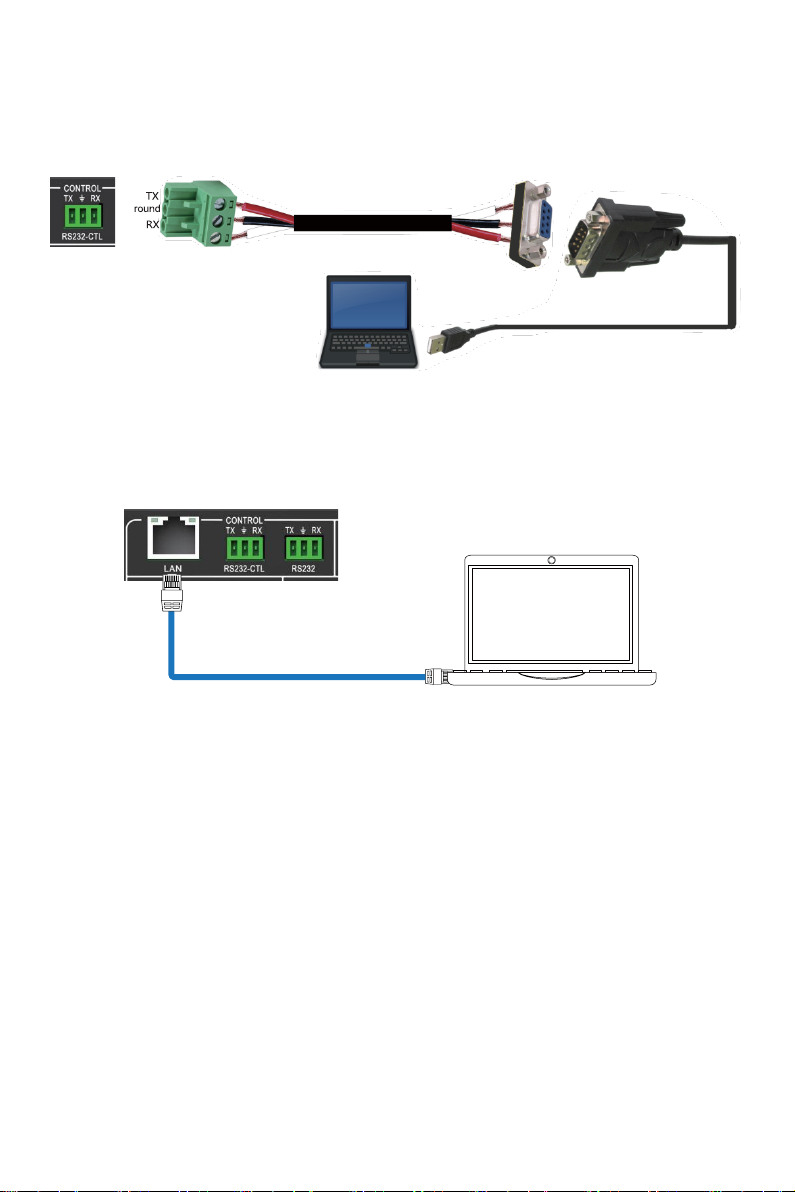

6. RS-232/LAN Control Connection

6.1 RS-232 Control Connection

The product supports RS-232 control. Connect the RS232-CTL port of the product to a PC via

a serial cable, as shown in the following figure:

6.2 Network Control Connection

The product also supports Network control. Connect the LAN port of the product to a PC via

a UTP cable, as shown in the following figure:

- 5 / 12 -

7. PC Tool User Guide

The PC tool is an installation-free control software that supports both UART and network

control. It consists of five parts: Matrix Switch, Signal Setting, FineTune: PQ, Video Wall,

and CEC Control. The UI is as follows:

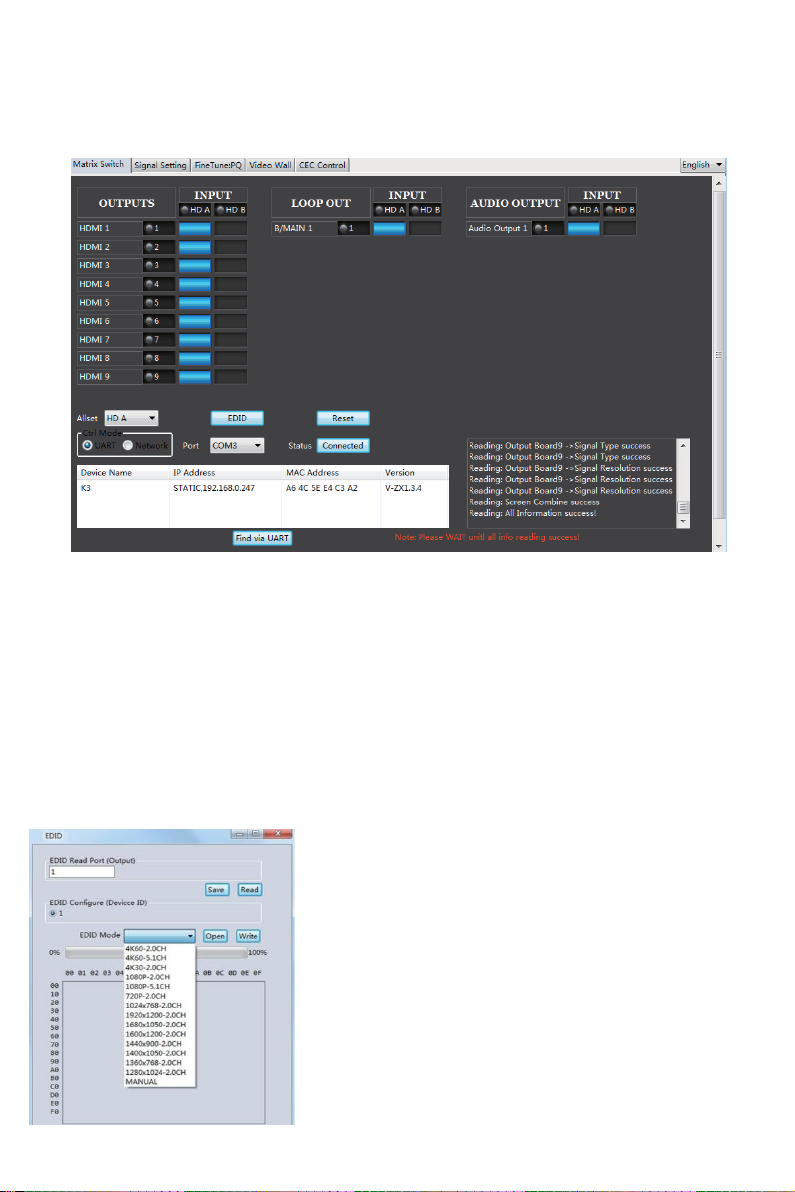

■Matrix Switch Page

1. You can select UART (with RS232 cable) or Network to connect the device; the

baud rate is57600 bps.

2. Select the input source for each scaling output port.

3. "AllSet" function: Select HD A or B input source to all the scaling output.

4. Select the input source for the B/MAIN output port.

5. Select an audio source for balanced audio output and Mini Toslink output.

6. Reset: The PC tool supports a reset system to recover factory configuration.

7. EDID Control: Click the "EDID" button on the Matrix Switch page, and there will be a

pop-upEDID control window.

a) Read each scaling output port downstream EDID and

save it as a BIN file.

b) Open an existing EDID file and write to the HDMI A

and B input port as Manual EDID.

c) Select predefined EDID and write to HDMI A and B

input ports.

- 6 / 12 -

The predefined EDID option is as below:

4K60-2.0CH

1920x1200-2.0CH

4K60-5.1CH

1680x1050-2.0CH

4K30-2.0CH

1600x1200-2.0CH

4K30-5.1CH

1440x900-2.0CH

1080P-2.0CH

1400x1050-2.0CH

1080P-5.1CH

1360x768-2.0CH

720P-2.0CH

1280x1024-2.0CH

1024x768-2.0CH

Manual

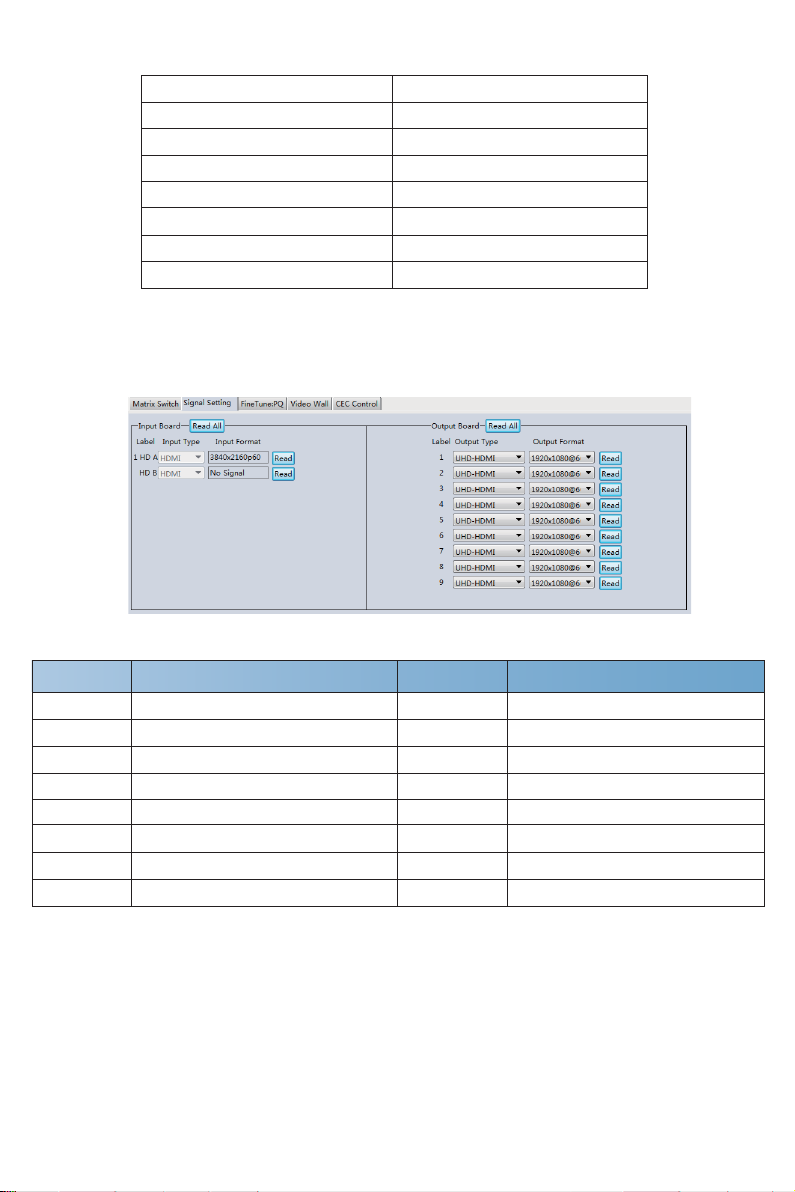

■Signal Setting Page

Users can read the resolution of each input port and set the resolution of each scaling output.

Available output resolutions:

No. Output Resolution Setting No. Output Resolution Setting

3840x2160p 60Hz

1440x1050 60Hz

3840x2160p 50Hz

1366x768 60Hz

3840x2160p 30Hz

1360x768 60Hz

3840x2160p 25Hz

1280x1024 60Hz

1920x1200 60Hz

1280x768 60Hz

1920x1080p 60Hz

1280x720p 60Hz

71920x1080p 50Hz 15

1280x720p 50Hz

1600x1200 60Hz

1024x768 60Hz

Note: 3840x2160 25/30Hz can only be used for standalone display, not video wall.

- 7 / 12 -

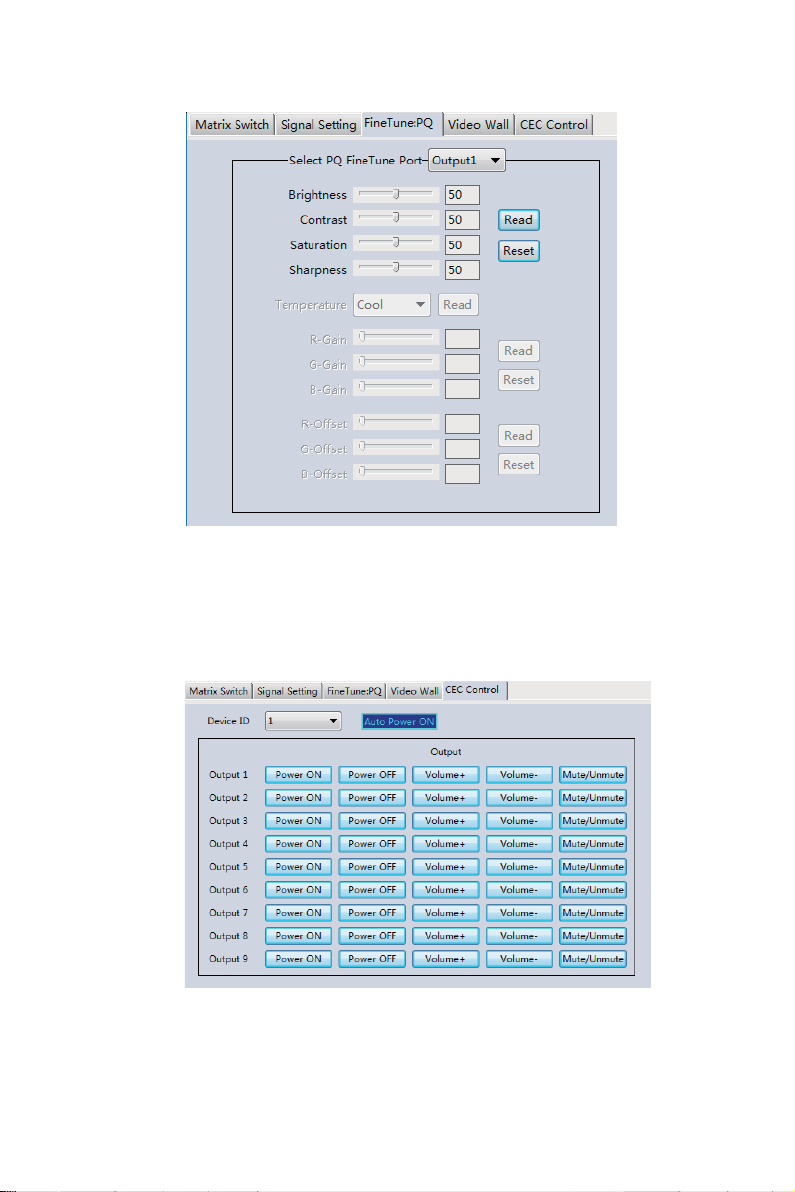

■FineTune: PQ Page

You can read and set each output's Brightness/Contrast/Saturation/Sharpness.

Note: Suggest always use the default setting 50/50/50/50. Do not change the default

settings without special conditions; If there is a problem after changing, click "Reset" to

return to the factory settings.

■CEC Control Page

If Auto Power On is enabled, whenever the product is turned on, it will turn on all

displayers connected to it.

The product supports CEC functions, including Power on/off, Volume+/-, and Mute/Unmute.

- 8 / 12 -

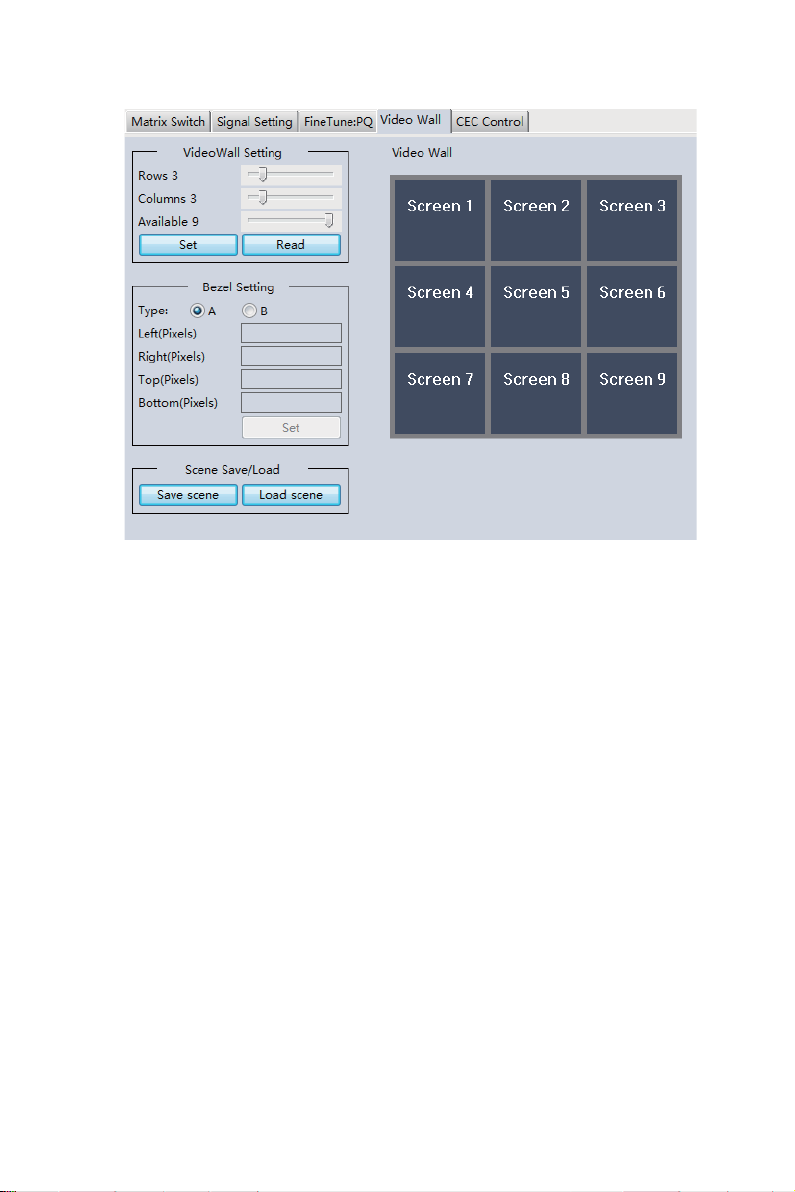

■Video Wall Page

This page is used to configure a group of outputs to function as a video wall.

1. Use the Video Wall Setting controls to change how the displays are arranged on the Video

Wall page:

a. Adjust the Rows and Columns sliders to change the displayed screen arrangement to

permit proper Drag-and-Select of the desired screens for the video wall.

b. Change the Available slider to set how many outputs will be used for the Video Wall.

c. Click the "Set" button to change the Screen configuration.

2. Use the left mouse button to drag-select the screens set for video wall mode.The

selected screens will be shown as bright blue.

3. Use the right mouse button to open a menu.

4. Select "Screen Stitching" from the menu to program the video wall mode. The

selectedscreens will now be shown as bright green.

5. To change the displayed image, use the methods detailed in the section Controllingthe

Matrix Switcher; right-click to open the pop-up menu and select the desired input from the

"Input Select" menu option.
