PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

Both models include

• Dimensioned to fit the majority of

similarly sized cooktop cutouts

• Sealed burners with brass flame ports

and porcelain/cast iron caps

• One-piece tooled top with large spill

collection area around burners

• Heavy-duty stainless steel control

knobs with childproof, push-to-turn

safety feature

4B model includes

• Four burners

o Left front—14,000 BTU high/2,000

BTU low

o Left rear—12,000 BTU high/1,700

BTU low

o Right rear—8,000 BTU high/1,200

BTU low

o Right front—6,000 BTU high/950

BTU low

5B model includes

• Six burners

o Left front—12,000 BTU high/1,700

BTU low

o Left rear—10,000 BTU high/1,500

BTU low

o Center—14,000 BTU high/2,000

BTU low

o Right rear—8,000 BTU high/1,200

BTU low

o Right front—6,000 BTU high/950

BTU low

FINISH DETAILS FOR BOTH MODELS

• Stainless Steel (SS), Black (BK), White

(WH), Graphite Gray (GG), Stone Gray

(SG), and Biscuit (BT).

o Finish designates top. Black porcelain

grates, porcelain burner caps, and

knob grips.

• White (WH)

o Finish designates top. Gray porcelain

grates, porcelain burner caps, and

knob grips.

• Brass Trim Option (BR)—knobs. Brass

components have a durable protective

coating for maintenance-free normal

use.

Standard Features & Accessories

Model Options

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

DGSU100-4B

30”W. Four-Burner Cooktop

DGSU160-5B

36”W. Five-Burner Cooktop

ORDERING INSTRUCTIONS

First specify model number, and then color code (DGSU100-4BSS). If ordering optional brass trim, specify code at end (DGSU100-4BSSBR).

If ordering optional LP conversion, specify code at end (

DGSU100-4B

SSBRLP).

21”

(53.3 cm)

30-3/4 ”

(78.1cm)

30-3/4 ”

(78.1cm)

4-3/8”

(11.1 cm)

4-3/8”

(11.1 cm)

21”

(53.3)

36-3/4 ”

(93.3 cm)

36-3/4 ”

(93.3 cm)

4-3/8”

( 11.1 cm)

4-3/8”

( 11.1 cm)

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

✪

Please see Notes

Accessories

for important

installation

information,

including conversion

kits.

DGSU100-4B DGSU160-5B

Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm)

Overall height (top of grate to bottom) 4-3/8" (11.1 cm)

Overall depth (from rear) 21” (53.3 cm)

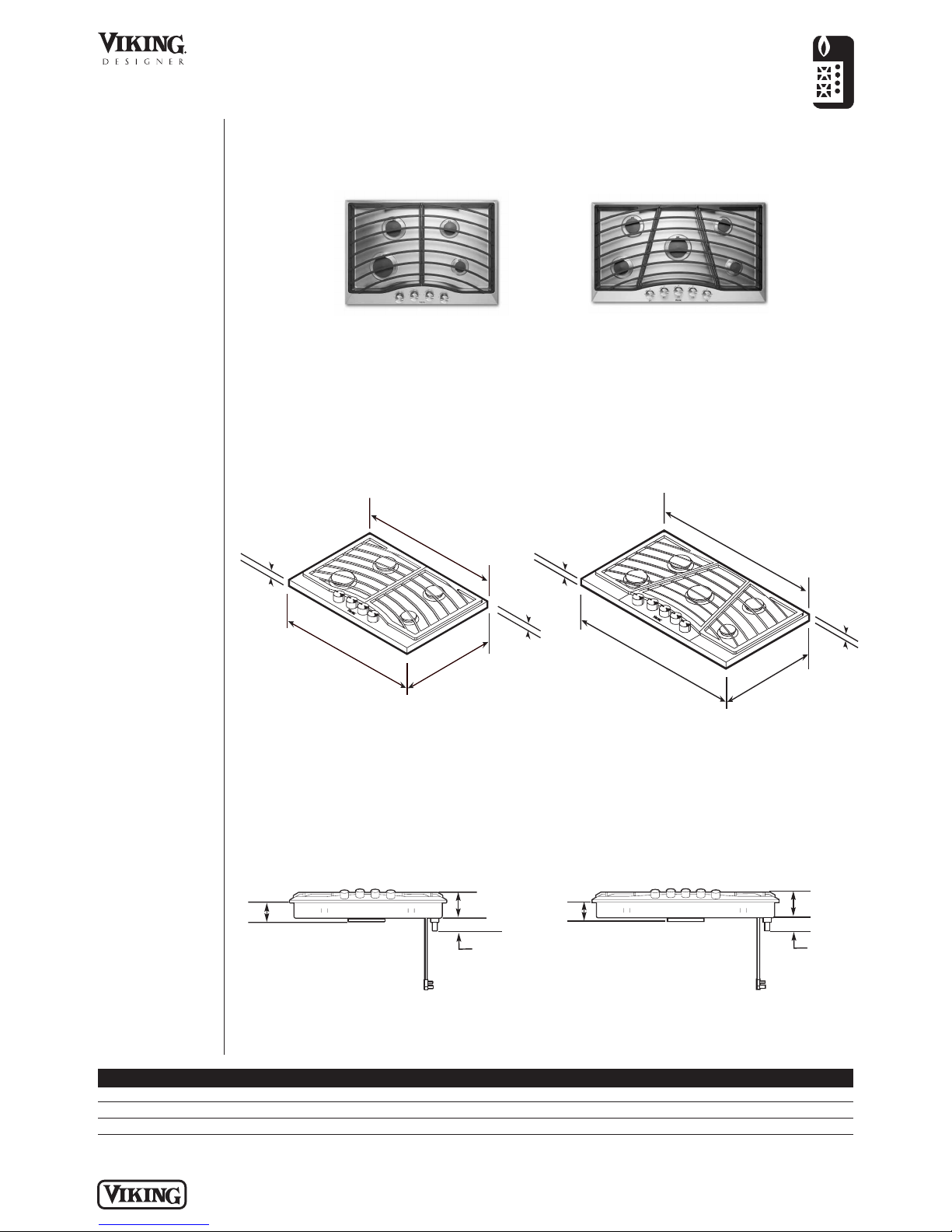

Dimensions & Specifications

OVERALL PRODUCT DIMENSIONS

DGSU100-4B

30”W. Four-Burner

Cooktop

DGSU160-5B

36"W. Five-Burner

Cooktop

30”W. Models 36”W. Models

3-1/8”

(7.9 cm)

3-1/8”

(7.9 cm)

4-3/8”

(11.1 cm)

1-3/4”

(4.5 cm)

4-3/8”

(11.1 cm)

1-3/4”

(4.5 cm)

FRONT VIEW FRONT VIEW

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

2-1/2”

(6.4 cm)

36”min.

(91.4 cm)

3-1/8”

(7.9 cm)

36”min.

(91.4 cm)

18”min.

(45.7 cm)

13”max.

(33.0 cm)

8”min.

(20.3 cm)

Minimum clearances from adjacent

combustible construction

• Sides—8” (20.3 cm)

• Rear—2-1/2” (6.4 cm) min.

• Within 8” (20.3 cm) side clearance; wall

cabinets no deeper than 13” (33.0 cm)

• Must be minimum 18” (45.7 cm) above

countertop

• Wall cabinets directly above cooktop

must be minimum 36” (91.4cm) above

the countertop.

1.The cooktop may be installed directly

to existing base cabinets.

2.The cooktop cannot be installed

directly adjacent to sidewalls, tall

cabinets, tall appliances, or other side

vertical surfaces above 36” (91.4 cm)

high. There must be a minimum of 8”

(20.3 cm) side clearance from the

cooktop to such combustible surfaces

above the 36” (91.4 cm) counter height.

3.Within the 8” (20.3 cm) side clearance

to combustible vertical surfaces above

36” (91.4 cm), the maximum wall

cabinet depth must be 13” (33.0 cm)

and wall cabinets within this 8” (20.3

cm) side clearance must be 18” (45.7

cm) above the 36” (91.4 cm) high

countertop.

4.Wall cabinet above the cooktop must

be a minimum of 36” (91.4 cm) above

the countertop for a full width of the

cooktop. This minimum height

requirement does not apply if a

rangehood is installed over the

cooking surface.

5.A 120-volt wall receptacle should be

located approximately 6” (15.2 cm)

below the countertop cutout and 12”

(30.5 cm) from the right side of the

cutout.

The bottom of the hood should be 30”

(76.2 cm) min. to 36” (91.4 cm) above

the countertop. This would typically

result in the bottom of the hood being

66”(167.6 cm) to 72” (182.9 cm) above

the floor. Refer to the rangehood

installation instructions for further

information.

Warning

The use of cabinets for storage above

the appliance may result in a potential

burn hazard. If a cabinet storage is to be

provided the risk can be reduced by

installing a rangehood that projects

horizontally a minimum of 5" (12.7 cm)

beyond the bottom of the cabinets.

Dimensions & Specifications

CLEARANCE DIMENSIONS

Cutout opening

29-1/8”

(73.9 cm) min.

29-7/8”

(75.9 cm) max.

29-1/8”

(73.9 cm)

27”

(68.6 cm)

1-1/16”

(2.7 cm)

1-1/16”

(2.7 cm)

2-1/4”

(5.7 cm)

20-1/8”

(51.1 cm)

max.

19-3/4”

(50.2 cm)

min.

20-5/8”

(52.4 cm)

Cutout opening

20-1/8”

(51.1 cm)

max.

19-3/4”

(50.2 cm)

min.

34-7/8”

(88.6 cm) min.

35-7/8”

(91.1 cm) max.

34-7/8”

(88.6 cm)

33”

(83.8 cm))

15/16”

(2.4 cm)

15/16”

(2.4 cm)

2-1/4”

(5.7 cm)

20-5/8”

(52.4 cm)

DGSU100-4B DGSU160-5B

Cutout width 29-1/8” (74.0 cm) min. to 29-7/8” (75.9 cm) max. 34-7/8” (88.6 cm) min. to 35-7/8” (91.1 cm) max.

Cutout height 3-1/8” (7.9 cm) min.*

Cutout depth 19-3/4” (50.2 cm) min. to 20-1/8” (51.1cm) max.

Surface burner rating

Left front 14,000 BTU Nat. (4.1 kW)/13,500 BTU LP (4.0 kW) 12,000 BTU Nat. (3.5 kW)/11,500 BTU LP (2.8 kW)

Left rear 12,000 BTU Nat. (3.5 kW)/11,500 BTU LP (2.8 kW) 10,000 BTU Nat./LP (2.9 kW)

Right rear 8,000 BTU Nat./LP (2.1 kW)

Right front 6,000 BTU Nat./LP (1.8 kW)

Center 14,000 BTU Nat. (4.1 kW)/13,500 BTU LP (4.0 kW)

*Top of grate support should be 3/8” (1.0 cm) above countertop.

**There must be a 1” (2.5 cm) clearance under counter on all 4 sides of the cooktop.

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

UTILITY

REQUIREMENTS

GAS

• Shipped natural gas

standard; to field

convert from natural

or LP/Propane, the

orifice spuds and

regulator must be

physically changed.

o Order conversion

kit DLPK to convert

LP/propane. Highly

recommend

ordering Nat. or LP

models.

• Accepts standard

residential 1/2”

(1.3 cm) ID gas

service line

• Gas manifold

pressure

o Natural gas 5.0”

W.C.P.

o LP/propane 10.0”

W.C.P.

ELECTRICAL

• 4-foot (121.9 cm)

cord included with

cooktop

• 3-wire with

ground/3-prong plug

• 120 V/60 Hz

• Maximum amp

usage—2.0

PLUMBING

Not applicable

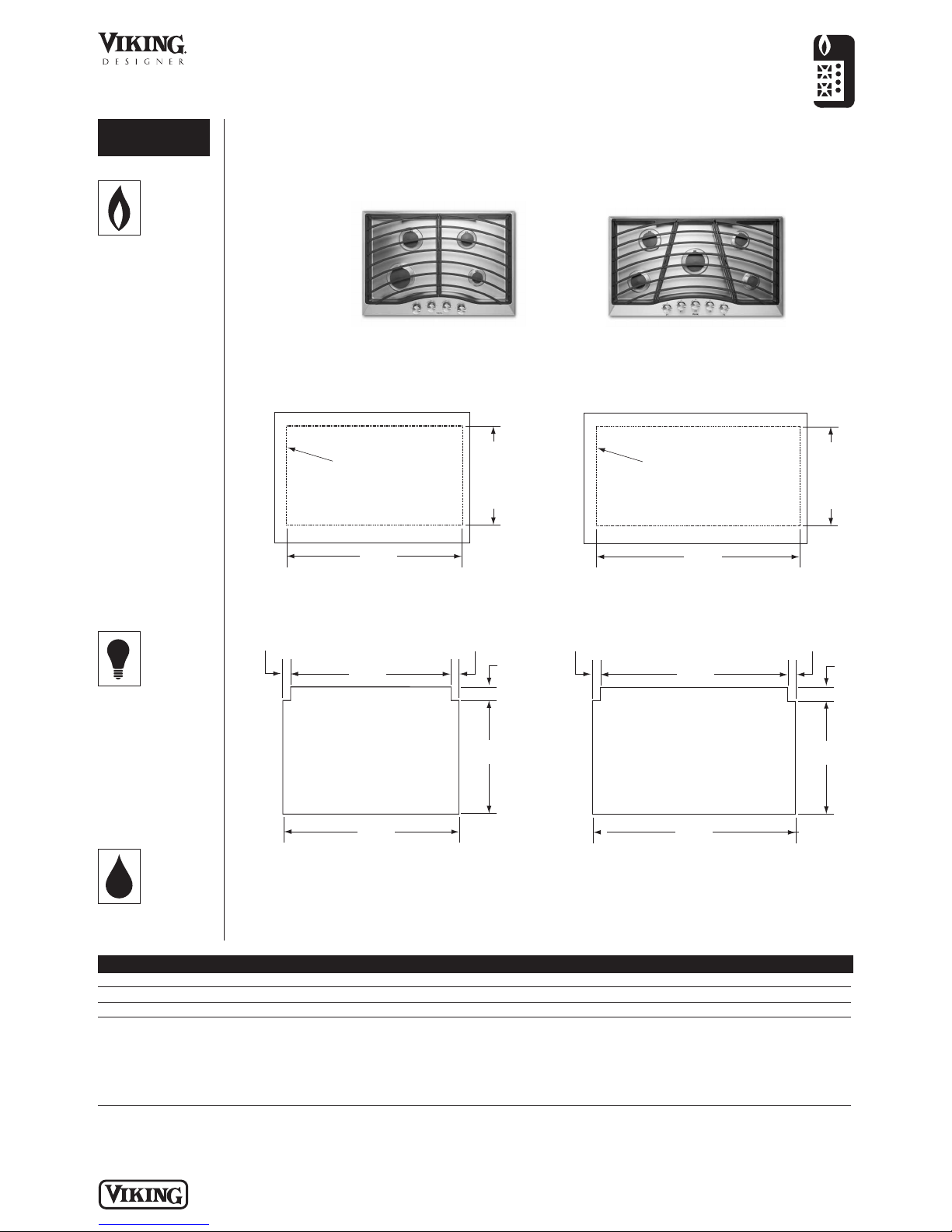

Installation Requirements

ACCESS REQUIREMENTS

DGSU100-4B

30”W. Four-Burner

Cooktop

DGSU160-5B

36"W. Five-Burner

Cooktop

30”W. Cutout 36”W. Cutout

30”W. Cutout w/Downdraft 36”W. Cutout w/Downdraft

Conversion Kits

• For field conversion between gas fuel types

• Kit includes all hardware necessary to convert a 30”W. or 36”W. DGSU cooktop

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Five-year limited warranty—surface burners

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see

Use & Care Guide

. Warranty valid on Viking products shipped within the United States and Canada.

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

✪ Installation Notes & Accessories

Model Description Approx. ship wt. lbs. (kg)

DLPK Natural to LP/Propane conversion kit 2 (0.9)
